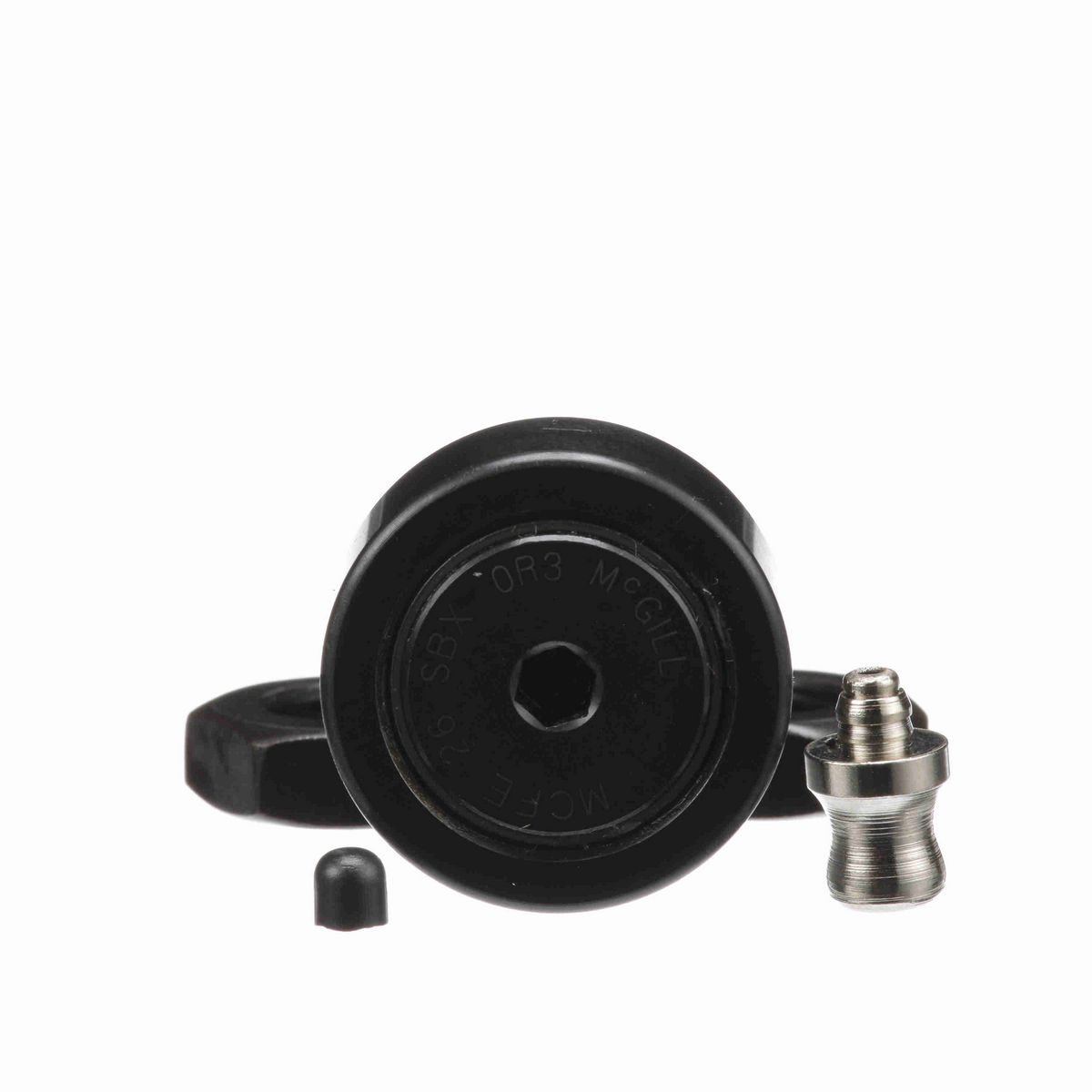

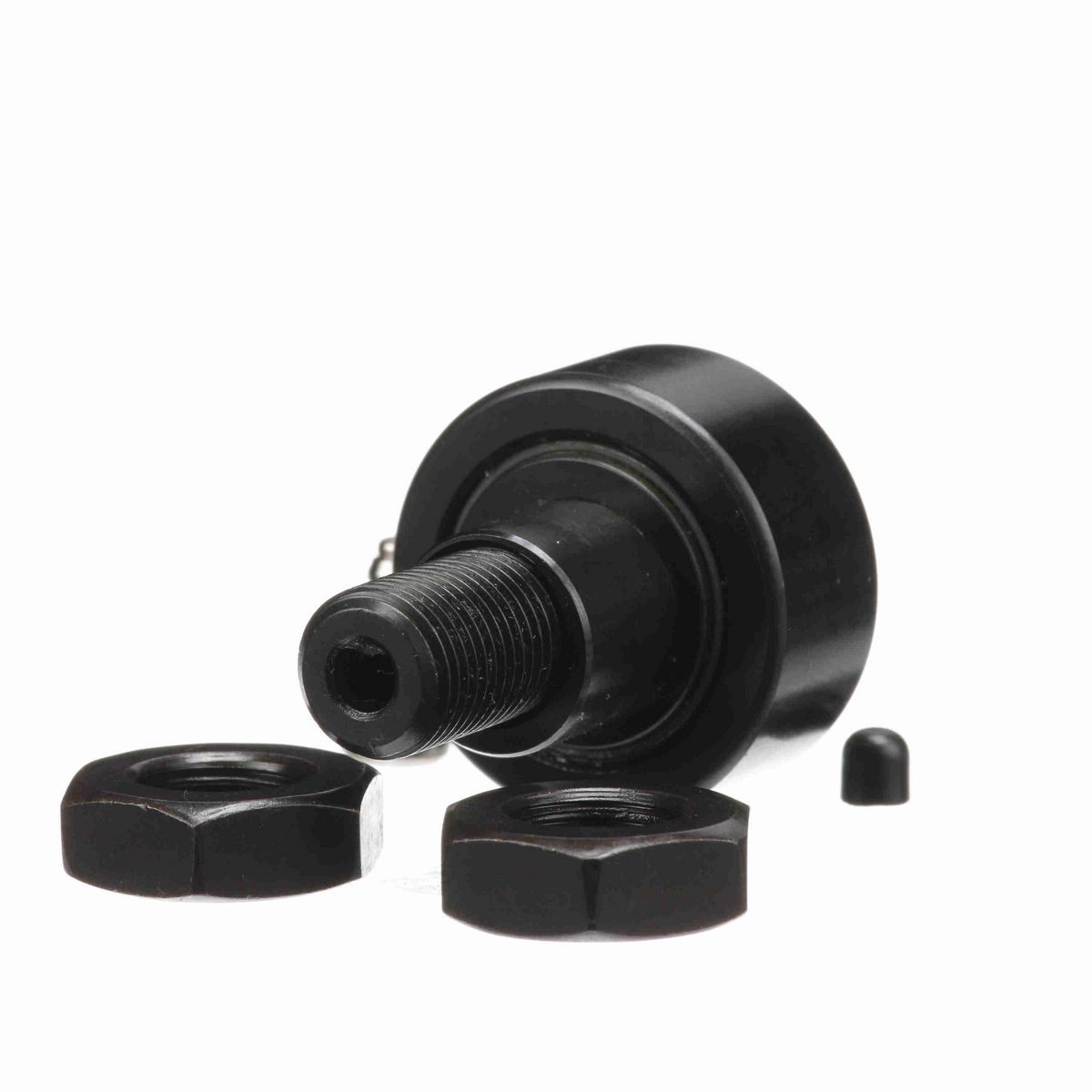

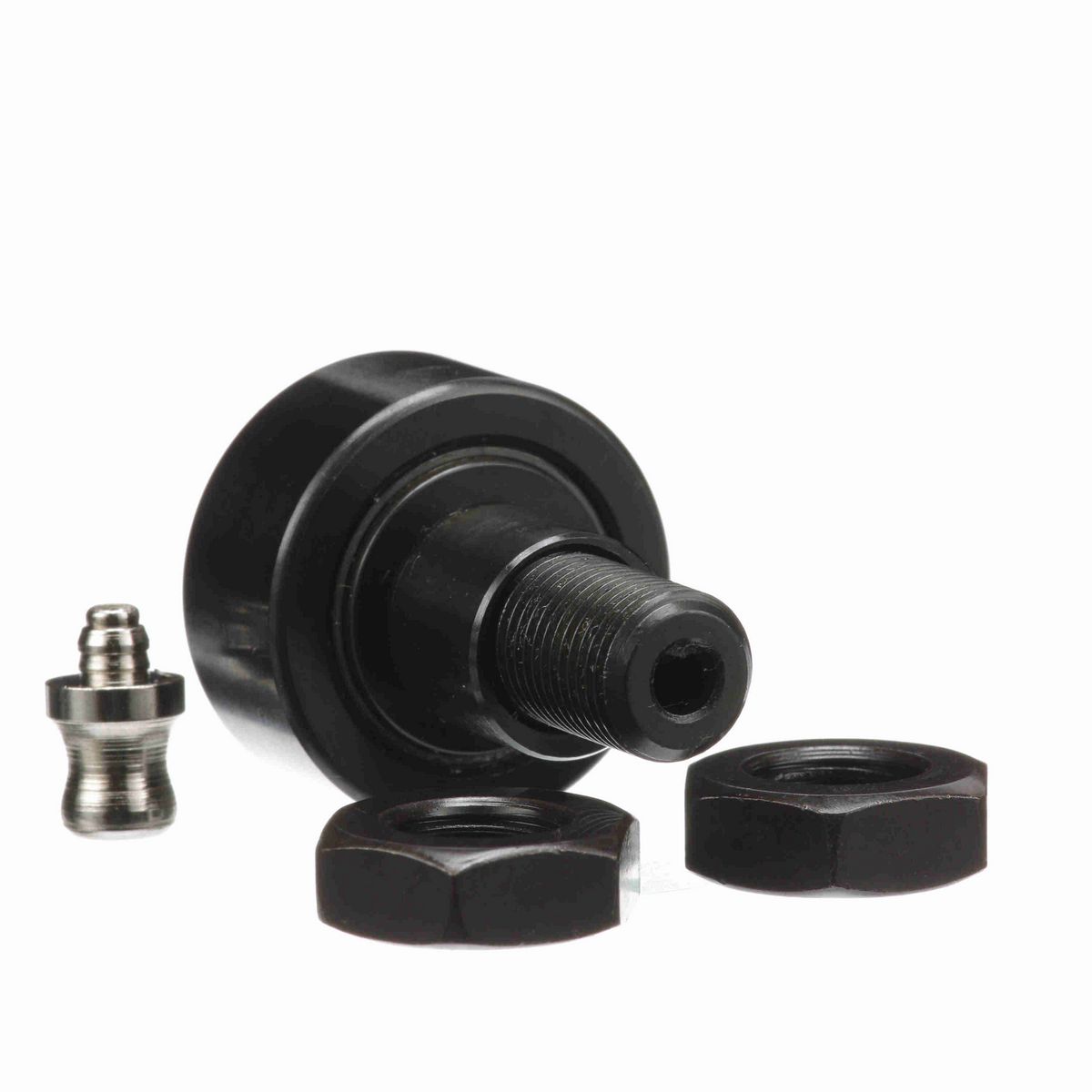

• Metric stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric bushing configuration
• Jam nuts and lube fitting included

Dimensions

Threads	M10x1
Roller Diameter (mm)	26 mm
Bushing Diameter (mm)	13 mm
Minimum Thread Length (in)	12 in
Roller Width (mm)	12 mm
Eccentricity (mm)	0.5 mm
Lubrication Fitting Size (mm)	4 mm
Stud Diameter (mm)	10 mm
Reamed Hole (mm)	4 mm
Hex Socket (mm)	4 mm
Stud Length (mm)	23 mm
Overall Length (mm)	36 mm
Bushing Length (mm)	10 mm
Weight (kg)	0.09 kg

Technical Specifications

Adjustment	Eccentric Bushing
Limiting Speed	9,000
Hex/Slot	Hex Hole
Dynamic Track Roller Load Rating (N)	7,850 N
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Series	Metric CAMROL®
Dynamic Radial Rating	1,765
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Static Track Roller Load Rating	10,400
Platform	CAMROL®
Static Load Rating	10,400
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Industry Standard	DIN
Ability to Relubricate	Yes
Clamping Torque (Nm)	15 N·m
Dynamic Load Rating (N)	9,410 N

General Specifications

UPC	726166017699
Weight	0.19 LB
Packaged Length	1.30 IN
Packaged Width	1.20 IN
Packaged Height	1.60 IN
Country of Origin	China
