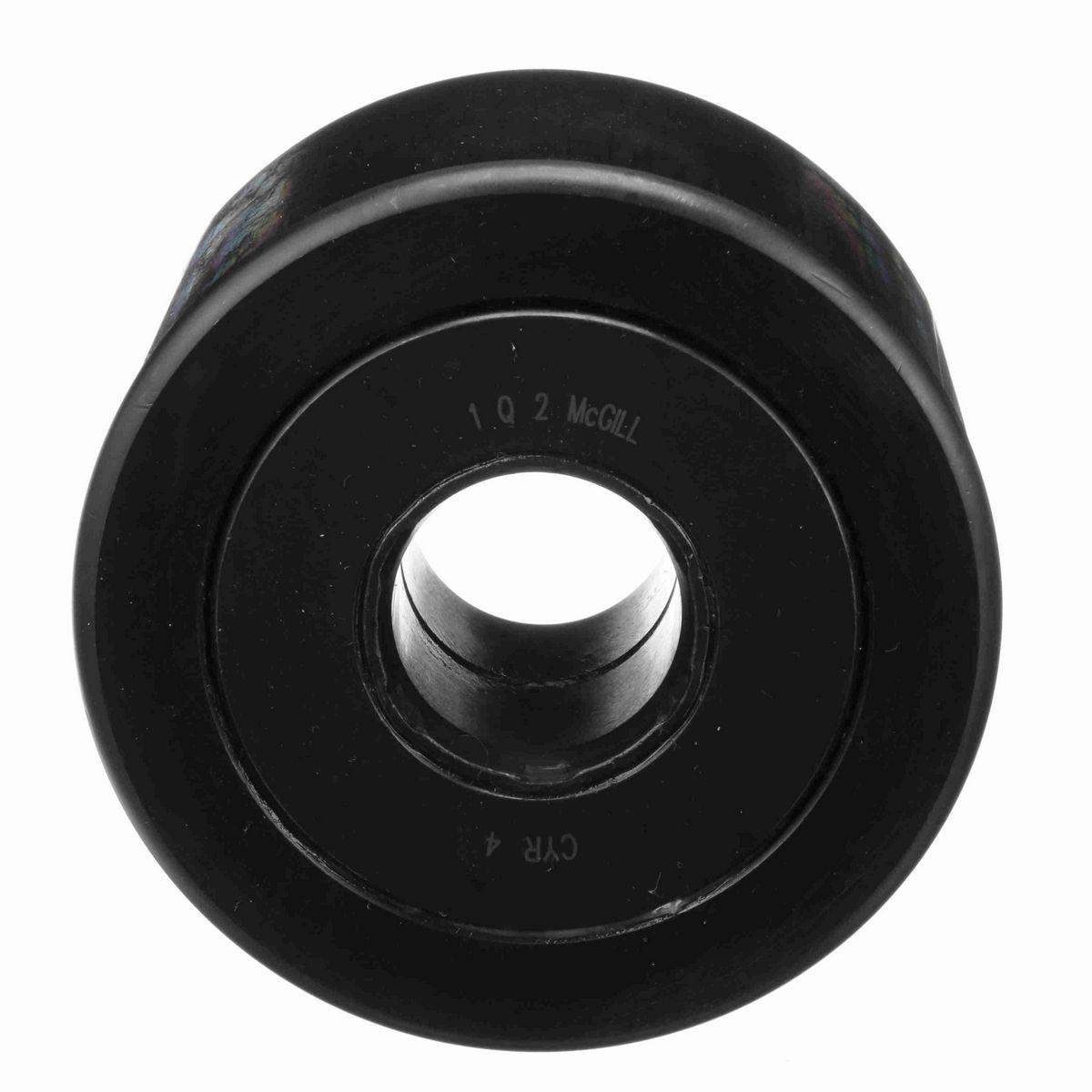

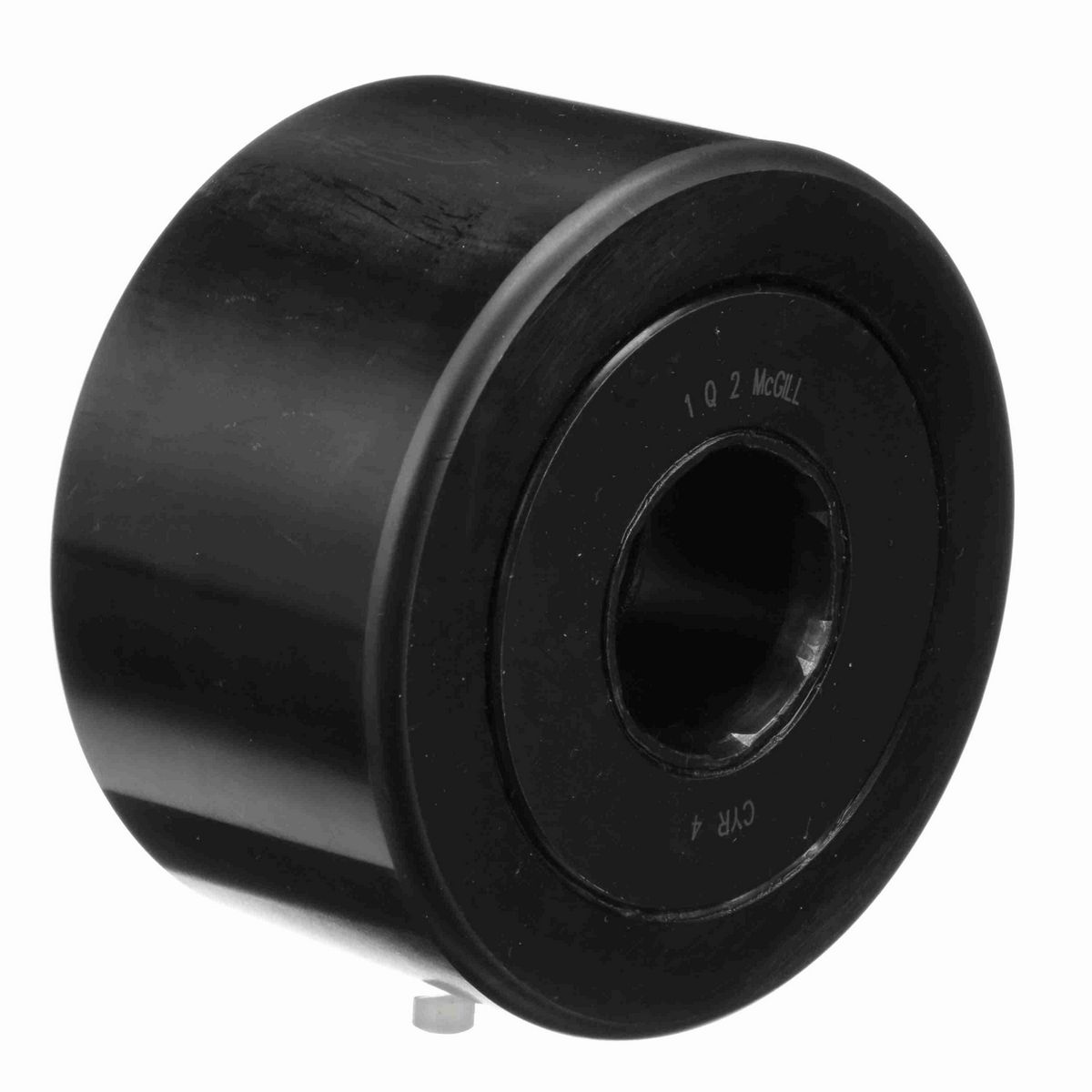

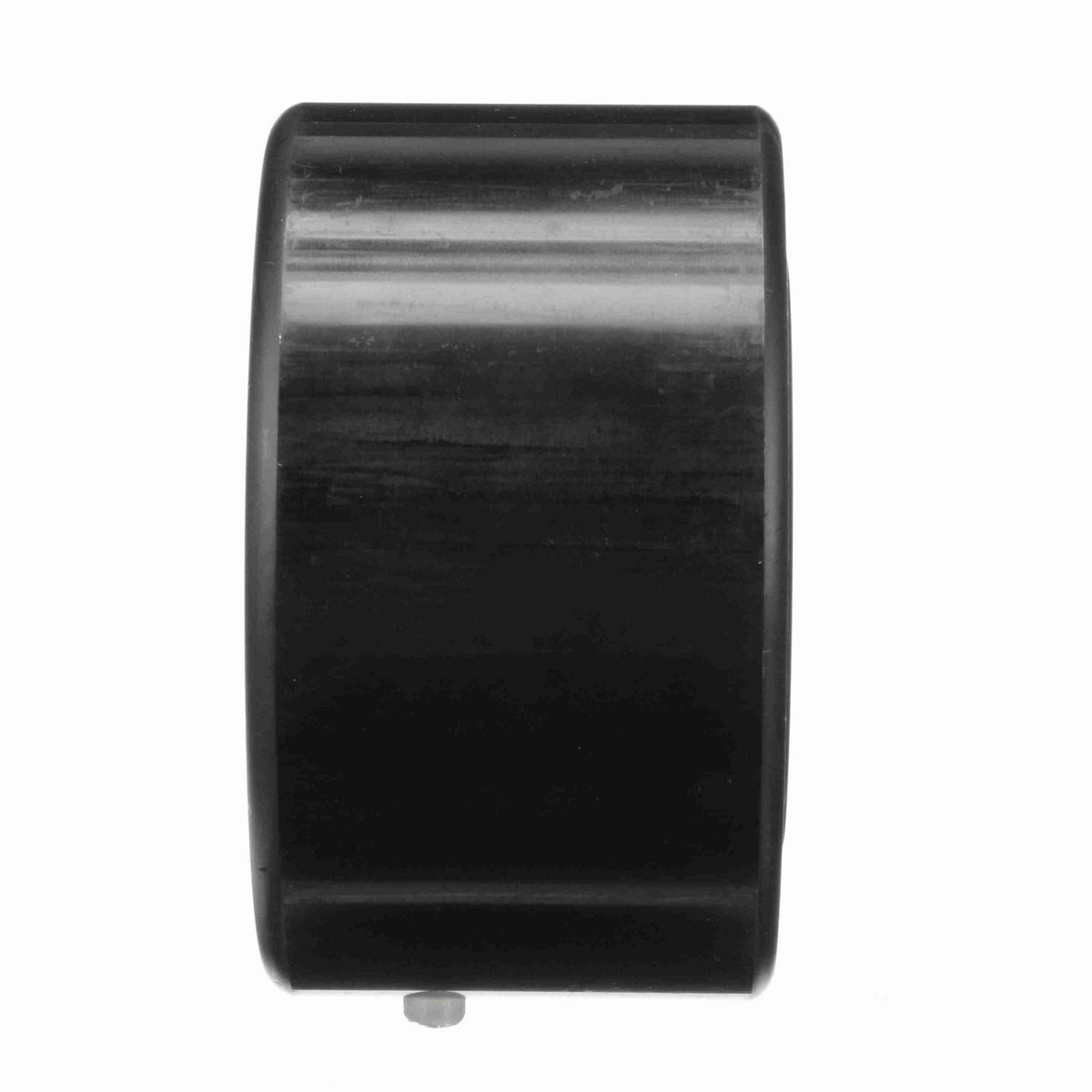

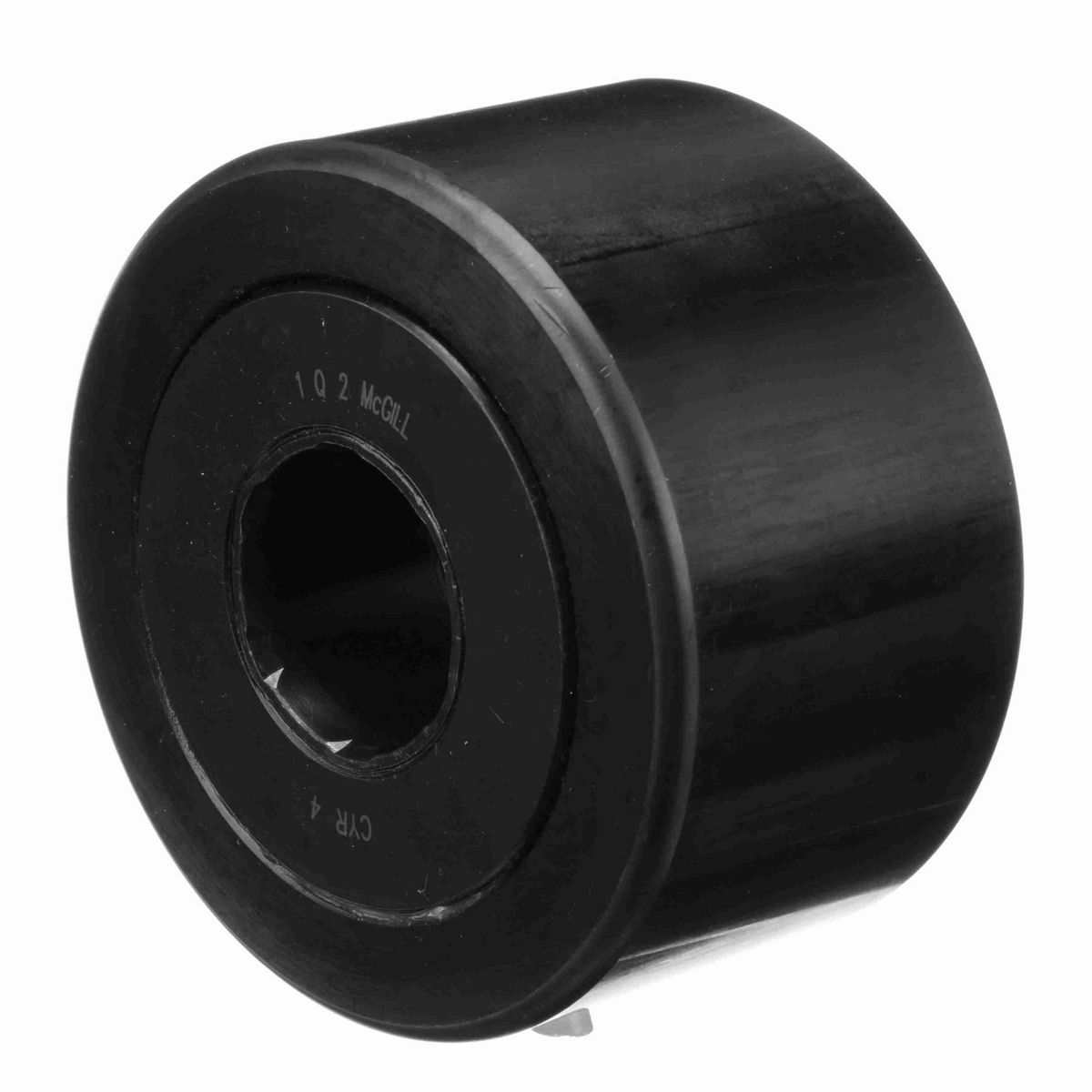

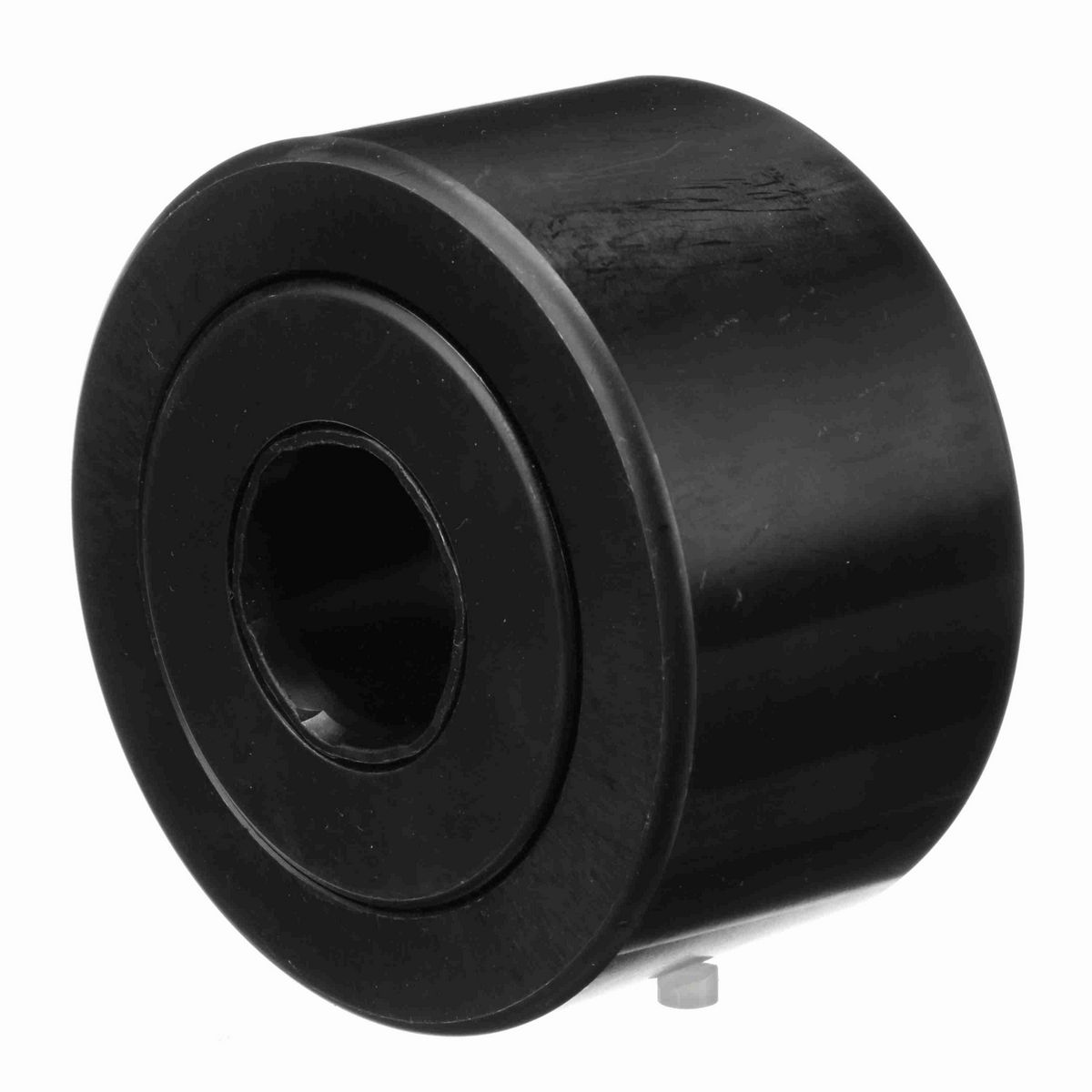

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements

Dimensions

Bore Diameter (in)	1.25 in
Roller Diameter (in)	4 in
Minimum Boss Diameter (in)	2.281 in
Oil Hole Diameter (in)	0.125 in
Overall Width (in)	2.3125 in
Endplate Diameter (in)	2.8 in
Roller Width (in)	2.25 in
Weight (kg)	3.21 kg

Technical Specifications

Series	Inch CAMROL®
Sealing	Unsealed
Limiting Speed	700
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	29,985 lb
Platform	CAMROL®
Roller Shape	Cylindrical
Static Load Rating	89,540
Tolerance Class	P0
Roller Material	Chrome Steel
Lubrication Hole Location	Inner Ring
Adjustment	None
Enclosure	Open
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166058203
Weight	7.08 LB
Packaged Length	4.06 IN
Packaged Width	2.50 IN
Packaged Height	4.15 IN
HTC	8482.40.0000
Country of Origin	Mexico
