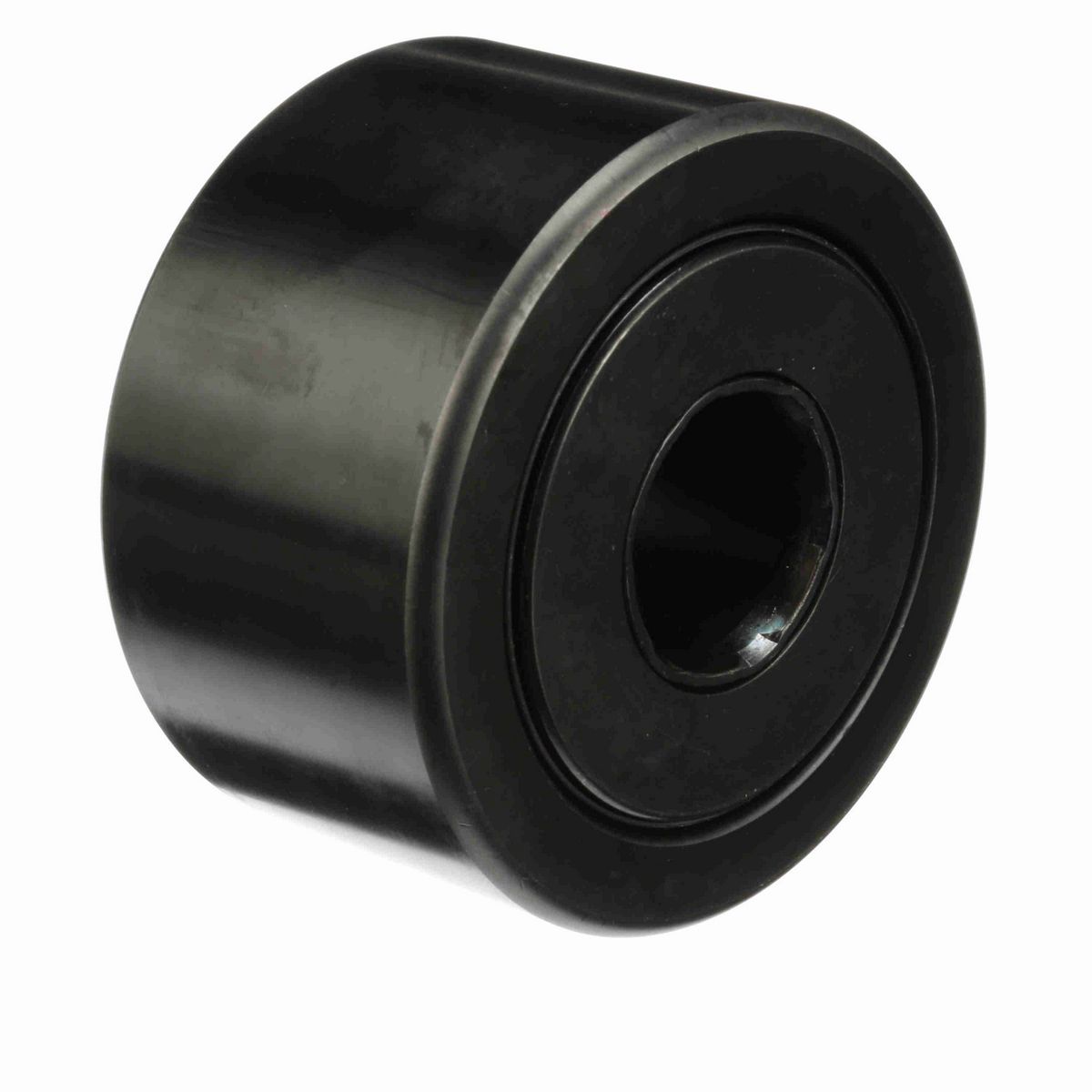

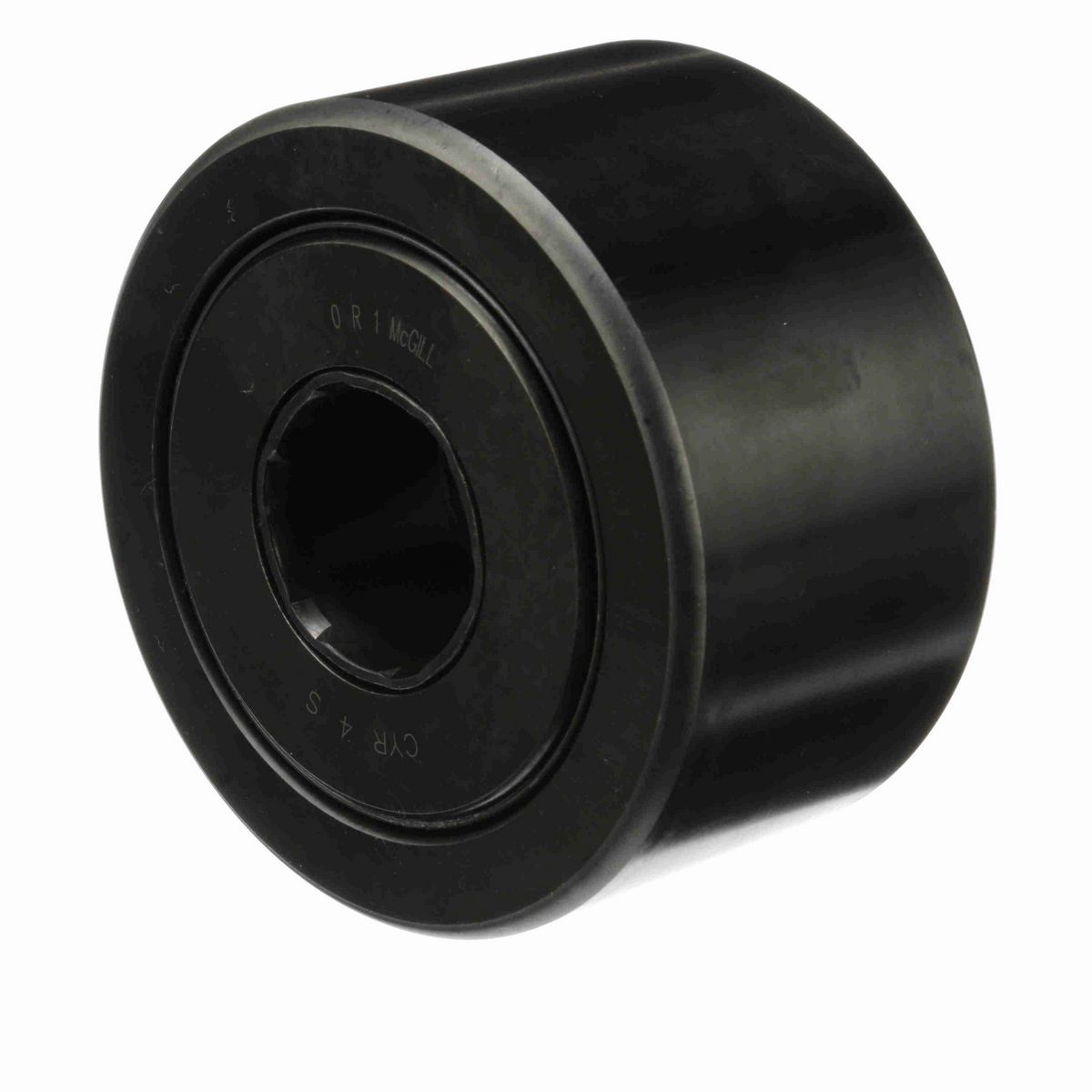

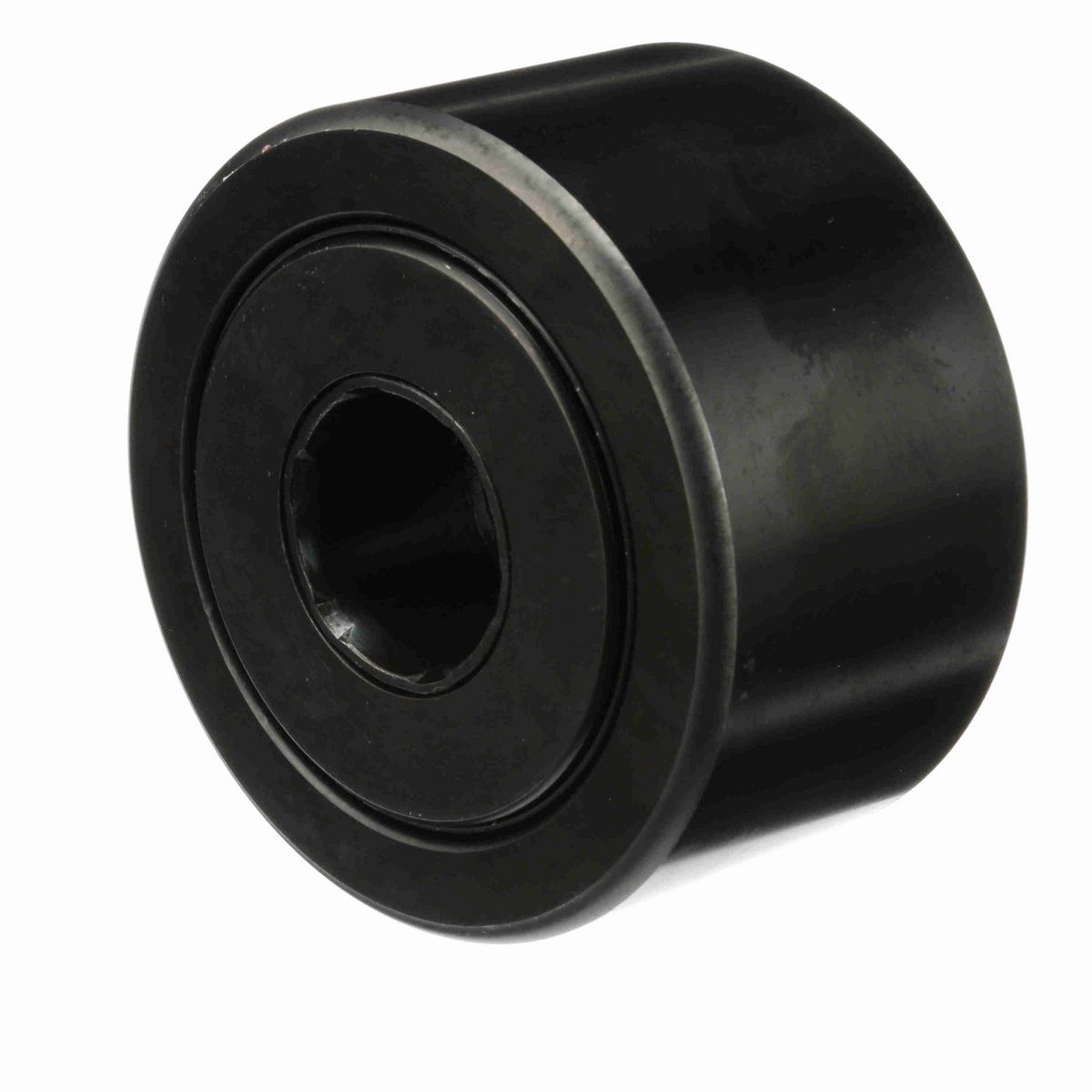

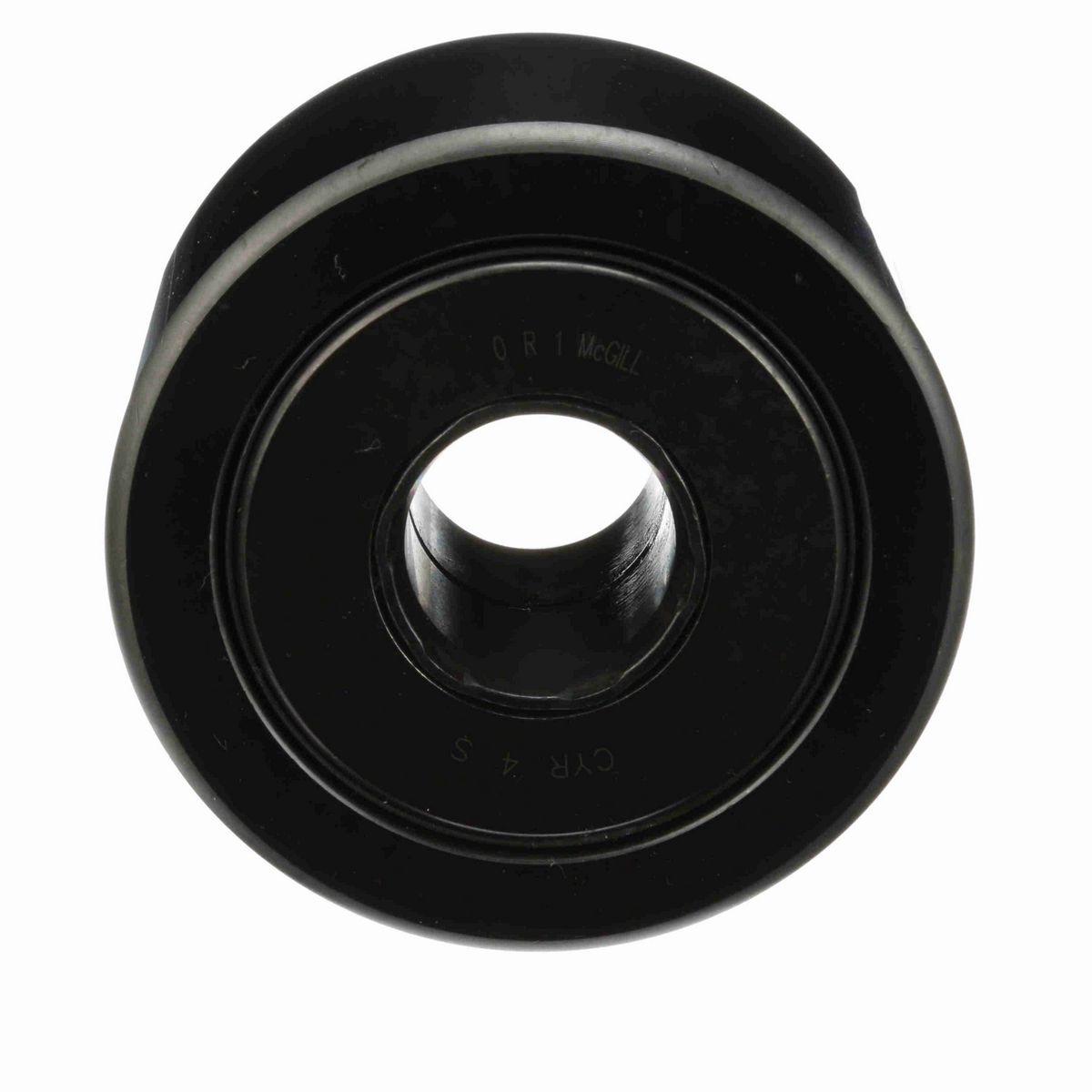

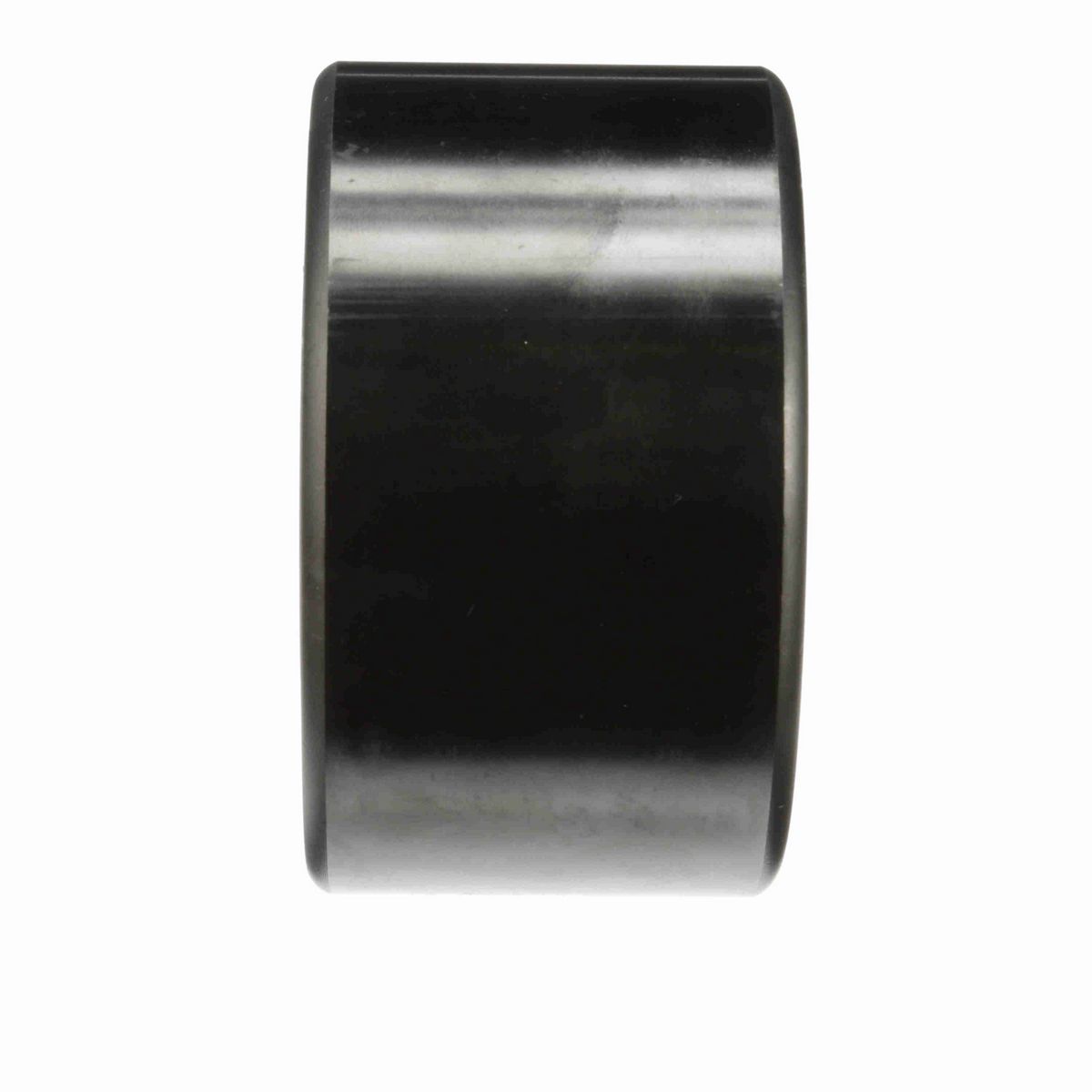

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Roller Diameter (in)	4 in
Bore Diameter (in)	1.25 in
Overall Width (in)	2.3125 in
Oil Hole Diameter (in)	0.125 in
Minimum Boss Diameter (in)	2.281 in
Endplate Diameter (in)	2.8 in
Roller Width (in)	2.25 in
Weight (kg)	3.1 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Sealing	Sealed
Limiting Speed	700
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	89,540
Platform	CAMROL®
Dynamic Load Rating (lb)	29,986 lb
Tolerance Class	P0
Roller Shape	Cylindrical
Lubrication Hole Location	Inner Ring
Roller Material	Chrome Steel
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166058210
Weight	6.84 LB
Packaged Length	4.06 IN
Packaged Width	2.50 IN
Packaged Height	4.15 IN
HTC	8482.40.0000
Country of Origin	Mexico
