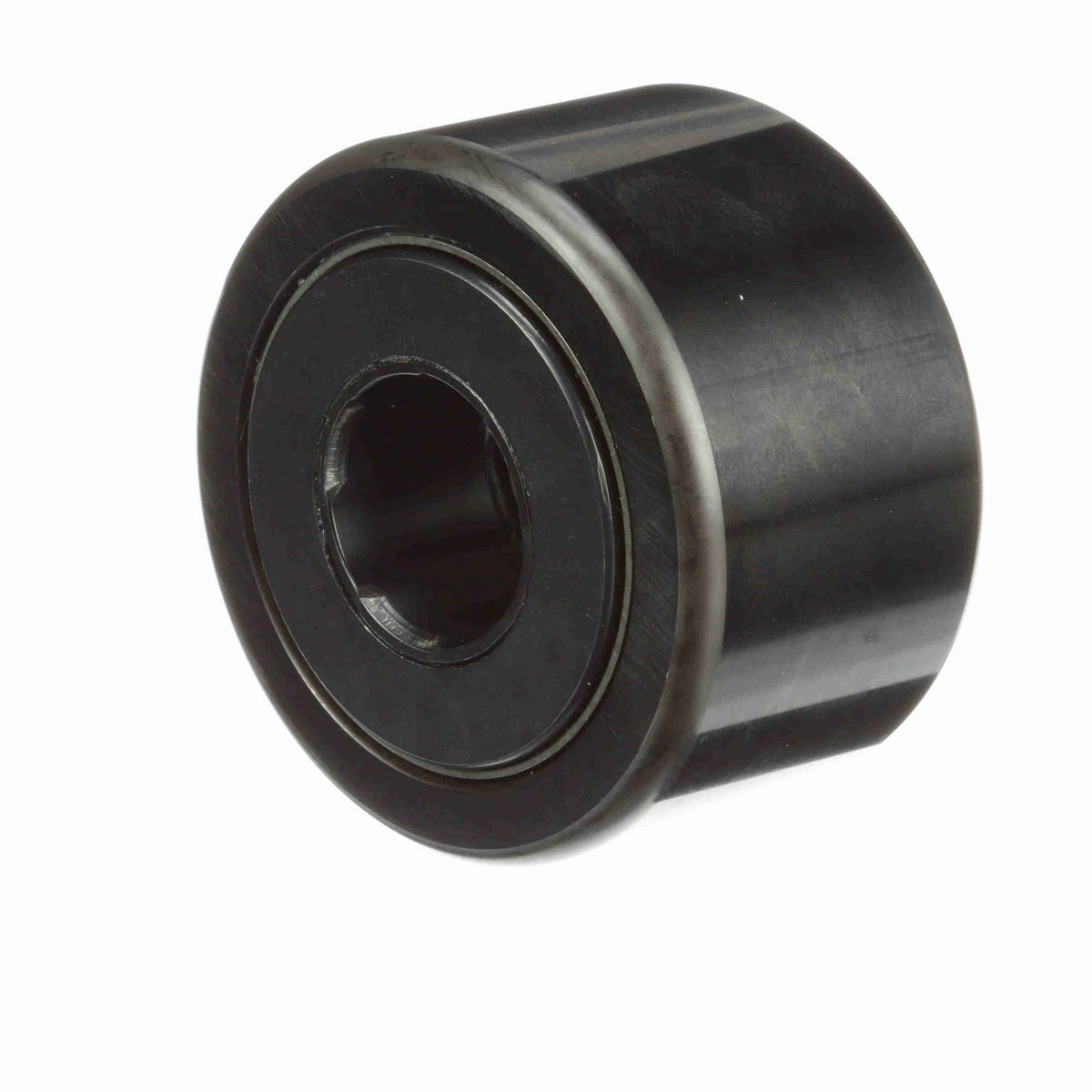

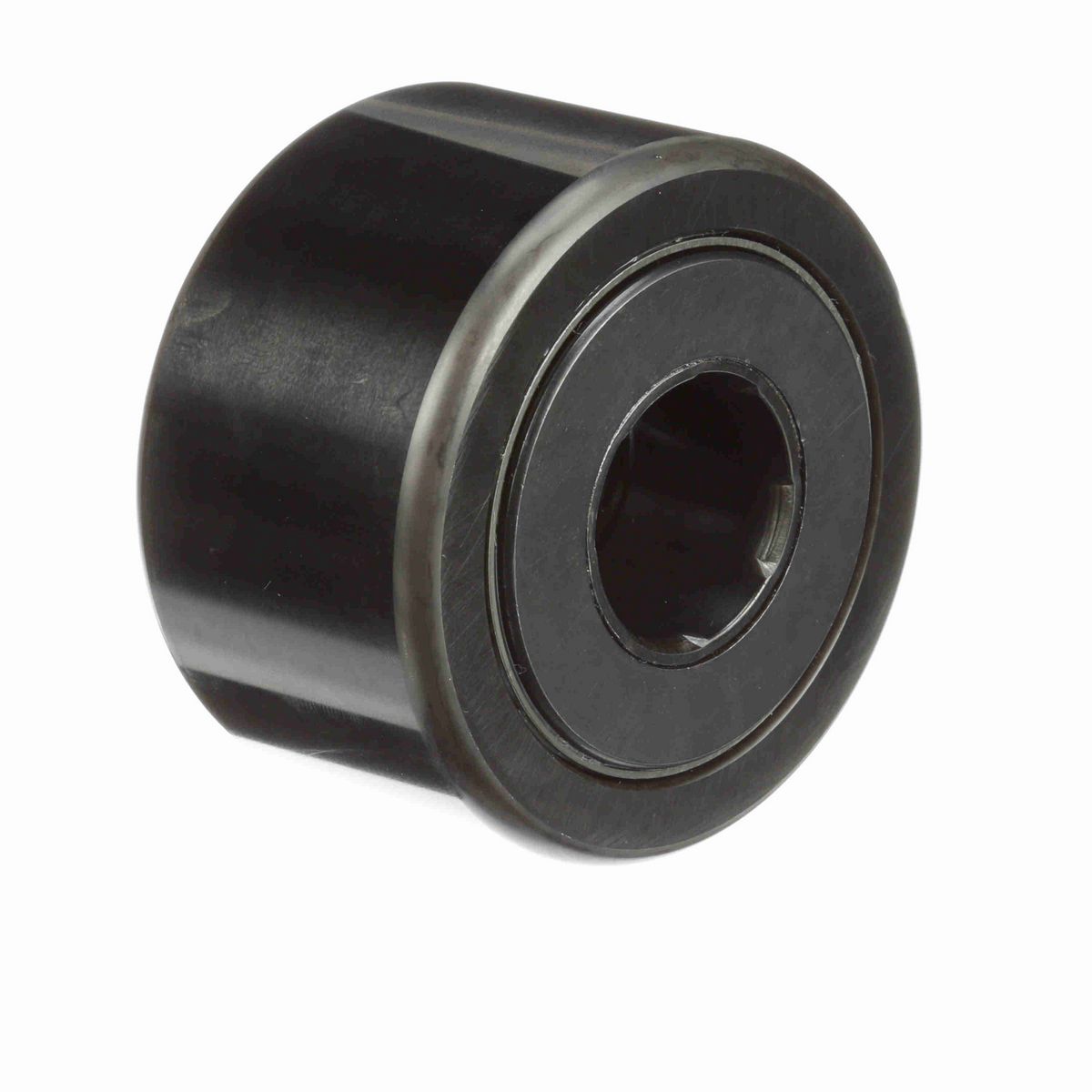

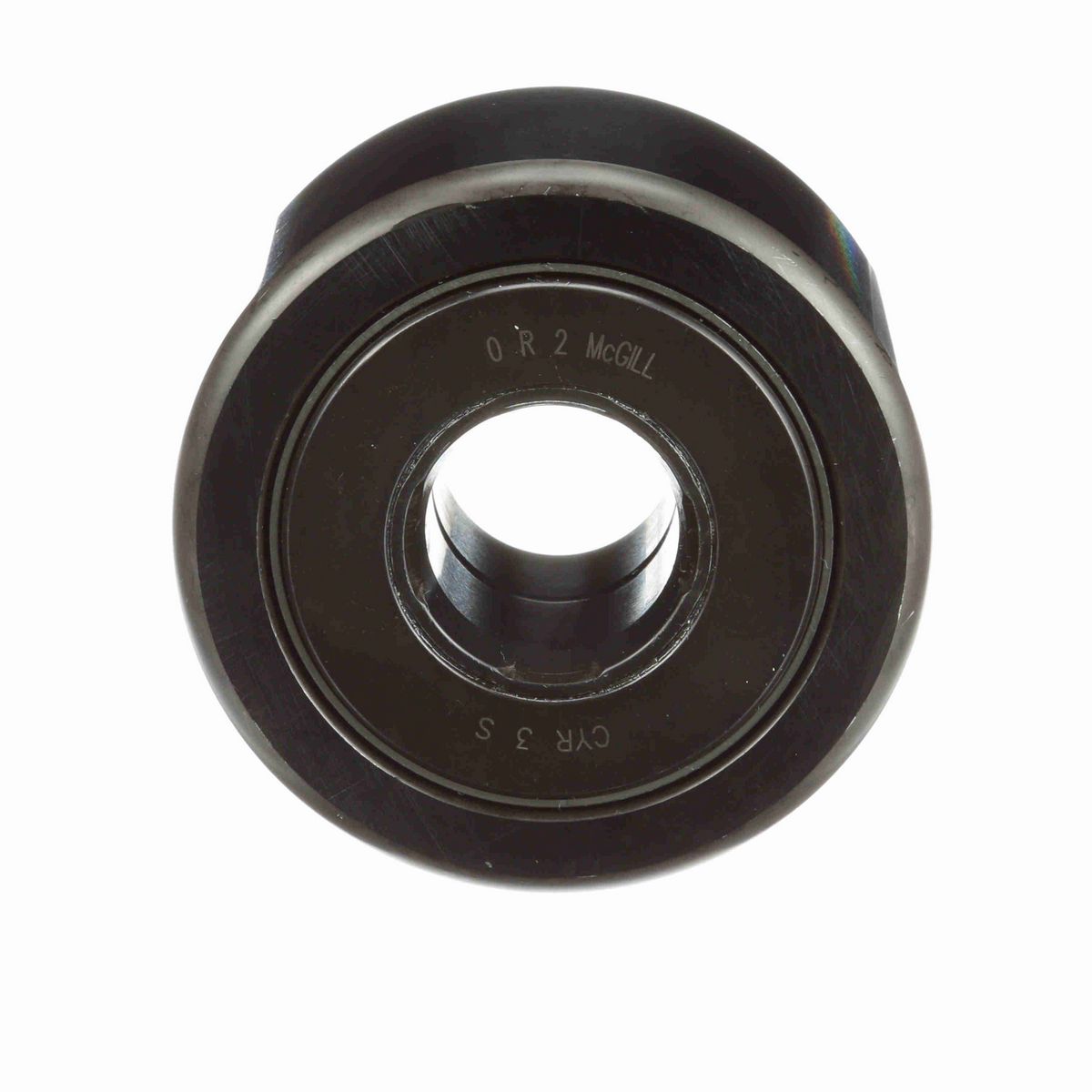

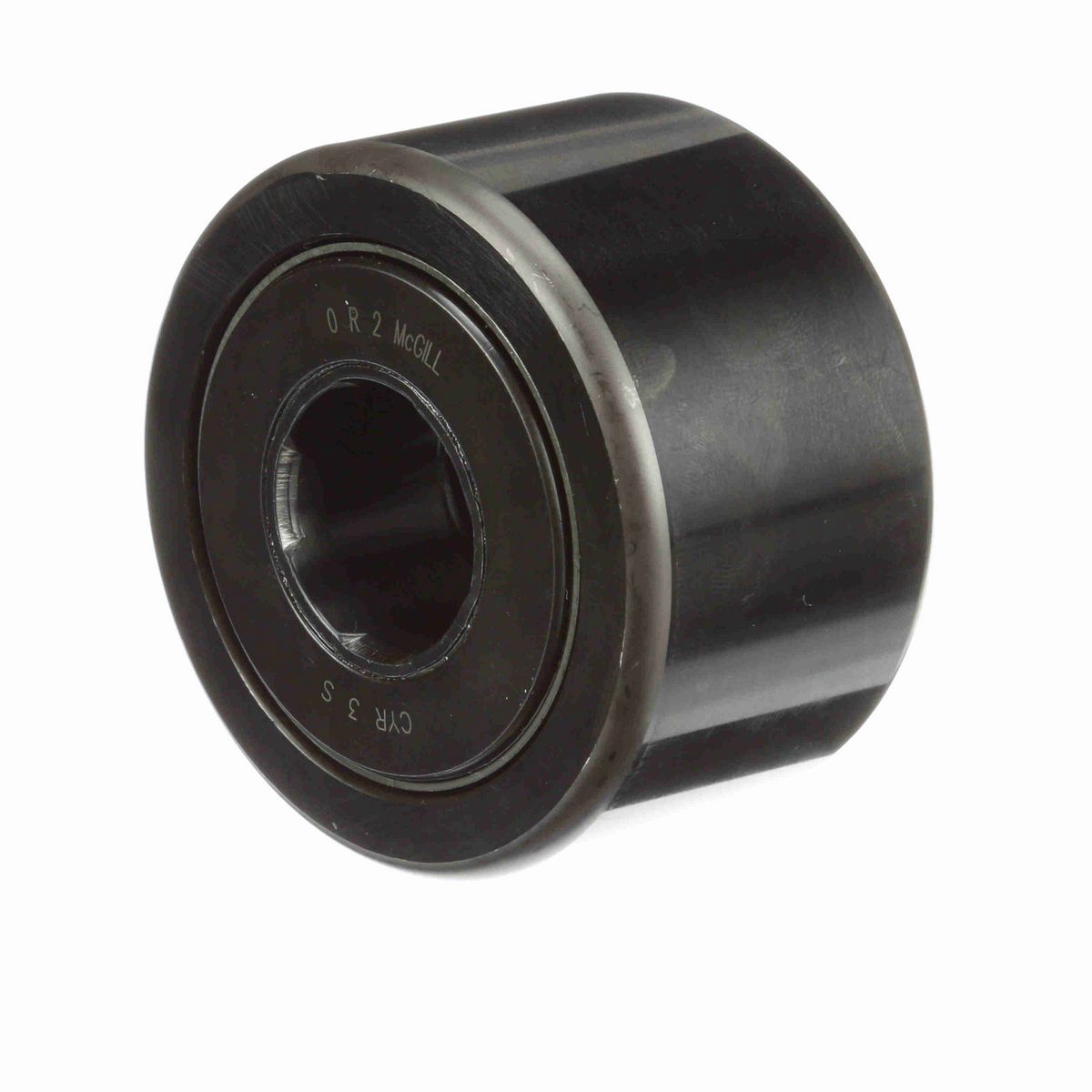

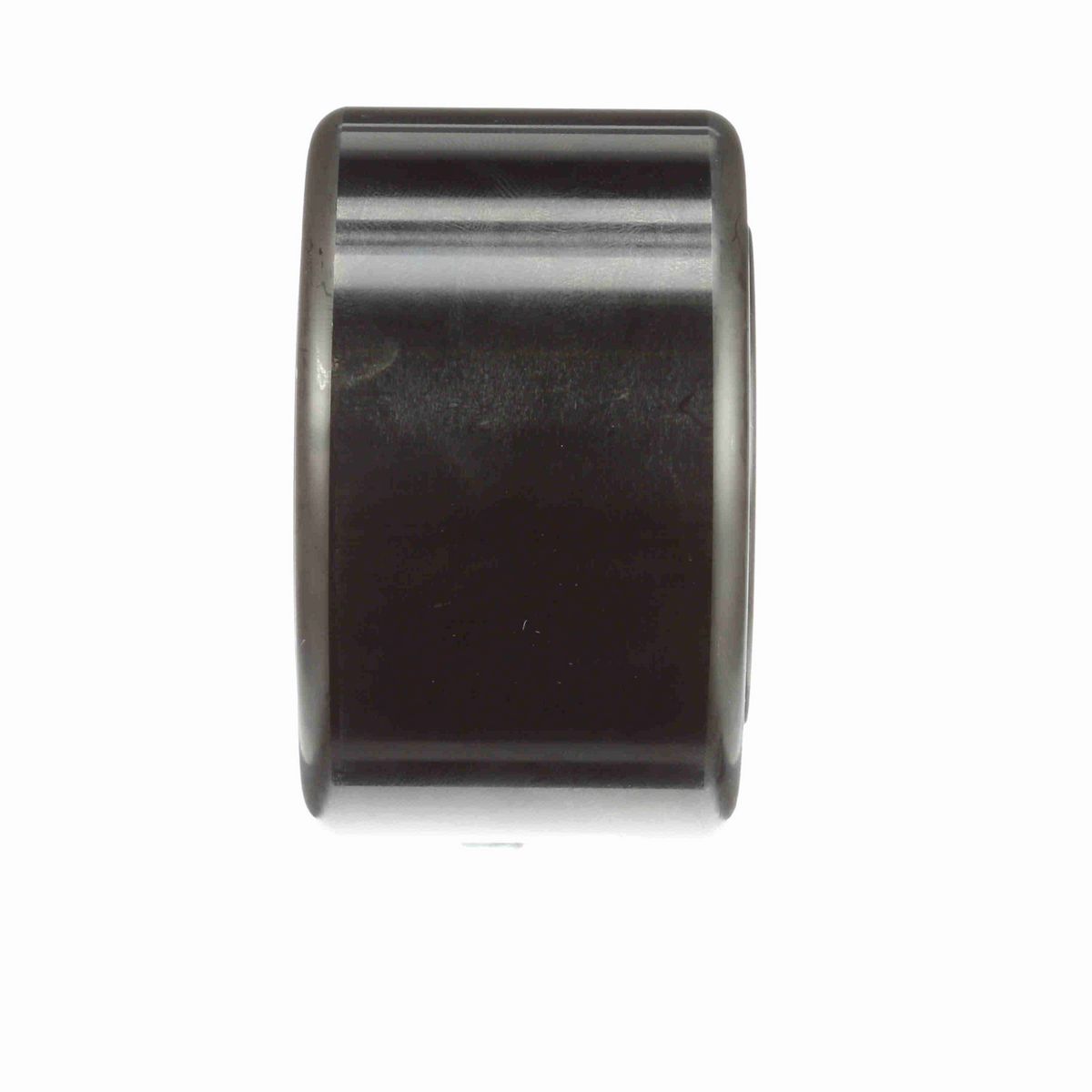

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	1 in
Roller Diameter (in)	3 in
Overall Width (in)	1.8125 in
Oil Hole Diameter (in)	0.125 in
Roller Width (in)	1.75 in
Minimum Boss Diameter (in)	1.75 in
Endplate Diameter (in)	2.13 in
Weight (kg)	1.32 kg

Technical Specifications

O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Sealing	Sealed
Limiting Speed	950
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Tolerance Class	P0
Platform	CAMROL®
Static Load Rating	49,820
Dynamic Load Rating (lb)	15,720 lb
Lubrication Hole Location	Inner Ring
Roller Material	Chrome Steel
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166057947
Weight	2.91 LB
Packaged Length	3.31 IN
Packaged Width	1.81 IN
Packaged Height	3.31 IN
HTC	8482.40.0000
Country of Origin	Mexico
