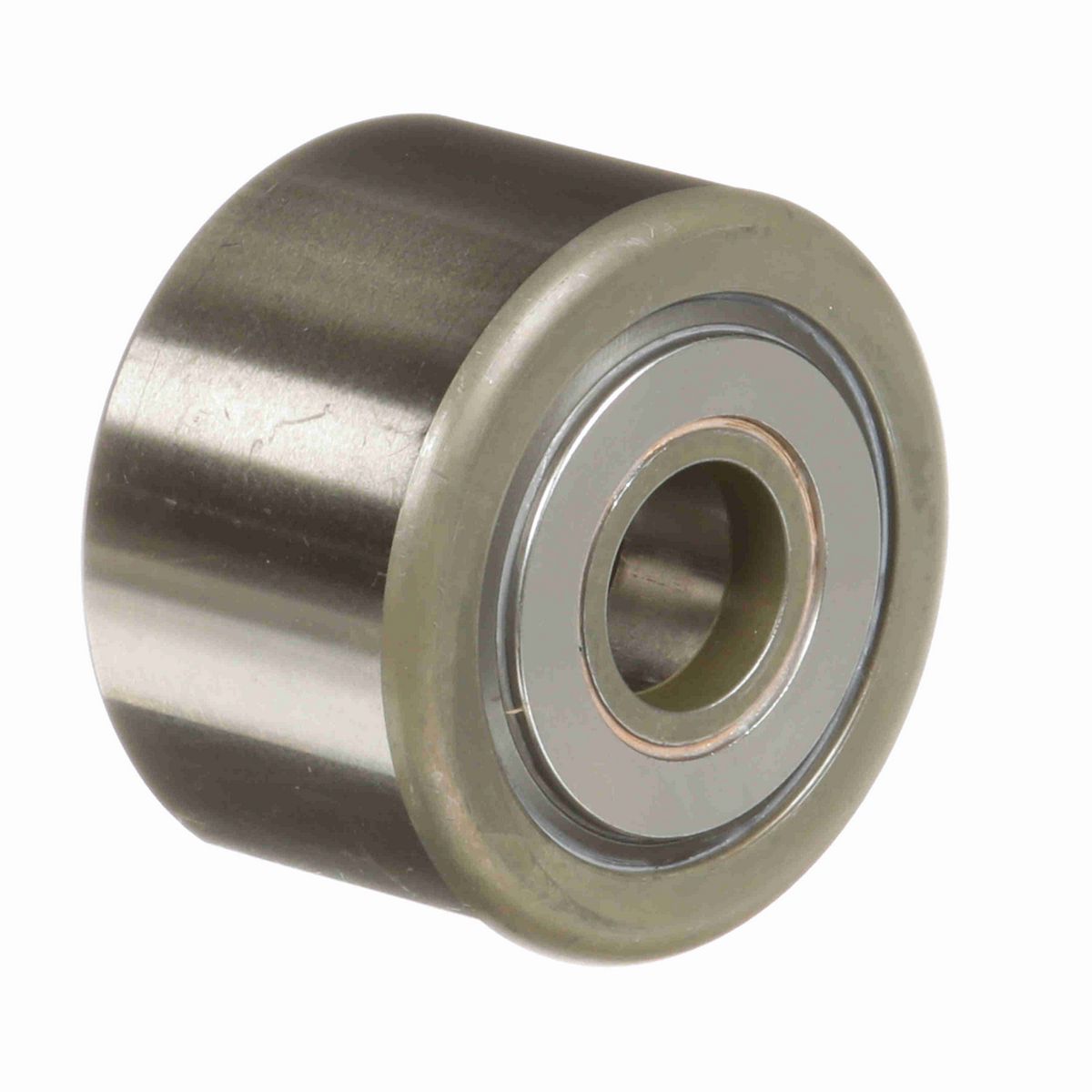

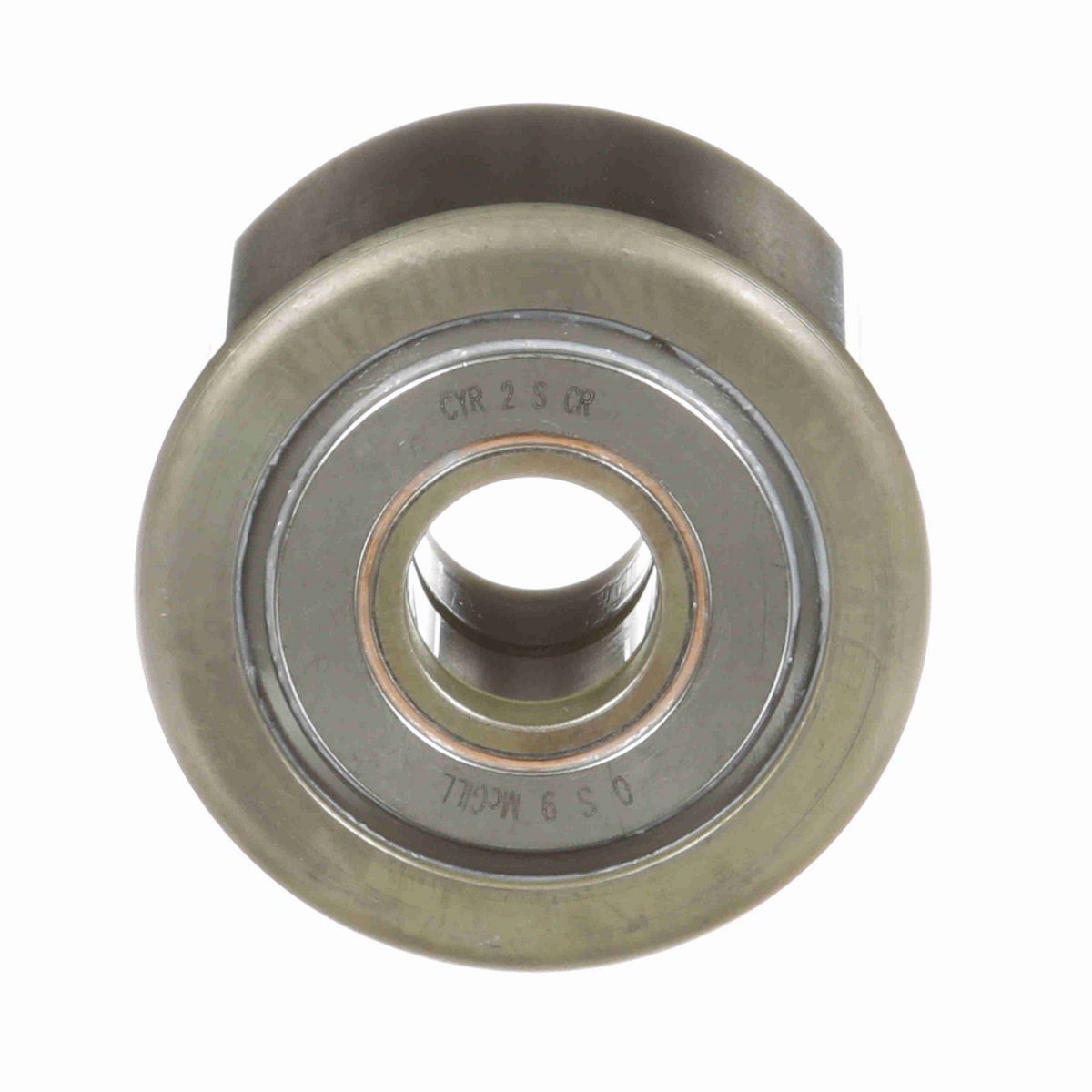

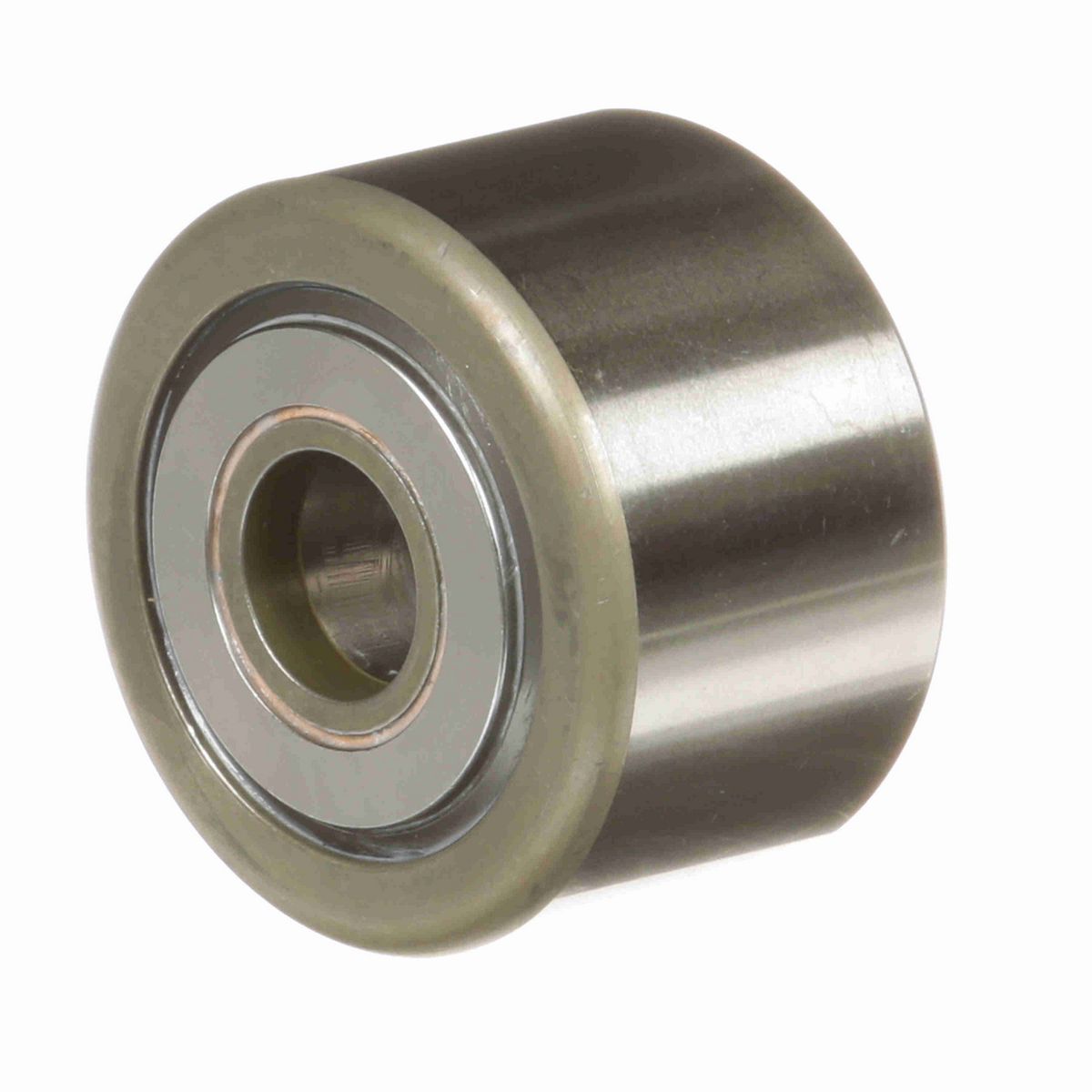

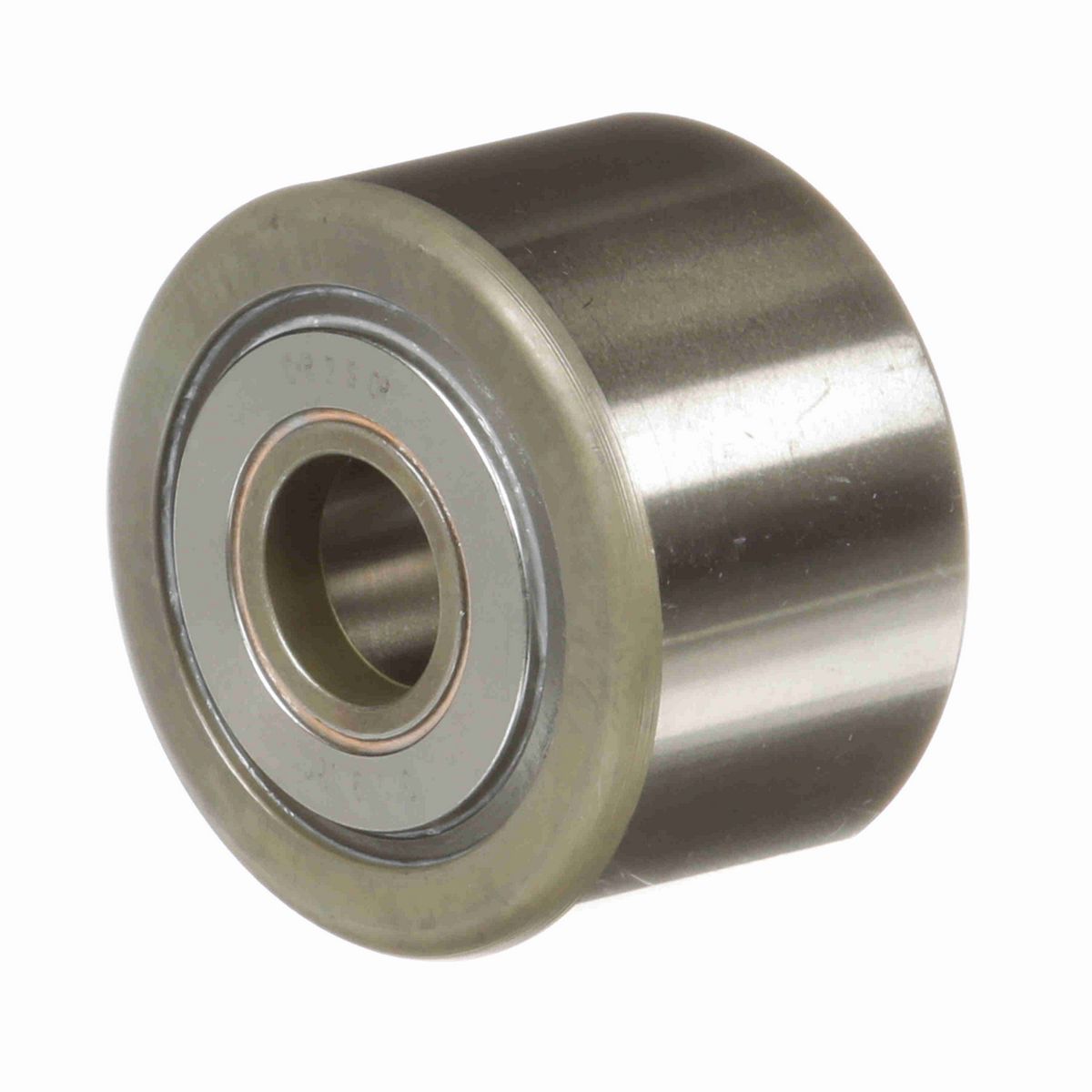

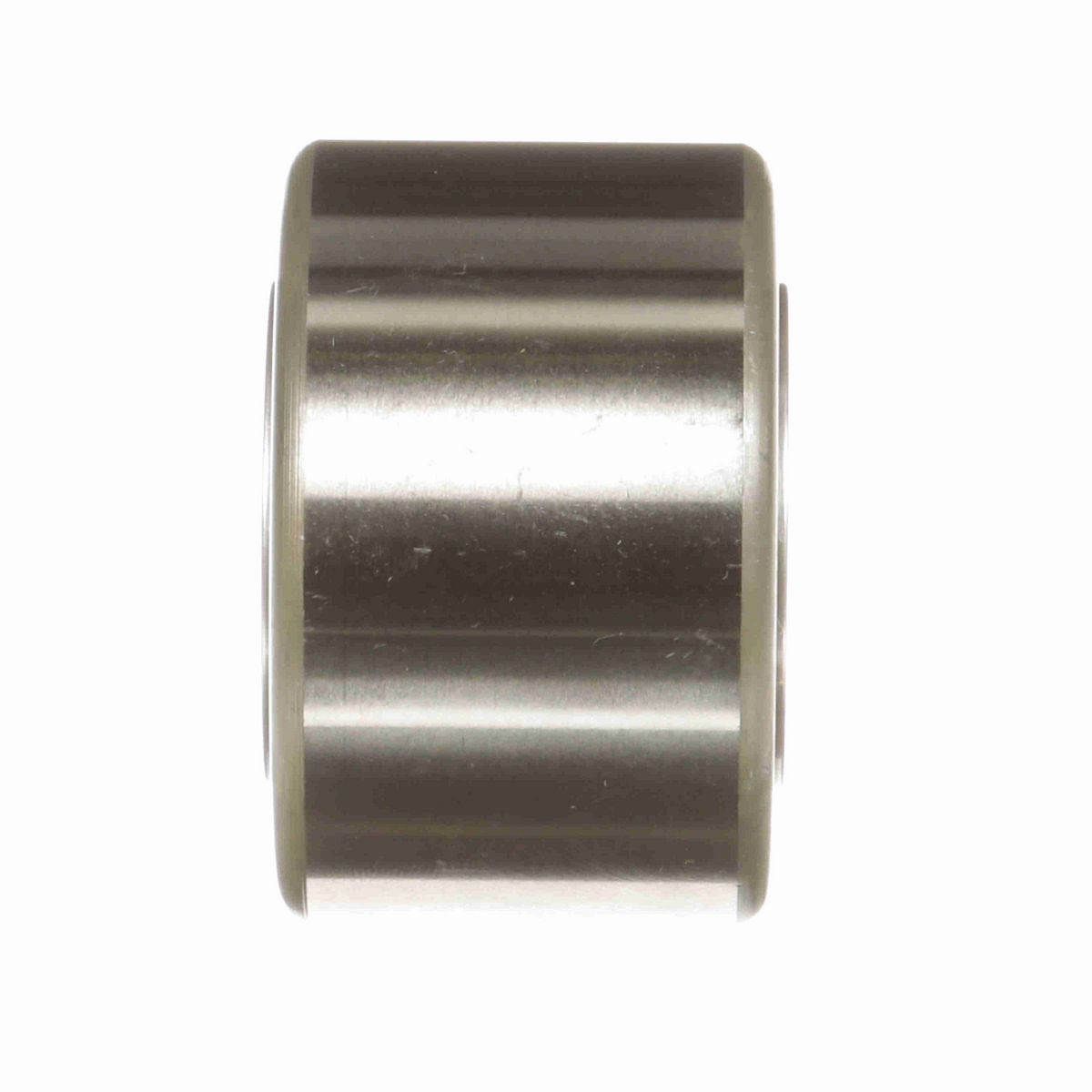

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Bore Diameter (in)	0.625 in
Roller Diameter (in)	2 in
Minimum Boss Diameter (in)	1.203 in
Roller Width (in)	1.25 in
Overall Width (in)	1.3125 in
Endplate Diameter (in)	1.3 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.61 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Sealing	Sealed
Series	CRES CAMROL®
Limiting Speed	1,400
Material	440C Stainless Steel
Platform	CAMROL®
Static Load Rating	17,600
Dynamic Load Rating (lb)	7,270 lb
Roller Shape	Cylindrical
Tolerance Class	P0
Lubrication Hole Location	Inner Ring
Roller Material	Stainless Steel
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166118594
Weight	1.35 LB
Packaged Length	2.31 IN
Packaged Width	1.56 IN
Packaged Height	2.31 IN
HTC	8482.40.0000
Country of Origin	Mexico
