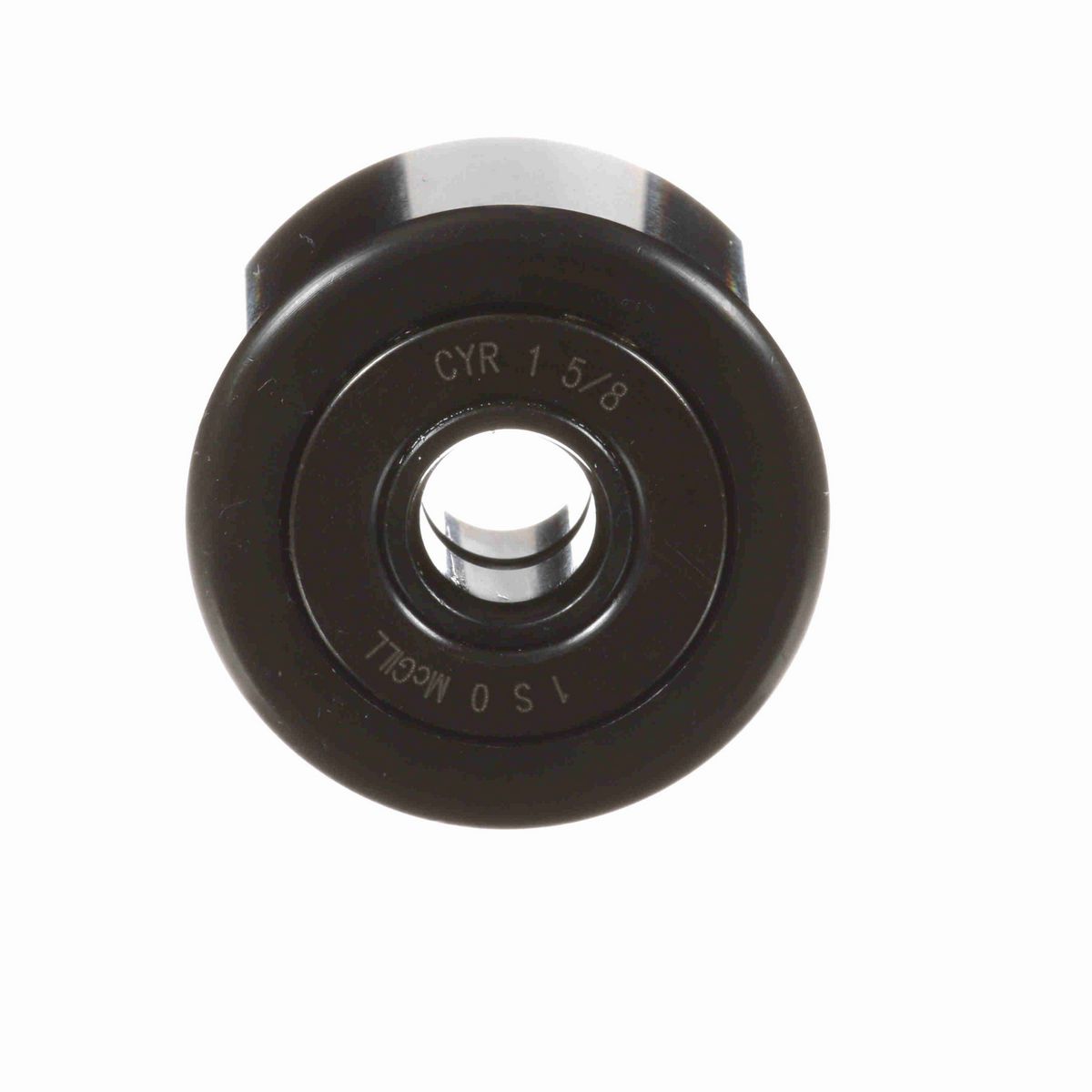

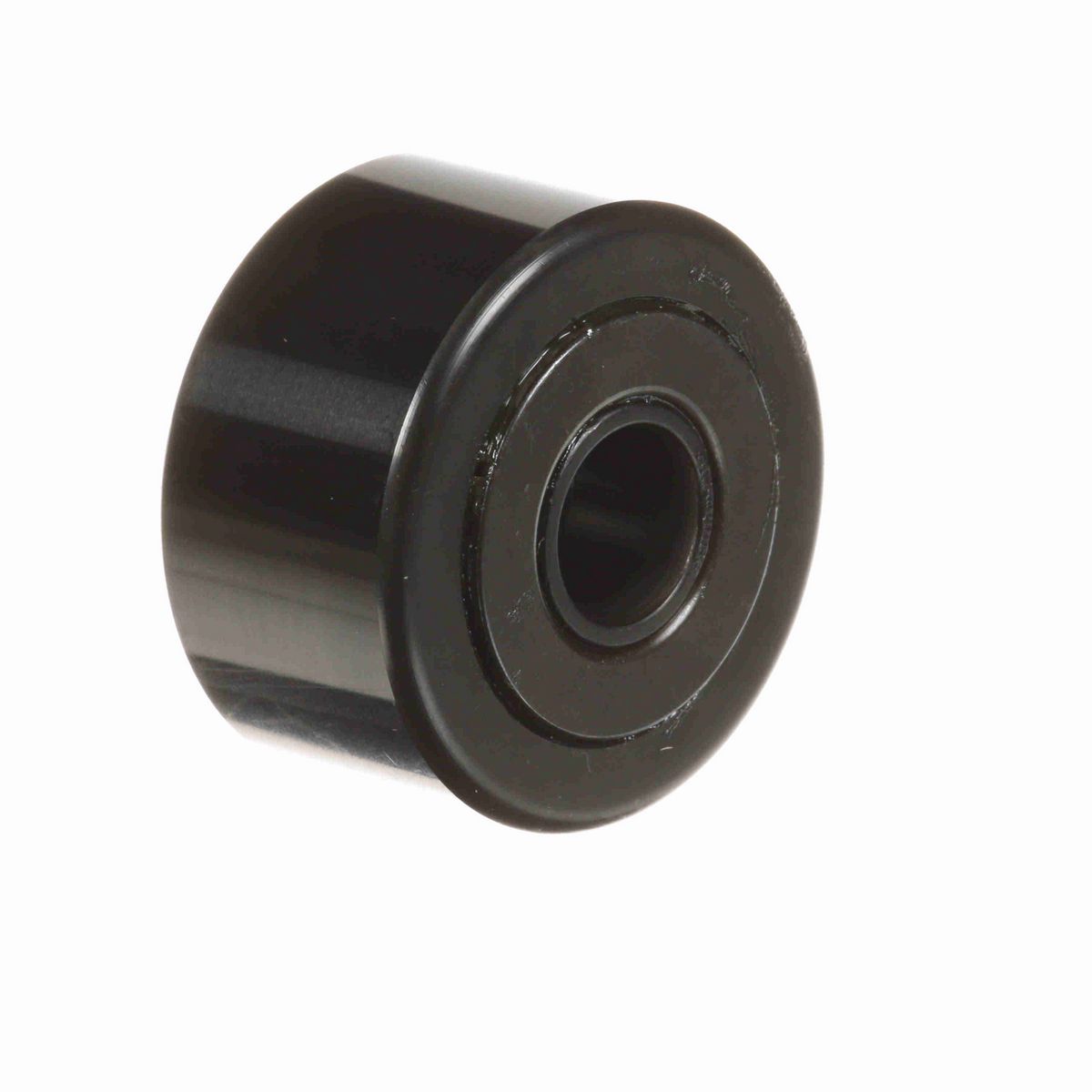

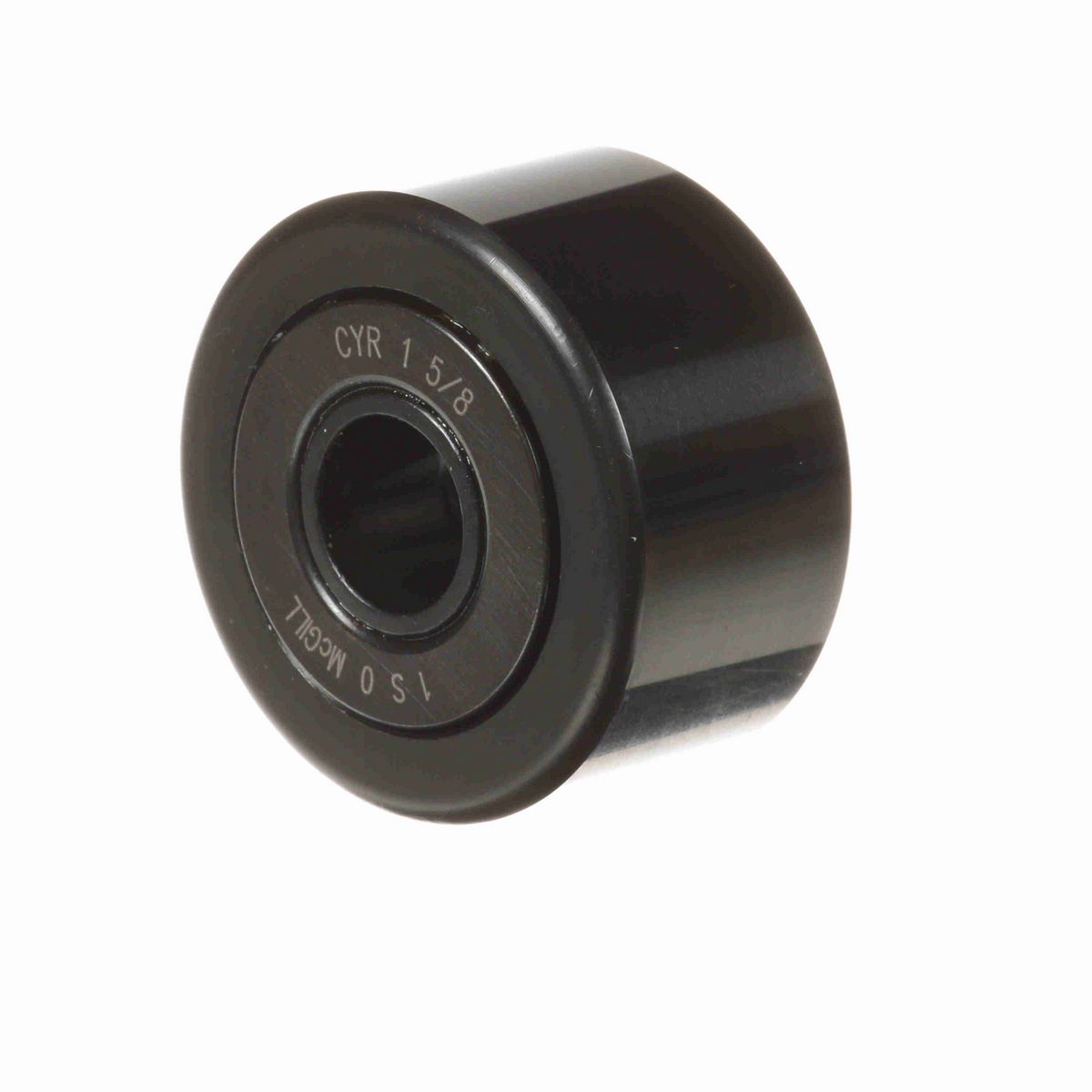

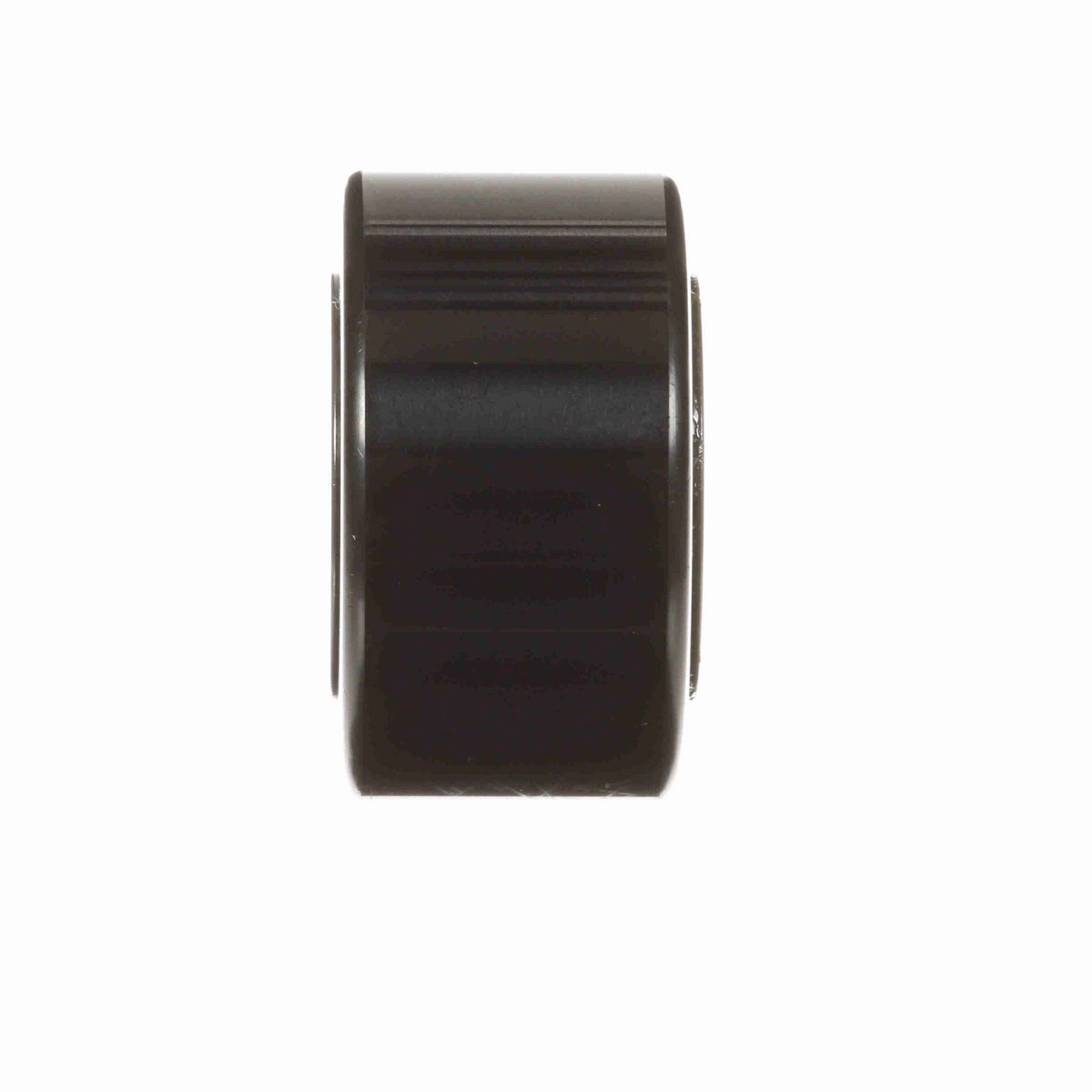

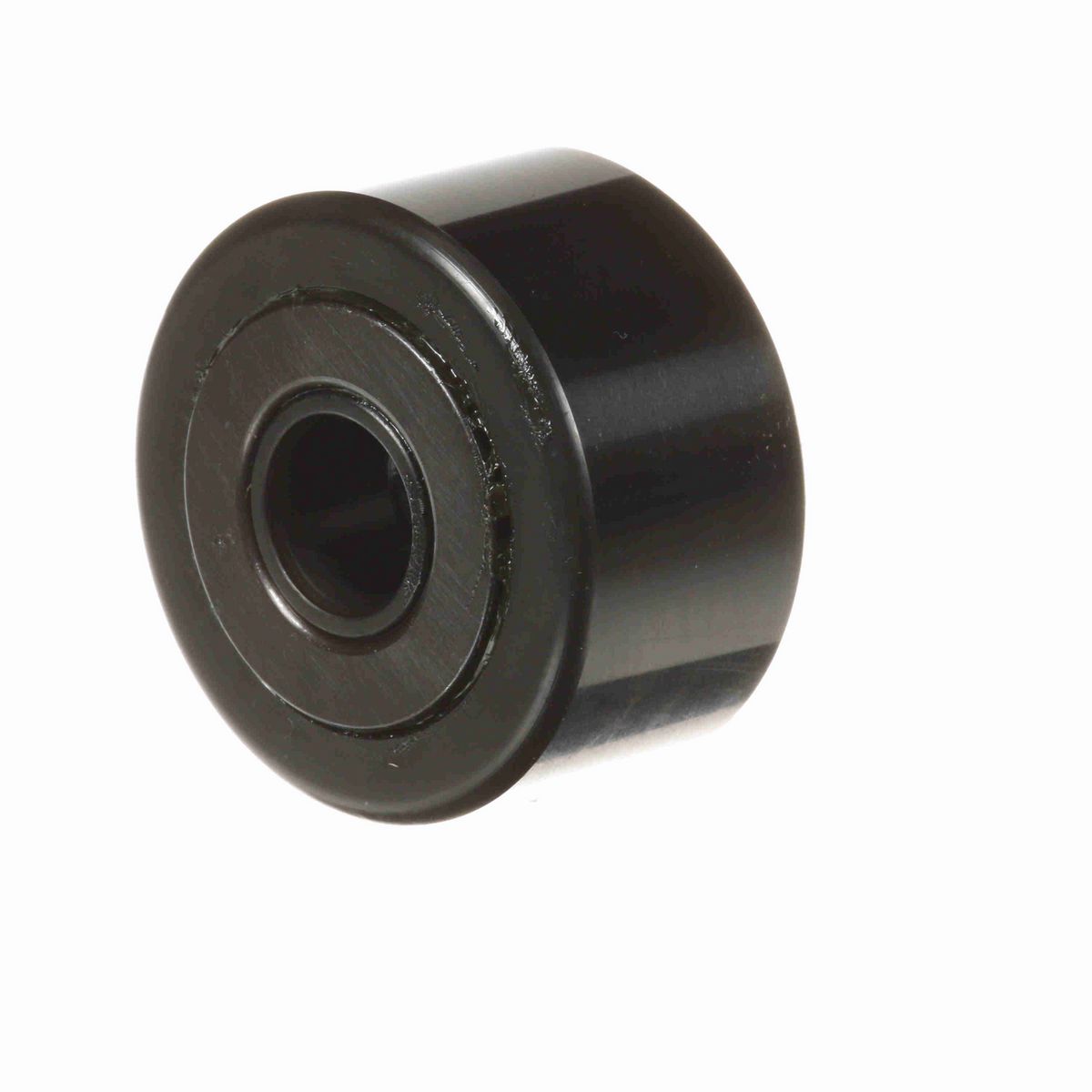

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements

Dimensions

Roller Diameter (in)	1.625 in
Bore Diameter (in)	0.4375 in
Roller Width (in)	0.875 in
Endplate Diameter (in)	1.09 in
Minimum Boss Diameter (in)	0.891 in
Overall Width (in)	0.9375 in
Oil Hole Diameter (in)	0.094 in
Weight (kg)	0.21 kg

Technical Specifications

Sealing	Unsealed
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,350
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	4,840 lb
Static Load Rating	11,280
Platform	CAMROL®
Lubrication Hole Location	Inner Ring
Roller Material	Chrome Steel
Adjustment	None
Enclosure	Open
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166057114
Weight	0.46 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
