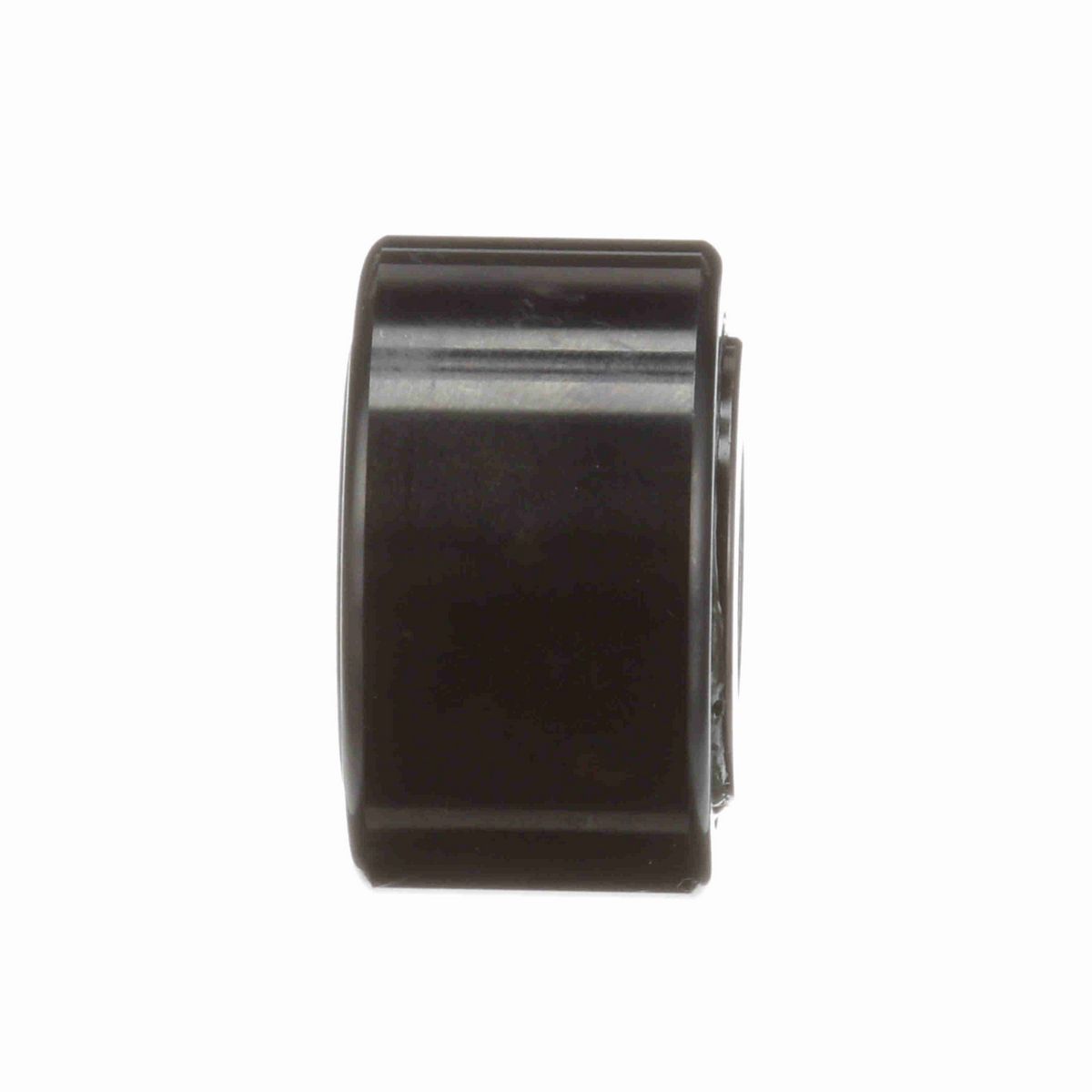

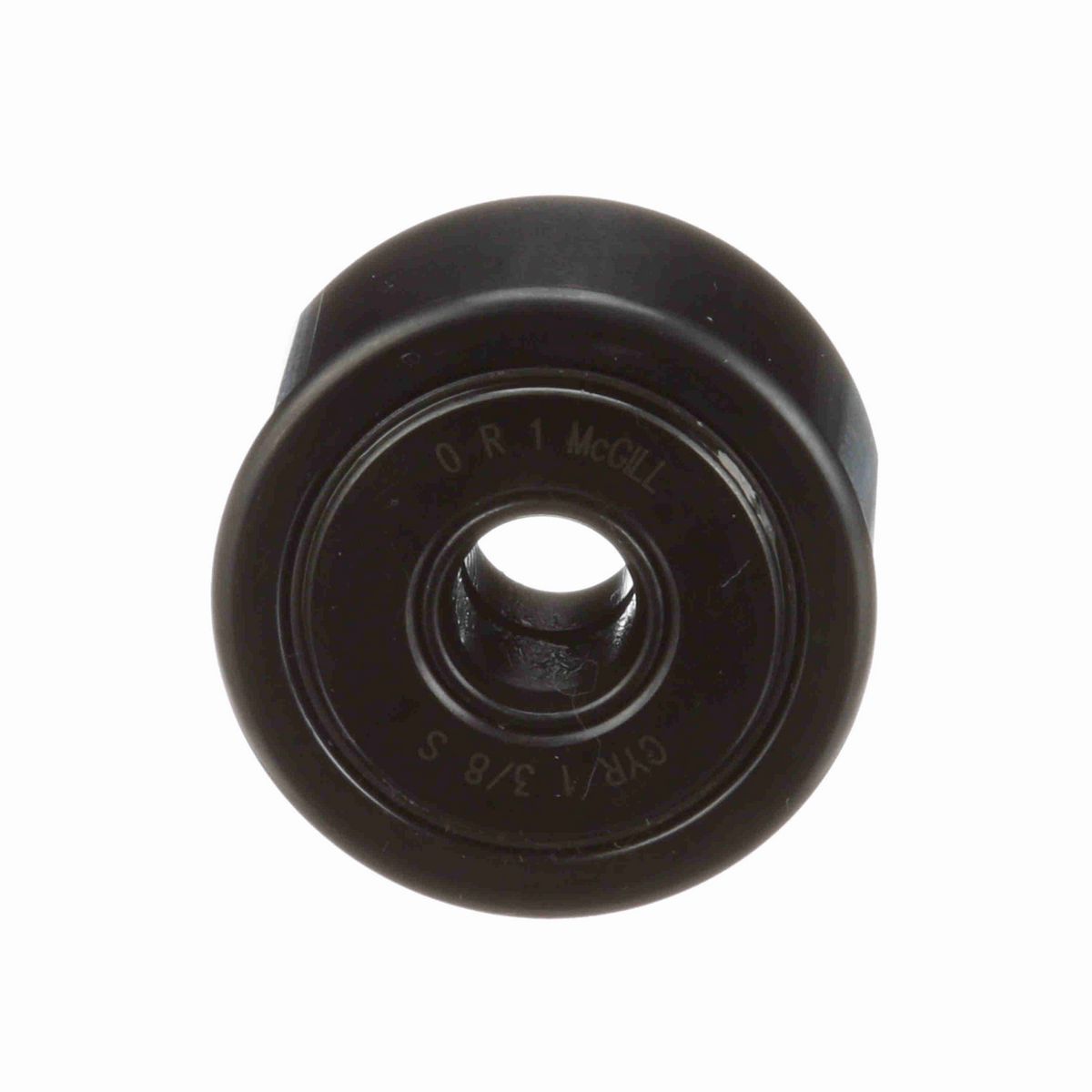

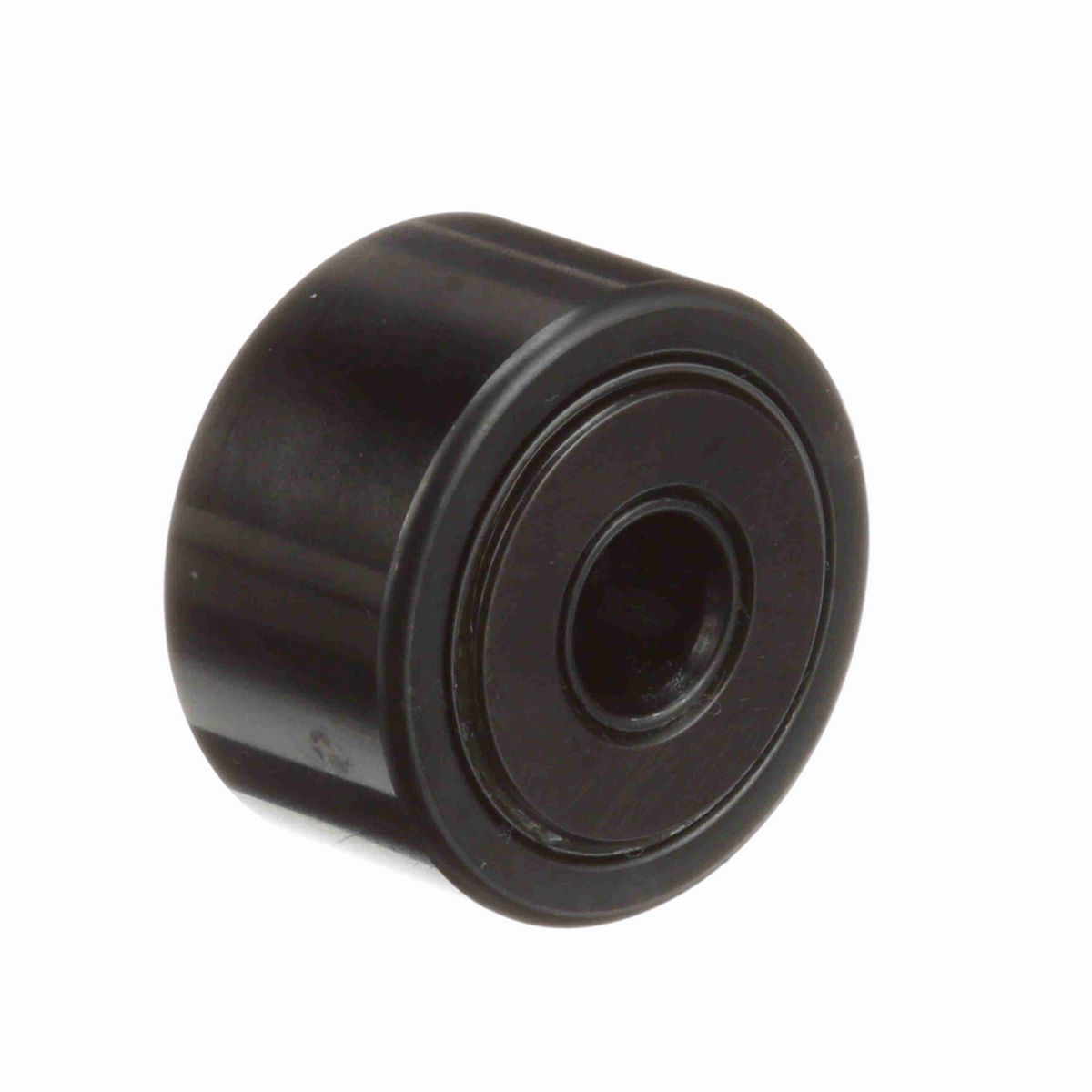

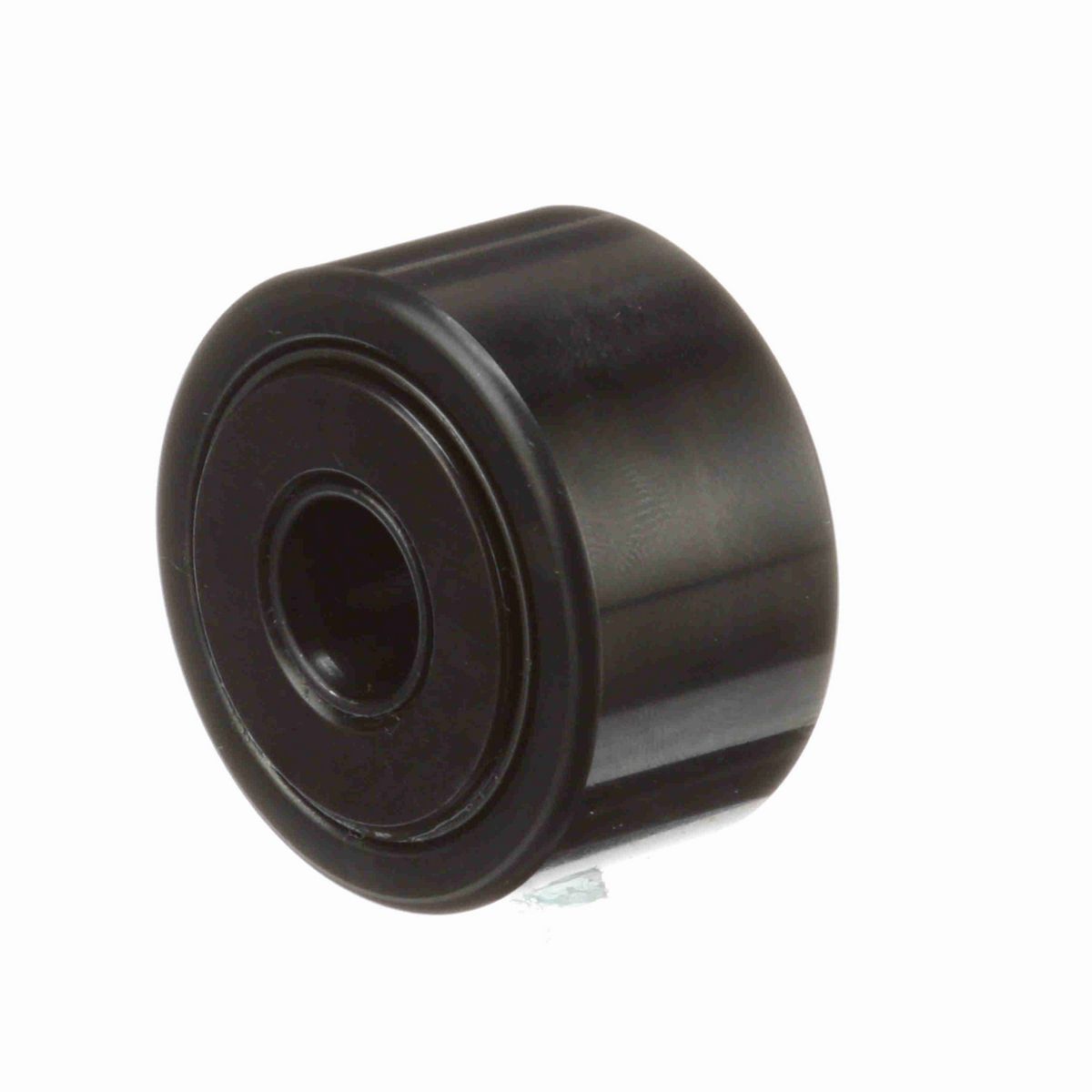

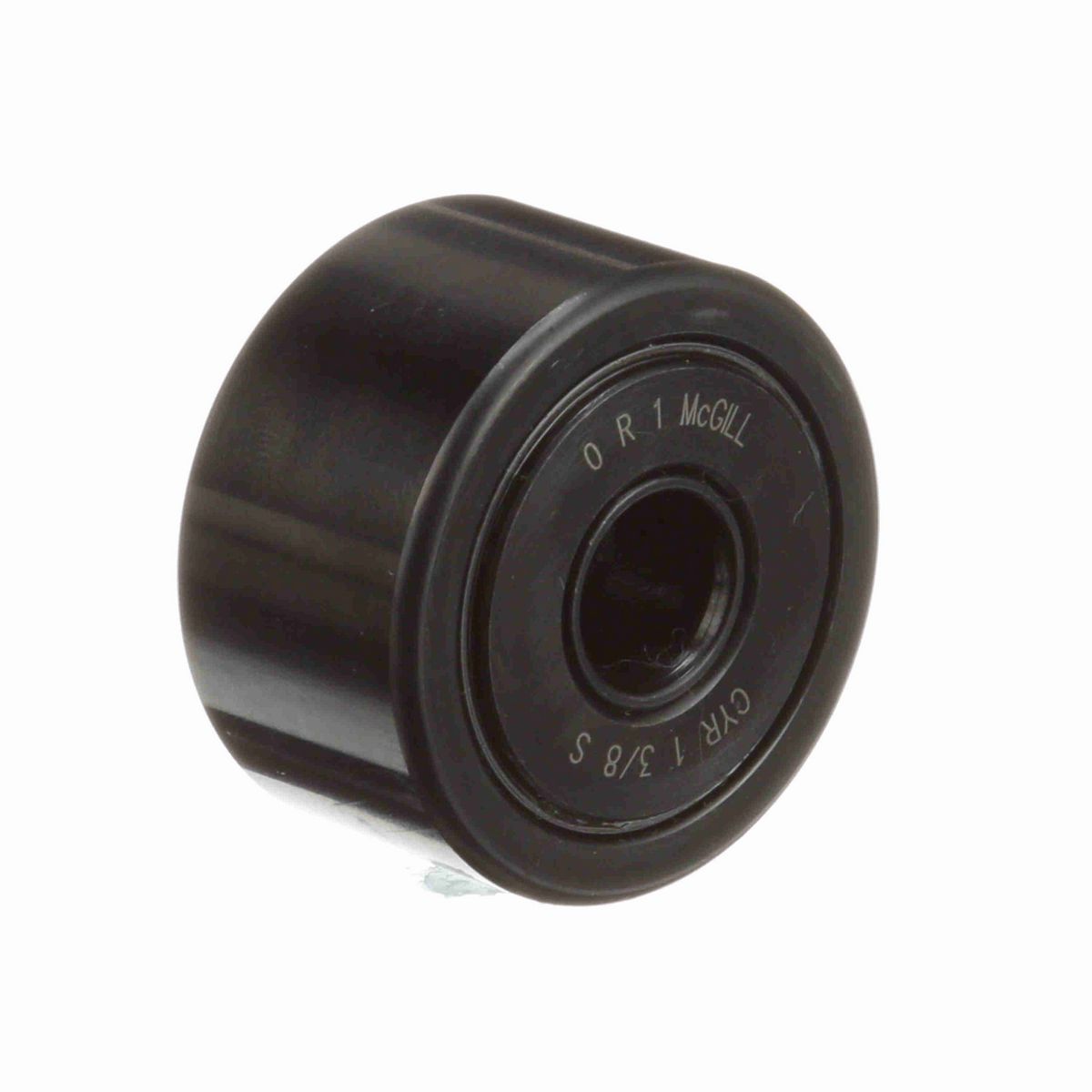

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	0.375 in
Roller Diameter (in)	1.375 in
Overall Width (in)	0.8125 in
Oil Hole Diameter (in)	0.094 in
Roller Width (in)	0.75 in
Minimum Boss Diameter (in)	0.766 in
Endplate Diameter (in)	0.98 in
Weight (kg)	0.13 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Limiting Speed	2,800
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0
Roller Shape	Cylindrical
Static Load Rating	8,500
Platform	CAMROL®
Dynamic Load Rating (lb)	3,930 lb
Roller Material	Chrome Steel
Lubrication Hole Location	Inner Ring
Adjustment	None
Enclosure	2 Seals
Operating Temperature Range (F)	-20 to 250 °F °F
Ability to Relubricate	Yes

General Specifications

UPC	726166056902
Weight	0.29 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
