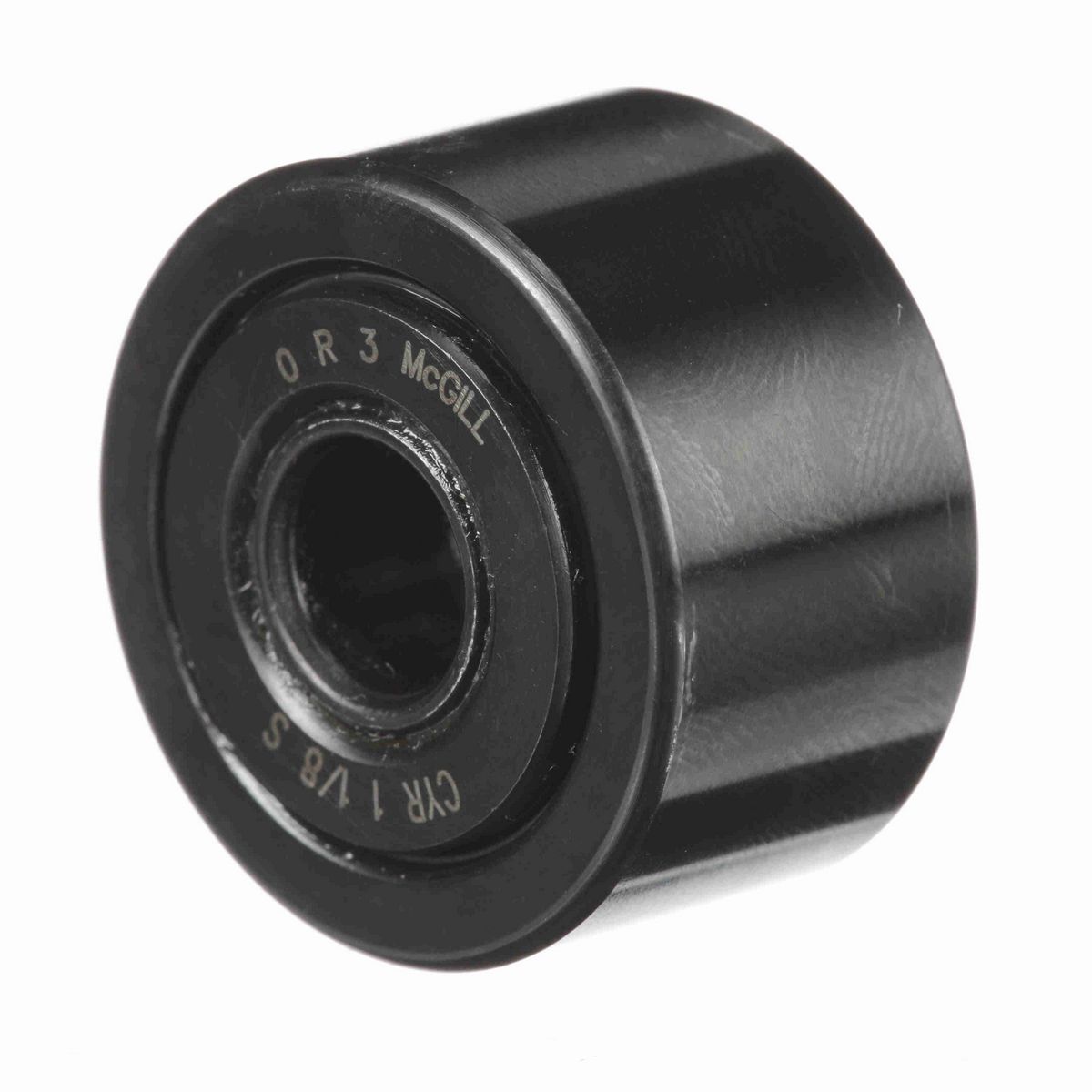

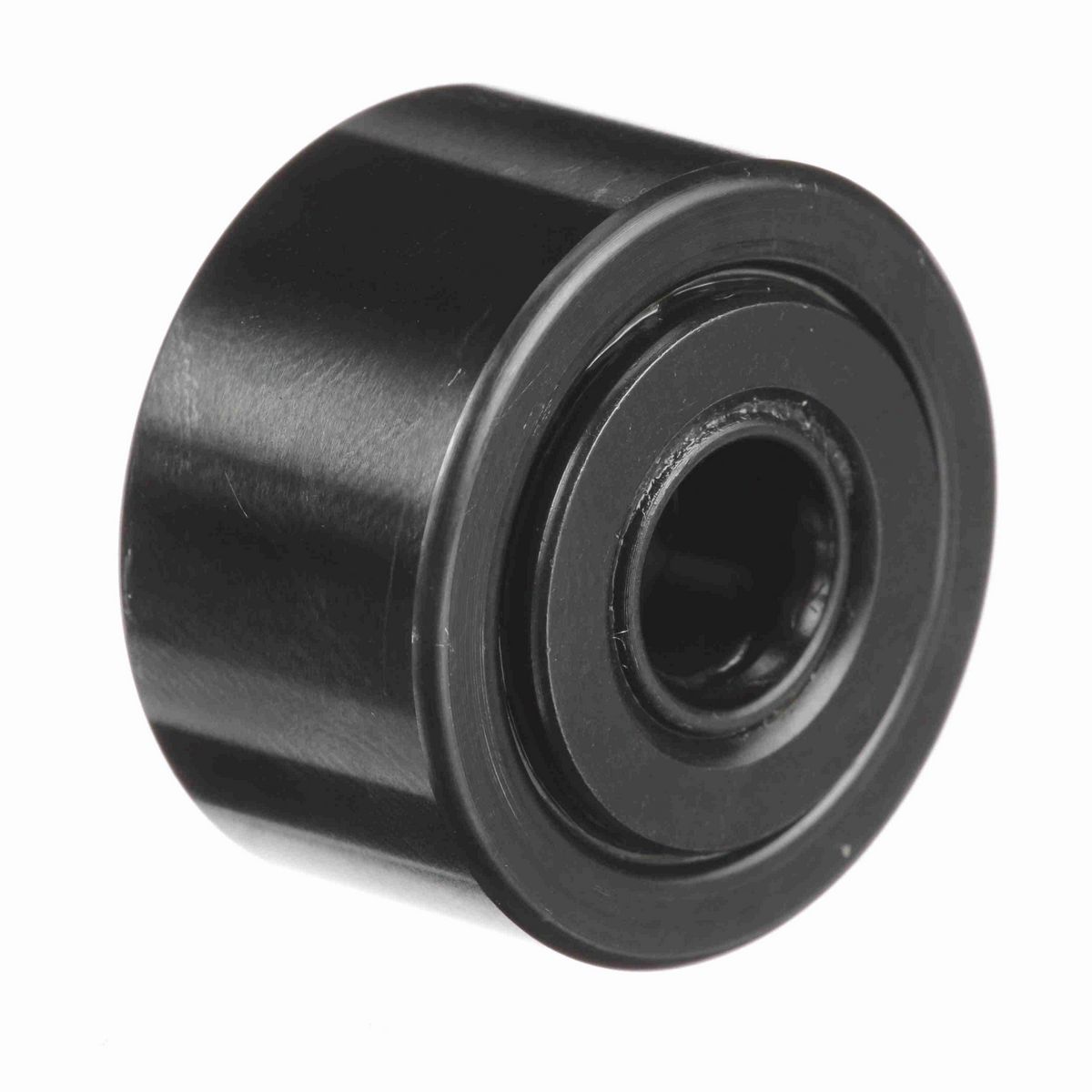

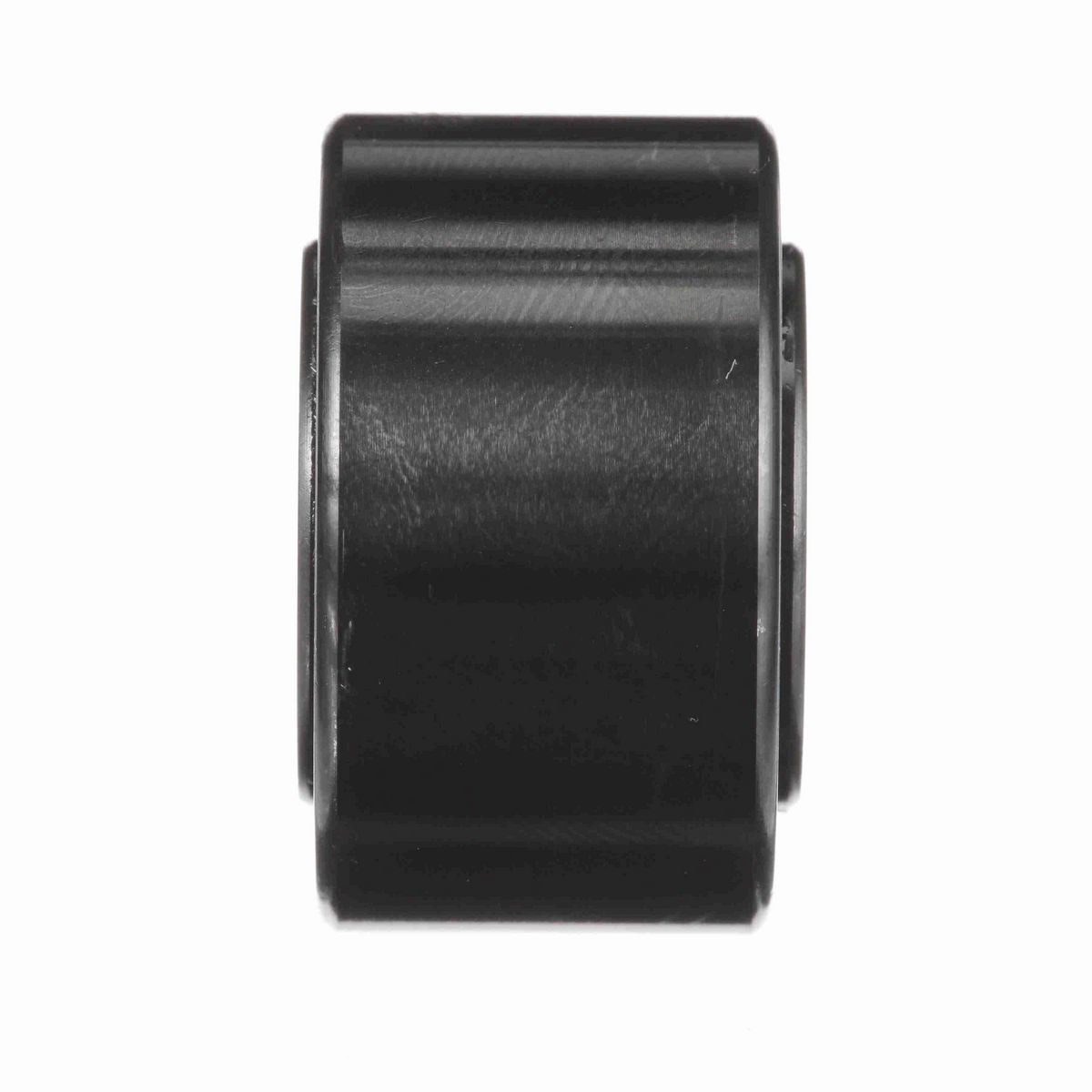

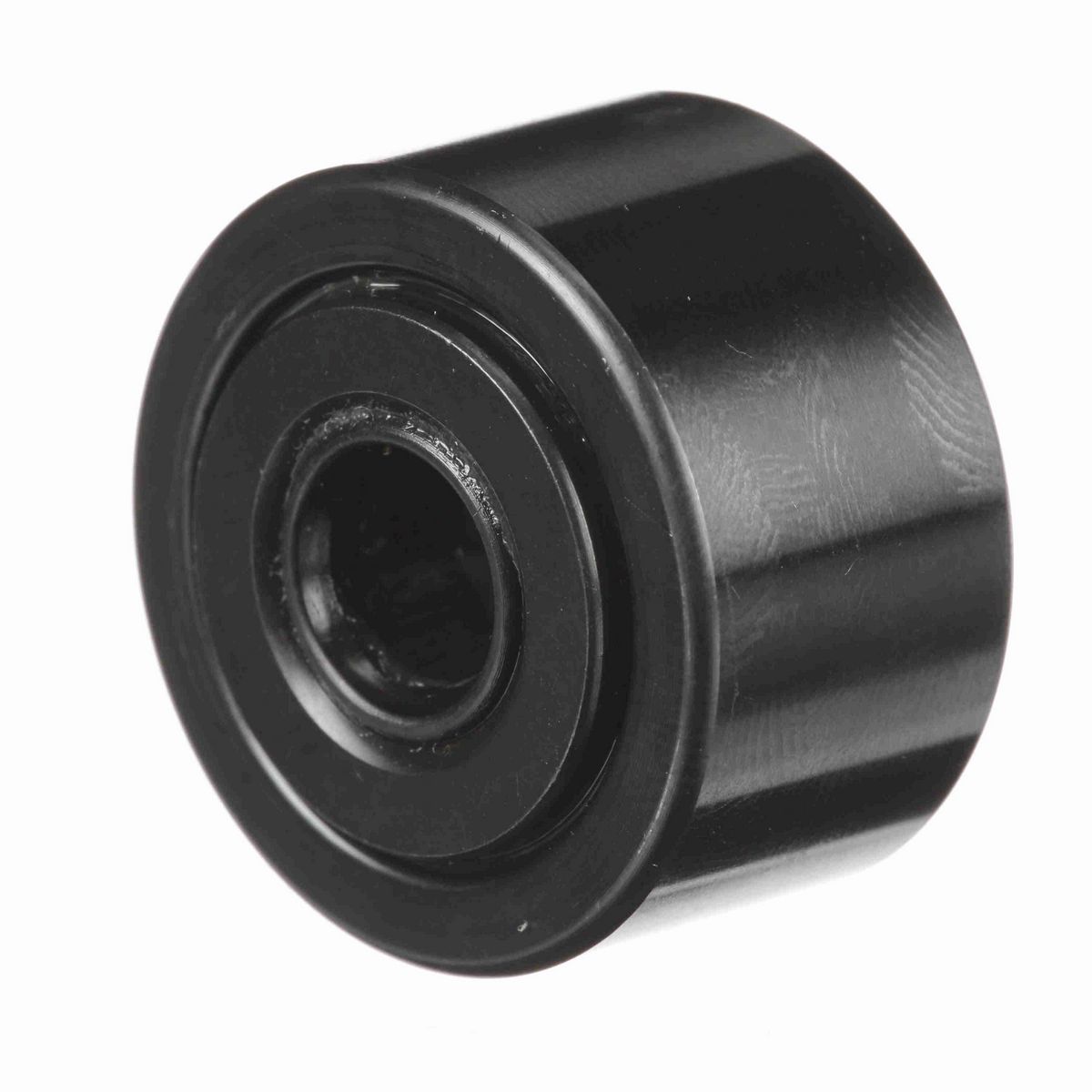

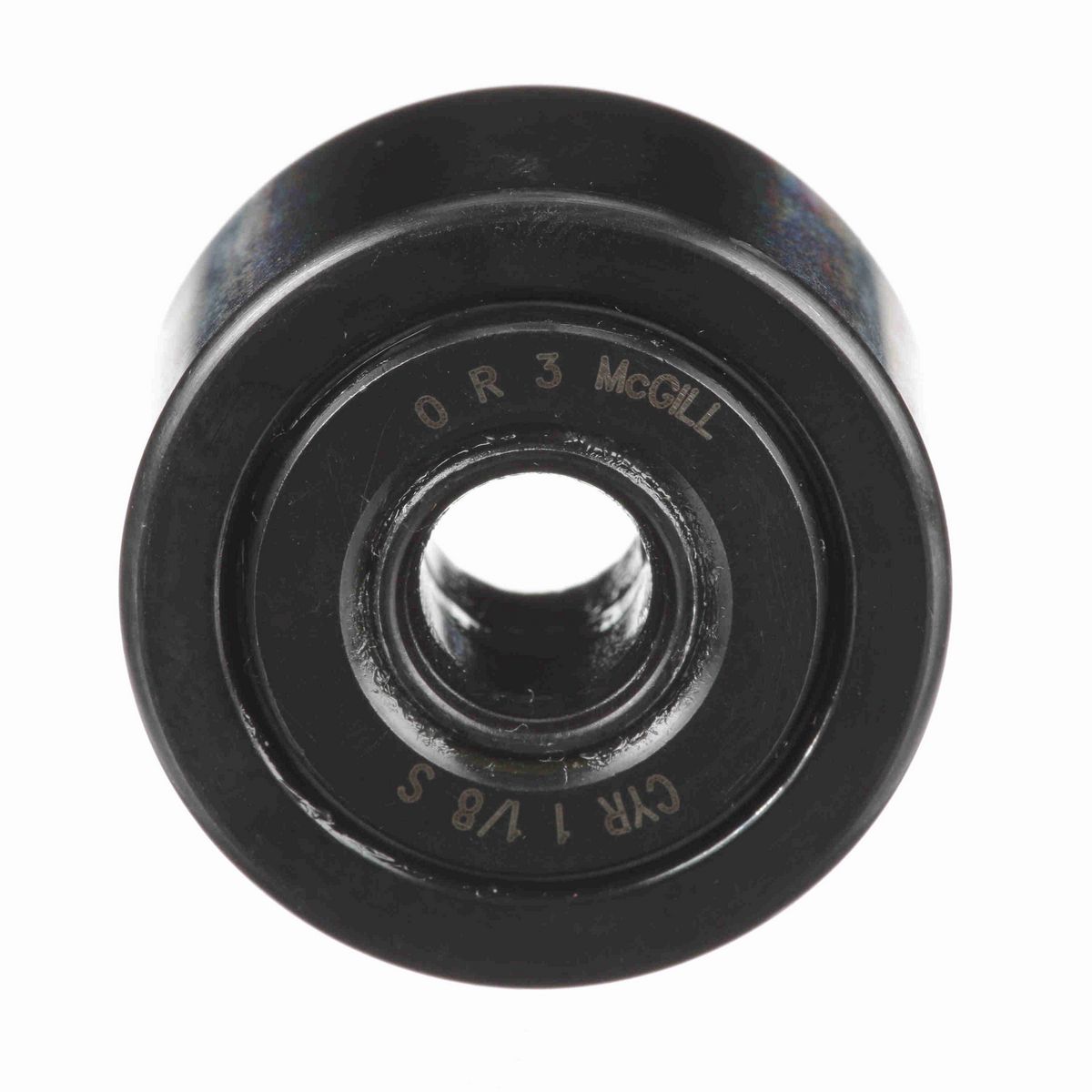

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal

Dimensions

Bore Diameter (in)	0.3125 in
Roller Diameter (in)	1.125 in
Roller Width (in)	0.625 in
Endplate Diameter (in)	0.78 in
Minimum Boss Diameter (in)	0.641 in
Oil Hole Diameter (in)	0.094 in
Overall Width (in)	0.6875 in
Weight (kg)	0.08 kg

Technical Specifications

Limiting Speed	3,400
Sealing	Sealed
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	2,225 lb
Platform	CAMROL®
Roller Shape	Cylindrical
Static Load Rating	6,120
Tolerance Class	P0
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes

General Specifications

UPC	726166056643
Weight	0.17 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
