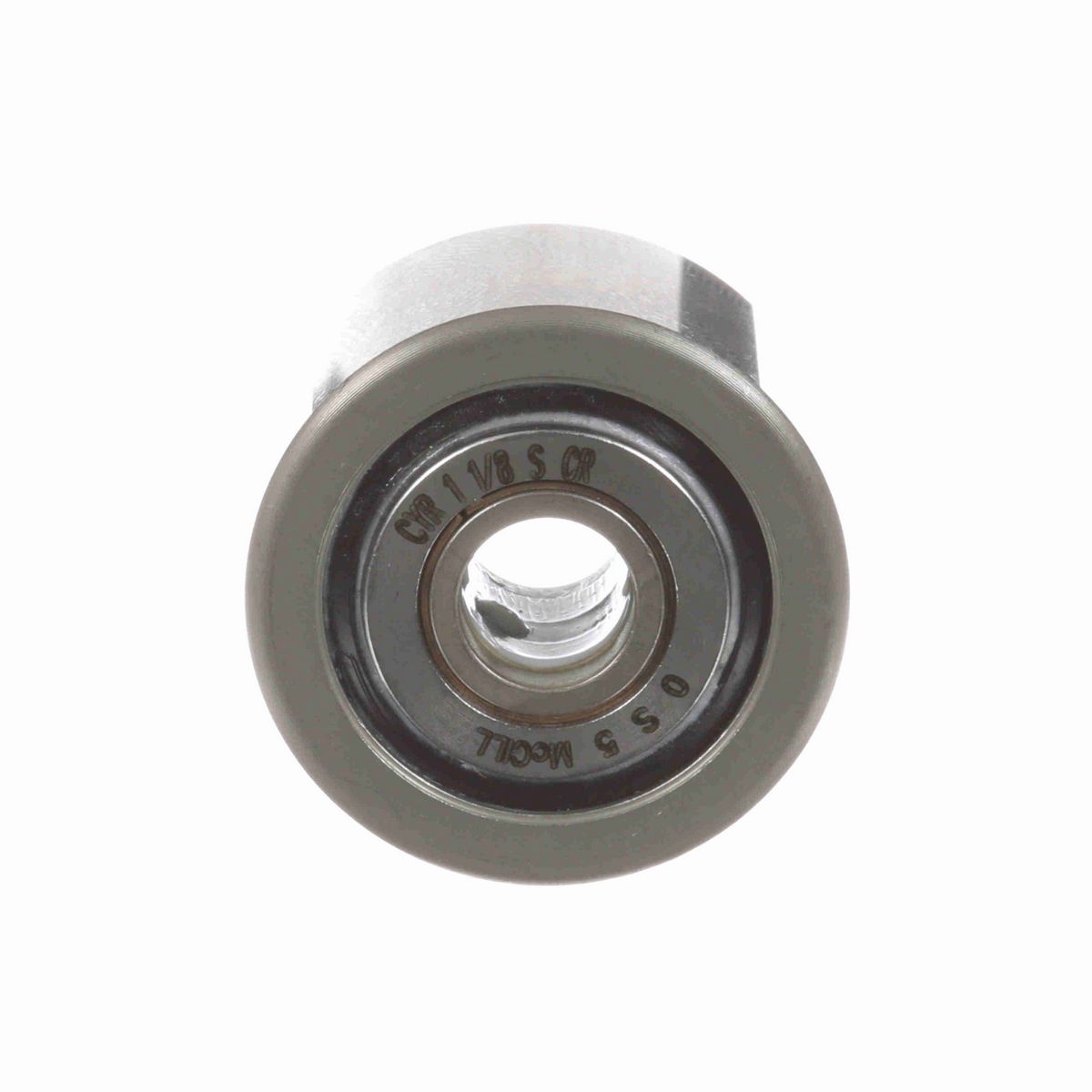

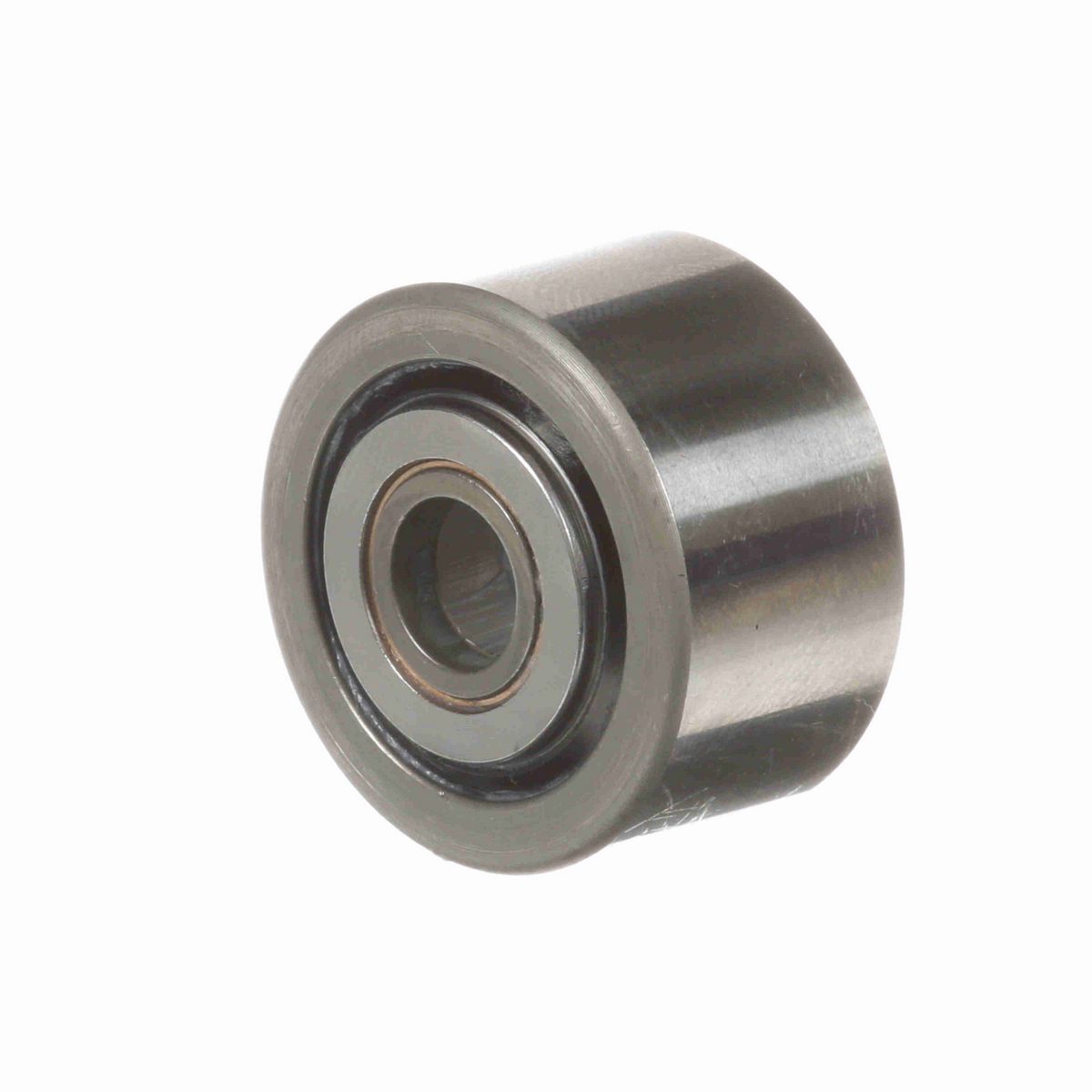

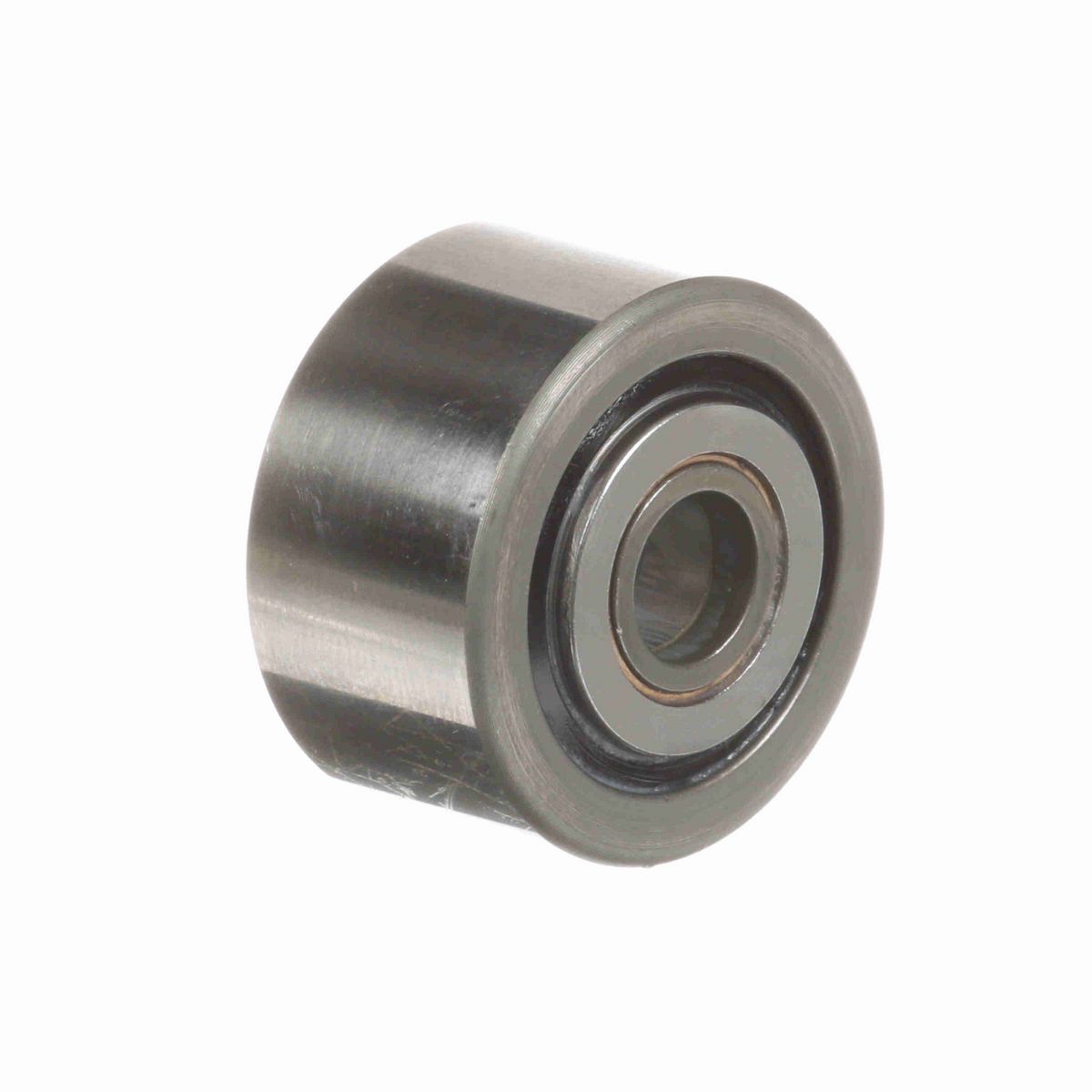

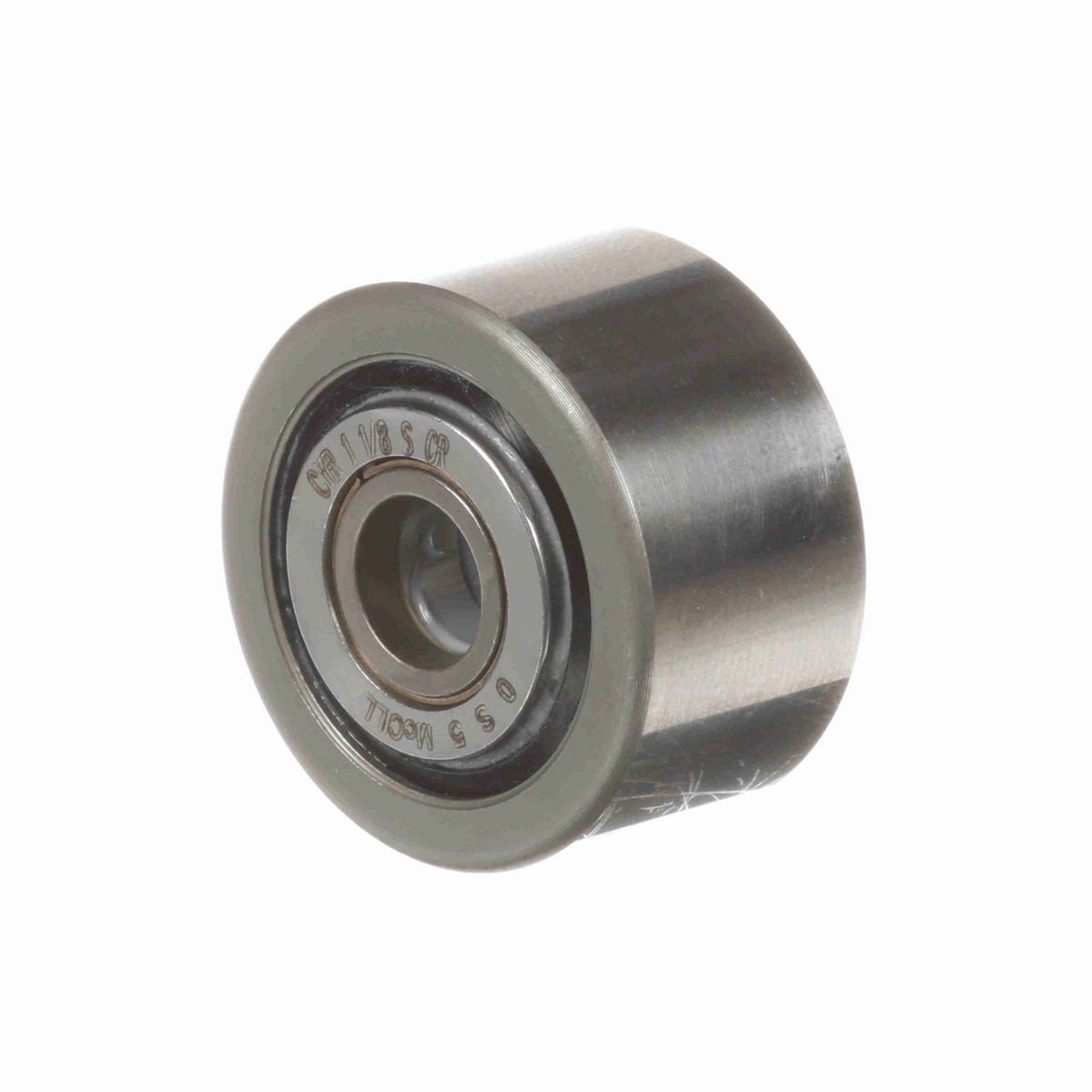

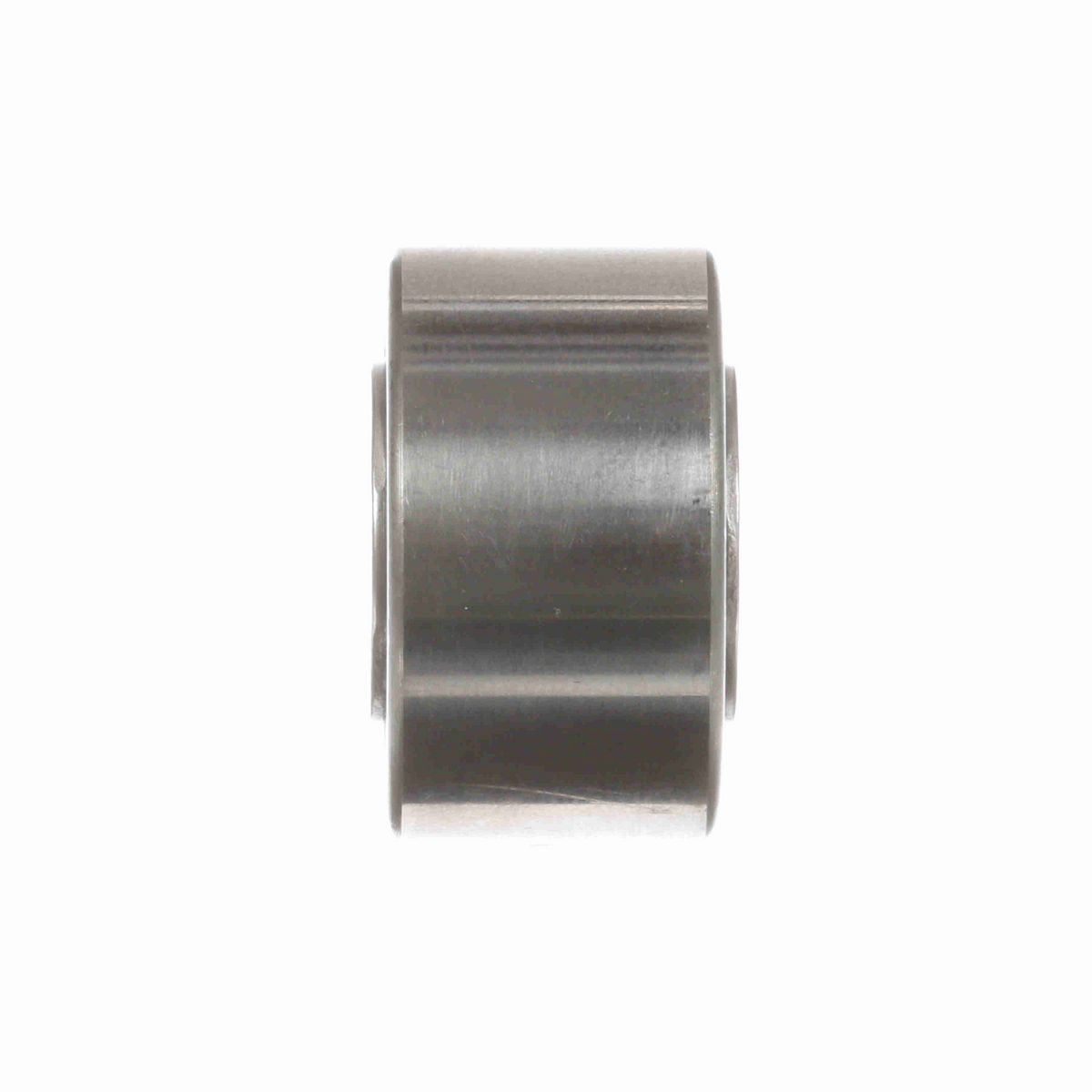

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Bore Diameter (in)	0.3125 in
Roller Diameter (in)	1.125 in
Minimum Boss Diameter (in)	0.641 in
Overall Width (in)	0.6875 in
Endplate Diameter (in)	0.69 in
Oil Hole Diameter (in)	0.094 in
Roller Width (in)	0.625 in
Weight (kg)	0.07 kg

Technical Specifications

Series	CRES CAMROL®
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Sealing	Sealed
Limiting Speed	3,400
Material	440C Stainless Steel
Static Load Rating	5,400
Roller Shape	Cylindrical
Tolerance Class	P0
Dynamic Load Rating (lb)	2,000 lb
Platform	CAMROL®
Lubrication Hole Location	Inner Ring
Roller Material	Stainless Steel
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166118297
Weight	0.15 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
