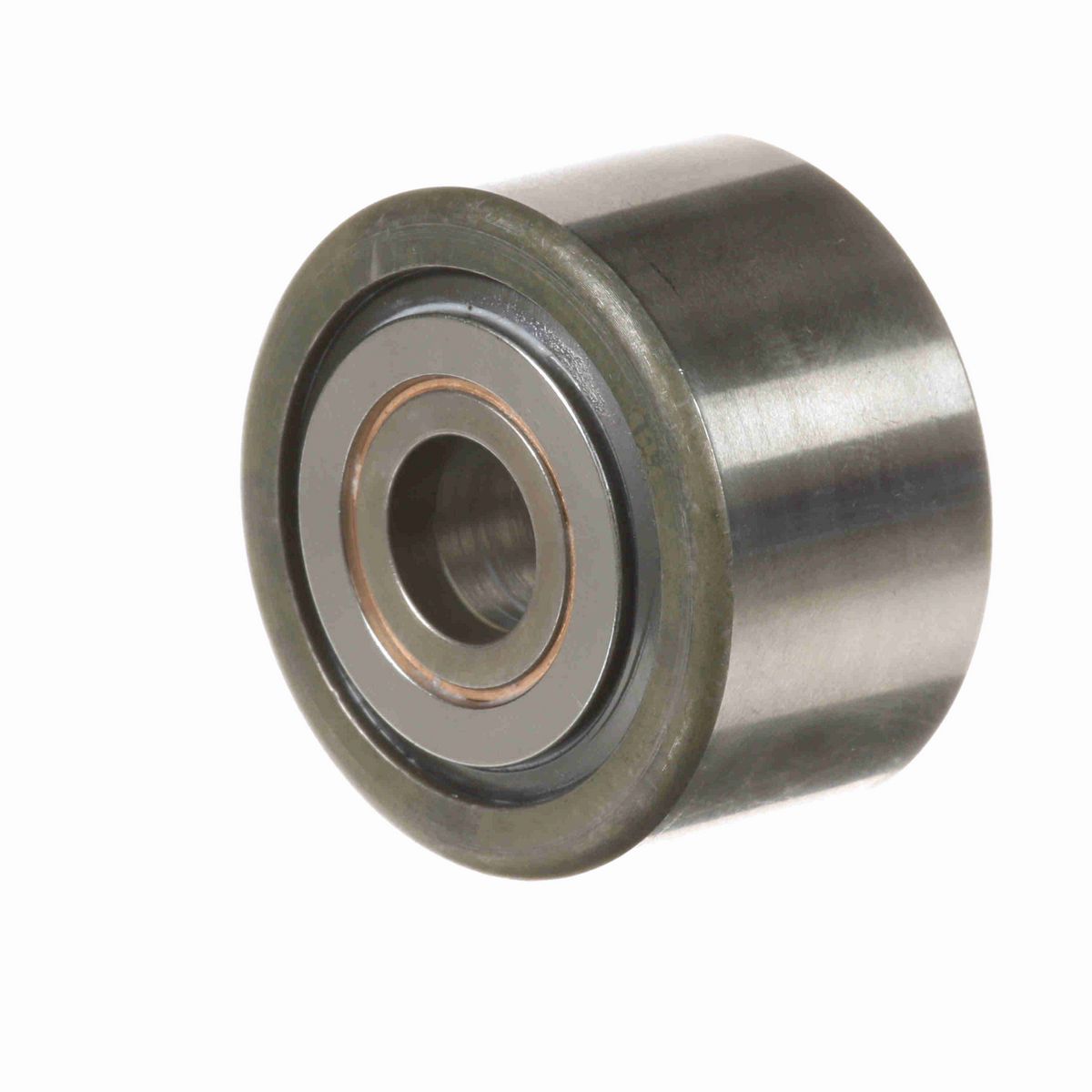

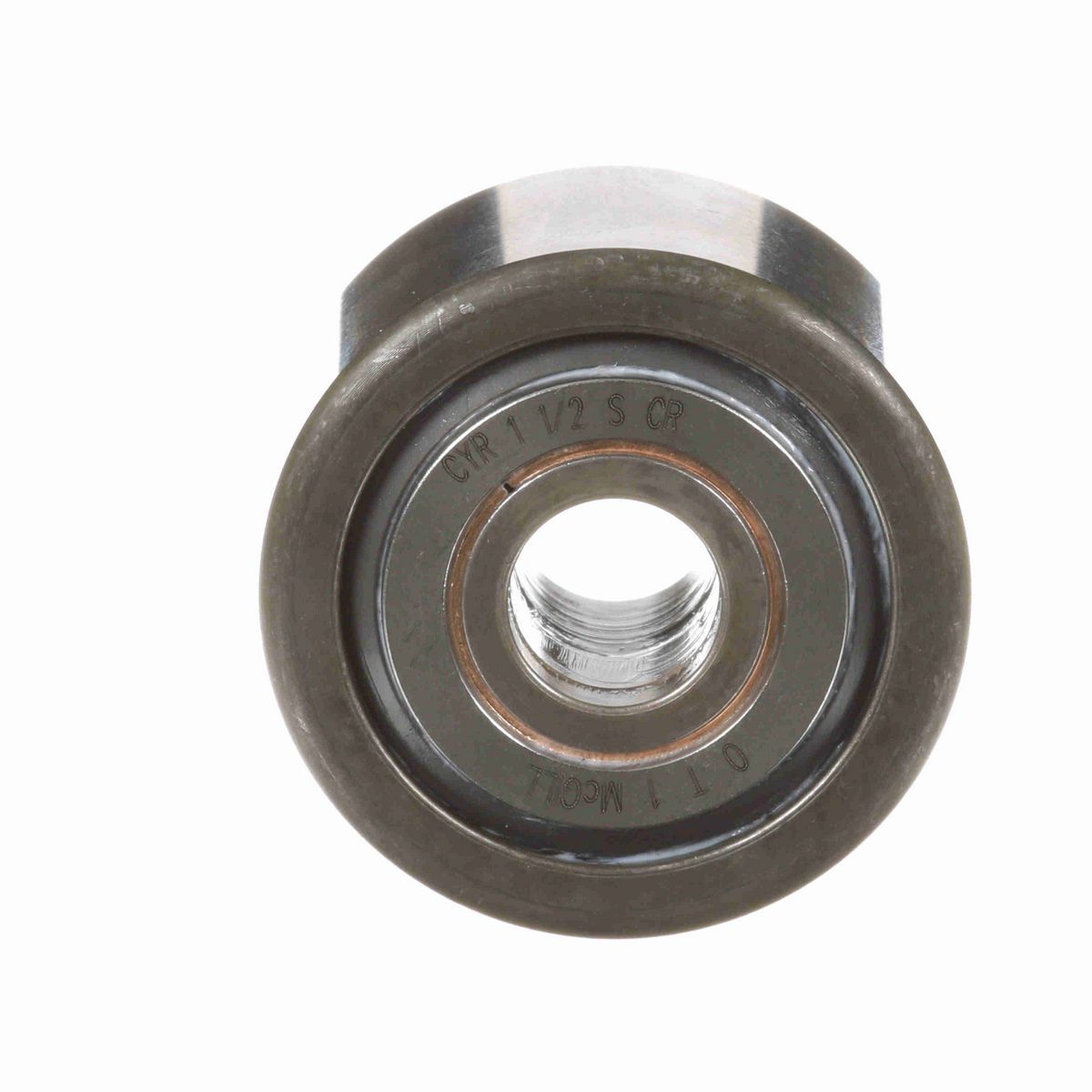

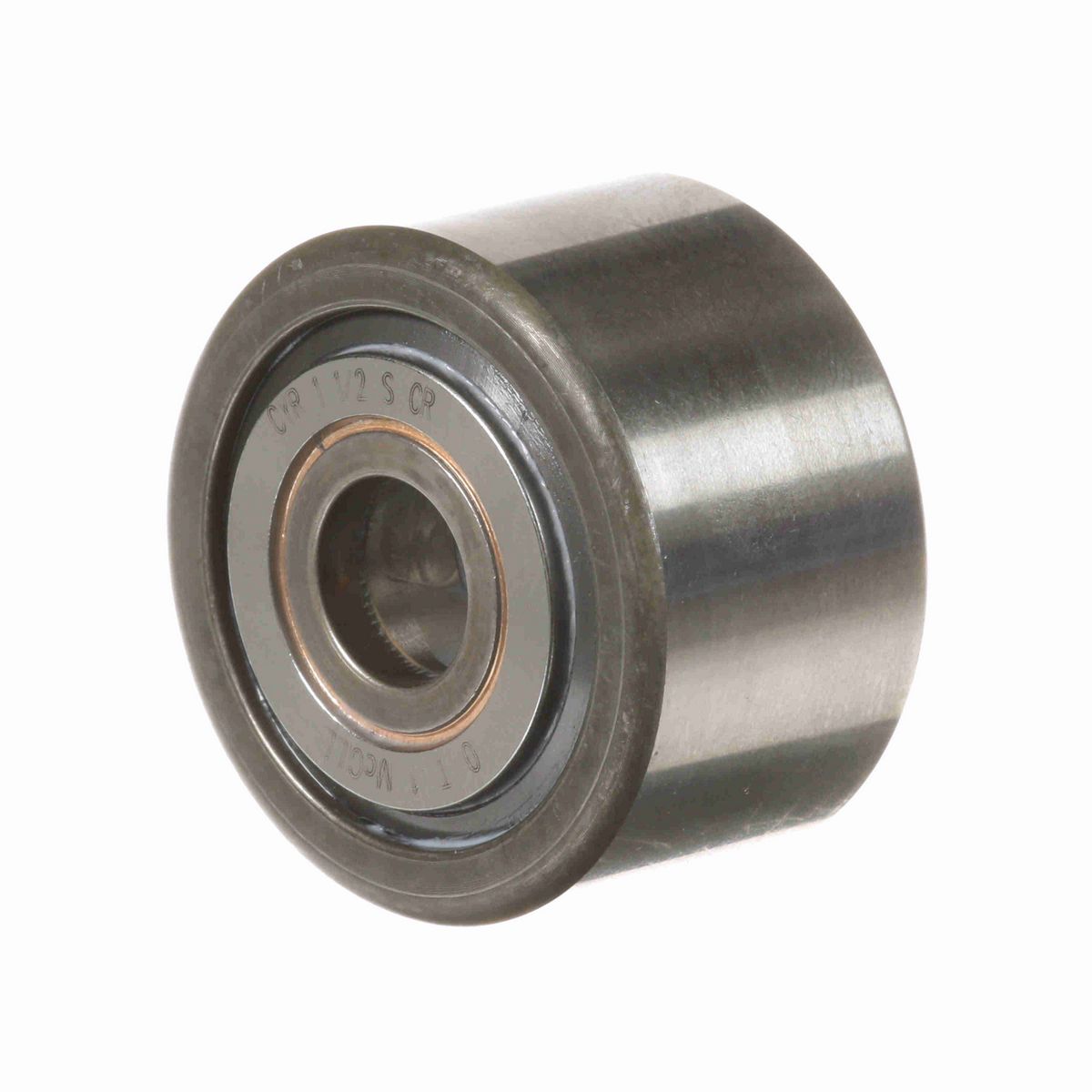

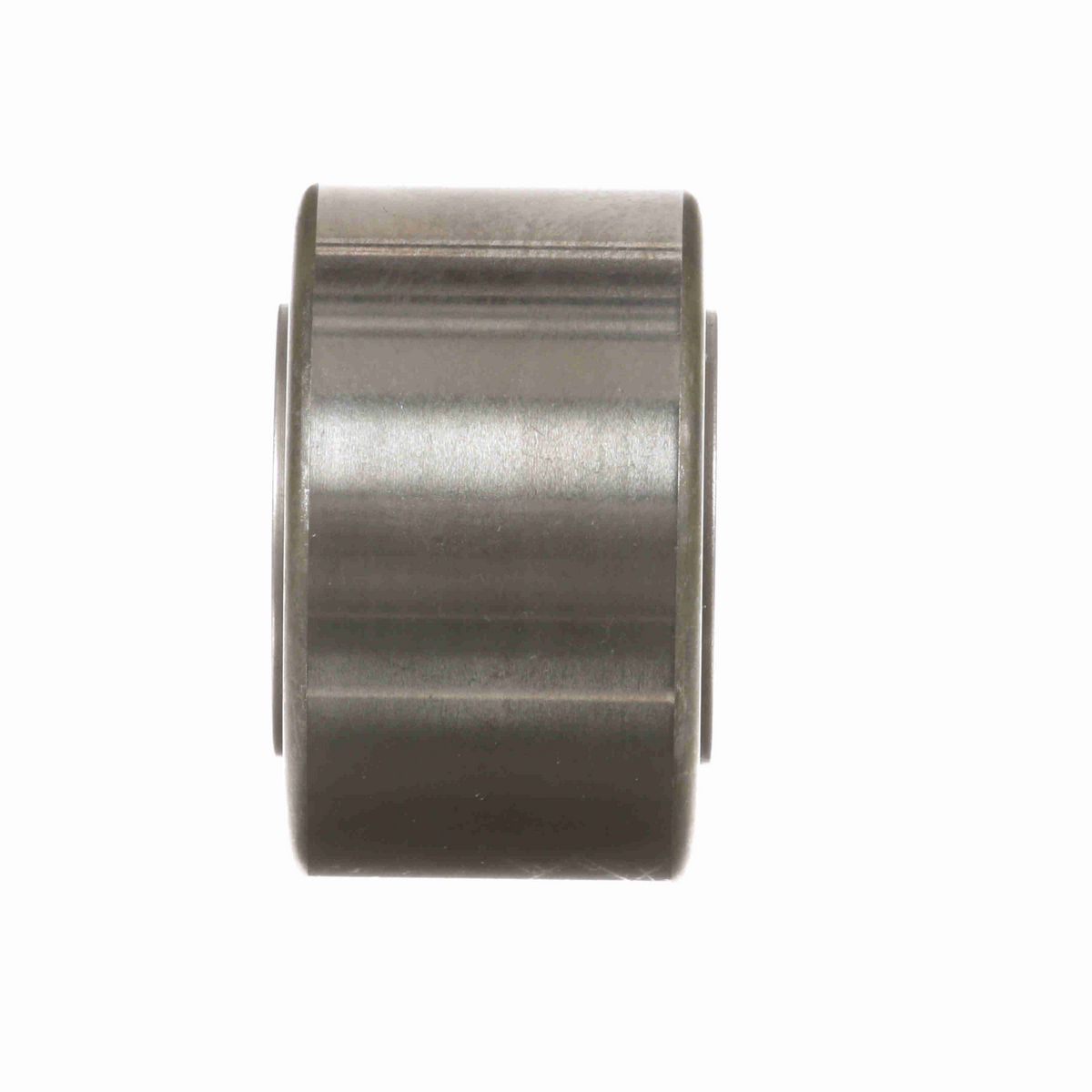

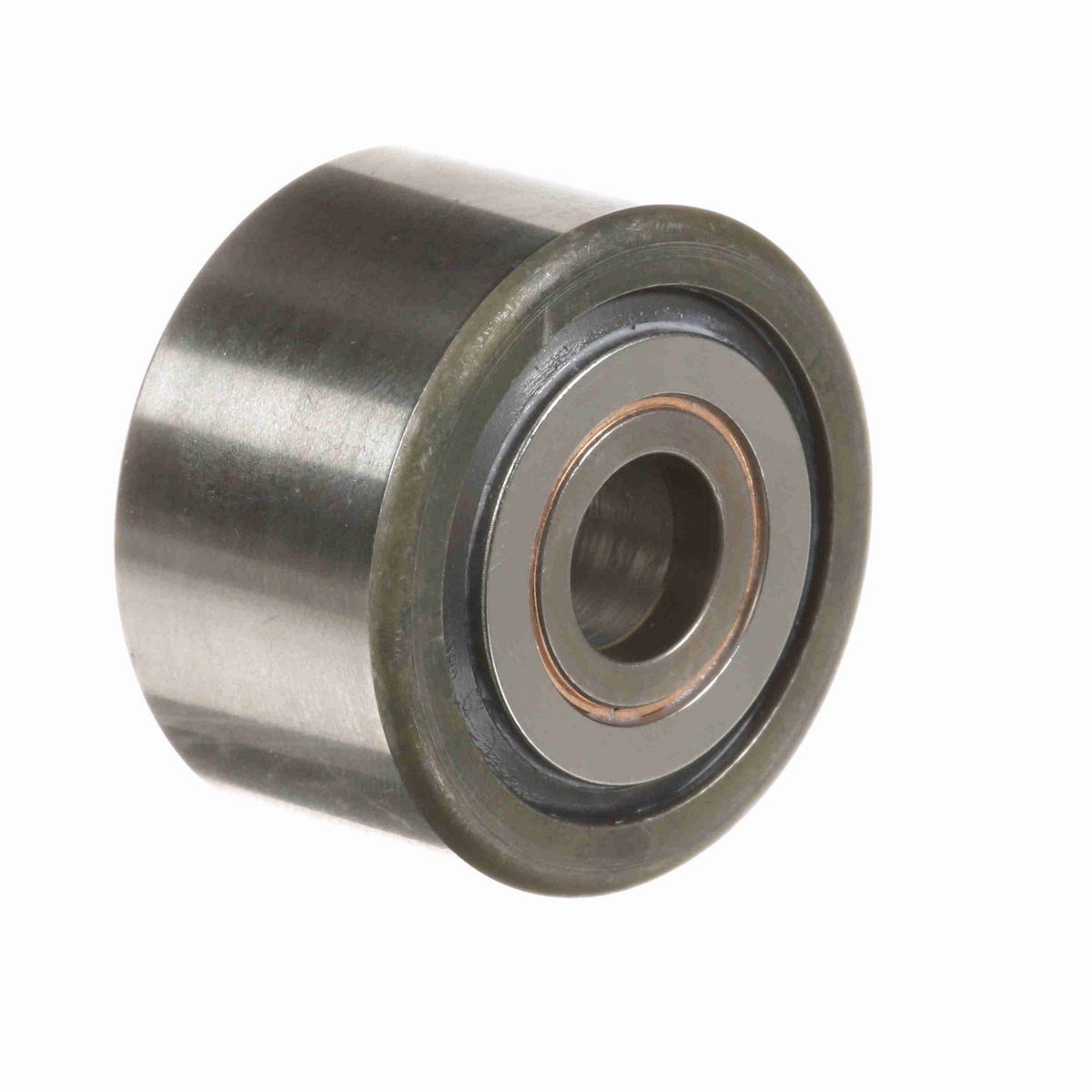

• Yoke type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Roller Diameter (in)	1.5 in
Bore Diameter (in)	0.4375 in
Overall Width (in)	0.9375 in
Oil Hole Diameter (in)	0.094 in
Minimum Boss Diameter (in)	0.891 in
Endplate Diameter (in)	0.98 in
Roller Width (in)	0.875 in
Weight (kg)	0.16 kg

Technical Specifications

Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,500
Series	CRES CAMROL®
O.D. Configuration	Cylindrical
Material	440C Stainless Steel
Roller Shape	Cylindrical
Platform	CAMROL®
Dynamic Load Rating (lb)	4,390 lb
Static Load Rating	11,200
Tolerance Class	P0
Lubrication Hole Location	Inner Ring
Roller Material	Stainless Steel
Adjustment	None
Enclosure	2 Seals
Ability to Relubricate	Yes
Operating Temperature Range (F)	-20 to 250 °F °F

General Specifications

UPC	726166118396
Weight	0.35 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
