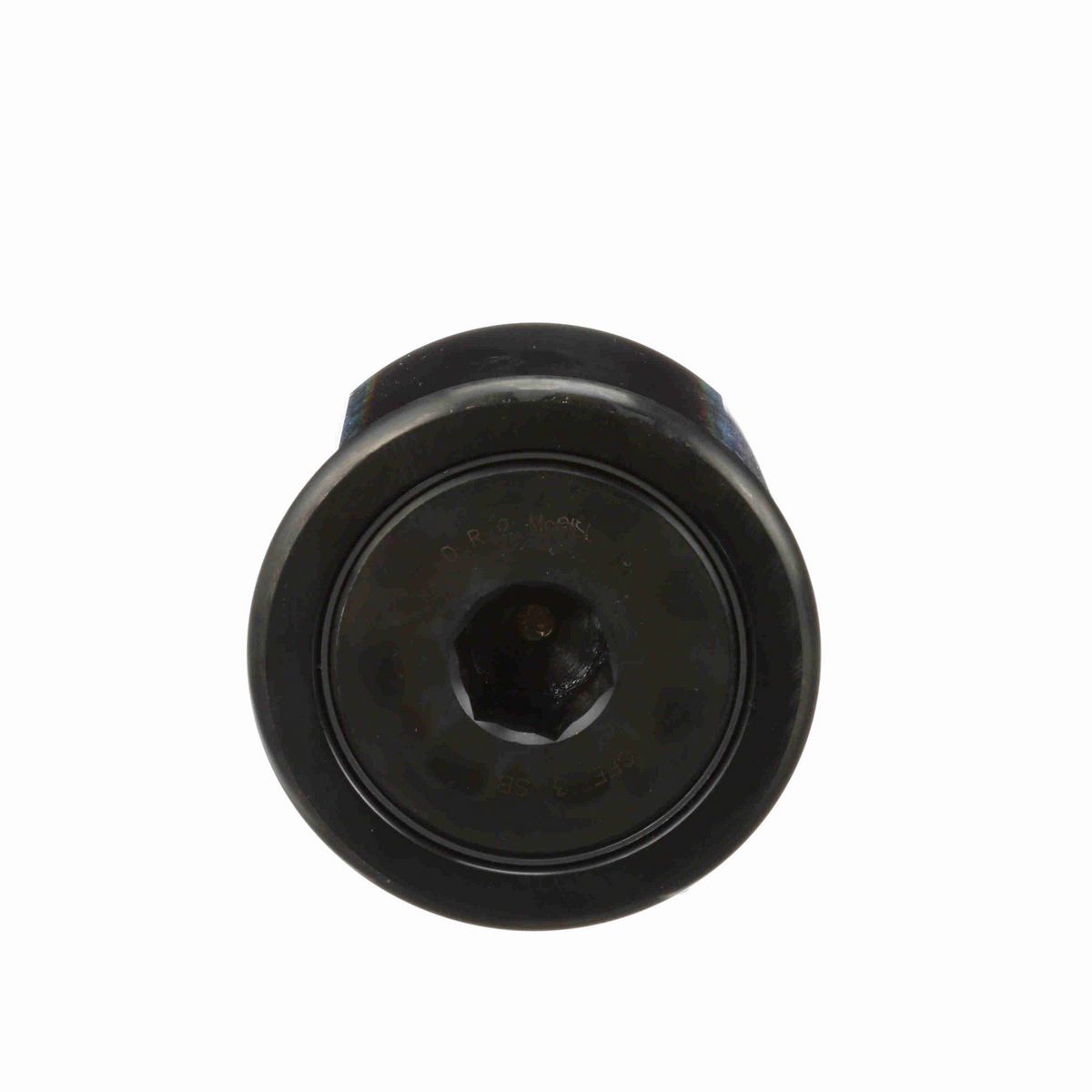

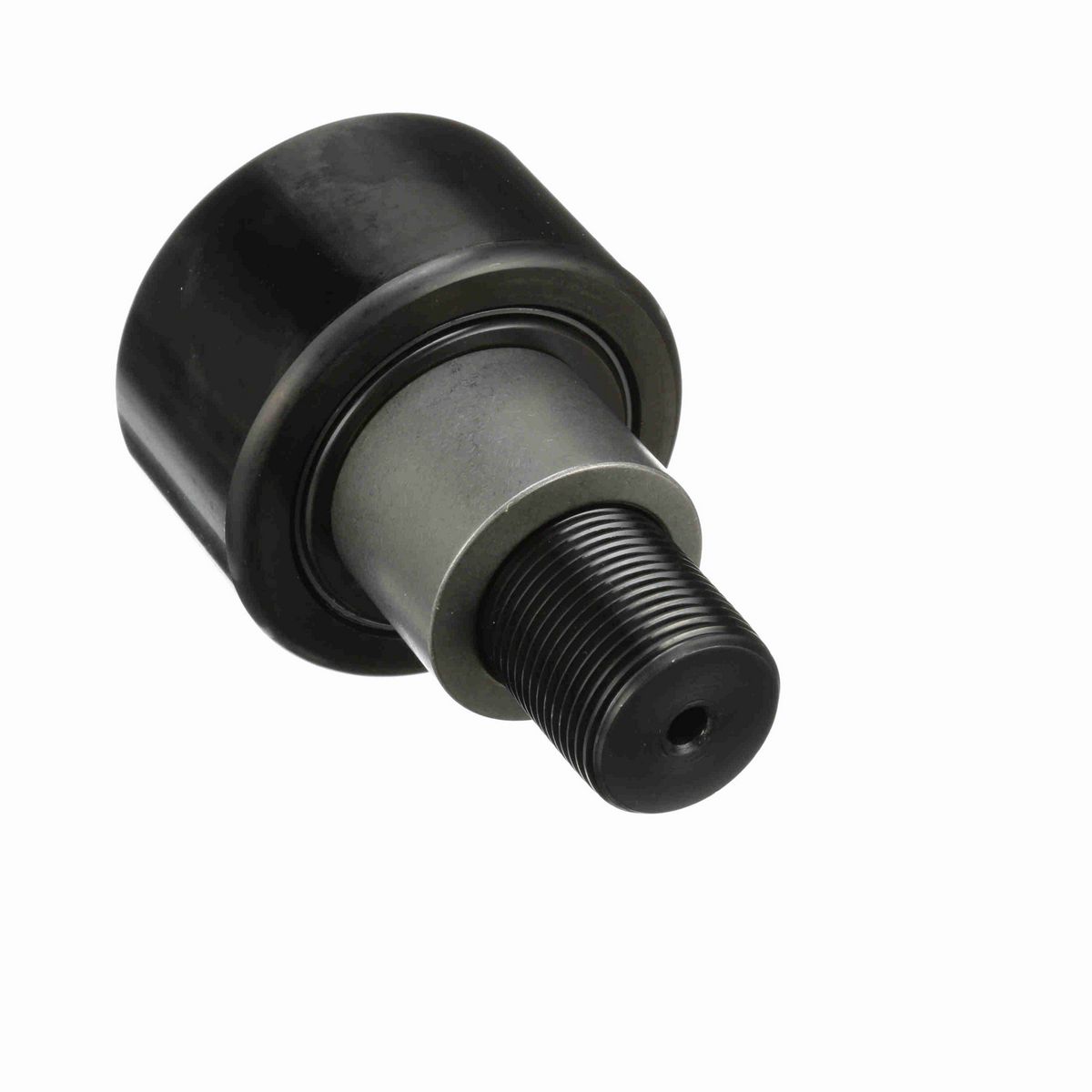

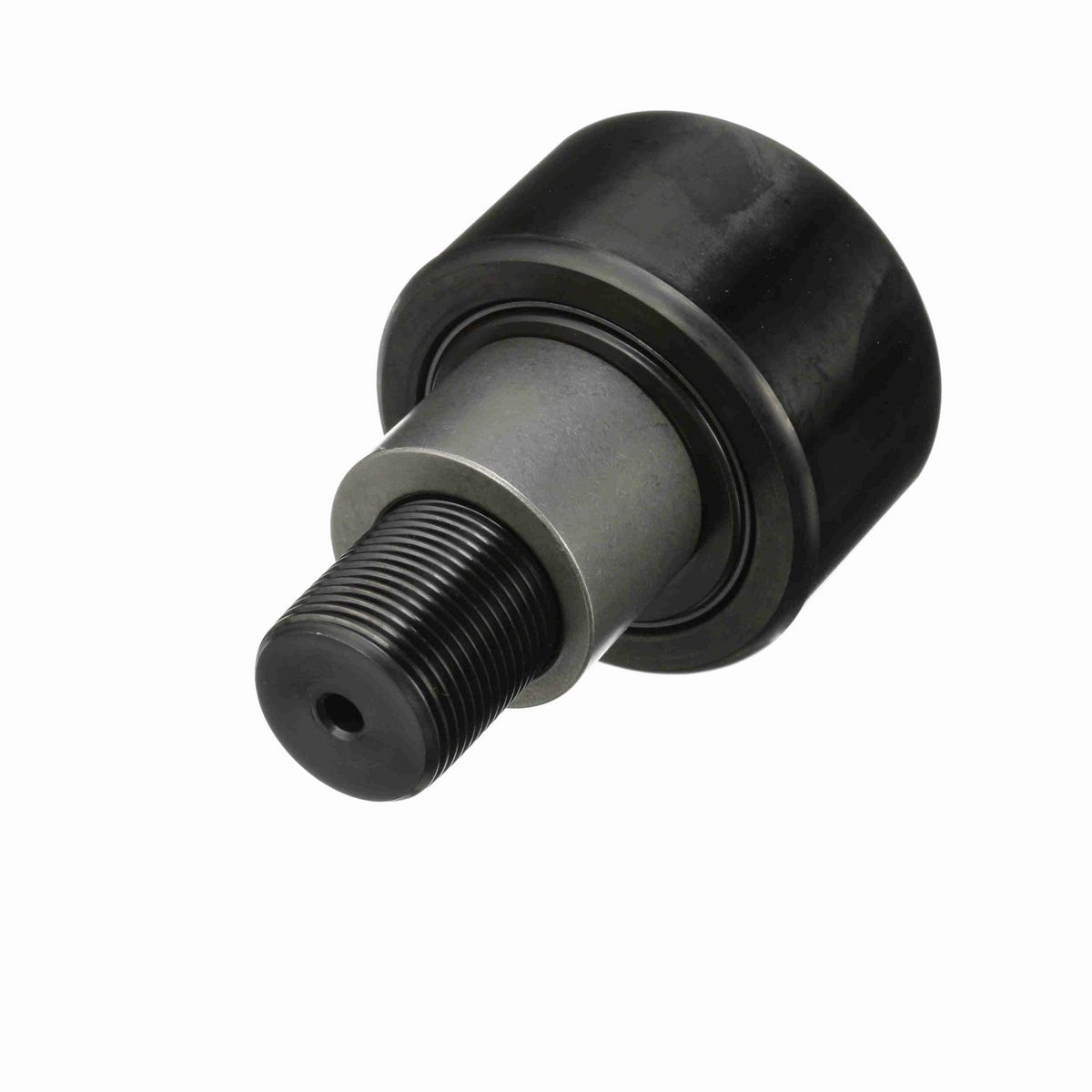

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3 in
Bushing Diameter (in)	1.75 in
Stud Diameter (in)	1.25 in
Stud Length (in)	2.5 in
Hex Socket (in)	0.75 in
Eccentricity (in)	0.06 in
Lubrication Fitting Size (in)	0.25 in
Lubrication Fitting Size (mm)	0.25 mm
Minimum Thread Length (in)	1.25 in
Roller Width (in)	1.75 in
Weight (kg)	1.95 kg

Technical Specifications

Limiting Speed	950
Dynamic Radial Rating	15,720
Rolling Element	Needle Roller - Full Complement
Adjustment	Eccentric Bushing
Sealing	Sealed
Series	Inch CAMROL®
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud with Eccentric Bushing
Static Load Rating	18,000
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	15,720 lb
Roller Shape	Cylindrical
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	3,450 lbs

General Specifications

UPC	726166039189
Weight	4.29 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
