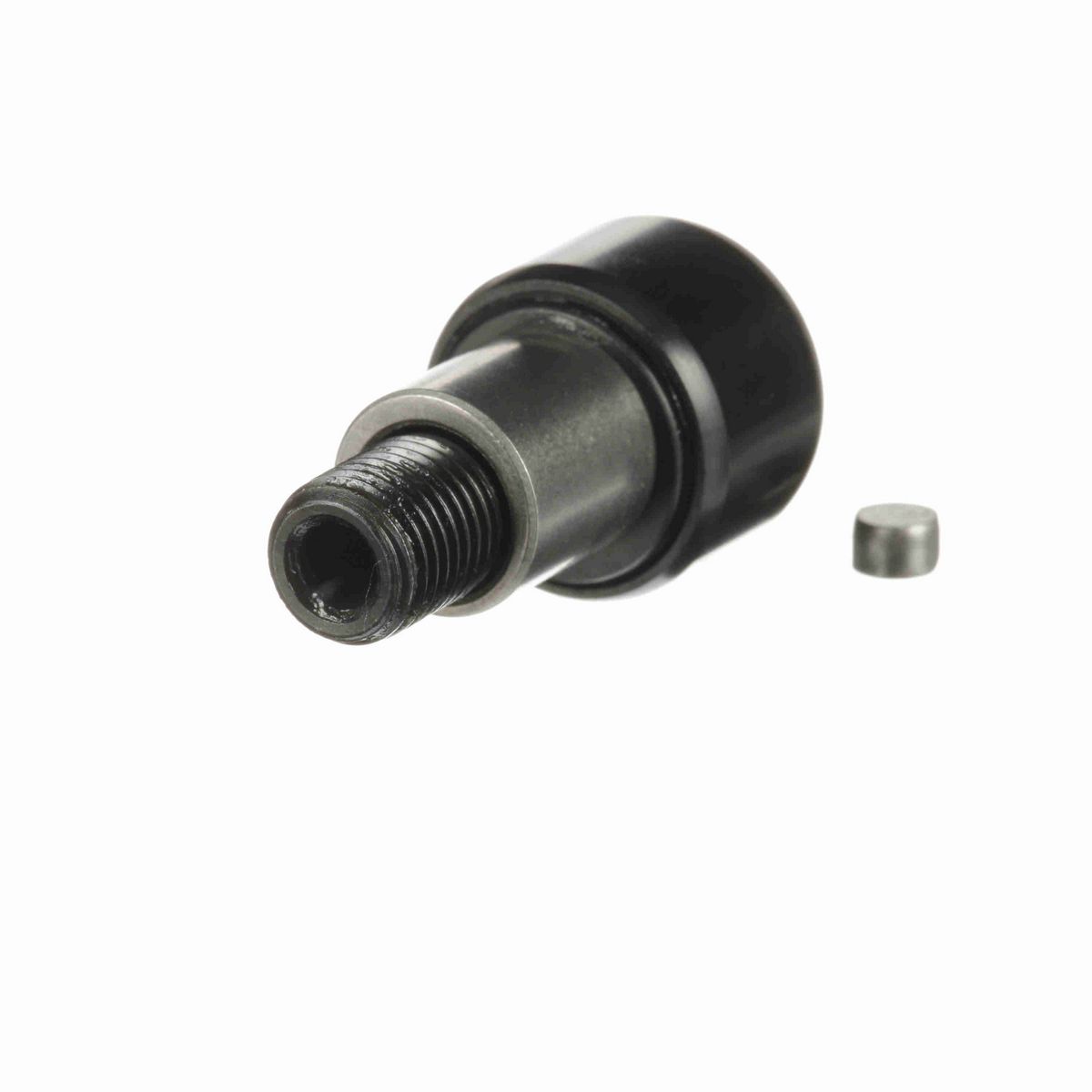

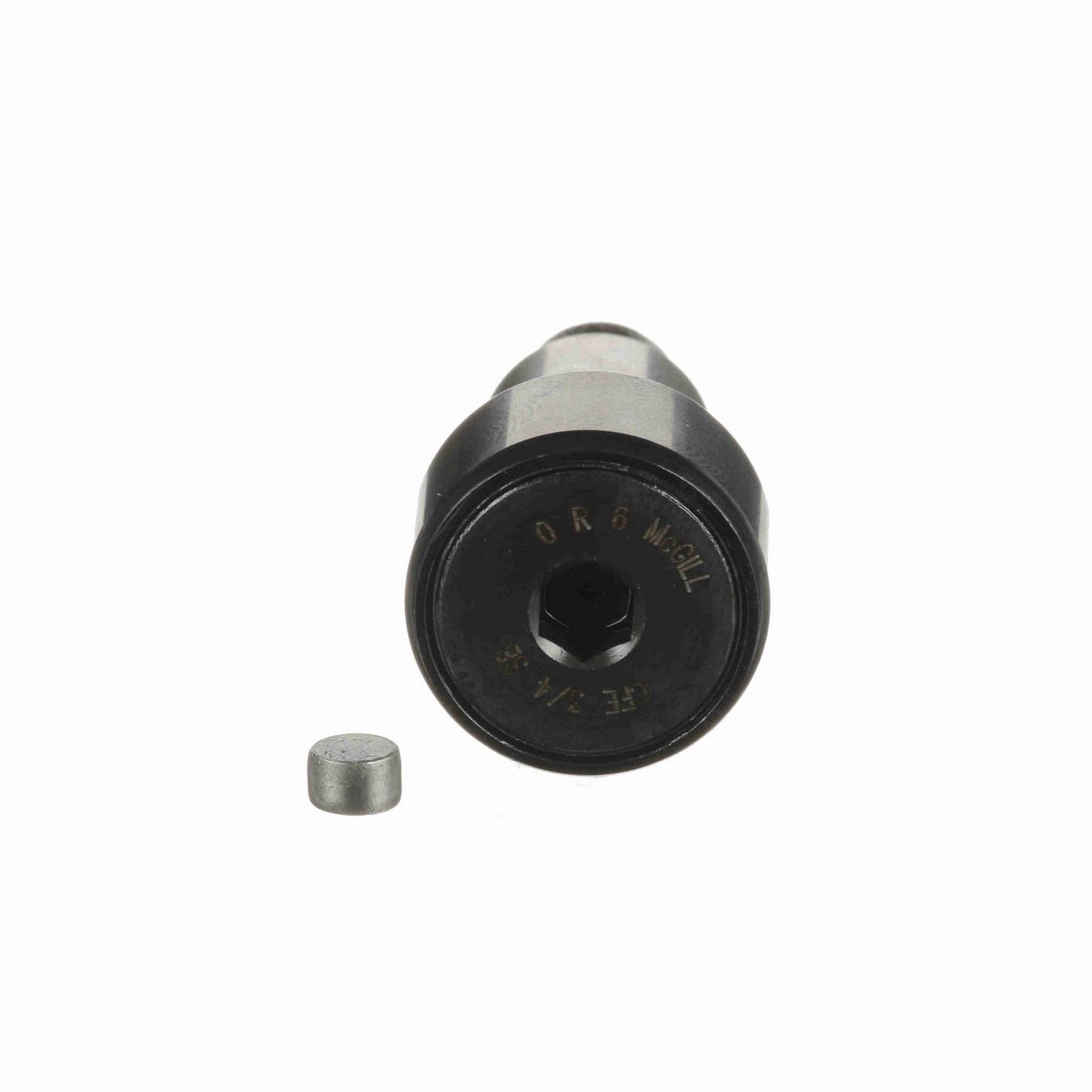

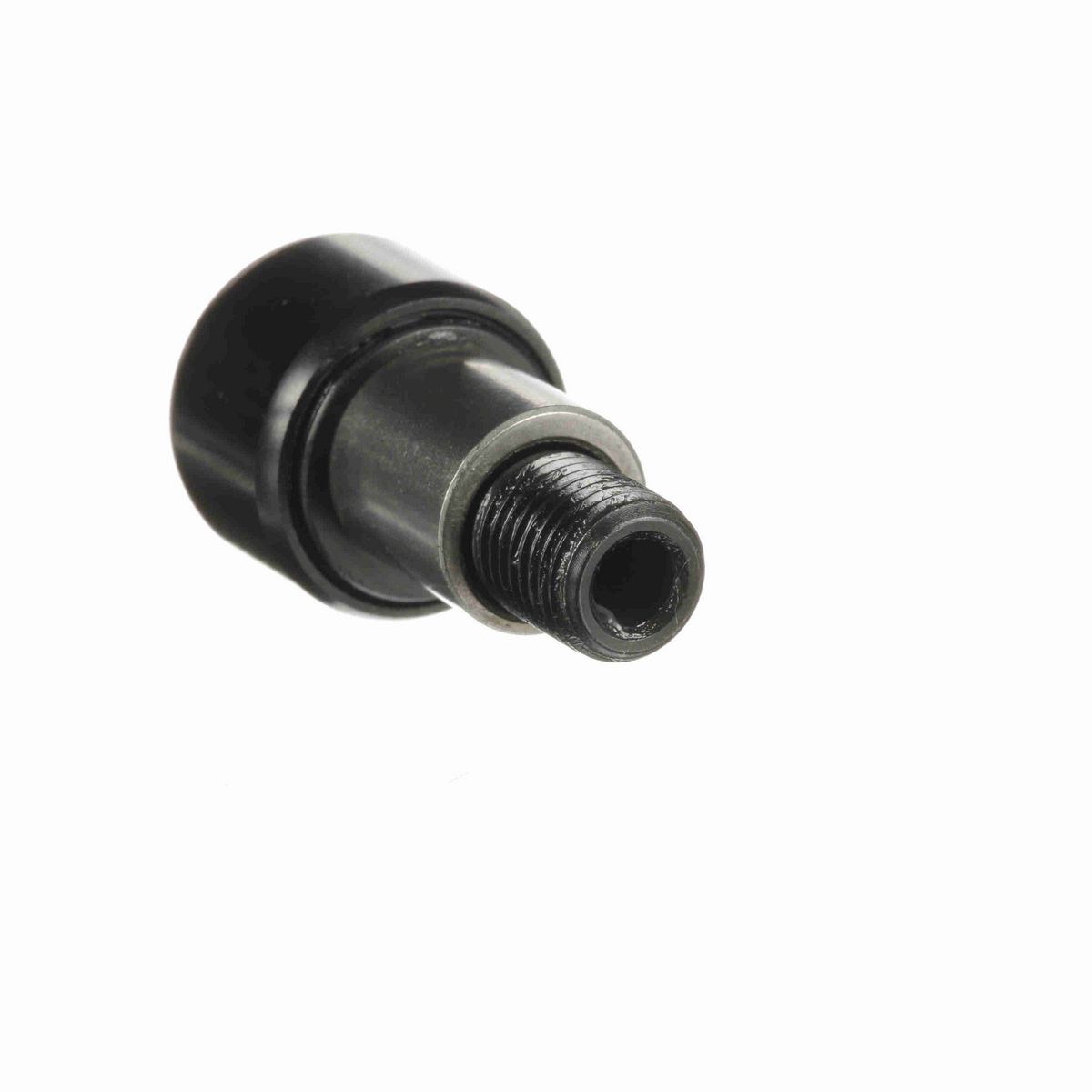

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.75 in
Hex Socket (in)	0.1875 in
Bushing Diameter (in)	0.5 in
Roller Width (in)	0.5 in
Minimum Thread Length (in)	0.38 in
Bushing Length (in)	0.5 in
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	0.375 in
Eccentricity (in)	0.015 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	0.875 in
Weight (kg)	0.05 kg

Technical Specifications

Hex/Slot	Hex Hole
Adjustment	Eccentric Bushing
Dynamic Radial Rating	1,660
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Limiting Speed	6,400
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	2,065
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	1,660 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Stud Type	Standard Stud with Eccentric Bushing
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	95 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166032050
Weight	0.10 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
