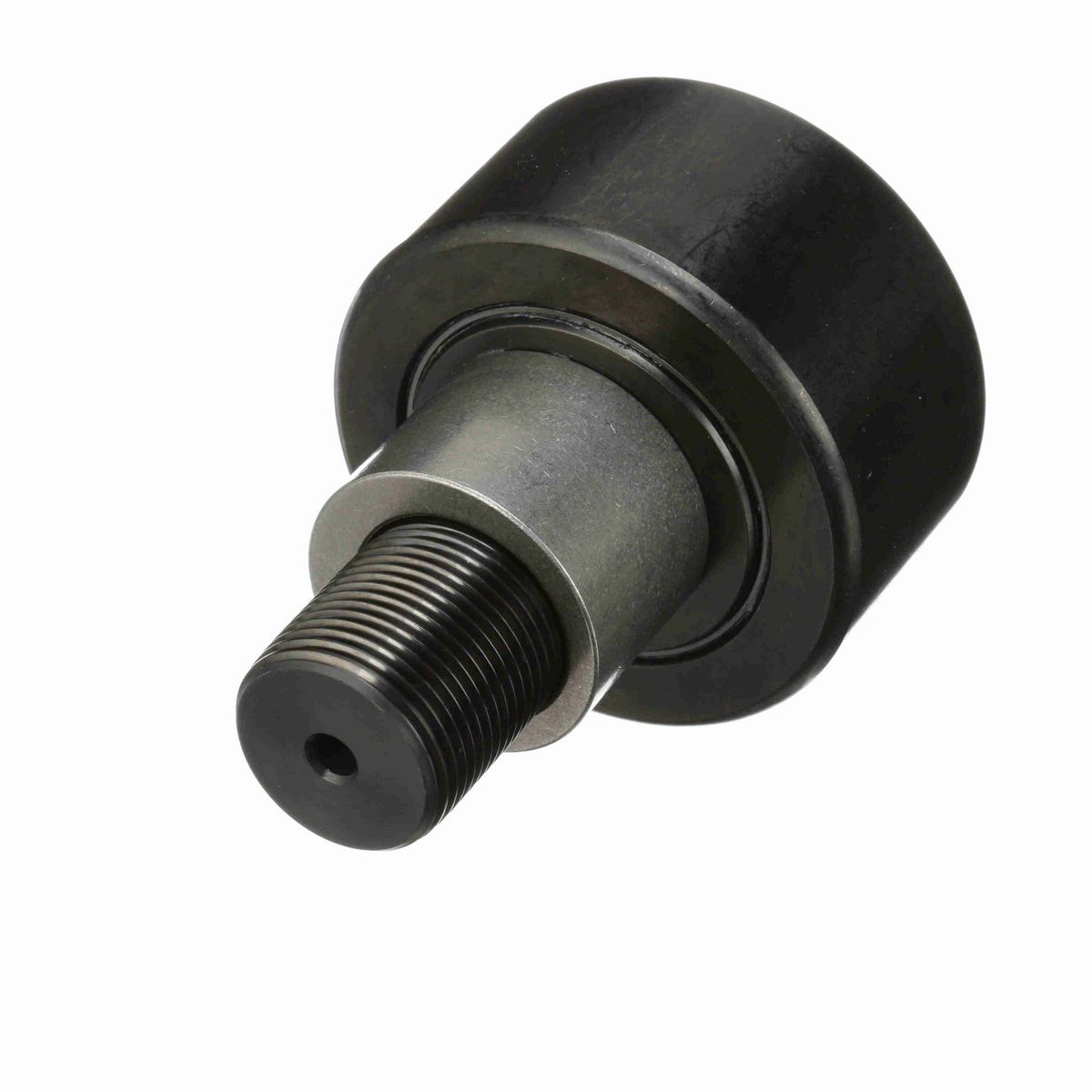

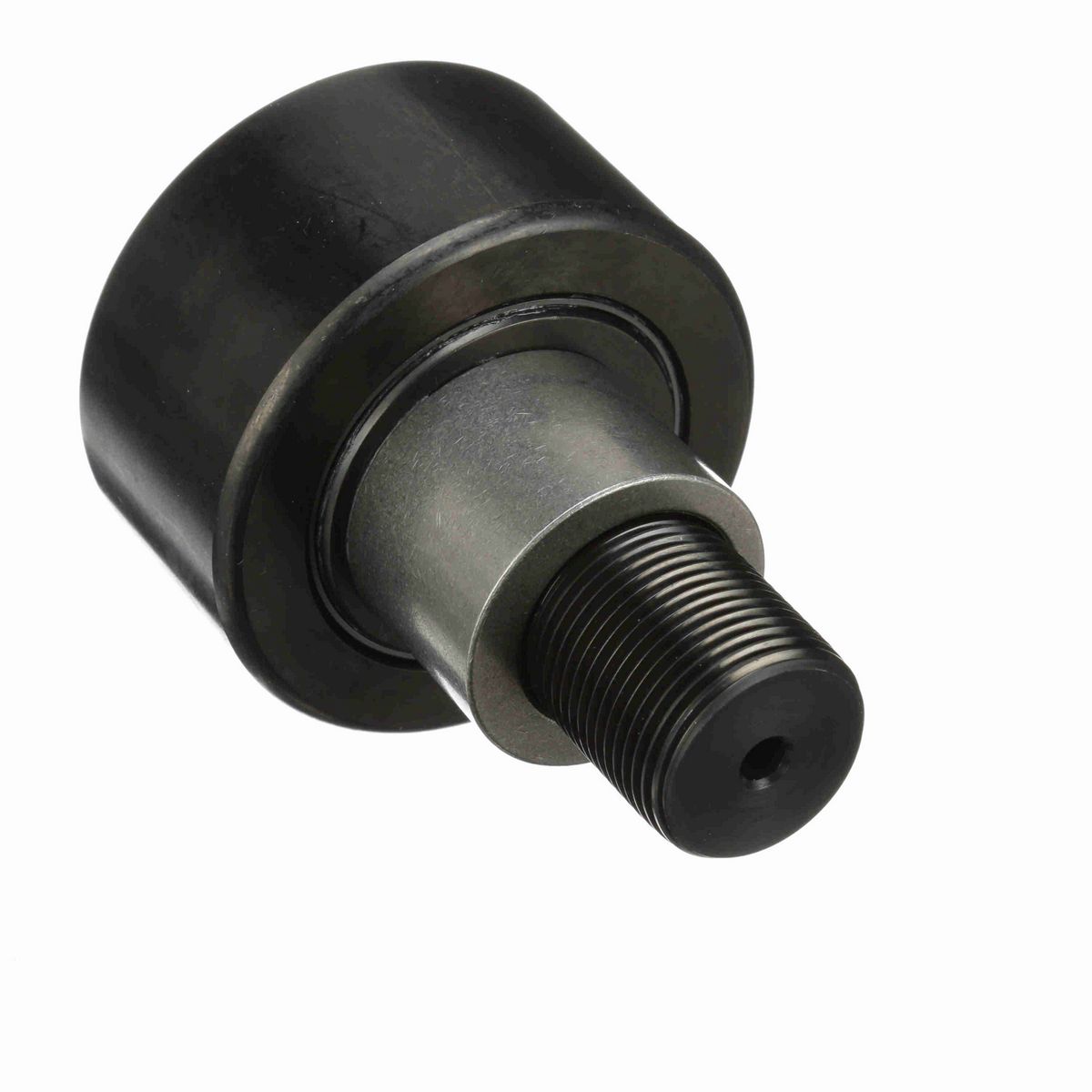

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

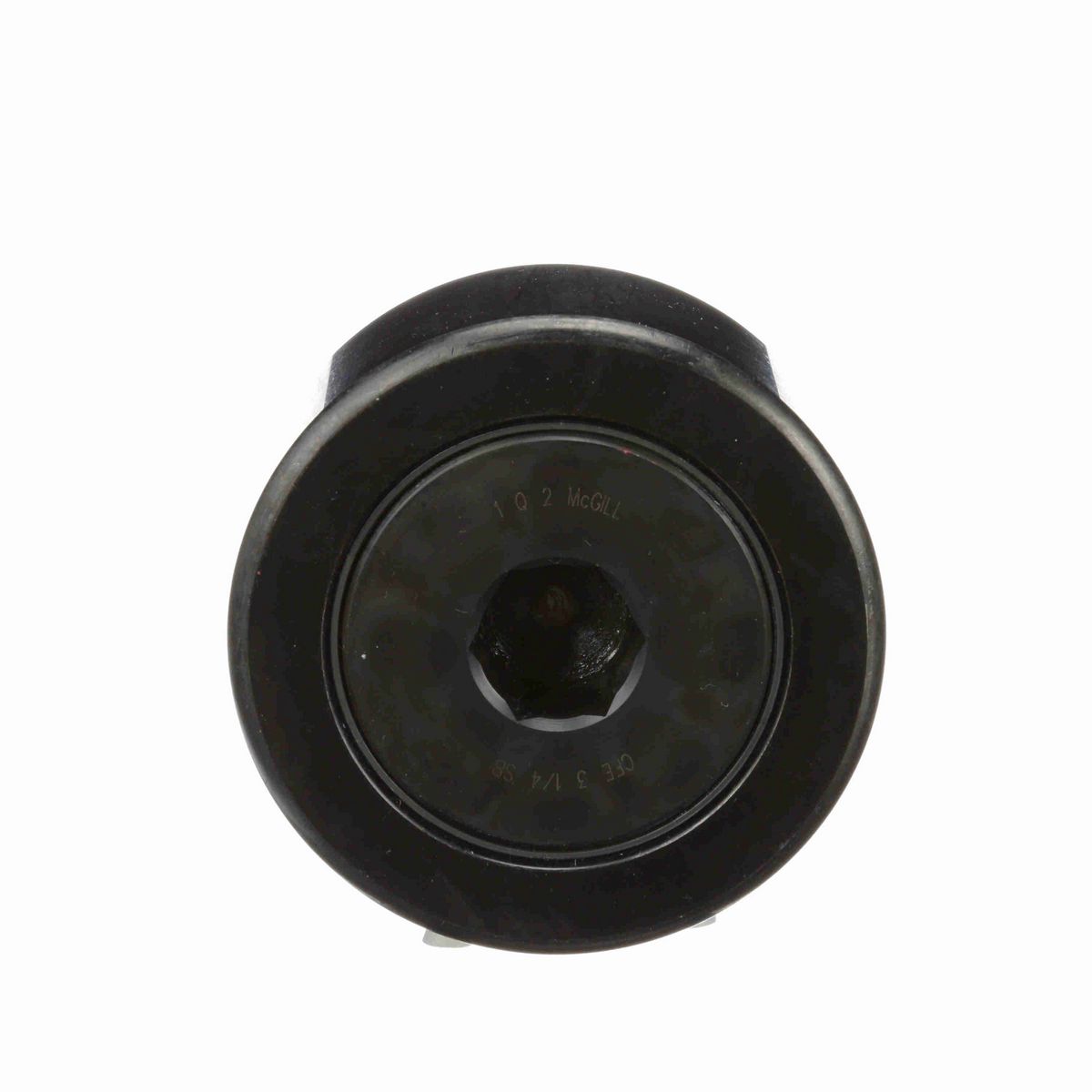

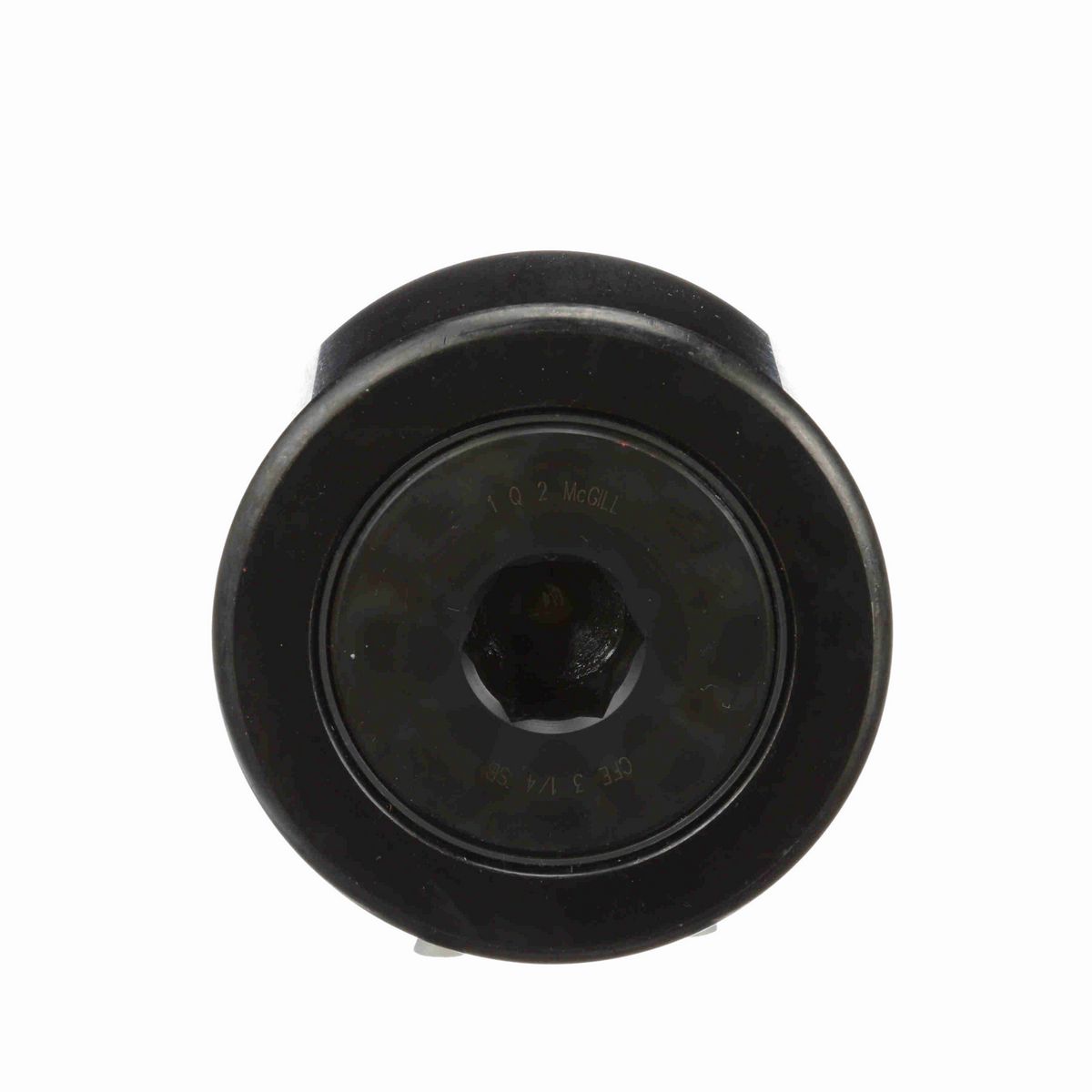

• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3.25 in
Stud Diameter (in)	1.25 in
Roller Width (in)	1.75 in
Lubrication Fitting Size (mm)	0.25 mm
Lubrication Fitting Size (in)	0.25 in
Minimum Thread Length (in)	1.25 in
Hex Socket (in)	0.75 in
Eccentricity (in)	0.06 in
Stud Length (in)	2.5 in
Bushing Diameter (in)	1.75 in
Weight (kg)	2.26 kg

Technical Specifications

Limiting Speed	880
Adjustment	Eccentric Bushing
Sealing	Sealed
Hex/Slot	Hex Hole
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Dynamic Radial Rating	15,720
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud with Eccentric Bushing
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Static Load Rating	18,000
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	15,720 lb
Clamping Torque (in-lbf)	3,450 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039608
Weight	4.99 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
