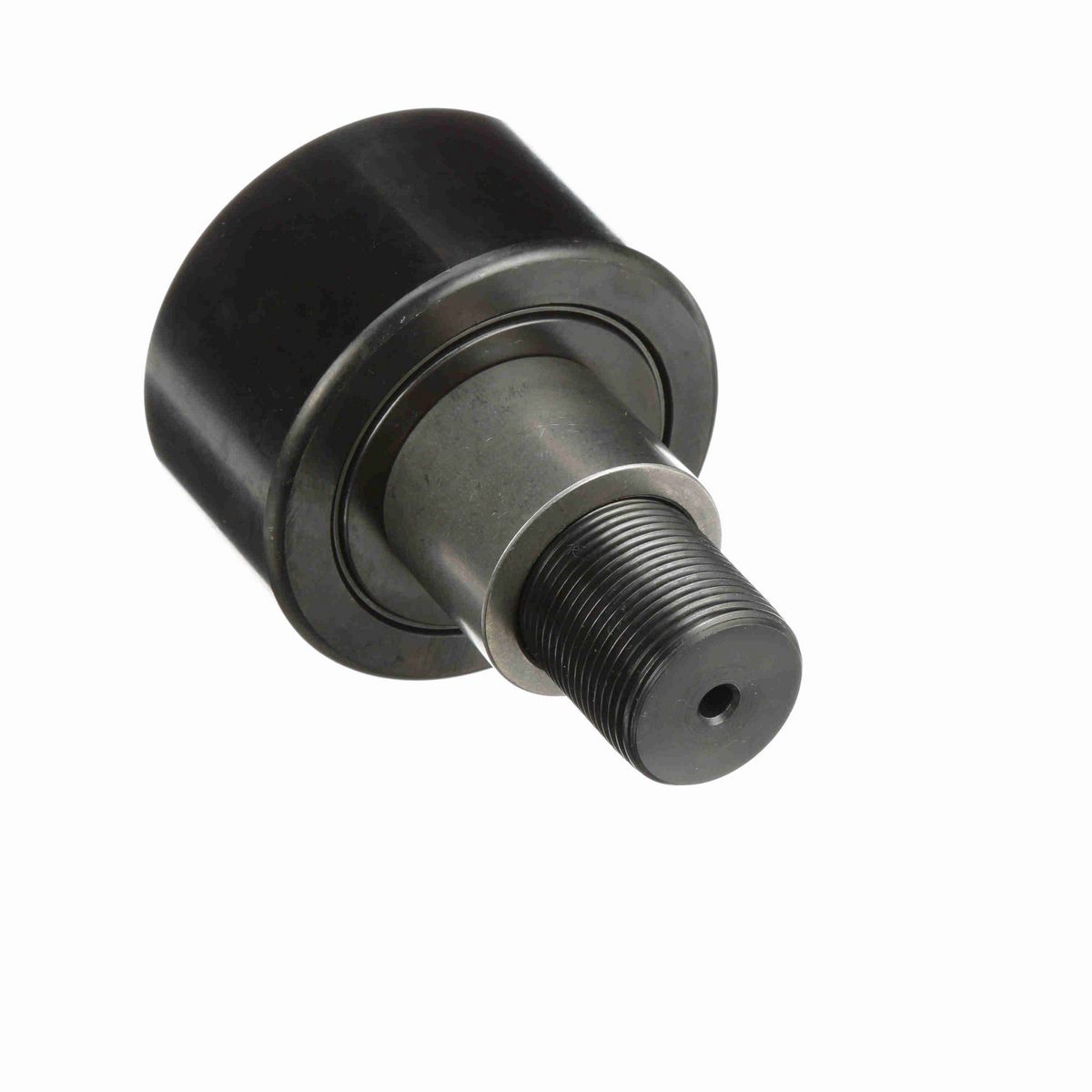

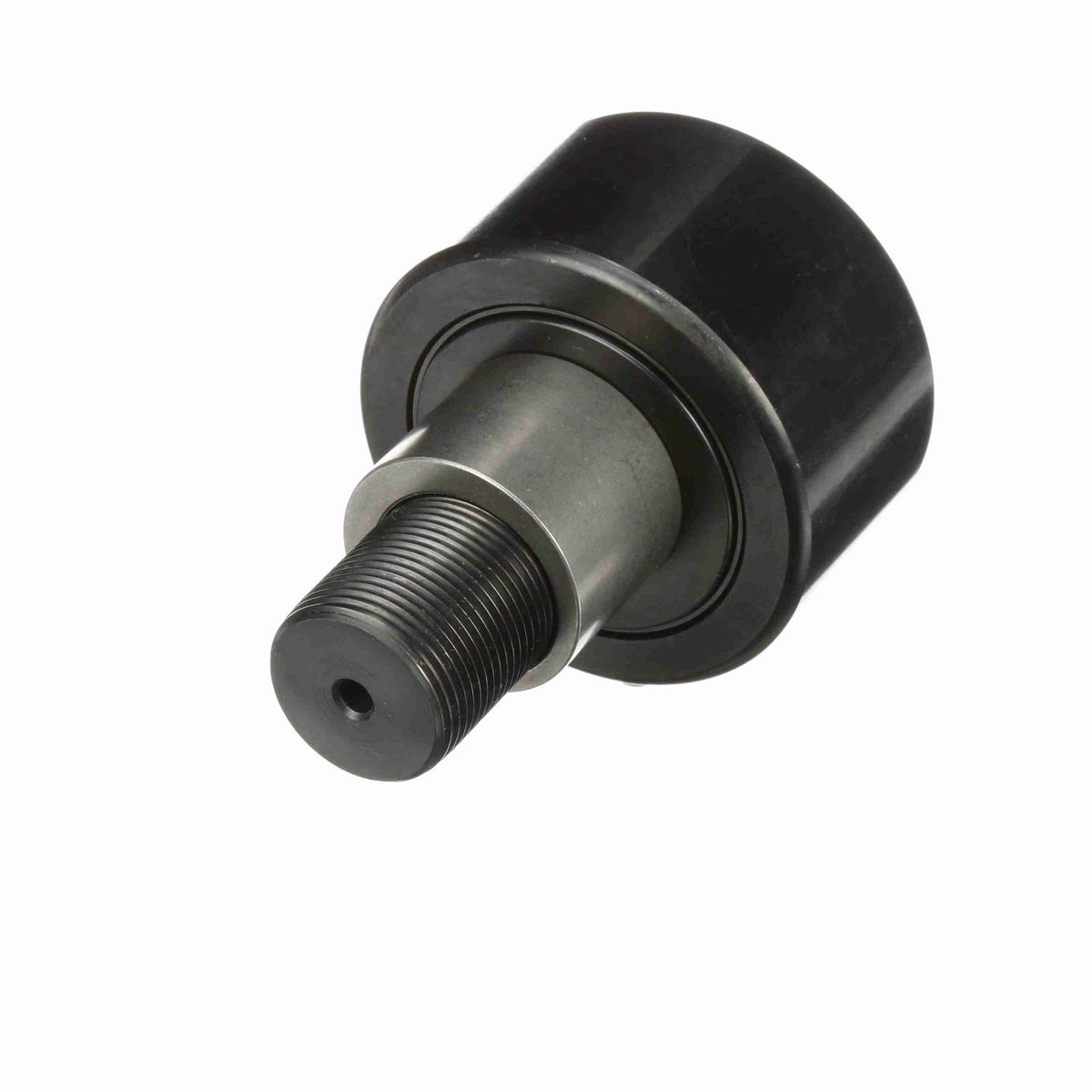

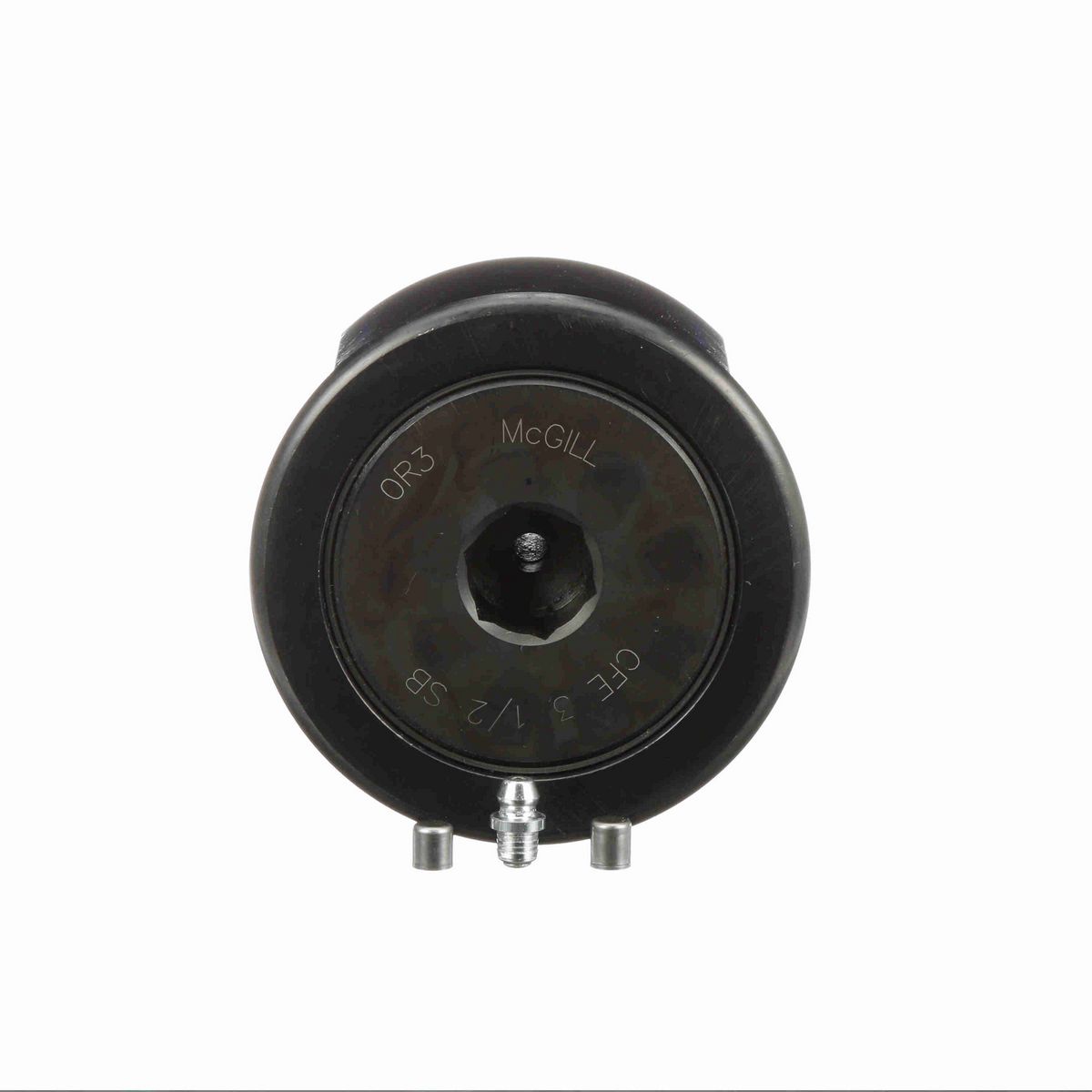

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1 3/8-12
Roller Diameter (in)	3.5 in
Eccentricity (in)	0.06 in
Roller Width (in)	2 in
Bushing Diameter (in)	1.812 in
Hex Socket (in)	0.75 in
Stud Diameter (in)	1.375 in
Minimum Thread Length (in)	1.38 in
Lubrication Fitting Size (in)	0.25 in
Stud Length (in)	2.75 in
Lubrication Fitting Size (mm)	0.25 mm
Weight (kg)	2.92 kg

Technical Specifications

Sealing	Sealed
Dynamic Radial Rating	22,800
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Limiting Speed	820
Hex/Slot	Hex Hole
Adjustment	Eccentric Bushing
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	21,300
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Platform	CAMROL®
Dynamic Load Rating (lb)	22,800 lb
Stud Type	Standard Stud with Eccentric Bushing
Clamping Torque (in-lbf)	4,200 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039936
Weight	6.43 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
