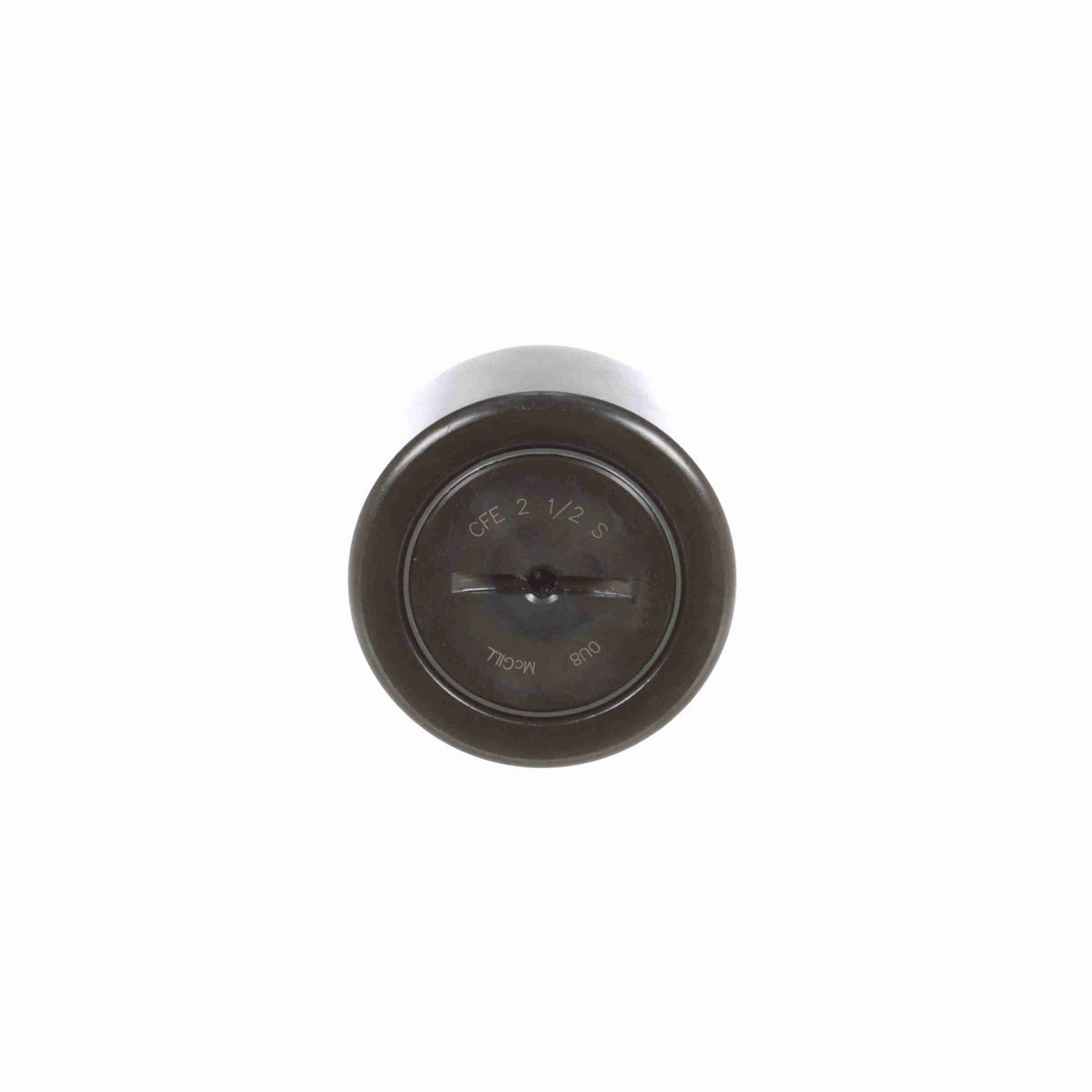

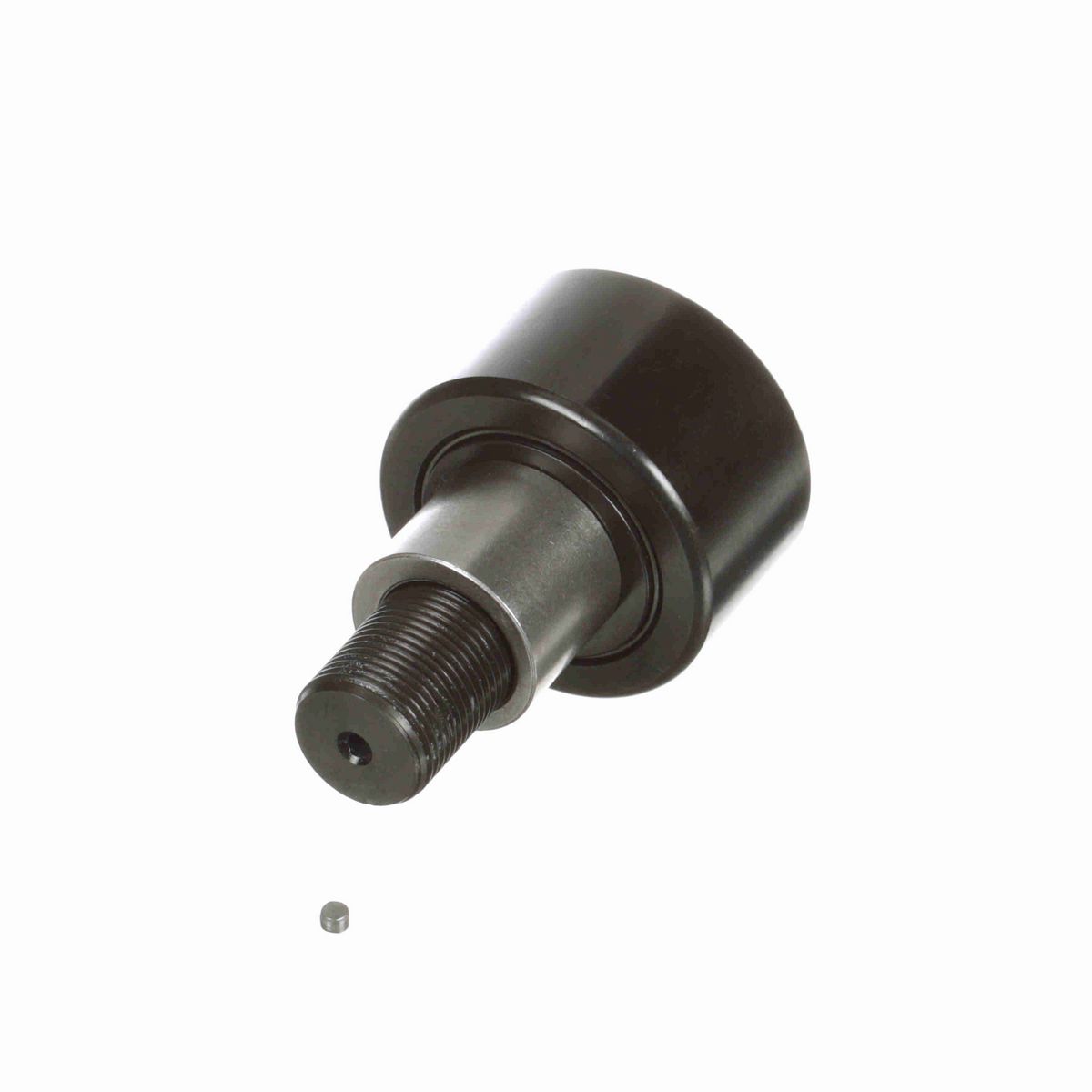

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1-14
Roller Diameter (in)	2.5 in
Stud Diameter (in)	1 in
Bushing Diameter (in)	1.375 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Eccentricity (in)	0.03 in
Stud Length (in)	2.25 in
Minimum Thread Length (in)	1.13 in
Roller Width (in)	1.5 in
Weight (kg)	1.23 kg

Technical Specifications

Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Adjustment	Eccentric Bushing
Limiting Speed	1,100
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Screwdriver Slot
Dynamic Radial Rating	11,720
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Roller Shape	Cylindrical
Static Load Rating	10,300
Dynamic Load Rating (lb)	11,720 lb
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	2,250 lbs

General Specifications

UPC	726166038366
Weight	2.72 LB
Packaged Length	2.81 IN
Packaged Width	2.81 IN
Packaged Height	3.93 IN
HTC	8482.40.0000
Country of Origin	Mexico
