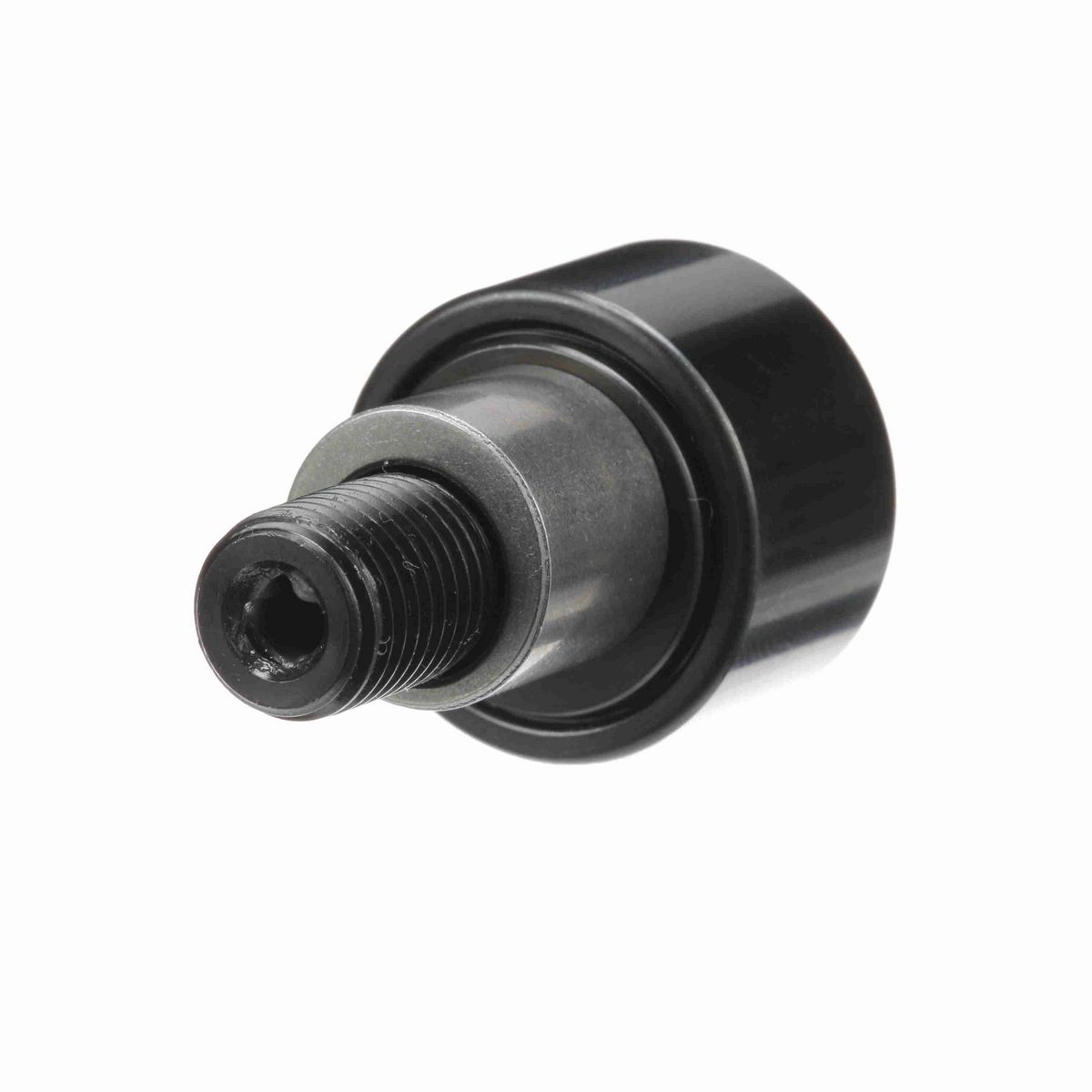

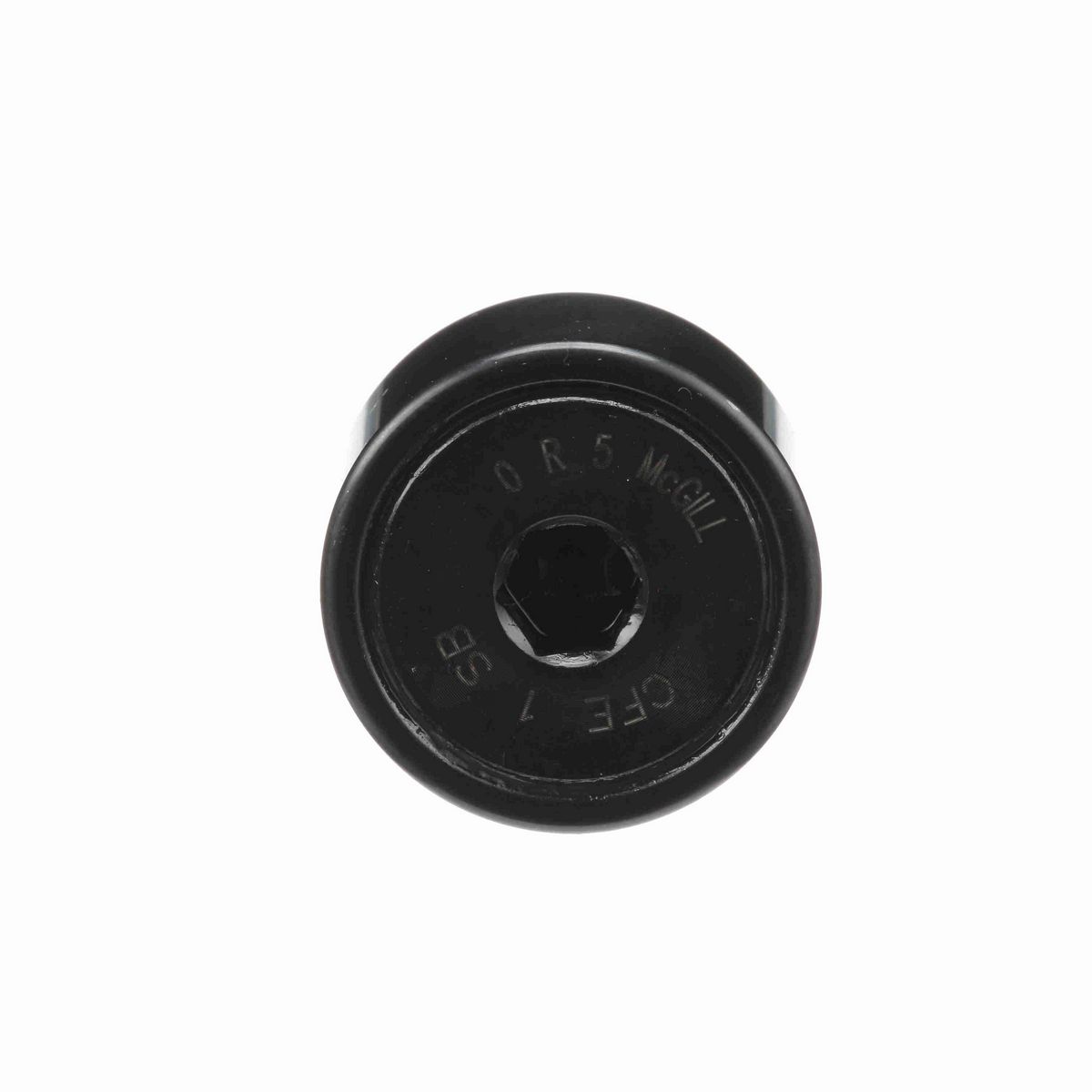

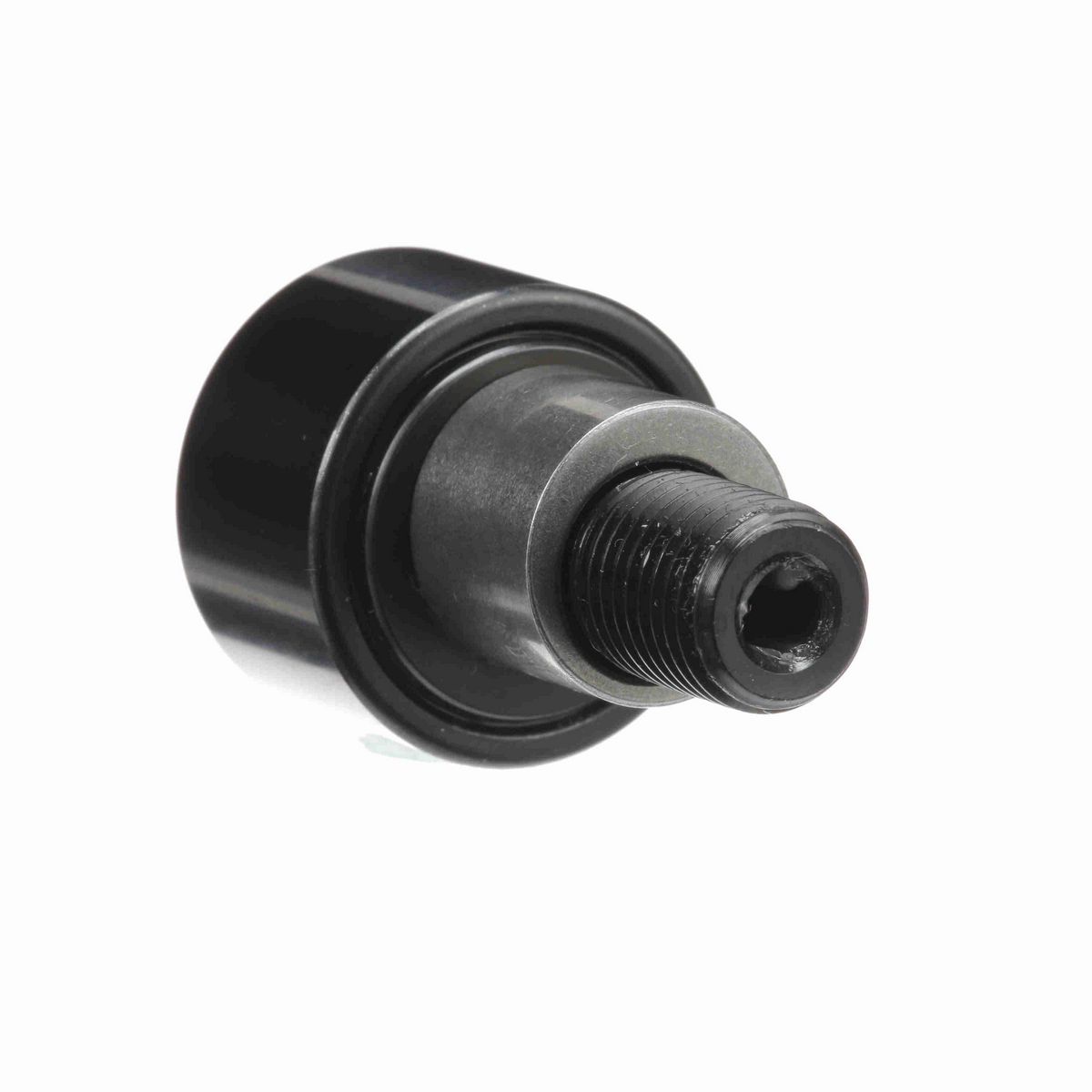

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Minimum Thread Length (in)	0.5 in
Eccentricity (in)	0.03 in
Roller Width (in)	0.625 in
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	1 in
Hex Socket (in)	0.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.4375 in
Bushing Diameter (in)	0.625 in
Bushing Length (in)	0.5 in
Weight (kg)	0.09 kg

Technical Specifications

Sealing	Sealed
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Limiting Speed	4,800
Rolling Element	Needle Roller - Full Complement
Adjustment	Eccentric Bushing
Dynamic Radial Rating	2,225
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud with Eccentric Bushing
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	2,225 lb
Static Load Rating	1,800
Platform	CAMROL®
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166033385
Weight	0.19 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
