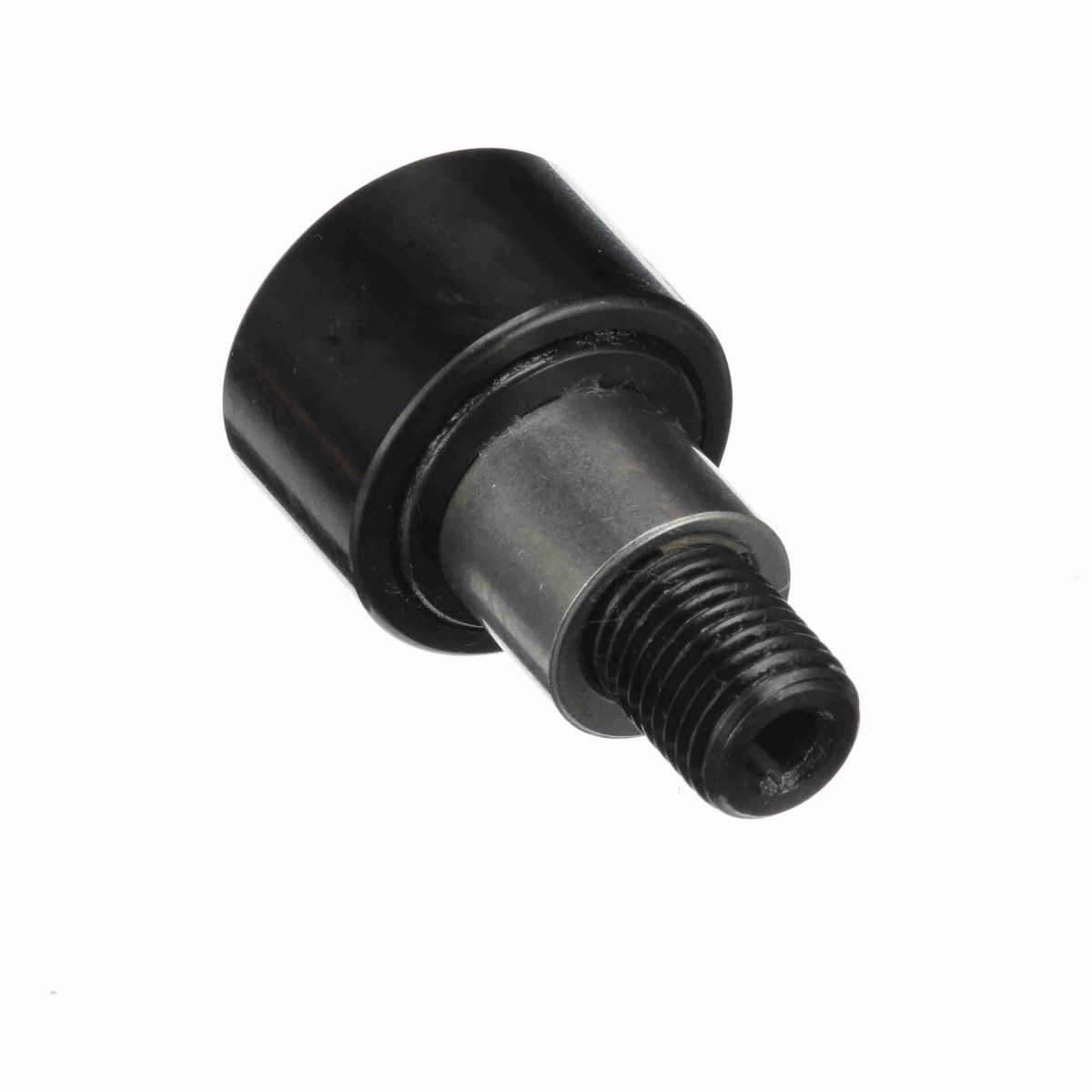

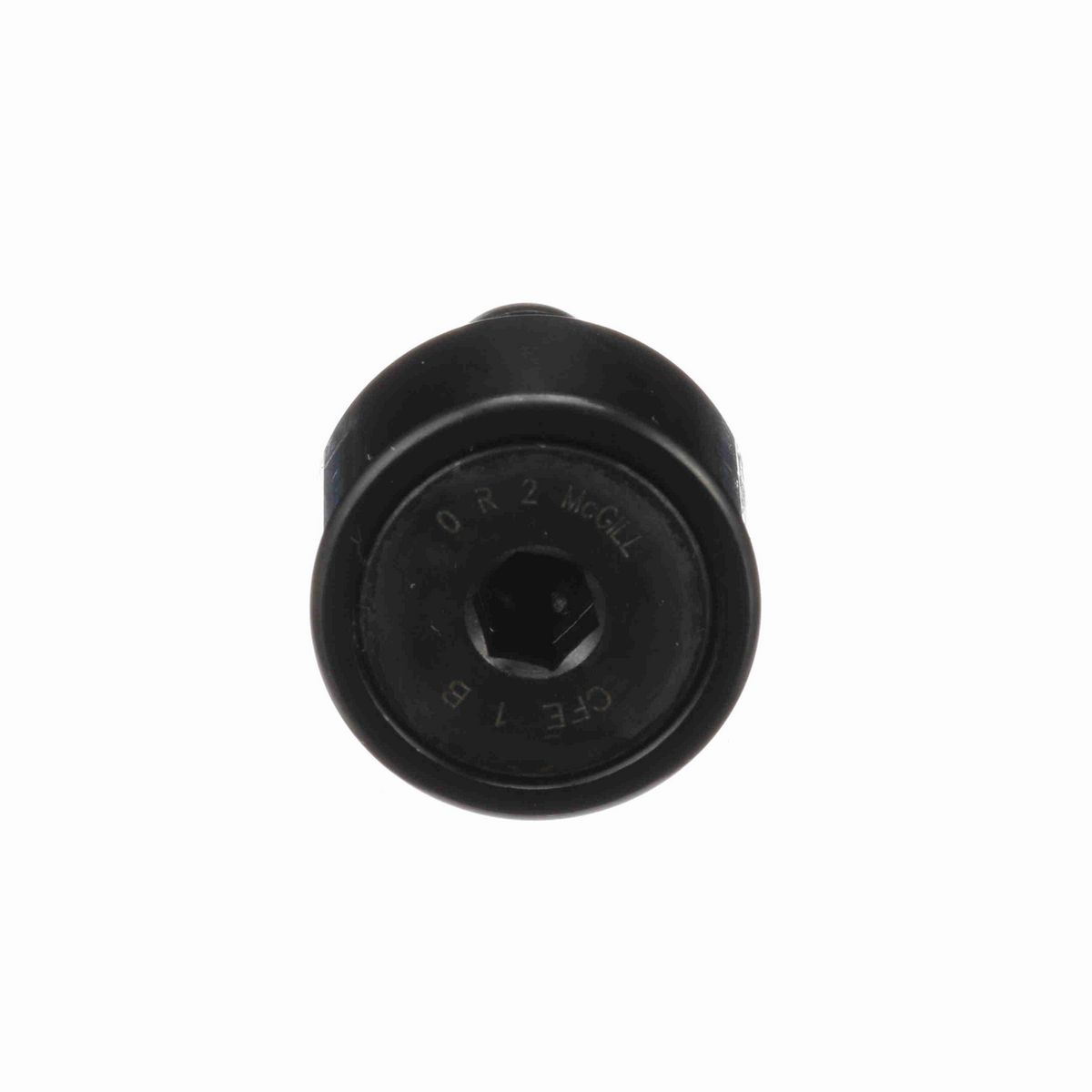

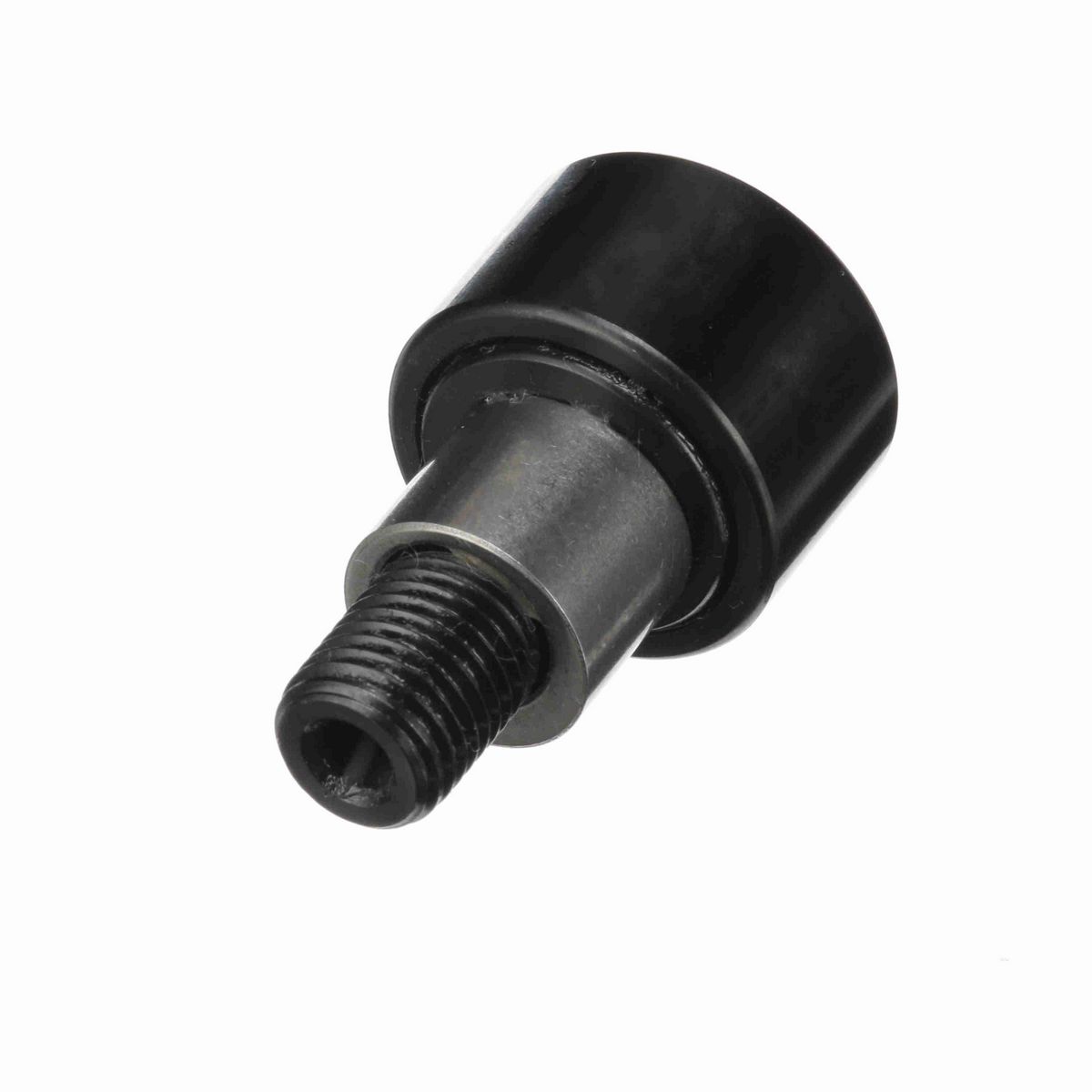

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• Eccentric configuration

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.625 in
Lubrication Fitting Size (mm)	0.1875 mm
Hex Socket (in)	0.25 in
Bushing Length (in)	0.5 in
Stud Diameter (in)	0.4375 in
Minimum Thread Length (in)	0.5 in
Bushing Diameter (in)	0.625 in
Stud Length (in)	1 in
Eccentricity (in)	0.03 in
Weight (kg)	0.08 kg

Technical Specifications

Series	Inch CAMROL®
Limiting Speed	4,800
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	2,225
Sealing	Unsealed
Adjustment	Eccentric Bushing
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	1,800
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating (lb)	2,225 lb
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	250 lbs

General Specifications

UPC	726166033361
Weight	0.18 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
