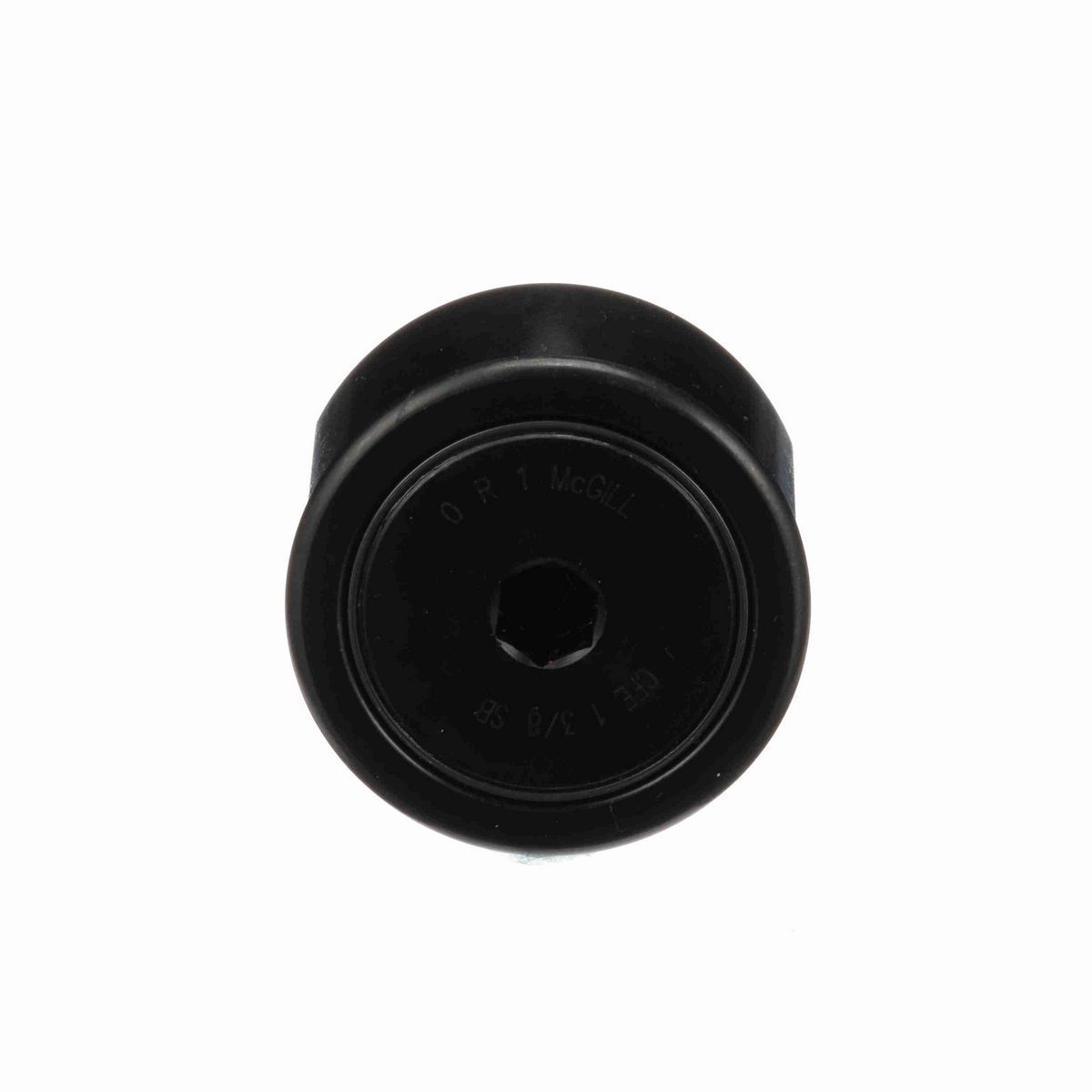

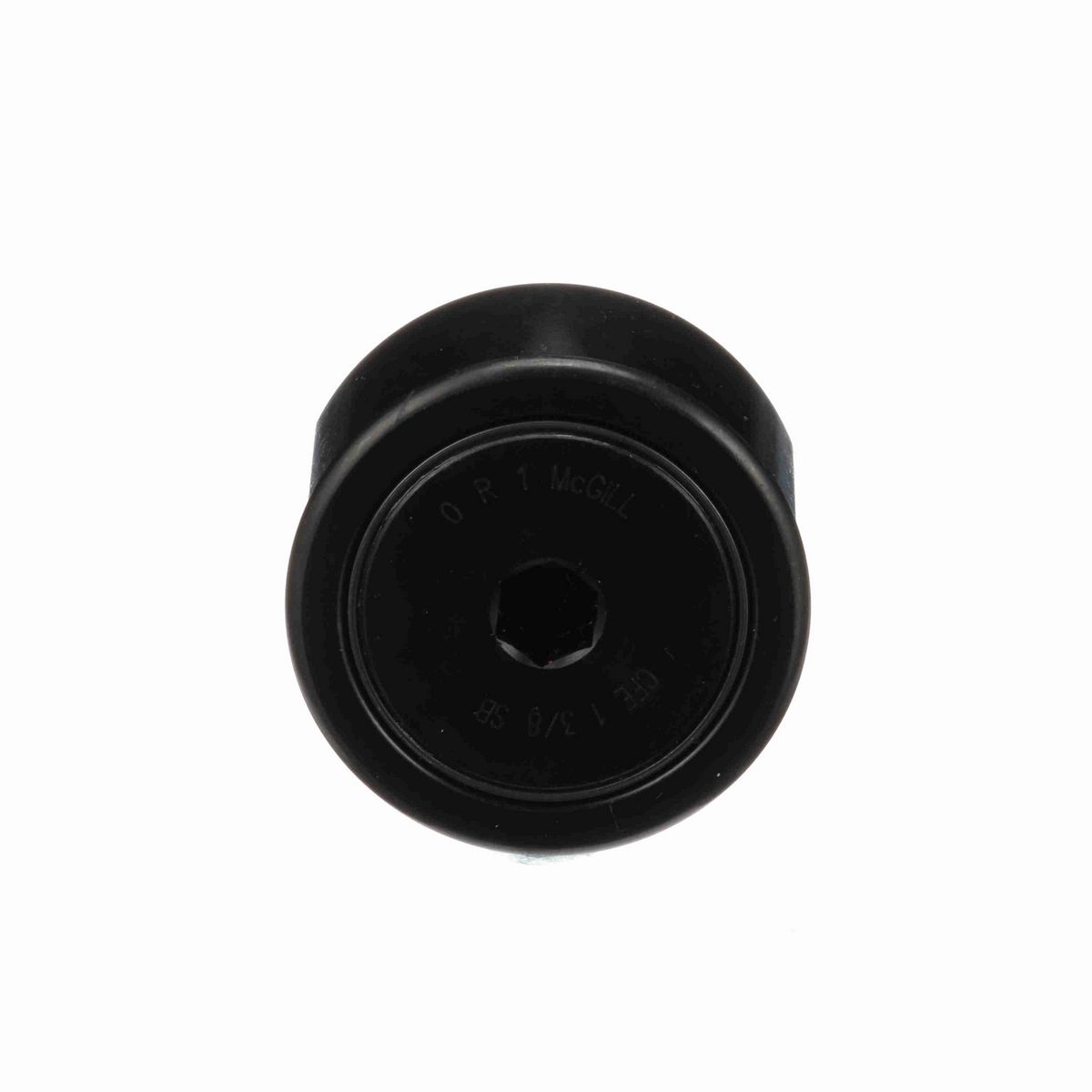

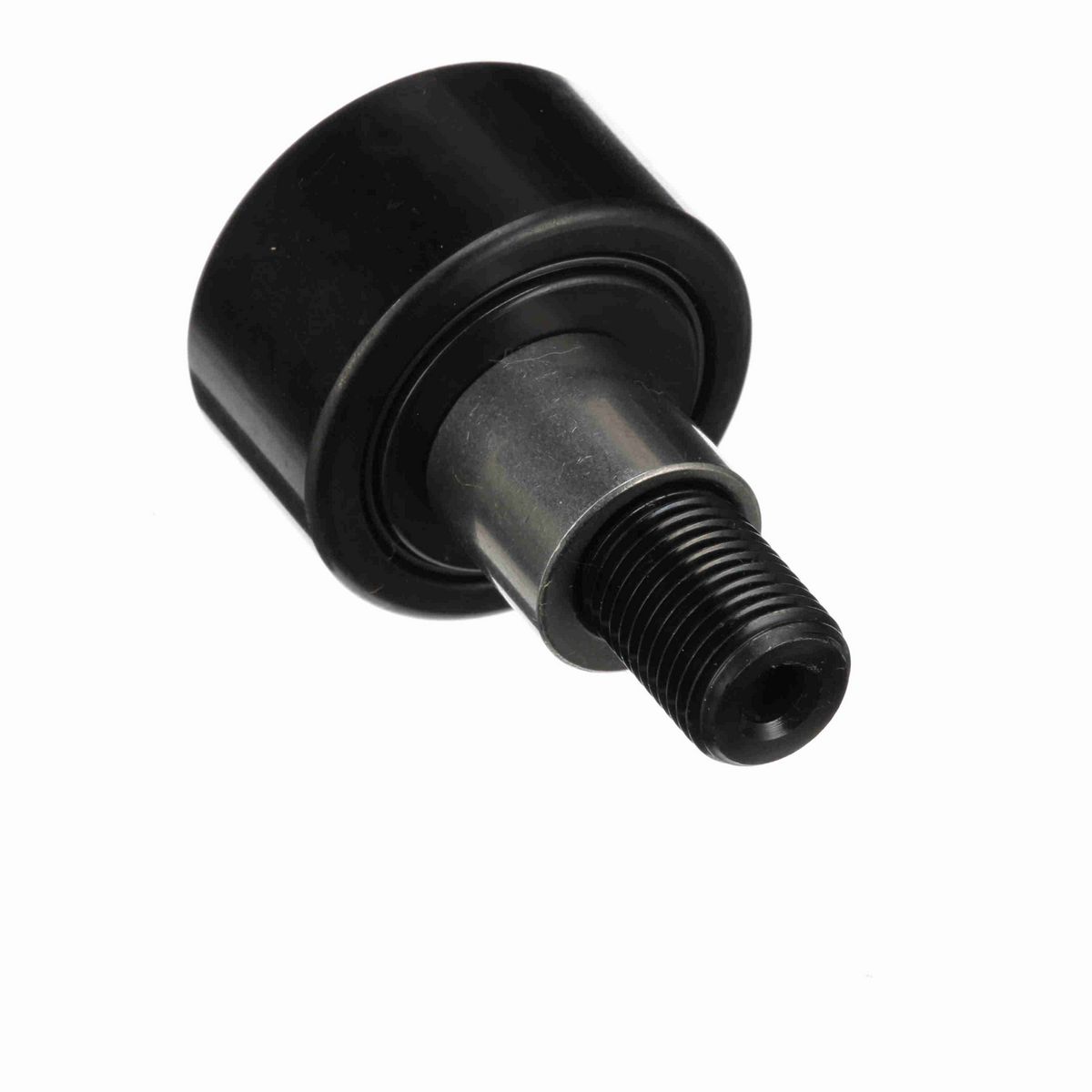

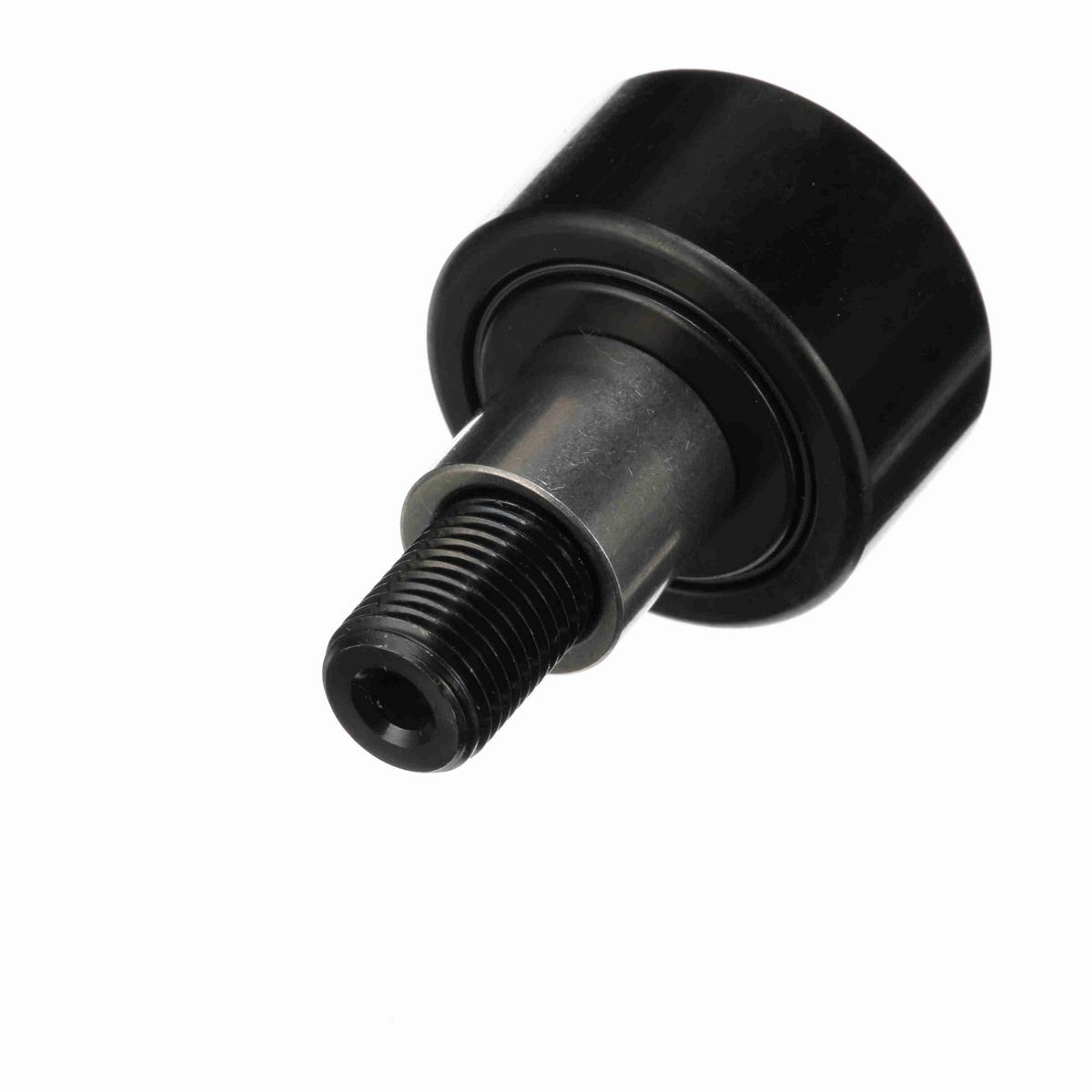

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	1/2-20
Roller Diameter (in)	1.375 in
Eccentricity (in)	0.03 in
Bushing Diameter (in)	0.687 in
Minimum Thread Length (in)	0.63 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	0.5 in
Bushing Length (in)	0.625 in
Hex Socket (in)	0.25 in
Stud Length (in)	1.25 in
Weight (kg)	0.16 kg

Technical Specifications

Limiting Speed	2,800
Adjustment	Eccentric Bushing
Sealing	Sealed
Series	Inch CAMROL®
Dynamic Radial Rating	3,930
O.D. Configuration	Cylindrical
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Static Load Rating	4,250
Stud Type	Standard Stud with Eccentric Bushing
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	3,930 lb
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166035099
Weight	0.36 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
