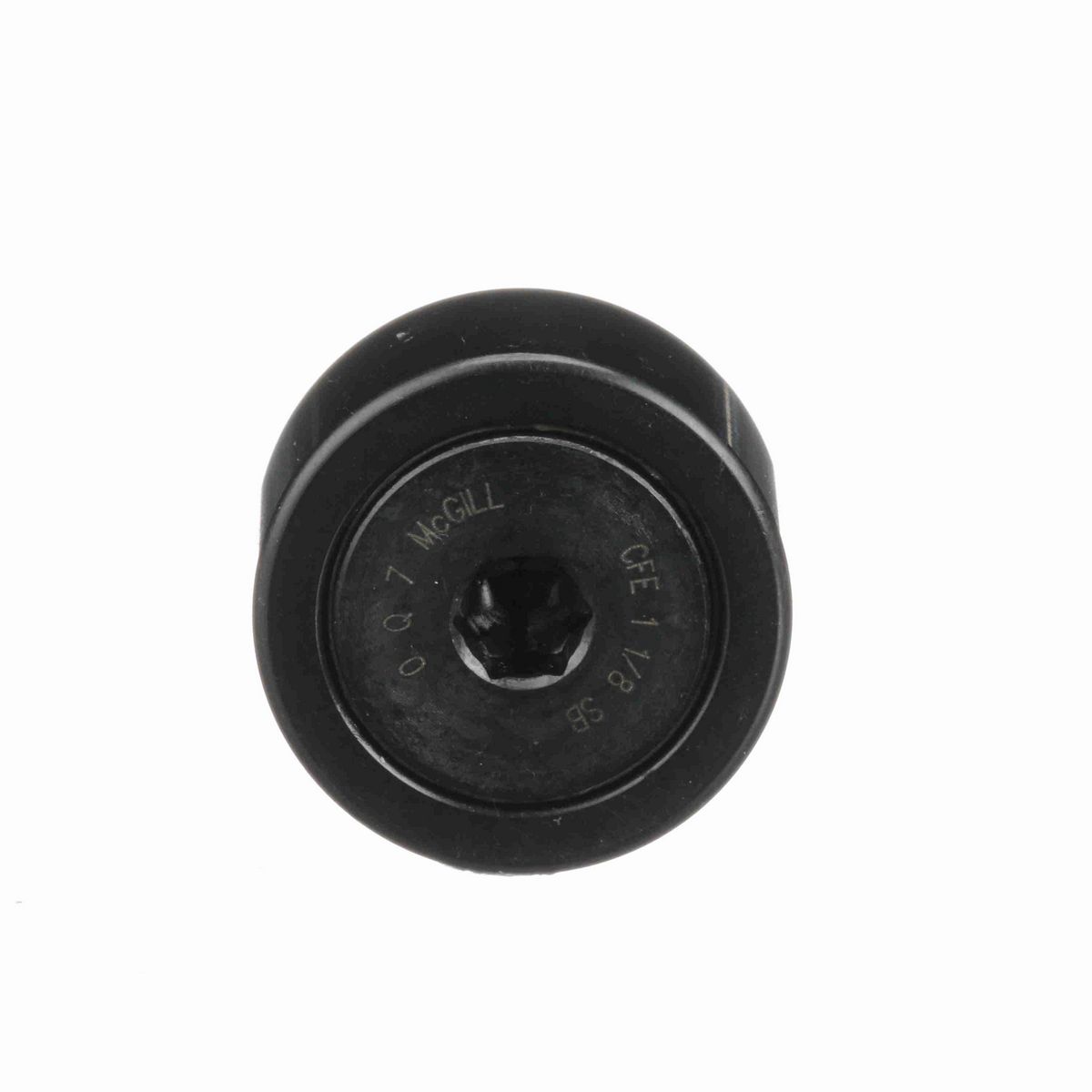

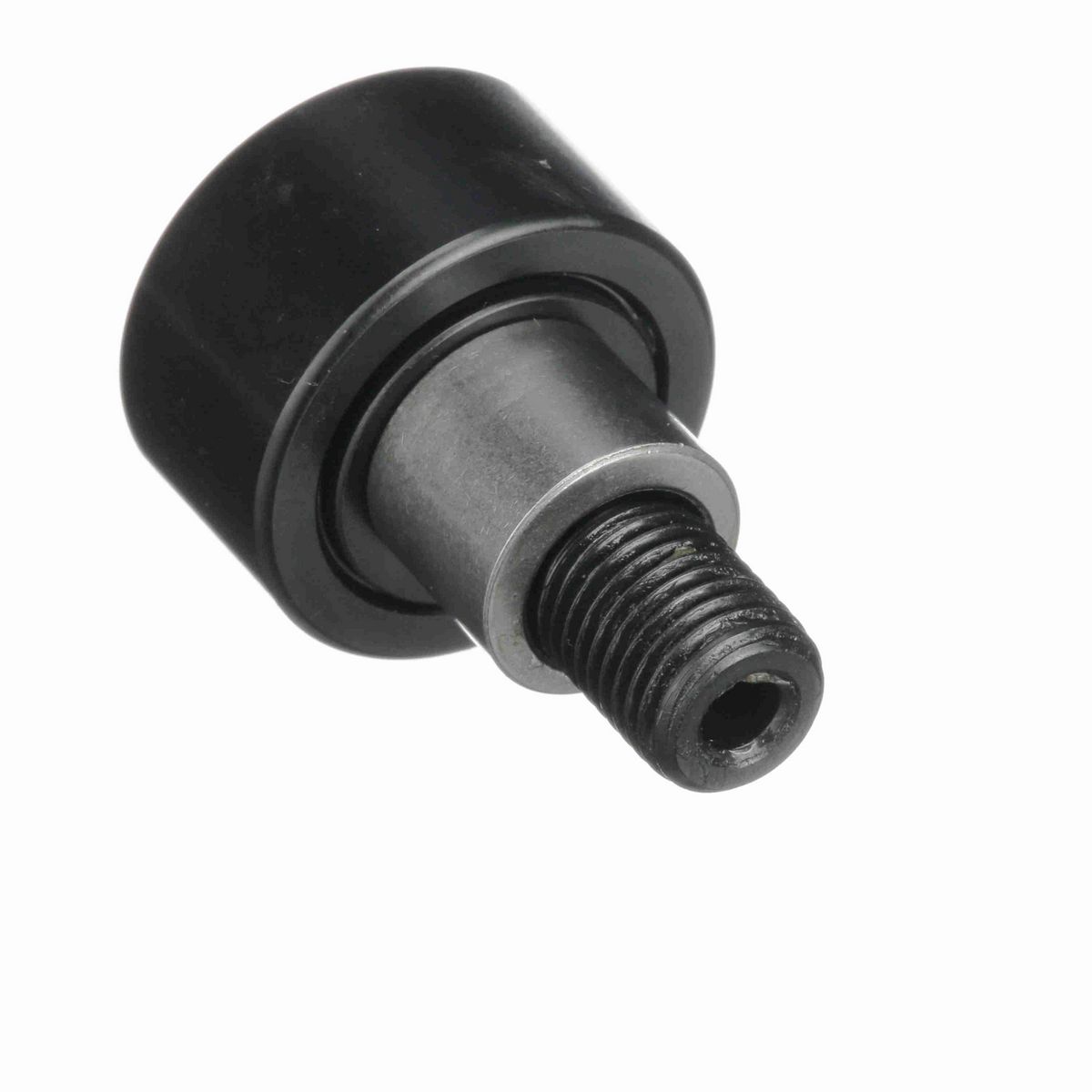

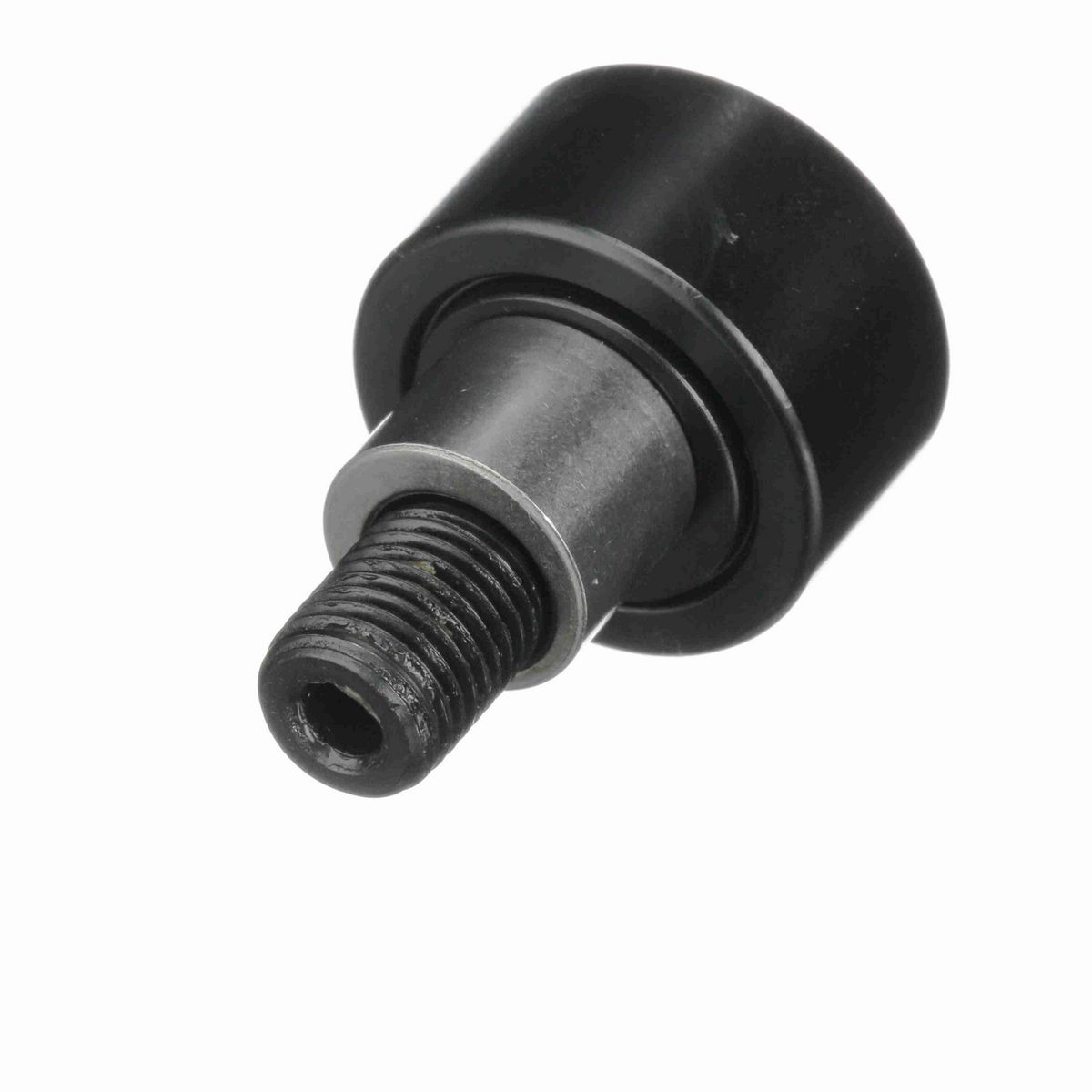

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	7/16-20
Roller Diameter (in)	1.125 in
Minimum Thread Length (in)	0.5 in
Hex Socket (in)	0.25 in
Stud Diameter (in)	0.4375 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	0.625 in
Lubrication Fitting Size (in)	0.1875 in
Bushing Diameter (in)	0.625 in
Stud Length (in)	1 in
Bushing Length (in)	0.5 in
Eccentricity (in)	0.03 in
Weight (kg)	0.11 kg

Technical Specifications

O.D. Configuration	Cylindrical
Dynamic Radial Rating	2,225
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Adjustment	Eccentric Bushing
Series	Inch CAMROL®
Limiting Speed	3,400
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	2,225 lb
Stud Type	Standard Stud with Eccentric Bushing
Static Load Rating	1,800
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	250 lbs

General Specifications

UPC	726166033965
Weight	0.24 LB
Packaged Length	1.75 IN
Packaged Width	1.50 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
