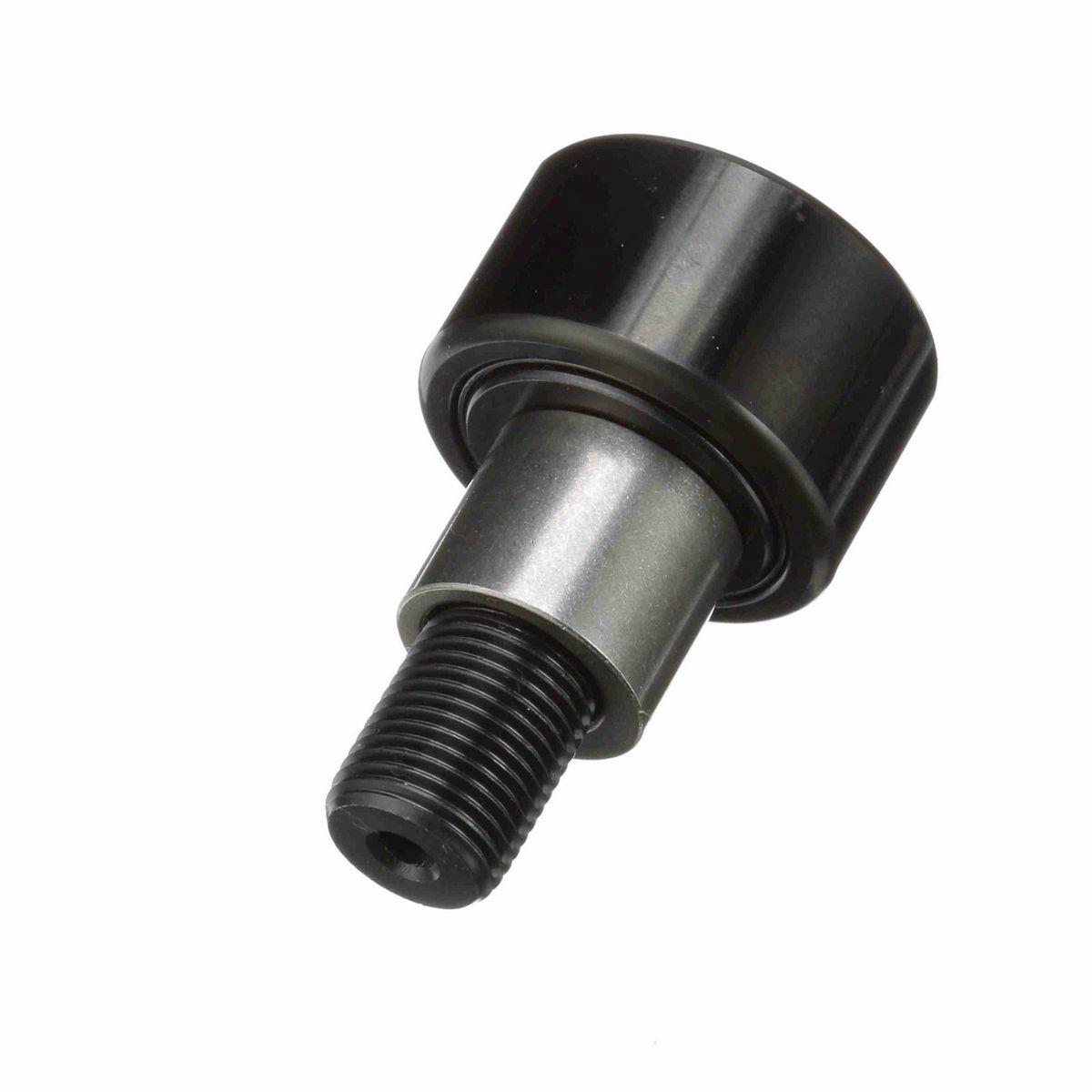

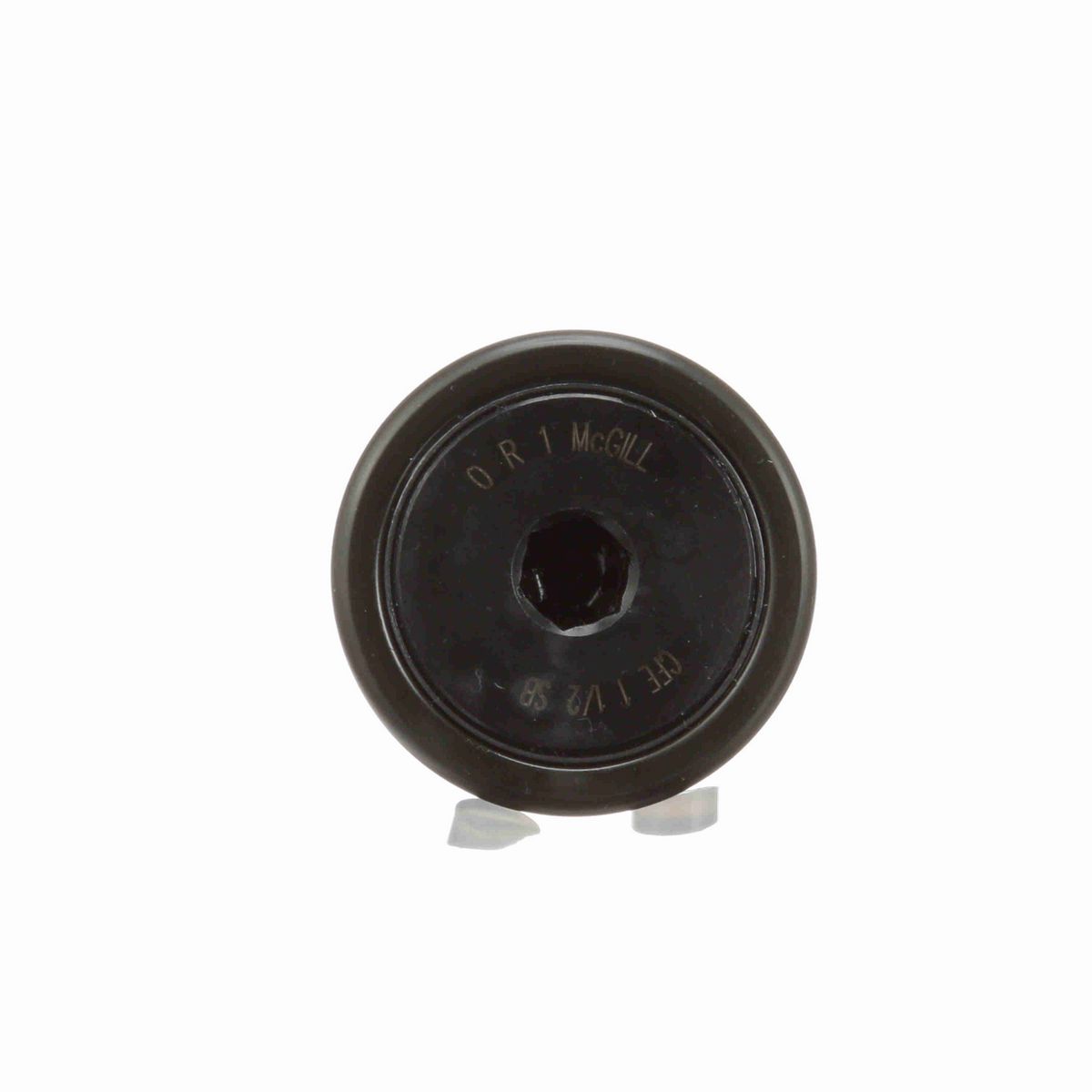

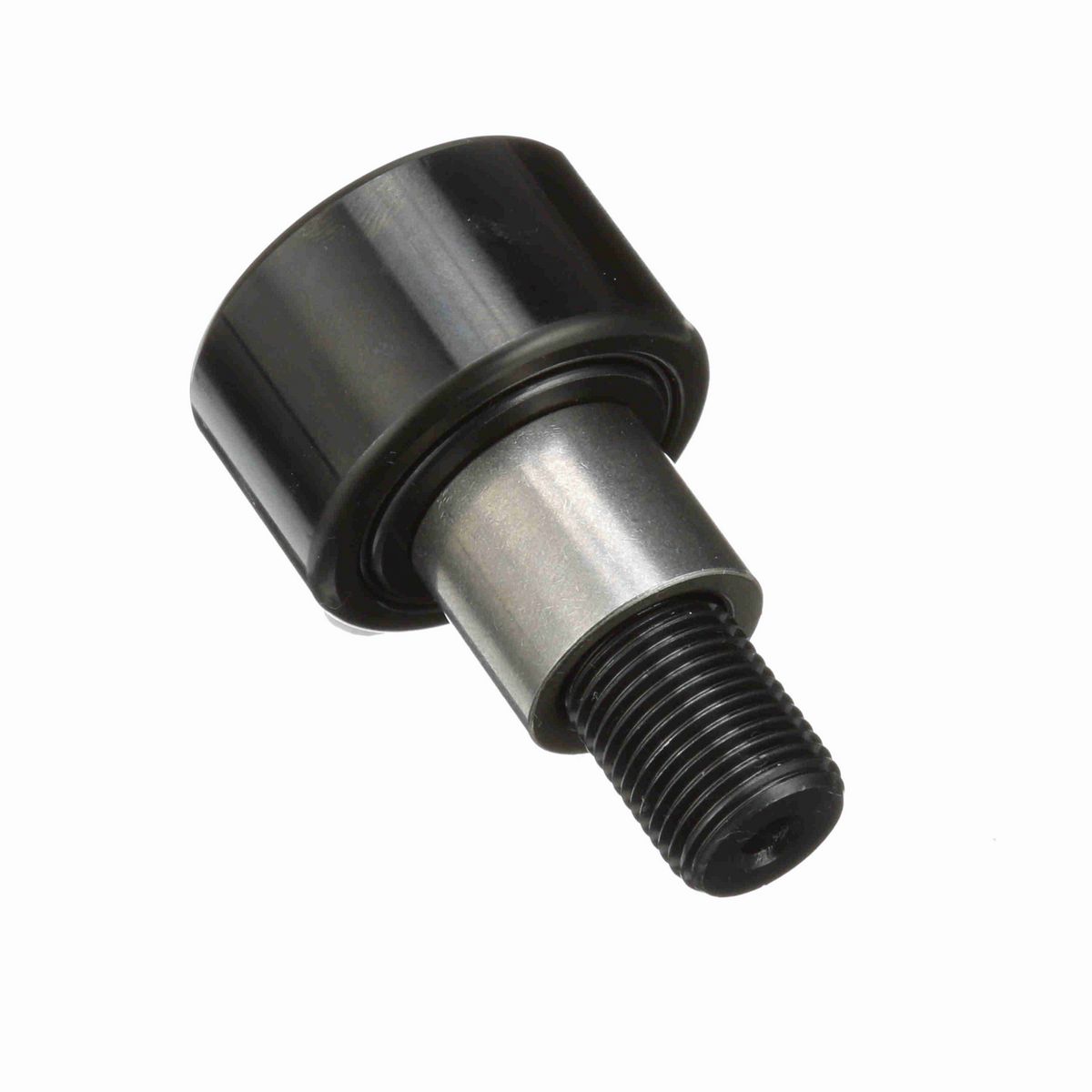

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Eccentric configuration

Dimensions

Threads	5/8-18
Roller Diameter (in)	1.5 in
Stud Length (in)	1.5 in
Bushing Diameter (in)	0.875 in
Roller Width (in)	0.875 in
Stud Diameter (in)	0.625 in
Bushing Length (in)	0.75 in
Minimum Thread Length (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.3125 in
Lubrication Fitting Size (mm)	0.1875 mm
Eccentricity (in)	0.03 in
Weight (kg)	0.25 kg

Technical Specifications

Adjustment	Eccentric Bushing
Rolling Element	Needle Roller - Full Complement
Limiting Speed	2,500
Sealing	Sealed
Dynamic Radial Rating	4,840
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	4,000
Stud Type	Standard Stud with Eccentric Bushing
Dynamic Load Rating (lb)	4,840 lb
Clamping Torque (in-lbf)	650 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166035624
Weight	0.55 LB
Packaged Length	1.68 IN
Packaged Width	1.68 IN
Packaged Height	2.62 IN
HTC	8482.40.0000
Country of Origin	Mexico
