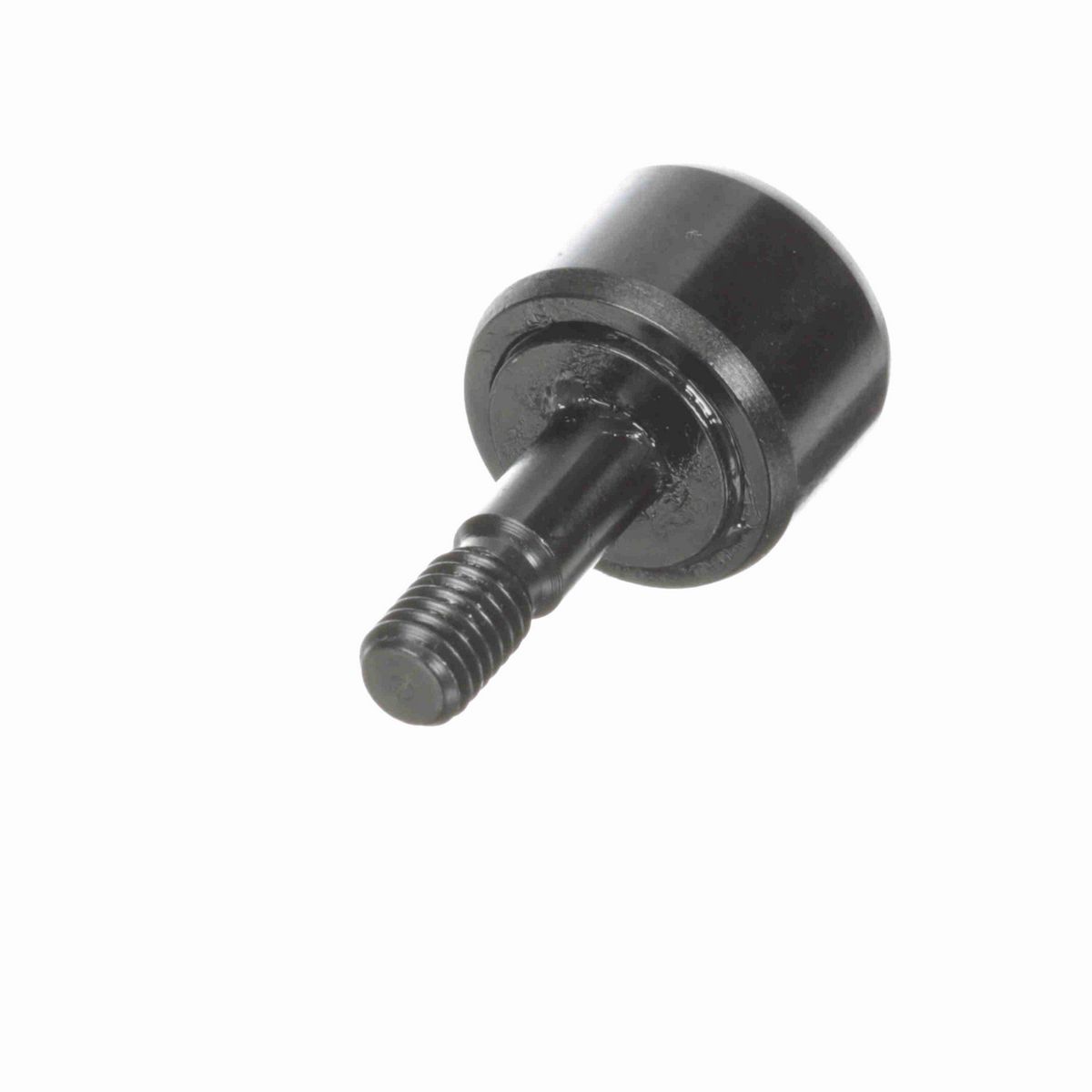

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

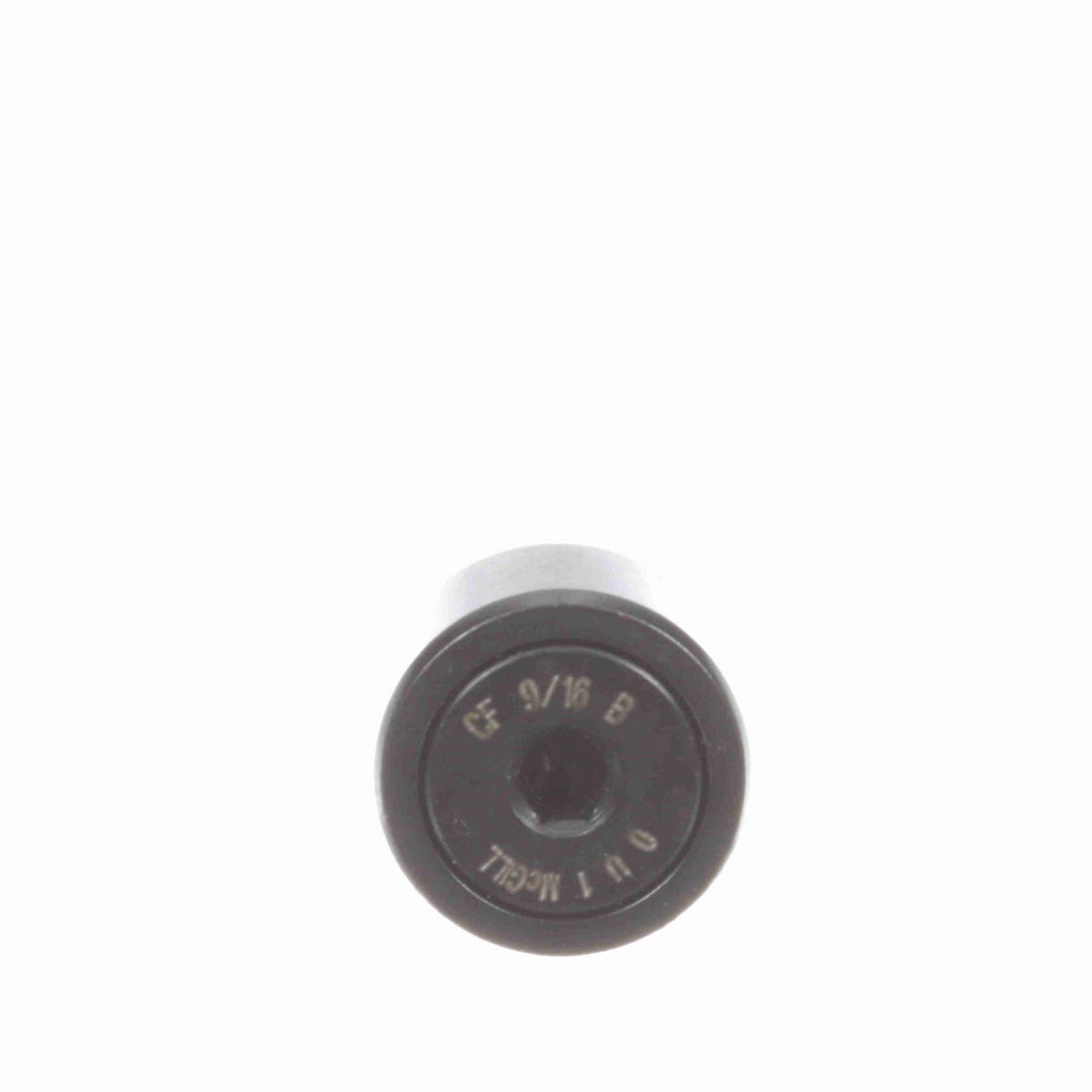

• Hex hole

Dimensions

Threads	10-32
Roller Diameter (in)	0.5625 in
Stud Diameter (in)	0.19 in
Minimum Thread Length (in)	0.25 in
Roller Width (in)	0.375 in
Stud Length (in)	0.625 in
Hex Socket (in)	0.125 in
Weight (kg)	0.02 kg

Technical Specifications

Sealing	Unsealed
Adjustment	None
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	680
Limiting Speed	10,000
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	680 lb
Static Load Rating	300
Roller Shape	Cylindrical
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Clamping Torque (in-lbf)	15 lbs
Ability to Relubricate	No

General Specifications

UPC	726166030476
Weight	0.04 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
