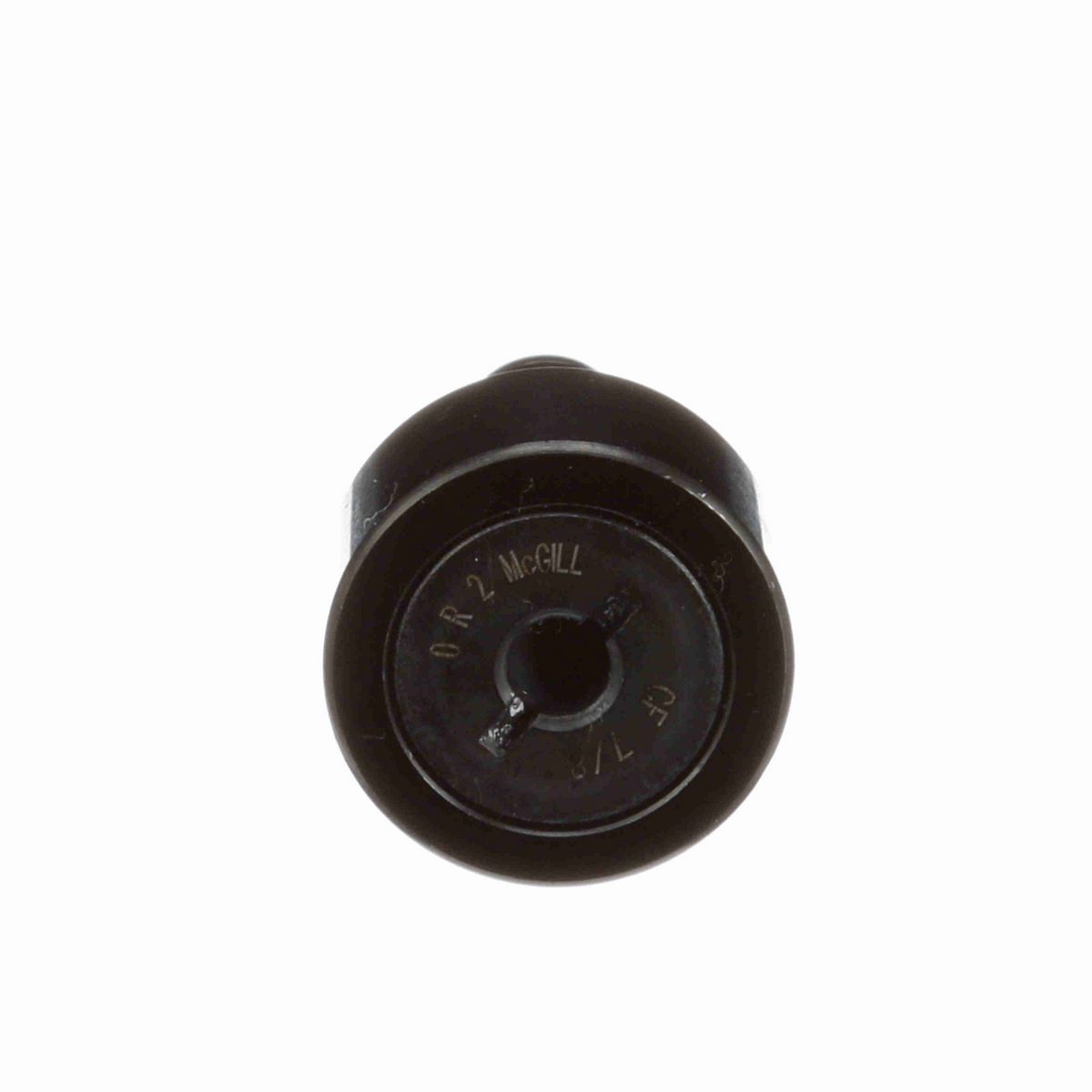

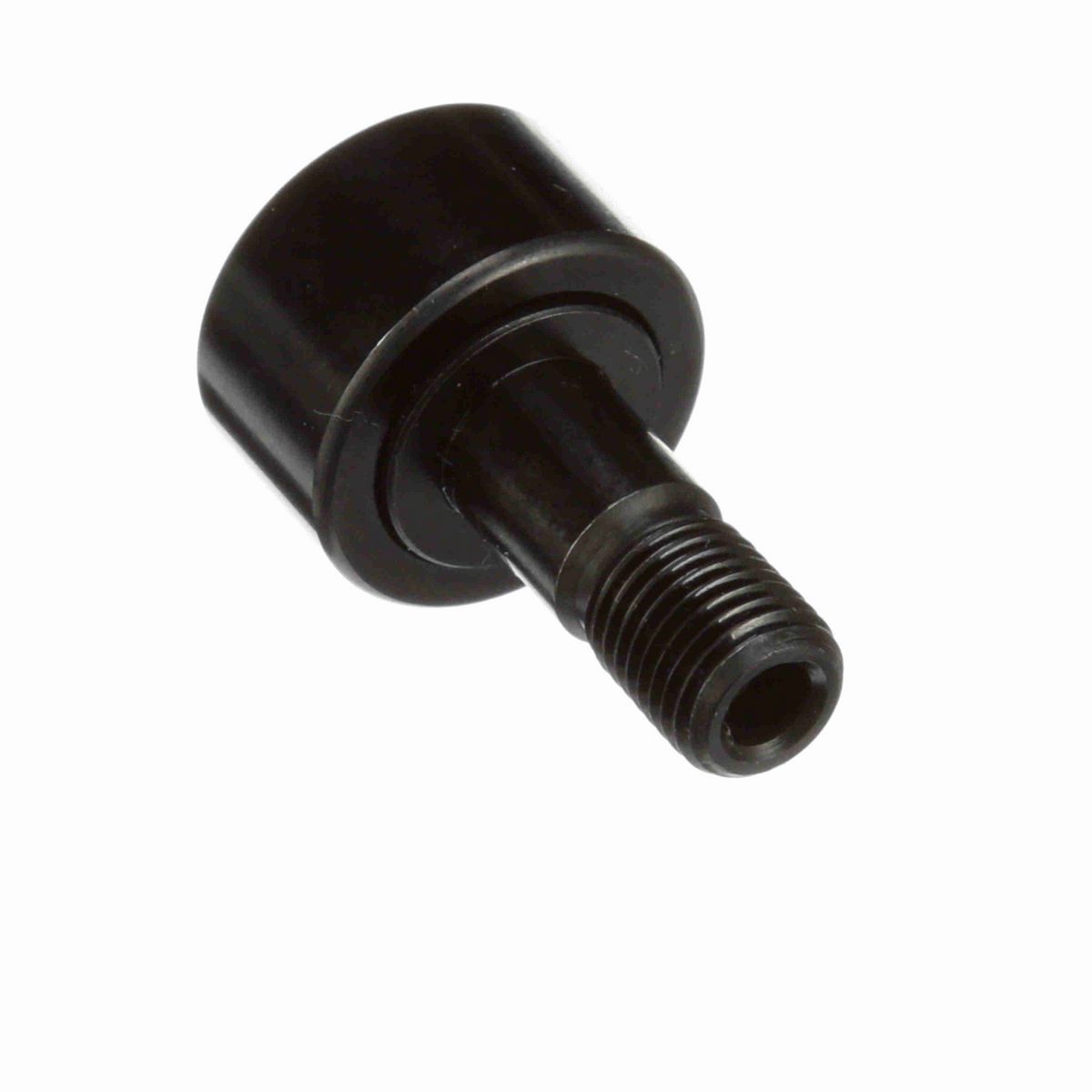

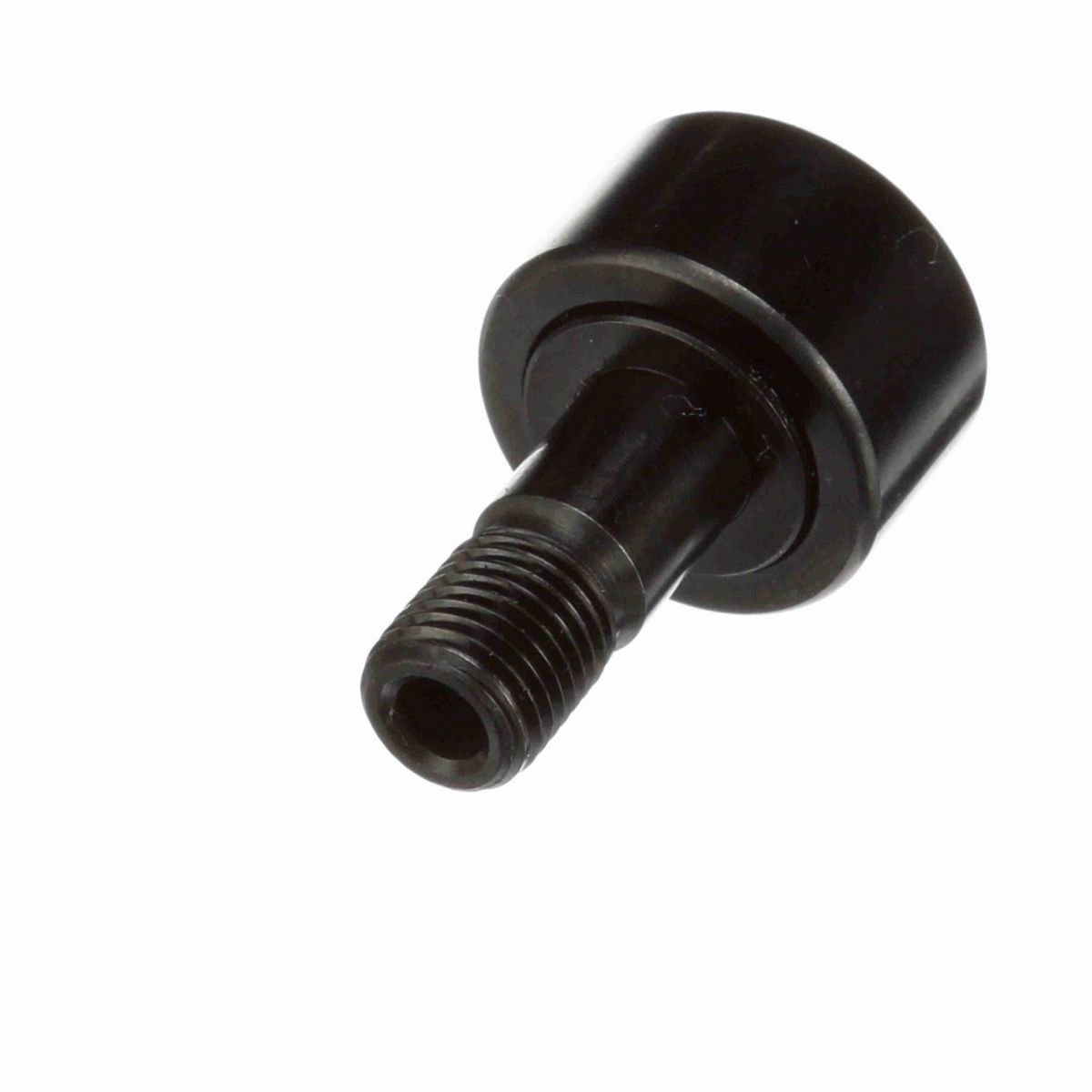

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.875 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Stud Length (in)	0.875 in
Stud Diameter (in)	0.375 in
Roller Width (in)	0.5 in
Oil Hole Center (in)	0.25 in
Minimum Thread Length (in)	0.38 in
Weight (kg)	0.05 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Dynamic Radial Rating	1,660
Series	Inch CAMROL®
Adjustment	None
Hex/Slot	Screwdriver Slot
Sealing	Unsealed
Limiting Speed	5,400
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud
Dynamic Load Rating (lb)	1,660 lb
Static Load Rating	1,500
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	95 lbs

General Specifications

UPC	726166032500
Weight	0.11 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
