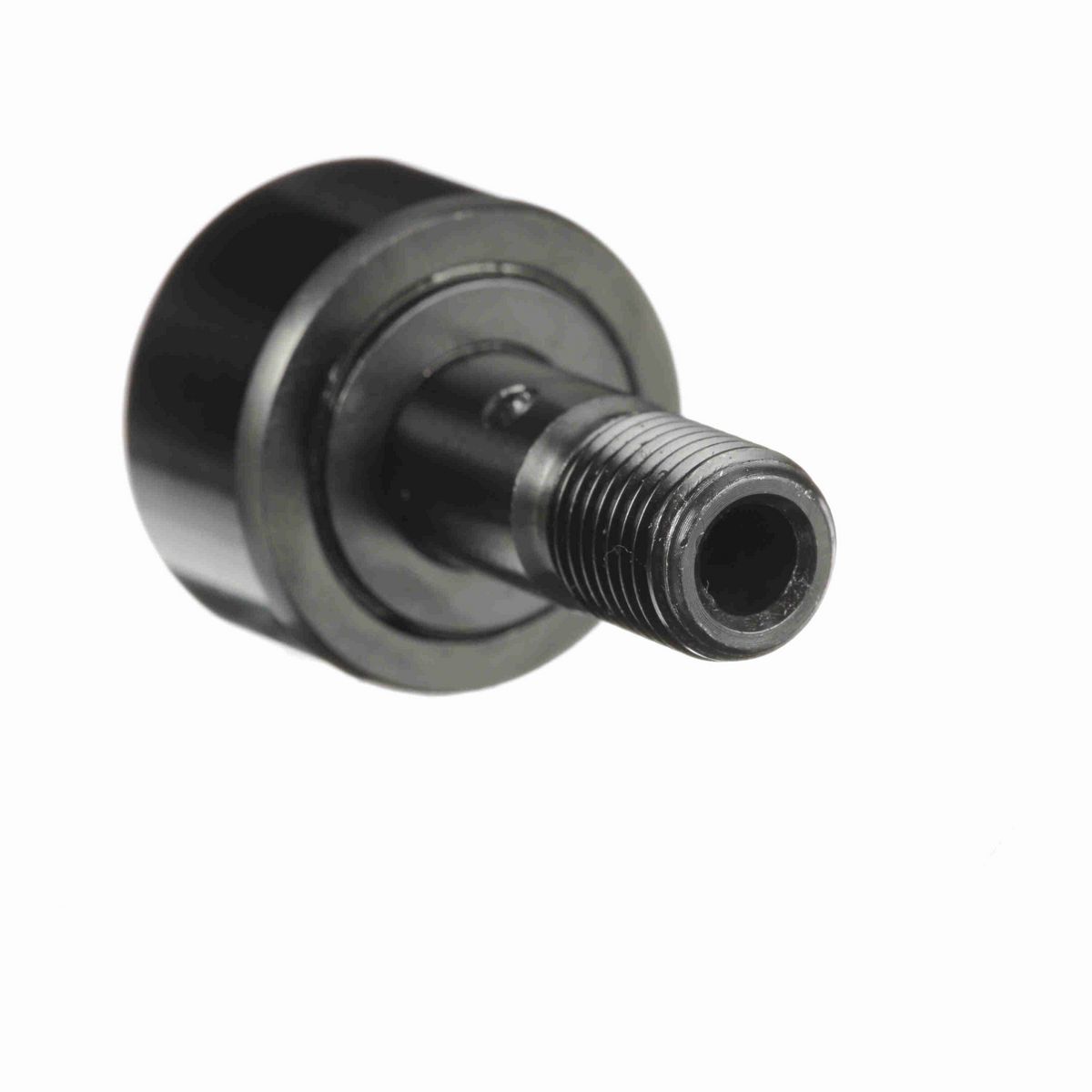

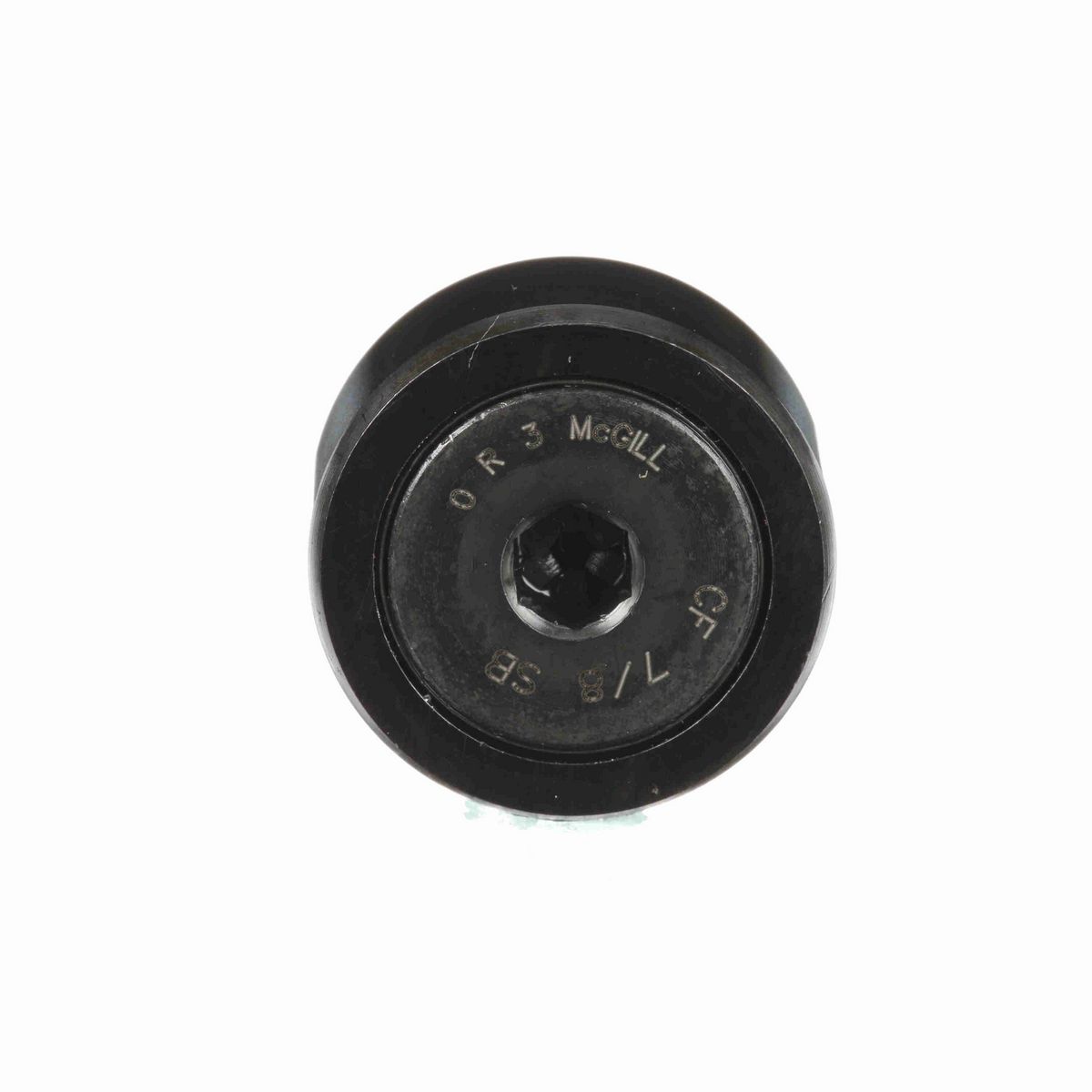

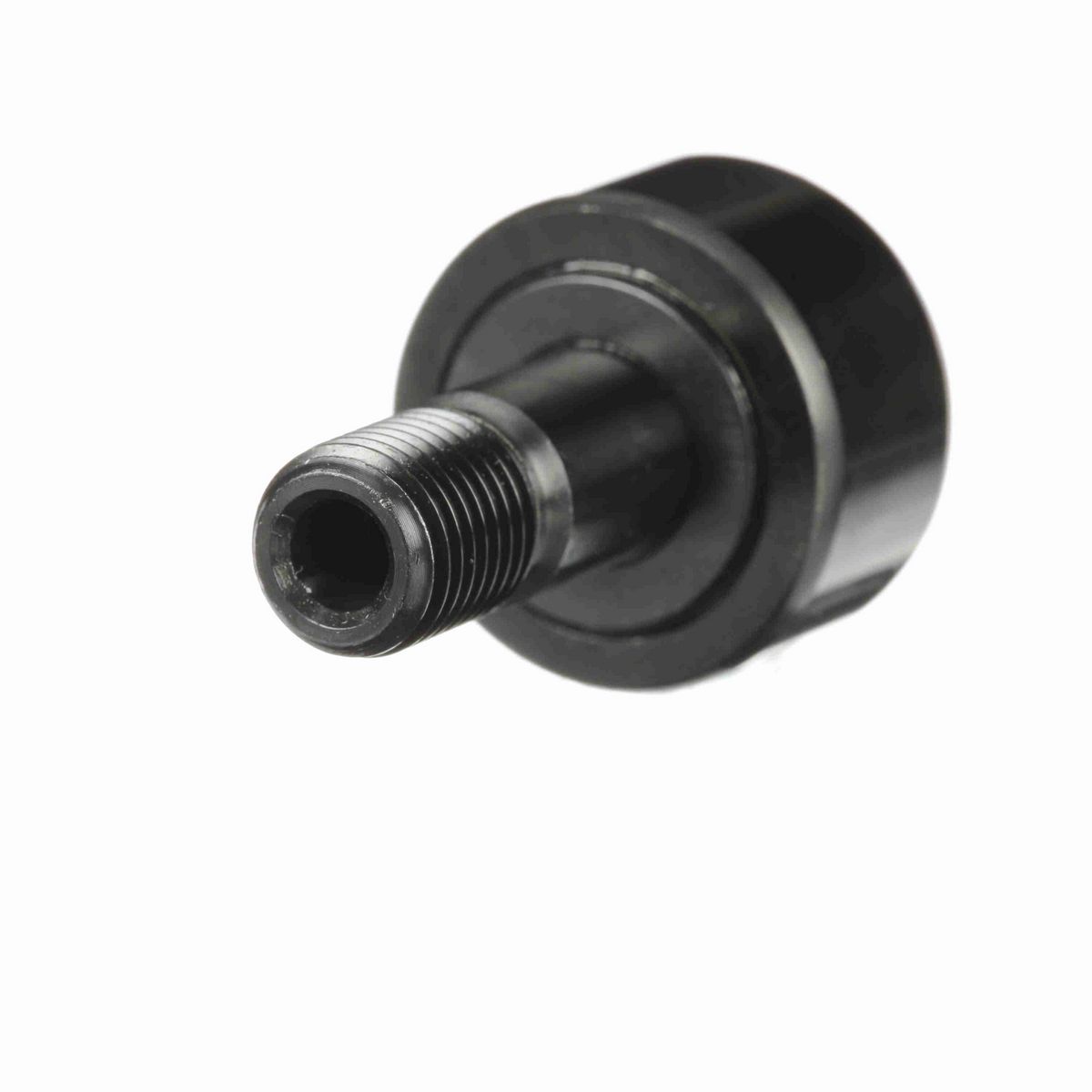

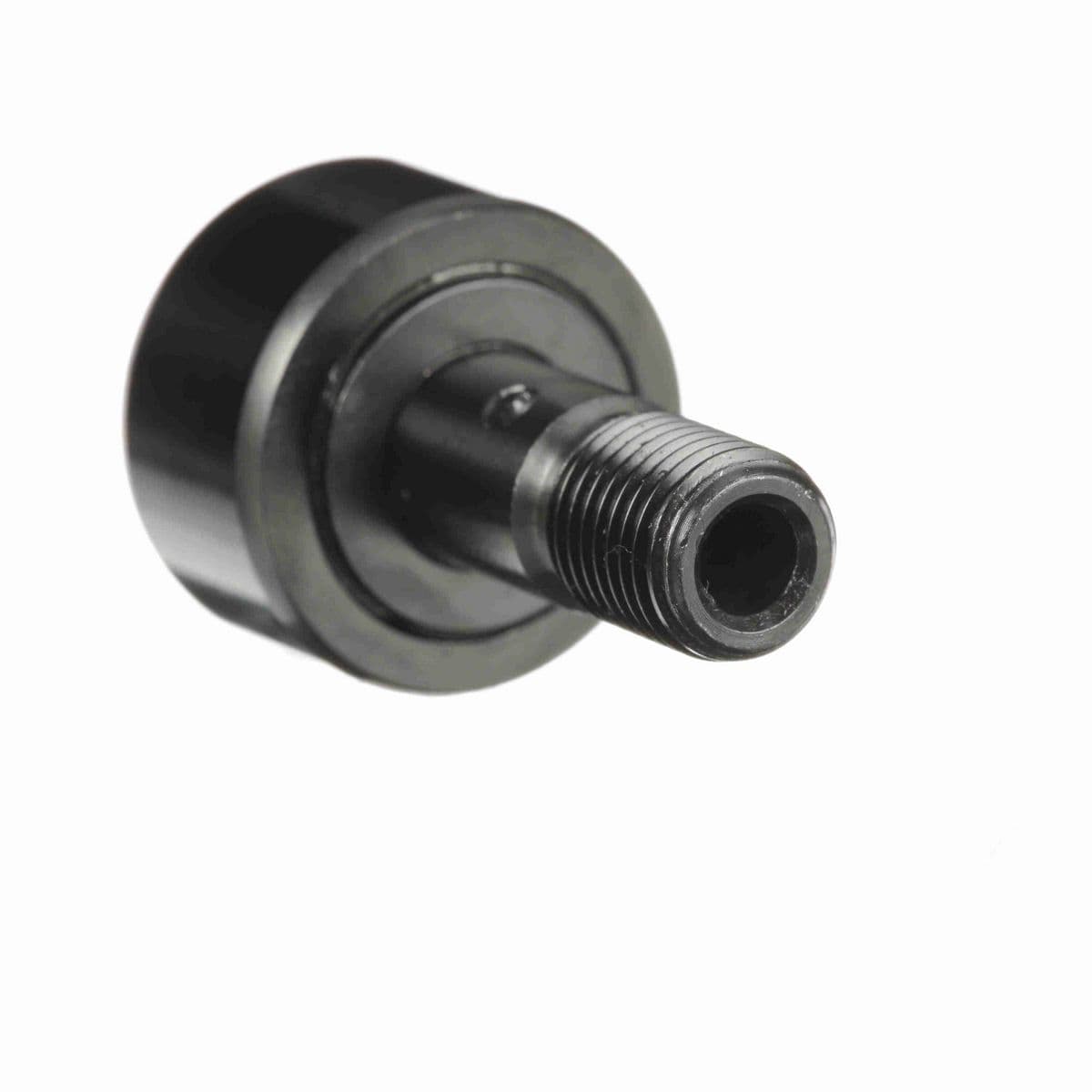

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.875 in
Stud Length (in)	0.875 in
Oil Hole Center (in)	0.25 in
Hex Socket (in)	0.1875 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.38 in
Stud Diameter (in)	0.375 in
Lubrication Fitting Size (mm)	0.1875 mm
Roller Width (in)	0.5 in
Weight (kg)	0.05 kg

Technical Specifications

Limiting Speed	5,400
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Hex/Slot	Hex Hole
Adjustment	None
Dynamic Radial Rating	1,660
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Stud Type	Standard Stud
Platform	CAMROL®
Dynamic Load Rating (lb)	1,660 lb
Static Load Rating	1,500
Clamping Torque (in-lbf)	95 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166032647
Weight	0.11 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
