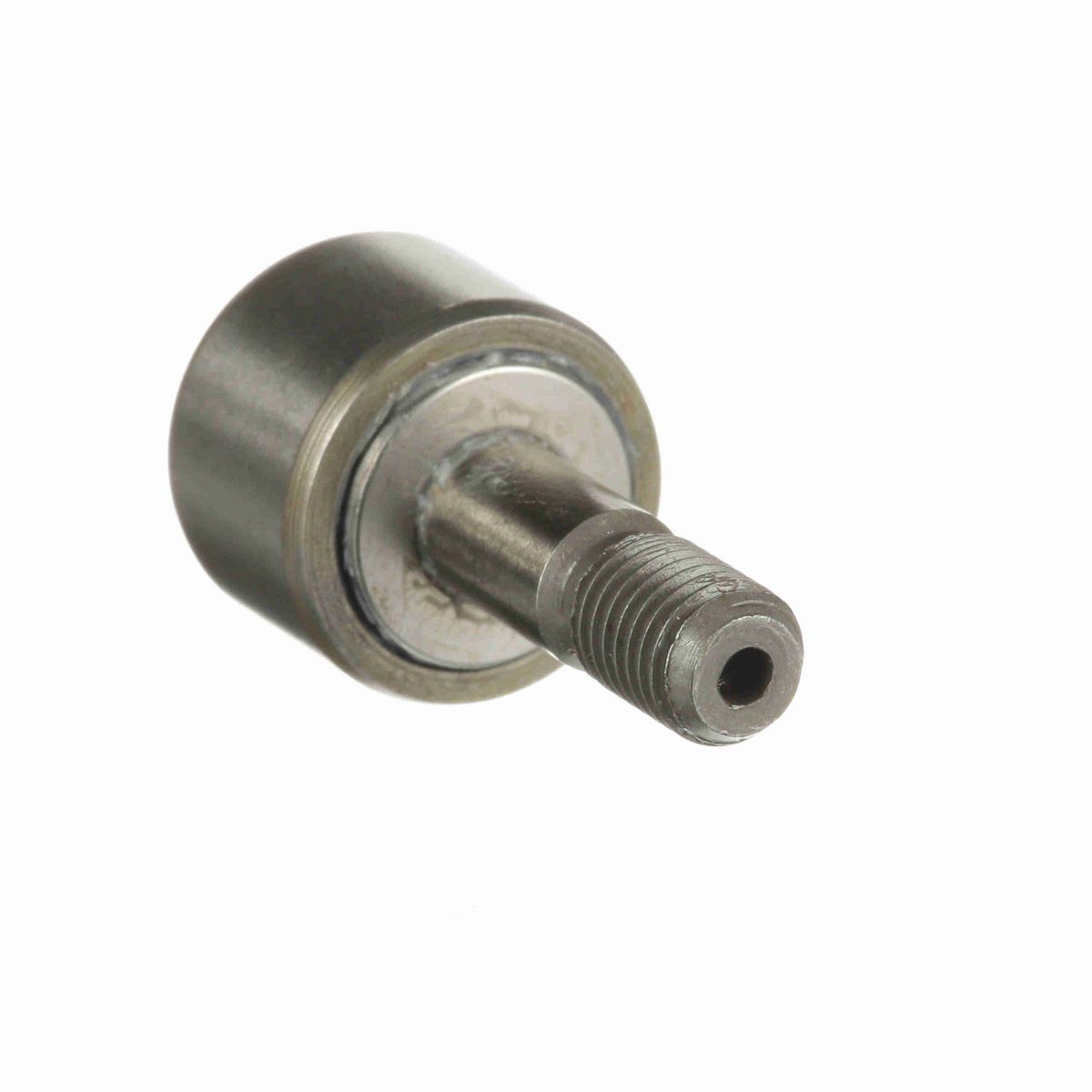

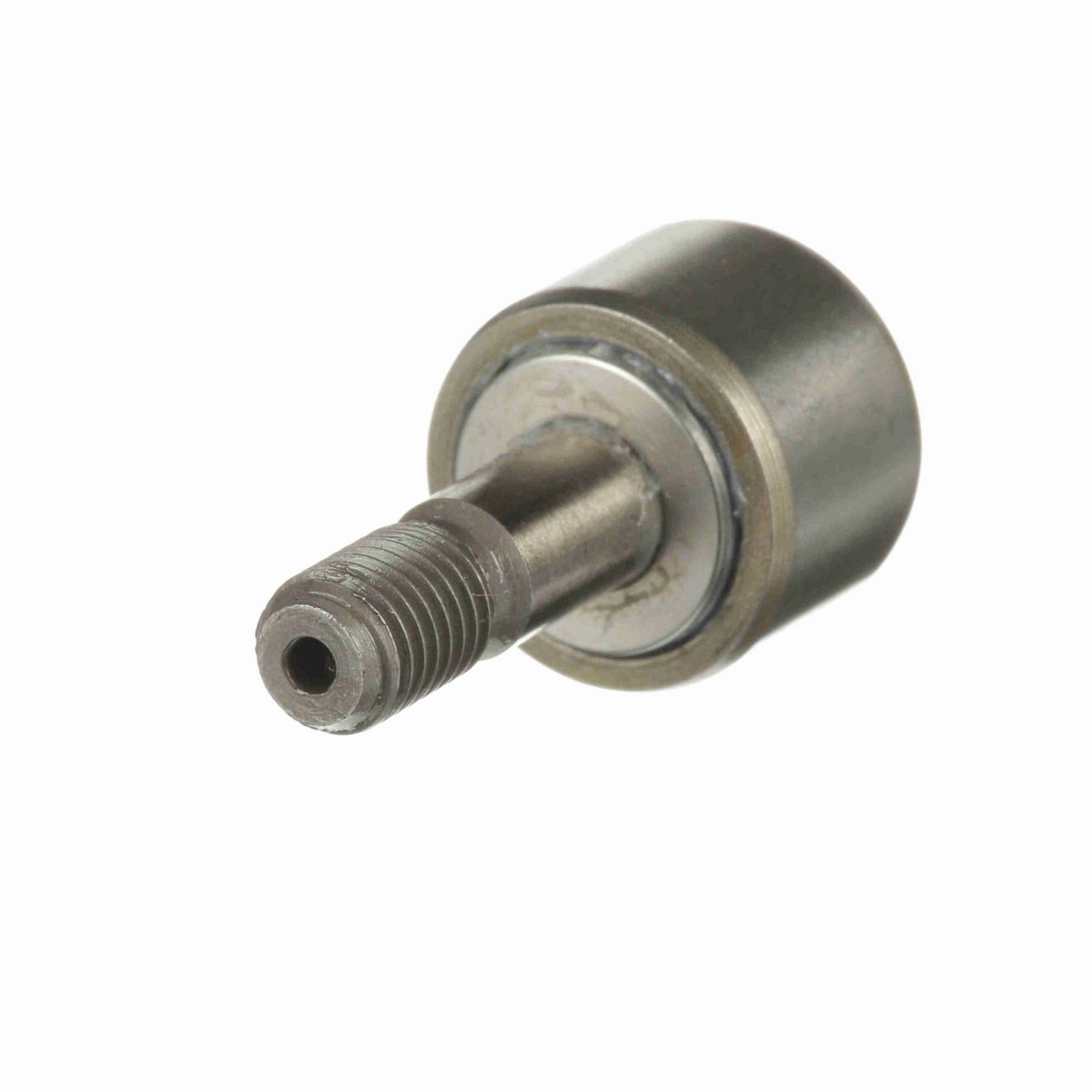

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

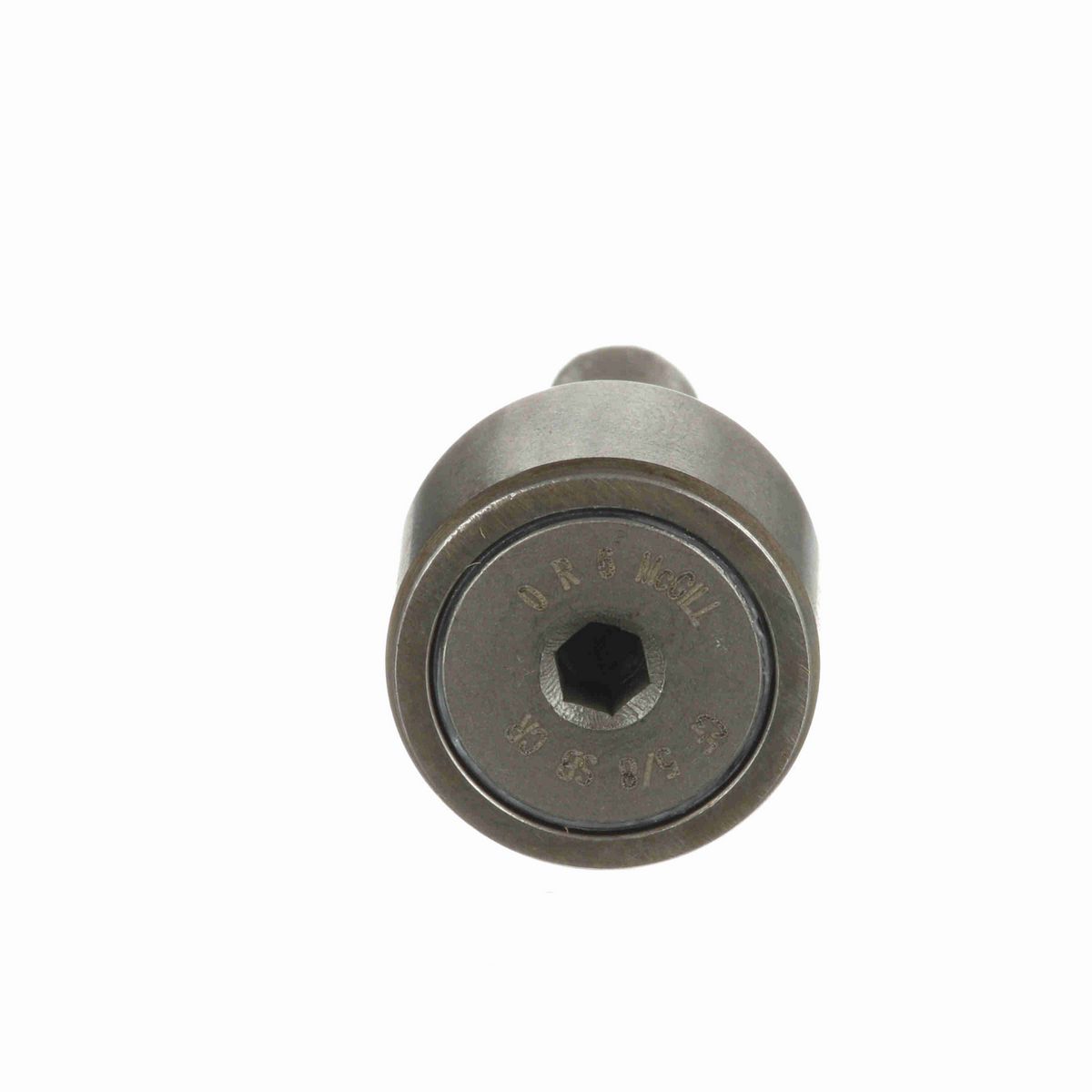

• Hex hole
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Threads	1/4-28
Roller Diameter (in)	0.625 in
Stud Diameter (in)	0.25 in
Stud Length (in)	0.75 in
Hex Socket (in)	0.125 in
Minimum Thread Length (in)	0.31 in
Roller Width (in)	0.4375 in
Weight (kg)	0.03 kg

Technical Specifications

Adjustment	None
Hex/Slot	Hex Hole
Limiting Speed	9,200
O.D. Configuration	Cylindrical
Dynamic Radial Rating	860
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Series	CRES CAMROL®
Material	440C Stainless Steel
Platform	CAMROL®
Dynamic Load Rating (lb)	860 lb
Stud Type	Standard Stud
Static Load Rating	600
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	35 lbs

General Specifications

UPC	726166118549
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
