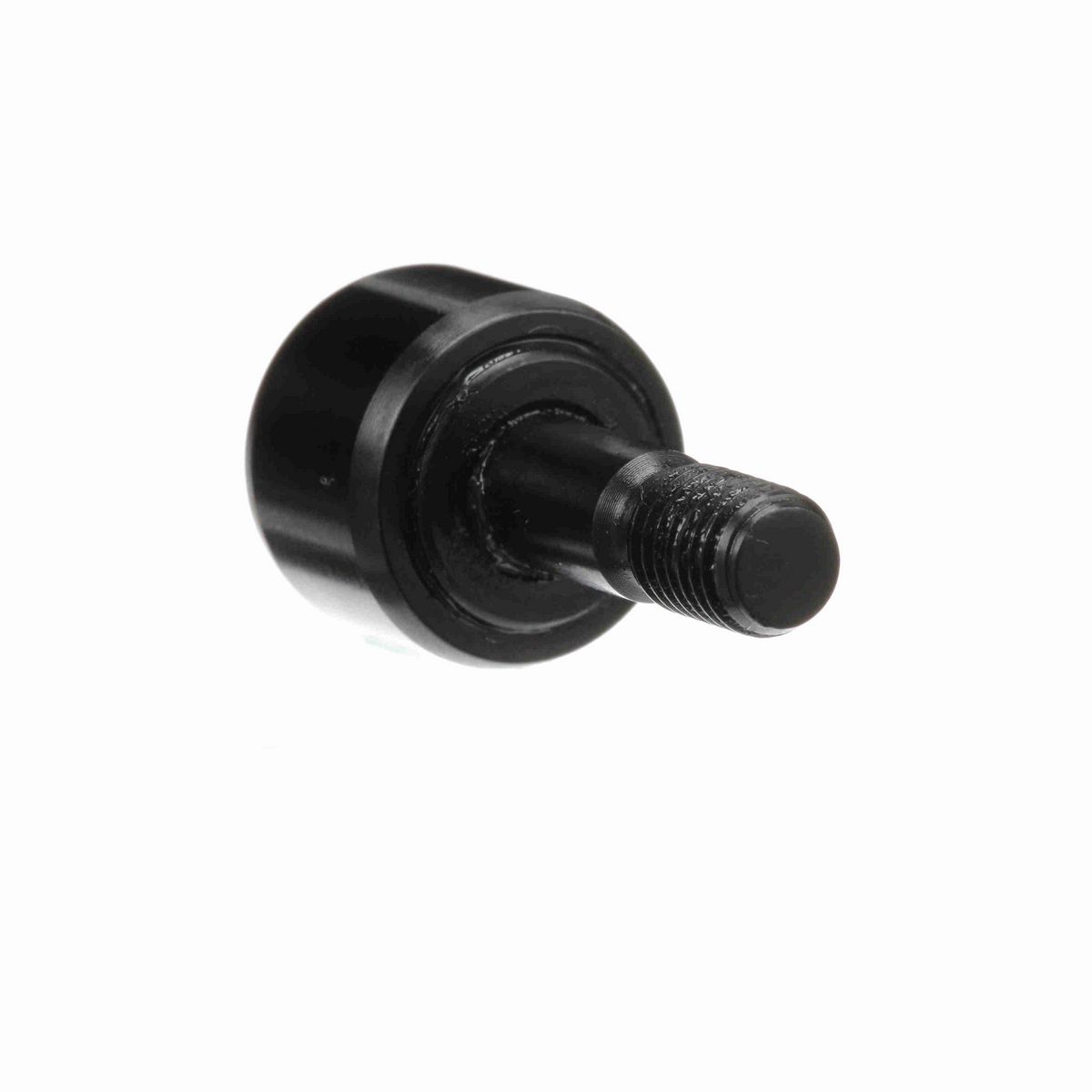

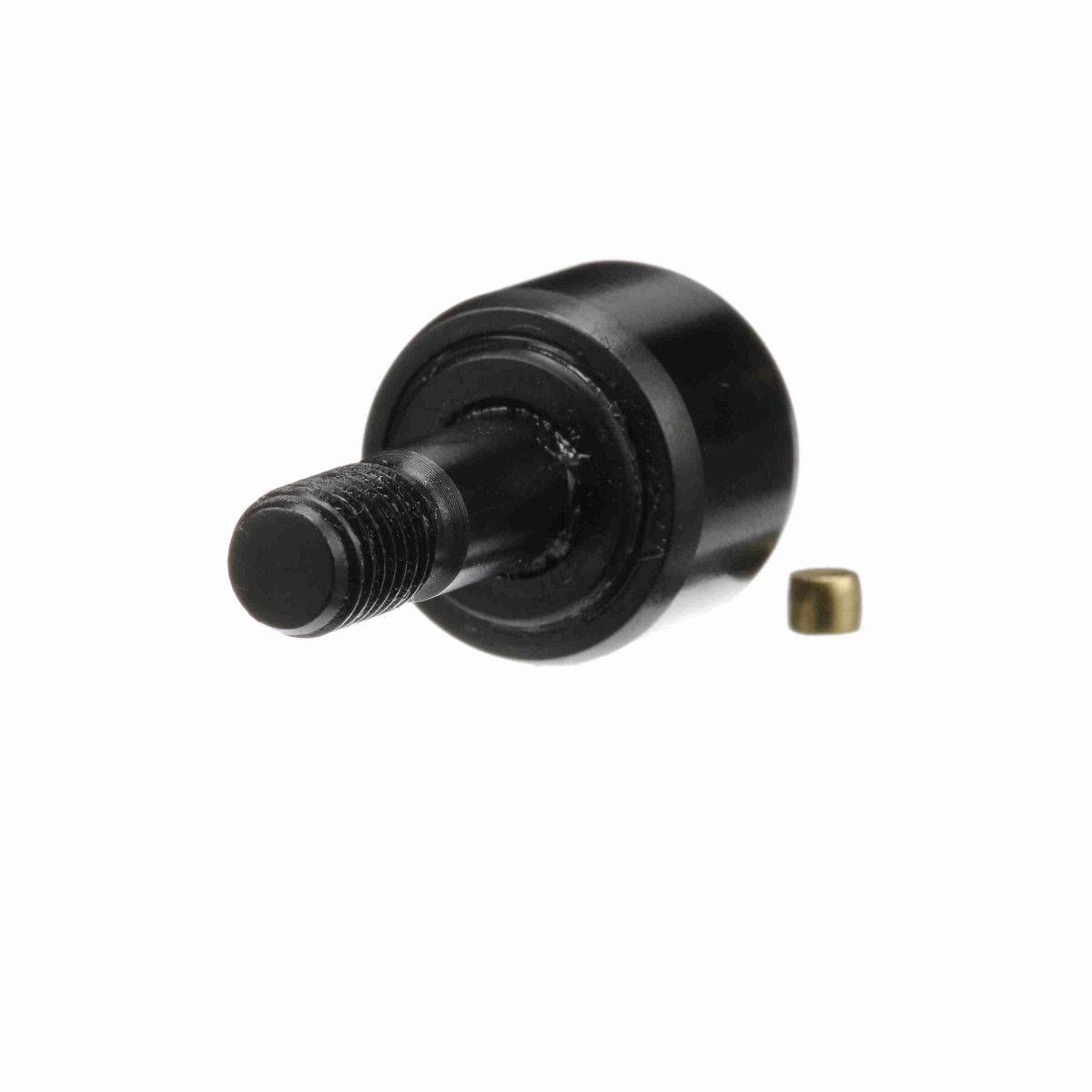

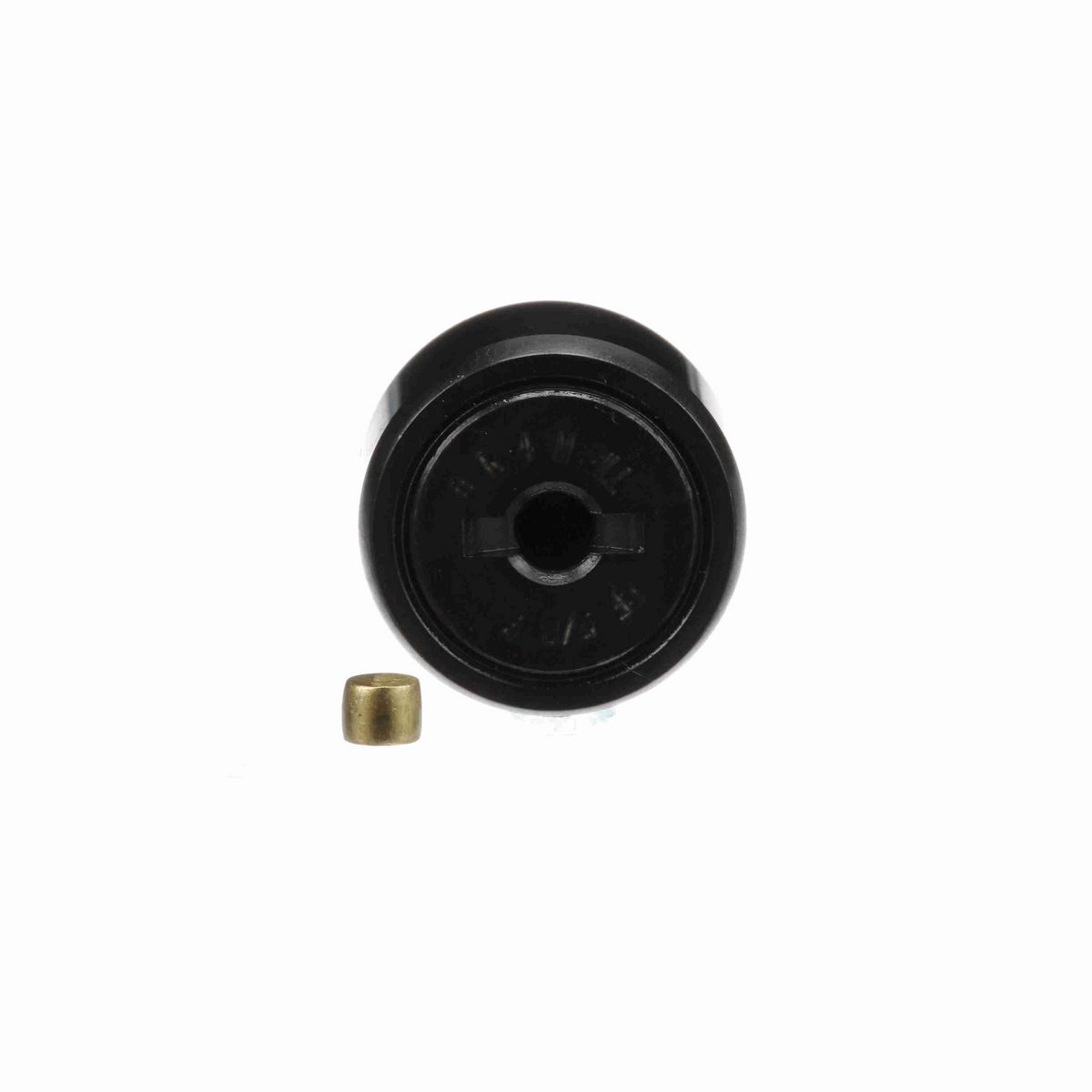

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1/4-28
Roller Diameter (in)	0.625 in
Minimum Thread Length (in)	0.31 in
Stud Length (in)	0.75 in
Roller Width (in)	0.4375 in
Lubrication Fitting Size (in)	0.125 in
Lubrication Fitting Size (mm)	0.125 mm
Stud Diameter (in)	0.25 in
Weight (kg)	0.03 kg

Technical Specifications

Series	Inch CAMROL®
Sealing	Sealed
Adjustment	None
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Dynamic Radial Rating	955
Limiting Speed	9,200
Hex/Slot	Screwdriver Slot
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	955 lb
Platform	CAMROL®
Static Load Rating	600
Clamping Torque (in-lbf)	35 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166030759
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
