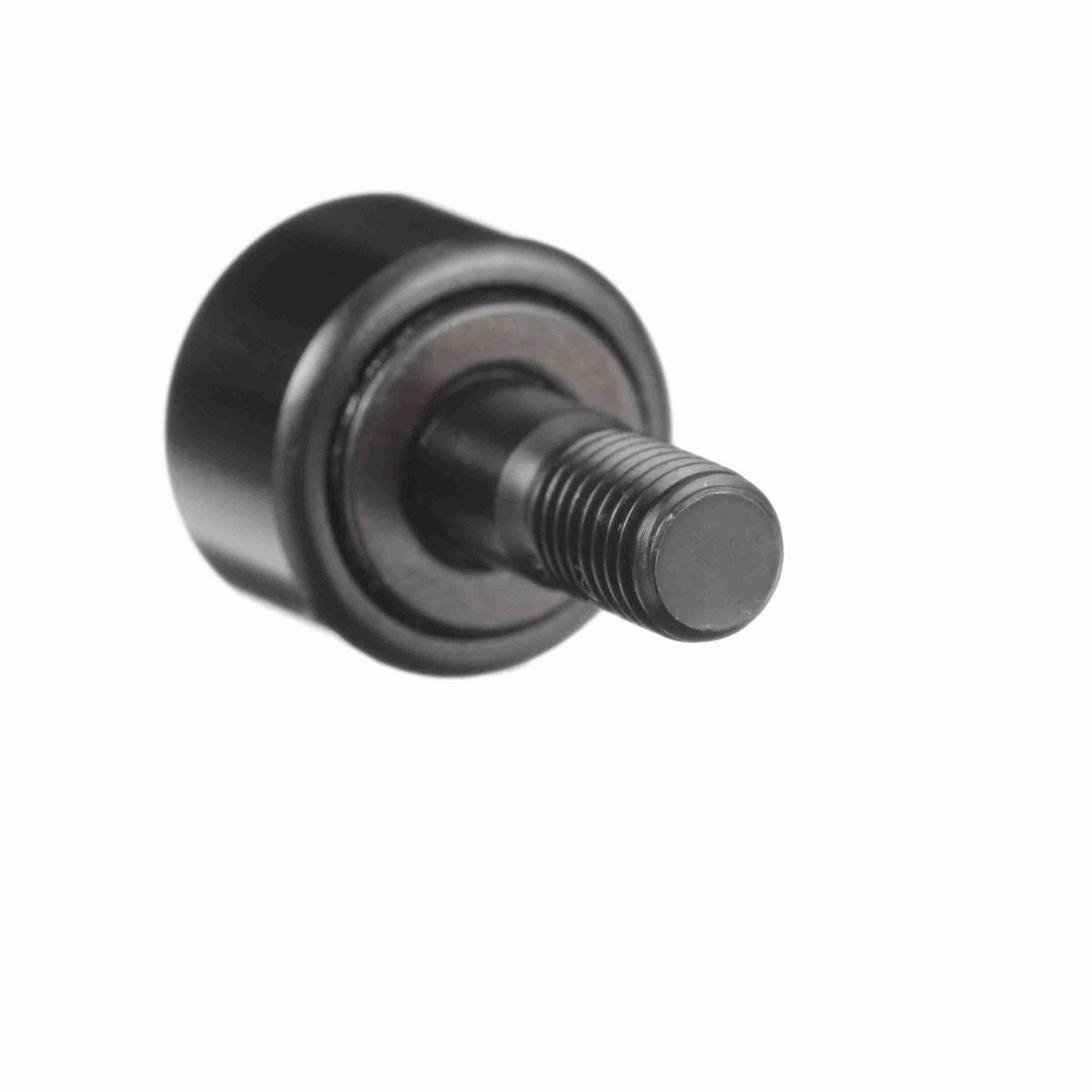

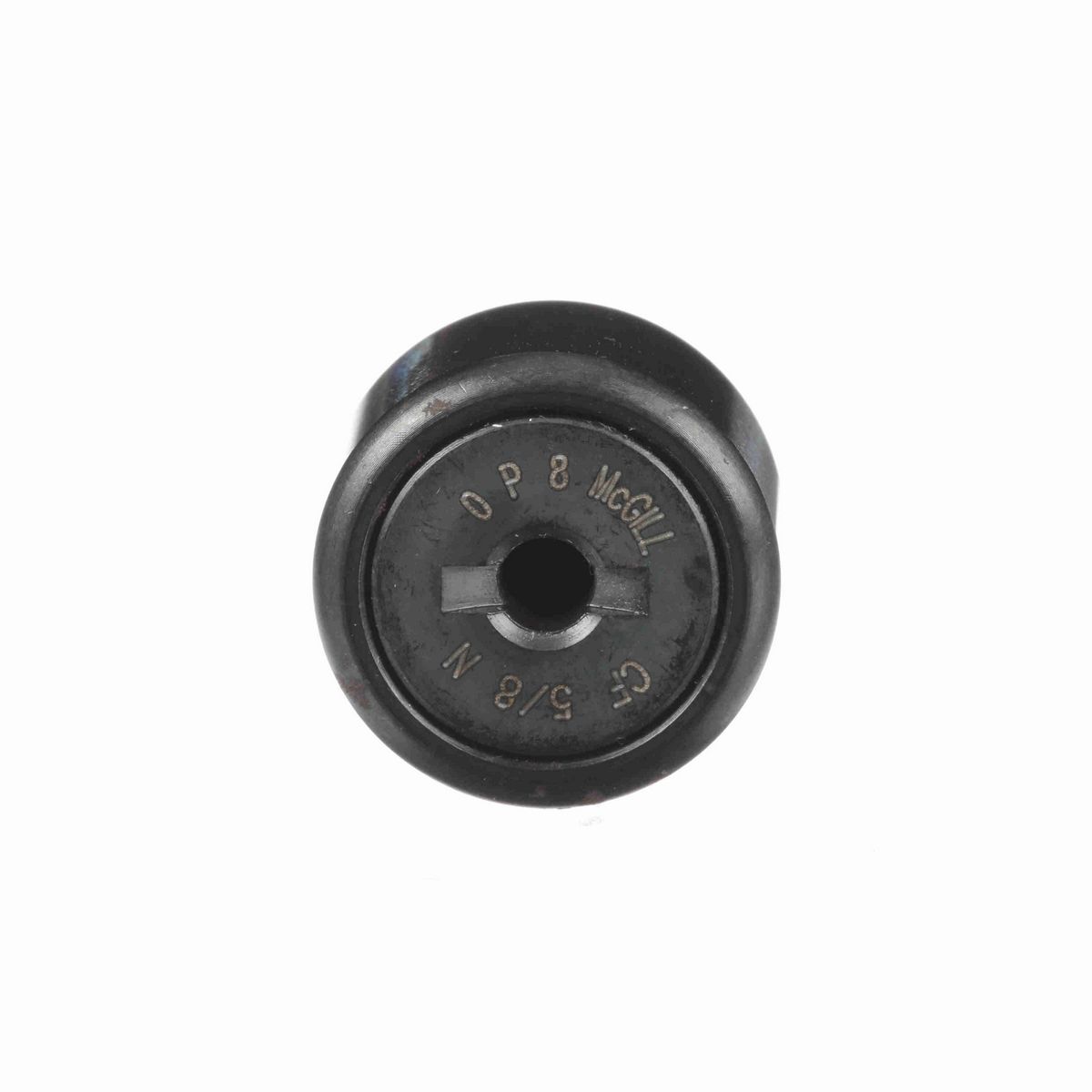

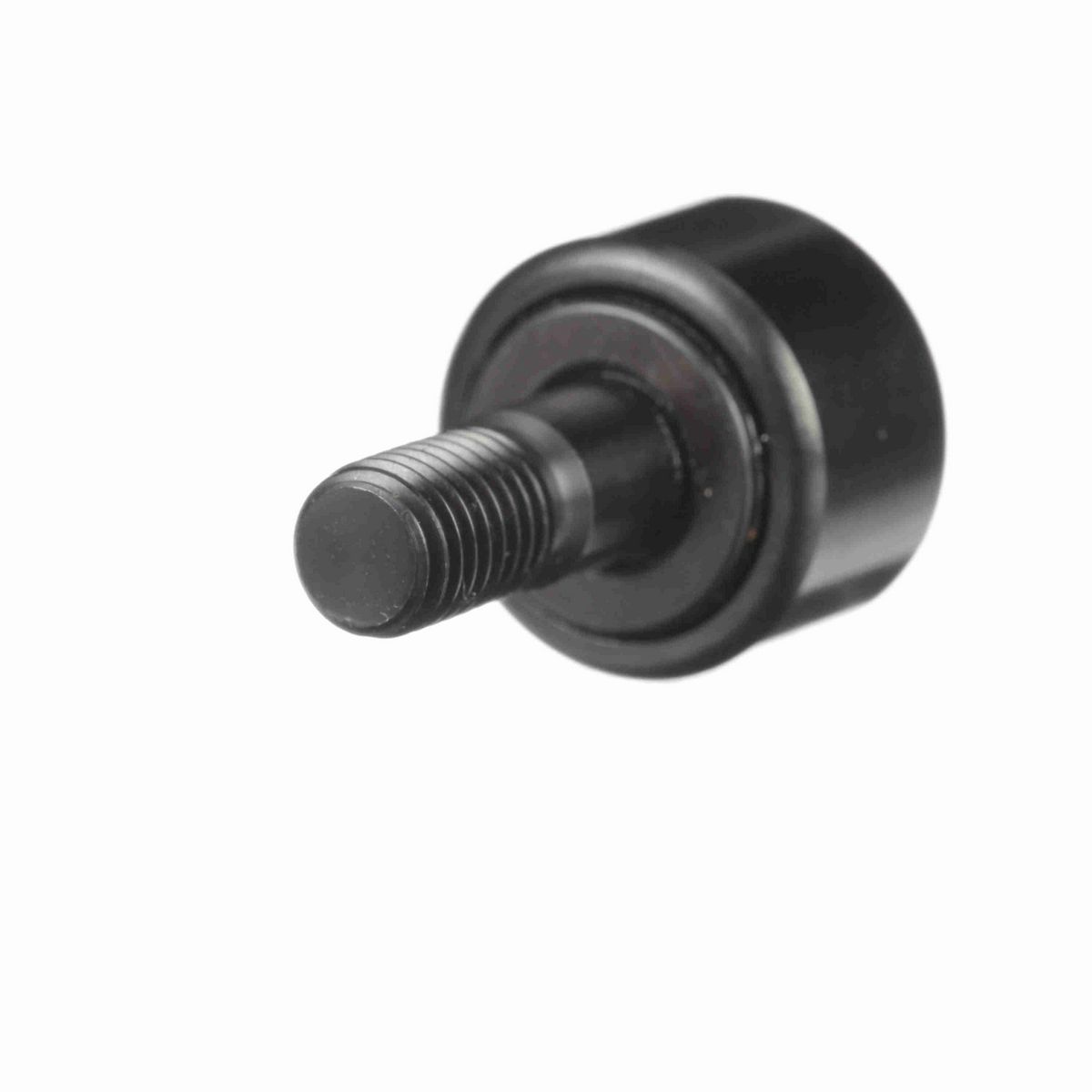

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• Narrow roller width

Dimensions

Threads	1/4-28
Roller Diameter (in)	0.625 in
Lubrication Fitting Size (in)	0.125 in
Lubrication Fitting Size (mm)	0.125 mm
Minimum Thread Length (in)	0.31 in
Stud Diameter (in)	0.25 in
Stud Length (in)	0.625 in
Roller Width (in)	0.406 in
Weight (kg)	0.02 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
Limiting Speed	9,200
Sealing	Unsealed
Dynamic Radial Rating	930
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Adjustment	None
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	600
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	930 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Stud Type	Standard Stud
Ability to Relubricate	No
Clamping Torque (in-lbf)	35 lbs

General Specifications

UPC	726166030919
Weight	0.05 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
