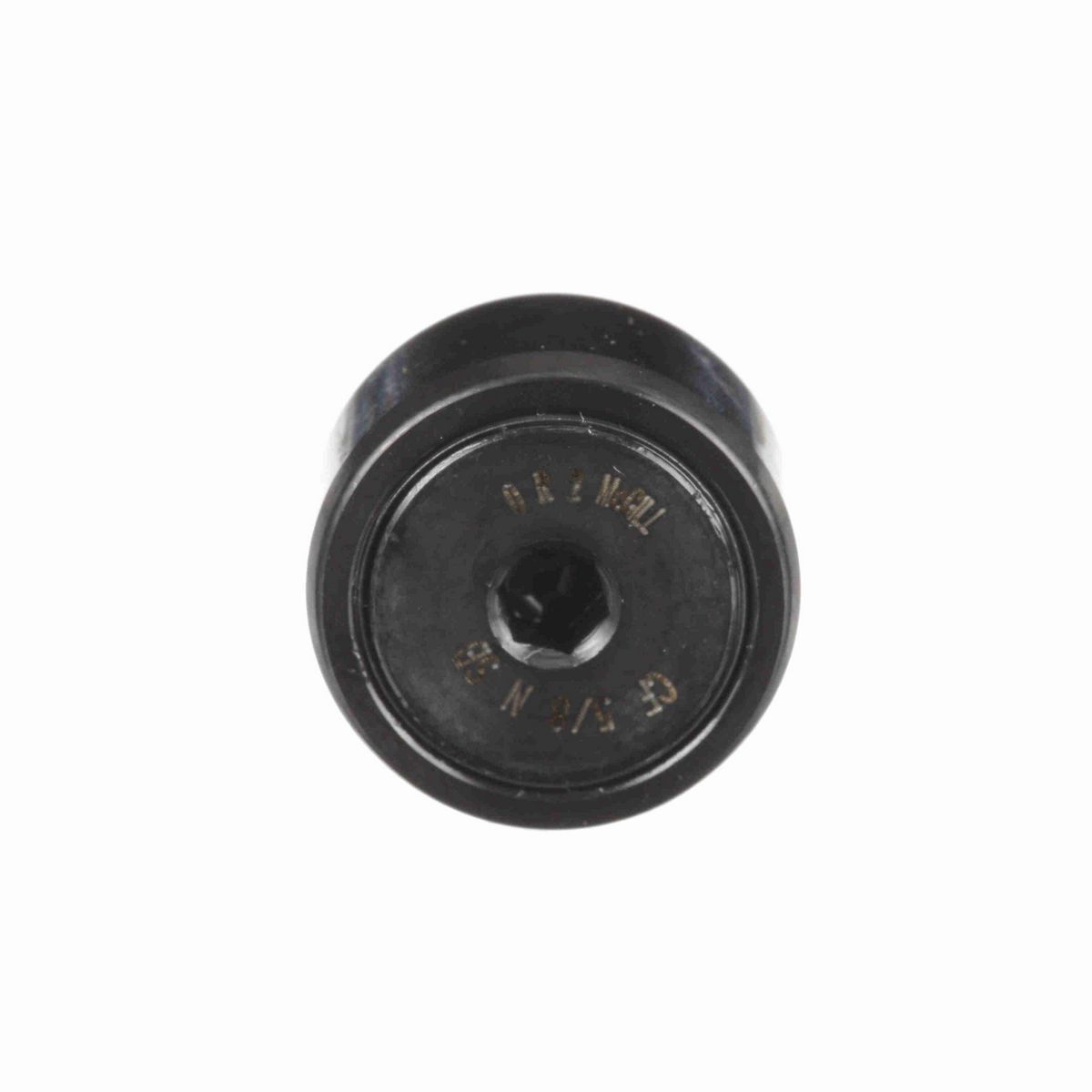

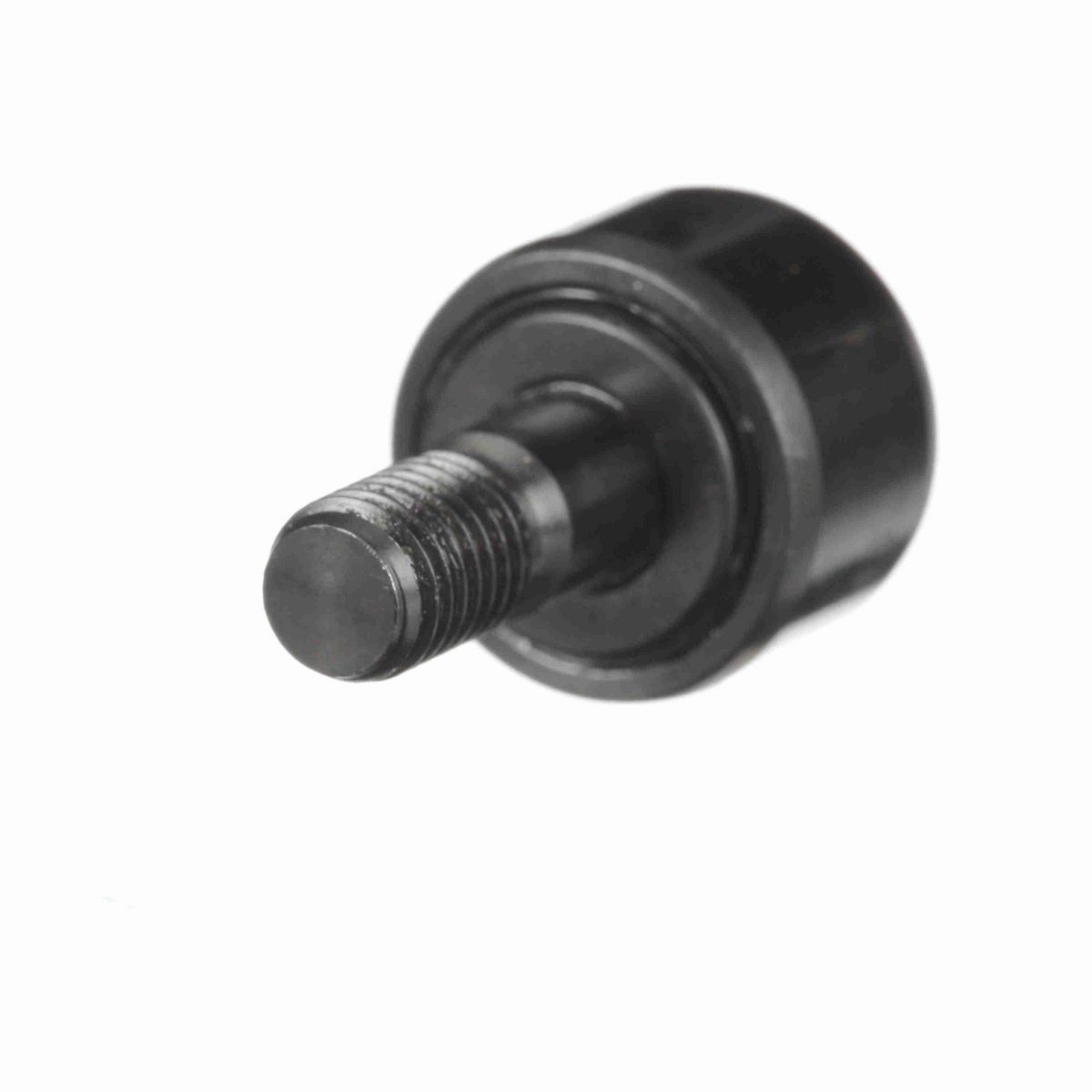

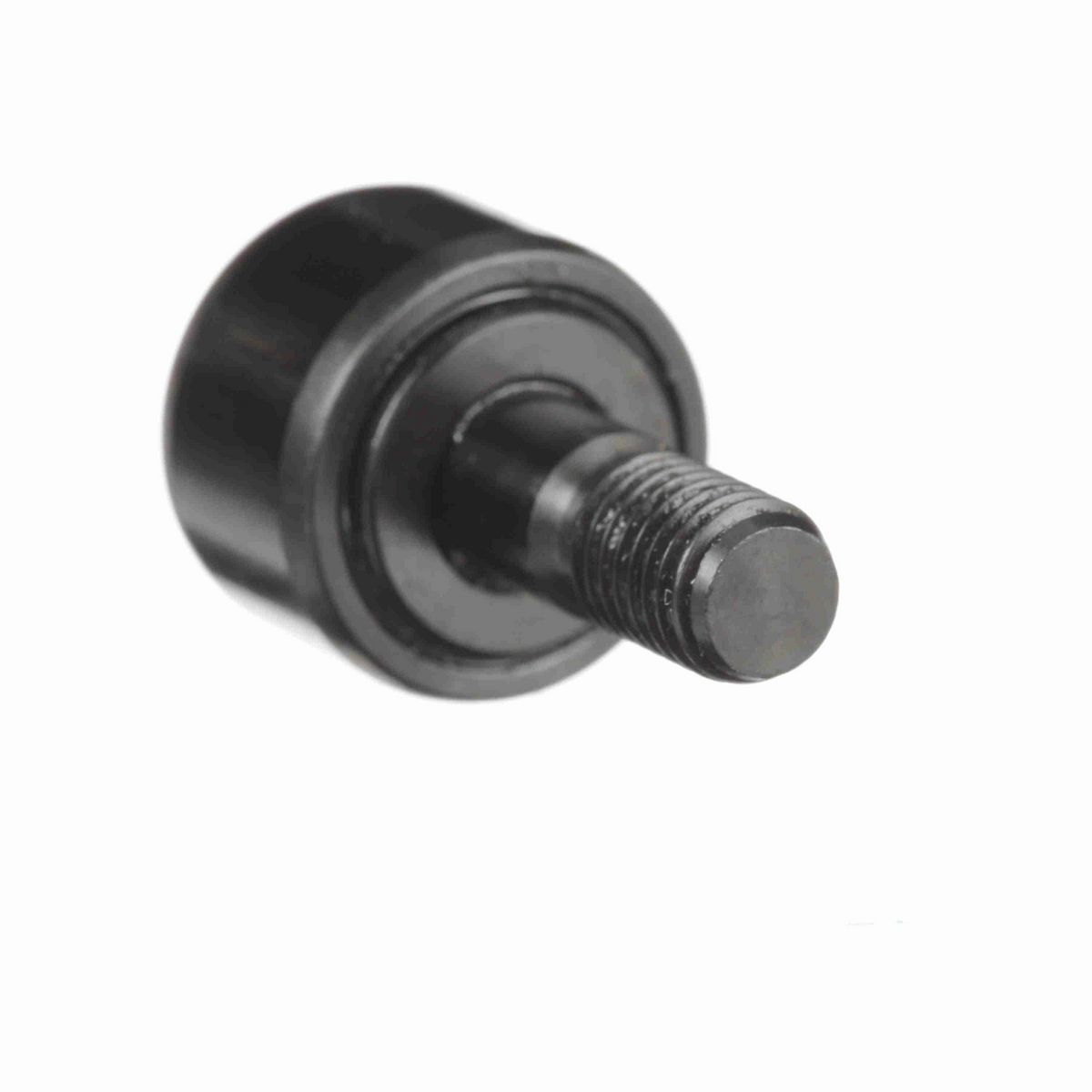

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Narrow roller width

Dimensions

Threads	1/4-28
Roller Diameter (in)	0.625 in
Stud Length (in)	0.625 in
Roller Width (in)	0.406 in
Minimum Thread Length (in)	0.31 in
Stud Diameter (in)	0.25 in
Hex Socket (in)	0.125 in
Weight (kg)	0.03 kg

Technical Specifications

Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	930
Sealing	Sealed
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Adjustment	None
Limiting Speed	9,200
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	930 lb
Static Load Rating	600
Platform	CAMROL®
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Ability to Relubricate	No
Clamping Torque (in-lbf)	35 lbs

General Specifications

UPC	726166031008
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
