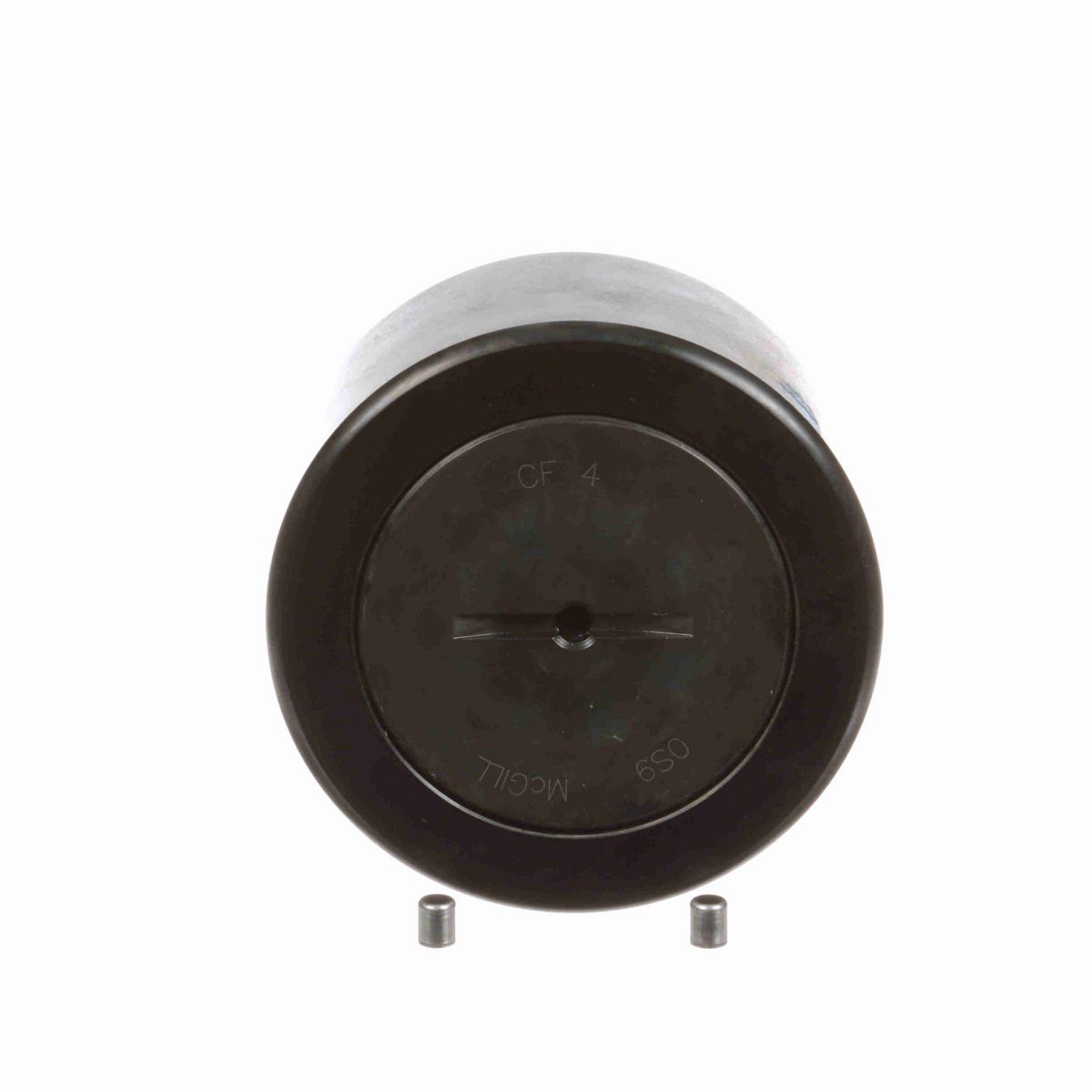

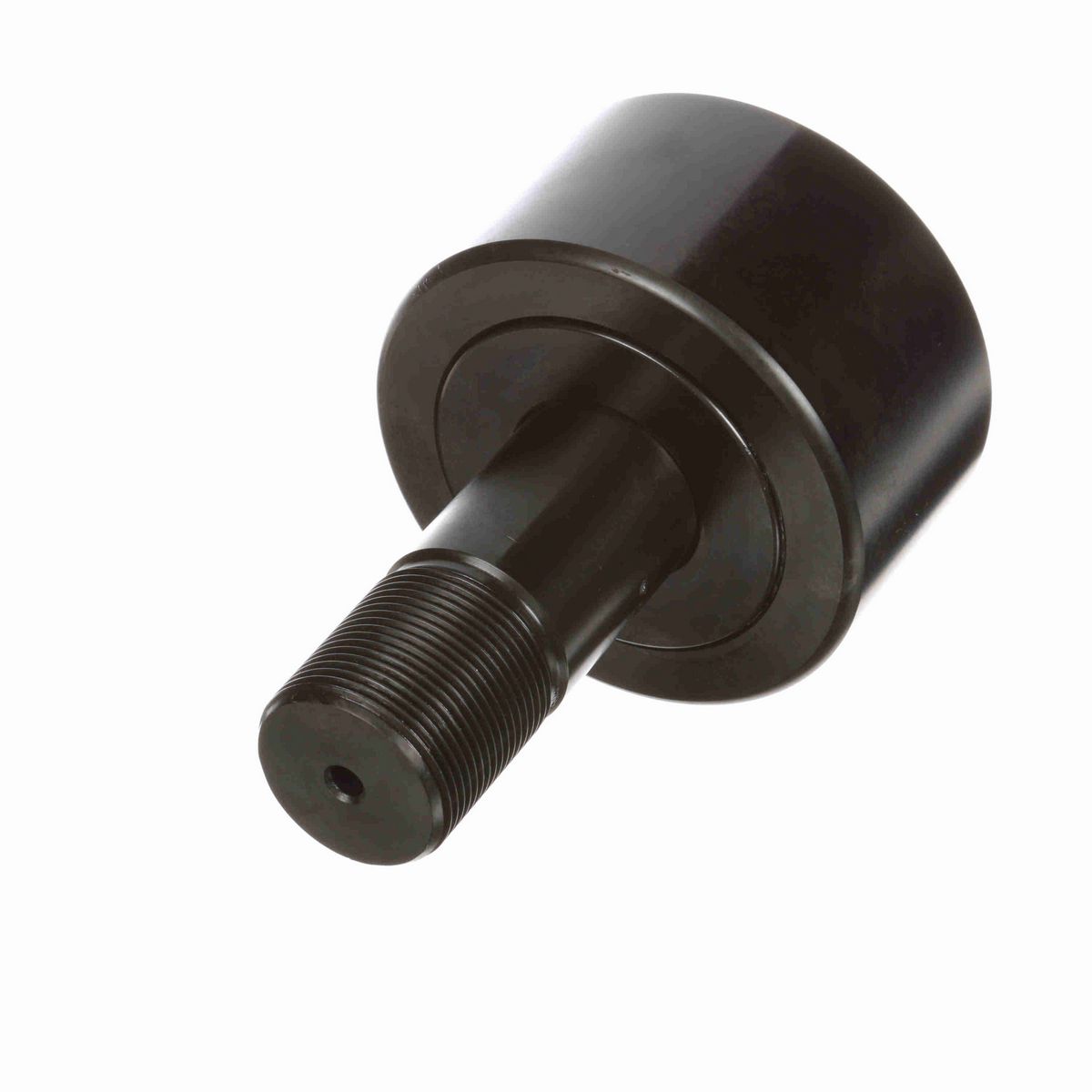

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	1 1/2-12
Roller Diameter (in)	4 in
Stud Diameter (in)	1.5 in
Roller Width (in)	2.25 in
Lubrication Fitting Size (mm)	0.25 mm
Minimum Thread Length (in)	1.5 in
Lubrication Fitting Size (in)	0.25 in
Stud Length (in)	3.5 in
Oil Hole Center (in)	0.75 in
Weight (kg)	4.26 kg

Technical Specifications

Adjustment	None
Dynamic Radial Rating	22,800
Hex/Slot	Screwdriver Slot
O.D. Configuration	Cylindrical
Sealing	Unsealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	700
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Stud Type	Standard Stud
Dynamic Load Rating (lb)	29,985 lb
Static Load Rating	44,770
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	5,000 lbs

General Specifications

UPC	726166040178
Weight	9.39 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.40.0000
Country of Origin	Mexico
