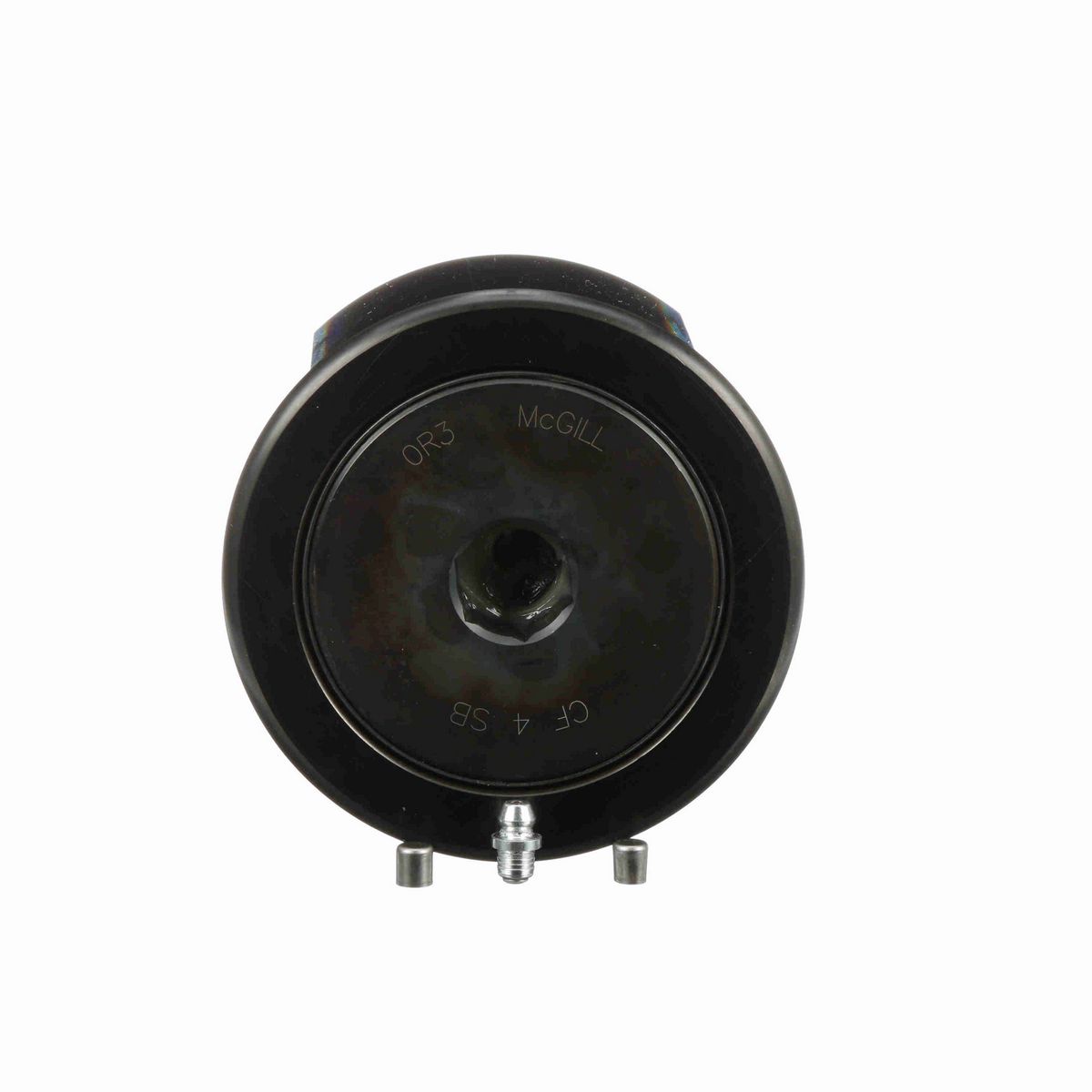

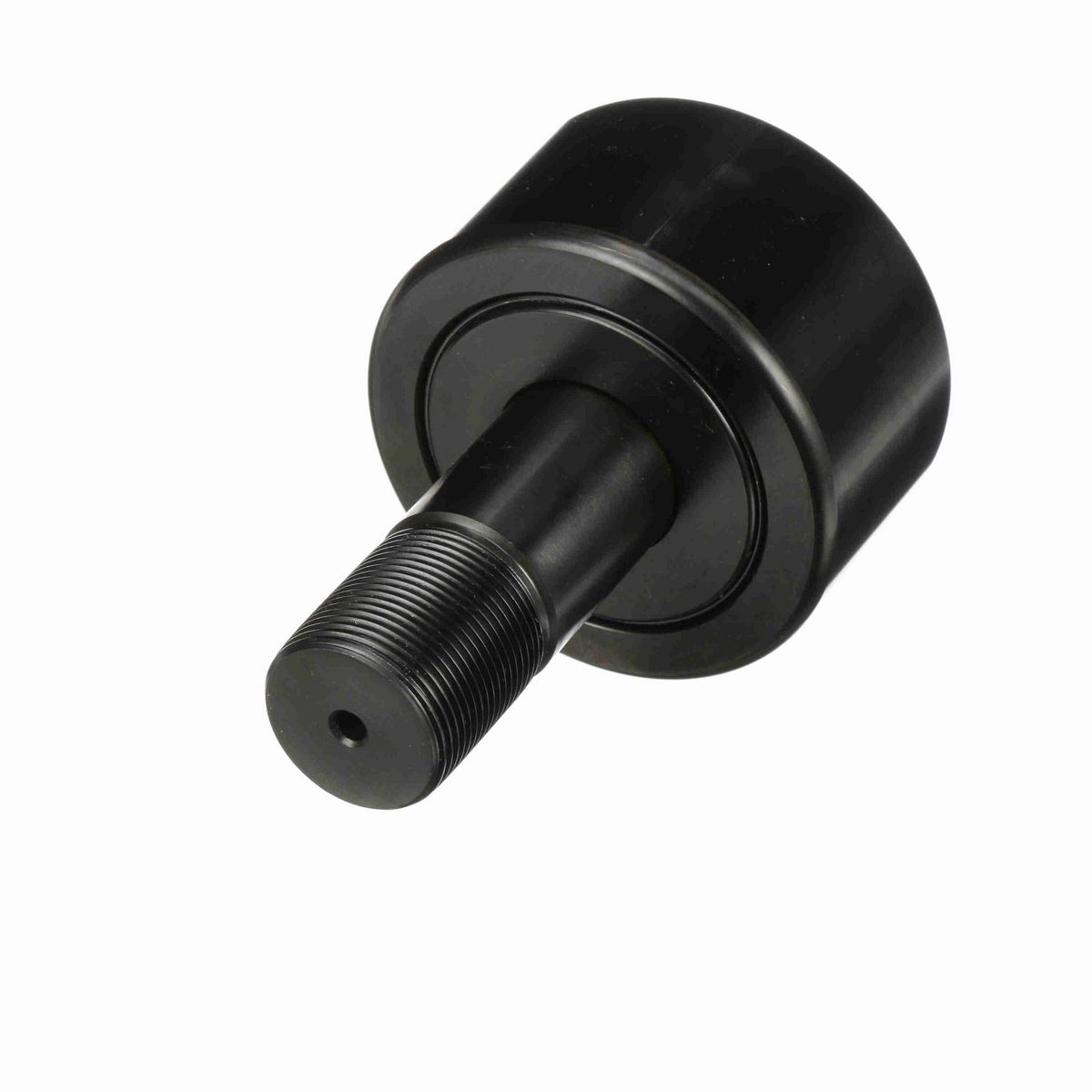

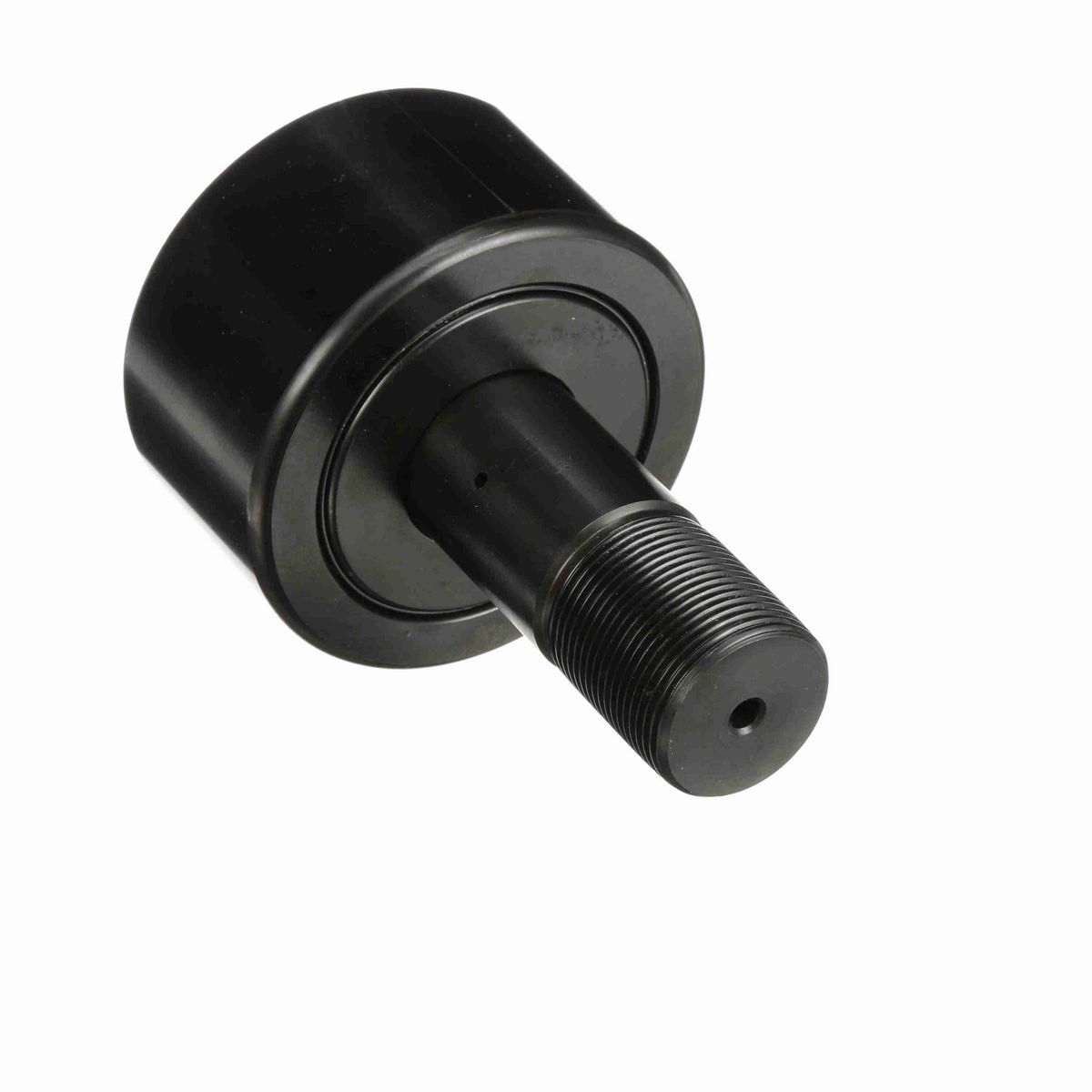

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1 1/2-12
Roller Diameter (in)	4 in
Stud Diameter (in)	1.5 in
Lubrication Fitting Size (in)	0.25 in
Hex Socket (in)	0.75 in
Stud Length (in)	3.5 in
Roller Width (in)	2.25 in
Minimum Thread Length (in)	1.5 in
Lubrication Fitting Size (mm)	0.25 mm
Weight (kg)	4.19 kg

Technical Specifications

Series	Inch CAMROL®
Limiting Speed	700
Hex/Slot	Hex Hole
Sealing	Sealed
Adjustment	None
O.D. Configuration	Cylindrical
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	22,800
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Static Load Rating	25,000
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	29,985 lb
Clamping Torque (in-lbf)	5,000 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166040222
Weight	9.24 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.40.0000
Country of Origin	Mexico
