• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1 1/2-12
Roller Diameter (in)	4 in
Lubrication Fitting Size (in)	0.25 in
Stud Diameter (in)	1.5 in
Minimum Thread Length (in)	1.5 in
Roller Width (in)	2.25 in
Stud Length (in)	3.5 in
Lubrication Fitting Size (mm)	0.25 mm
Weight (kg)	4.22 kg

Technical Specifications

Dynamic Radial Rating	22,800
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Limiting Speed	700

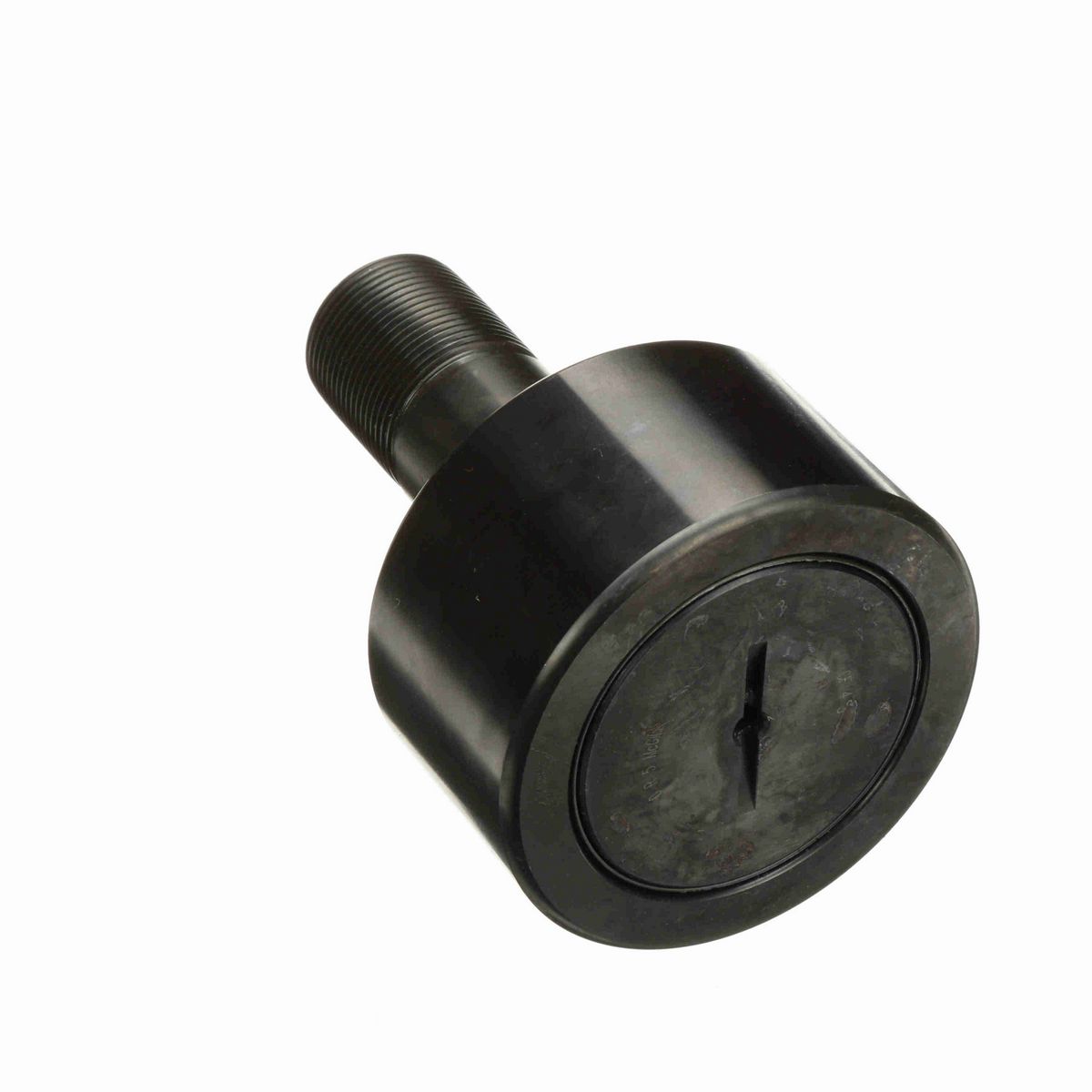

Hex/Slot	Screwdriver Slot
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	25,000
Roller Shape	Cylindrical
Stud Type	Standard Stud
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	29,985 lb
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	5,000 lbs

General Specifications

UPC	726166040192
Weight	9.31 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	6.00 IN
HTC	8482.40.0000
Country of Origin	Mexico
