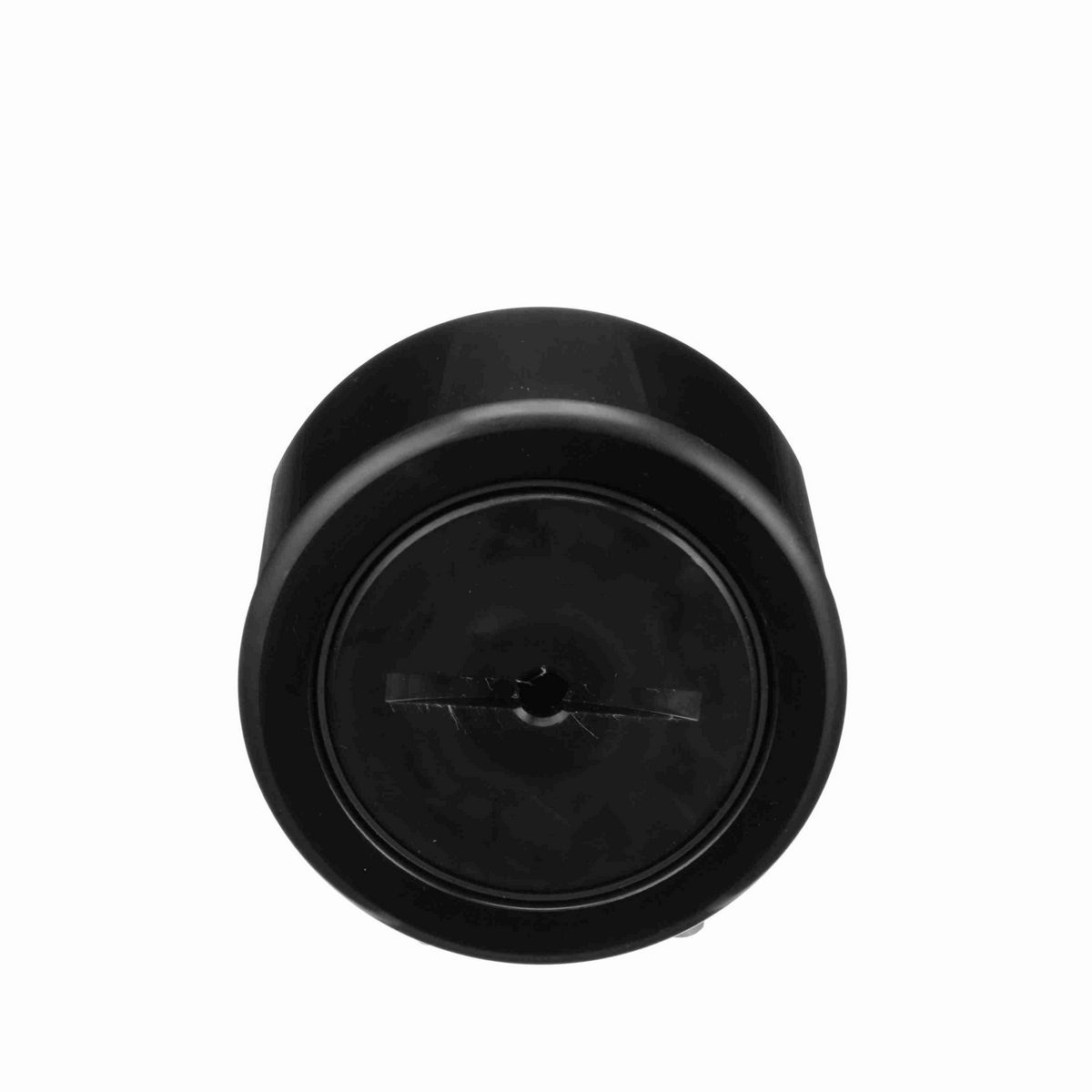

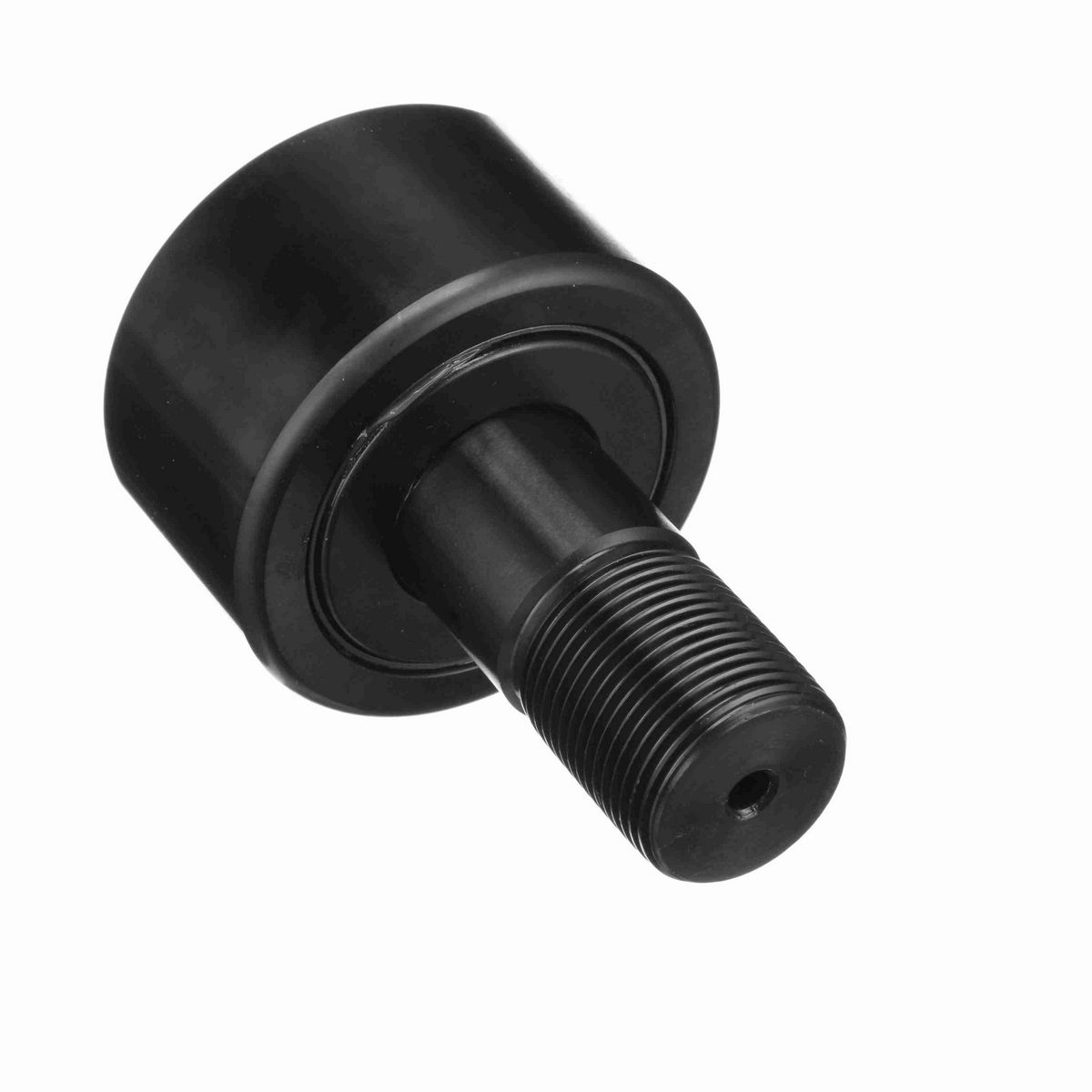

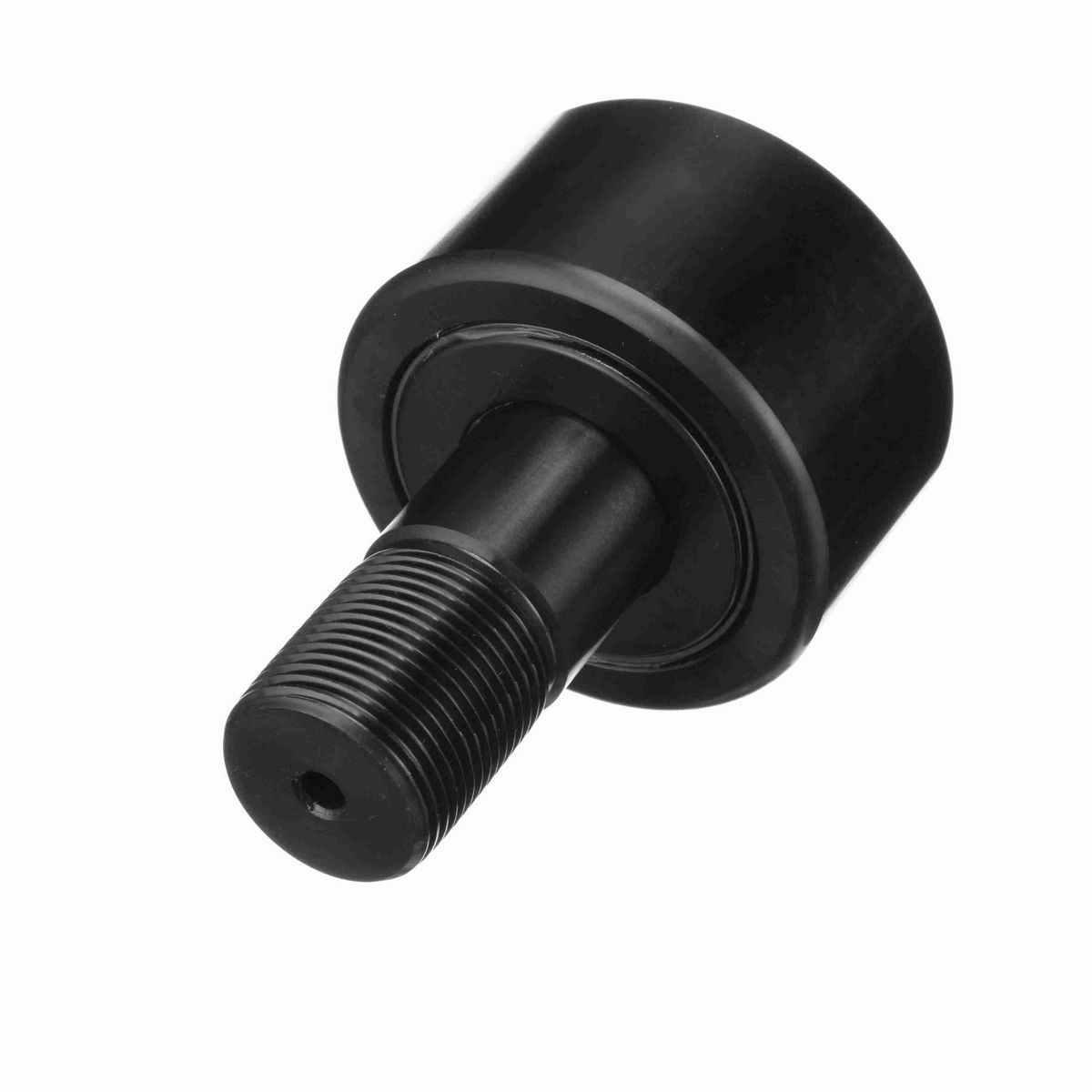

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3 in
Lubrication Fitting Size (in)	0.25 in
Lubrication Fitting Size (mm)	0.25 mm
Stud Length (in)	2.5 in
Stud Diameter (in)	1.25 in
Roller Width (in)	1.75 in
Minimum Thread Length (in)	1.25 in
Weight (kg)	1.82 kg

Technical Specifications

O.D. Configuration	Cylindrical
Sealing	Sealed
Hex/Slot	Screwdriver Slot
Series	Inch CAMROL®
Limiting Speed	950
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	15,720
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Static Load Rating	18,000
Dynamic Load Rating (lb)	15,720 lb
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	3,450 lbs

General Specifications

UPC	726166039080
Weight	4.01 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
