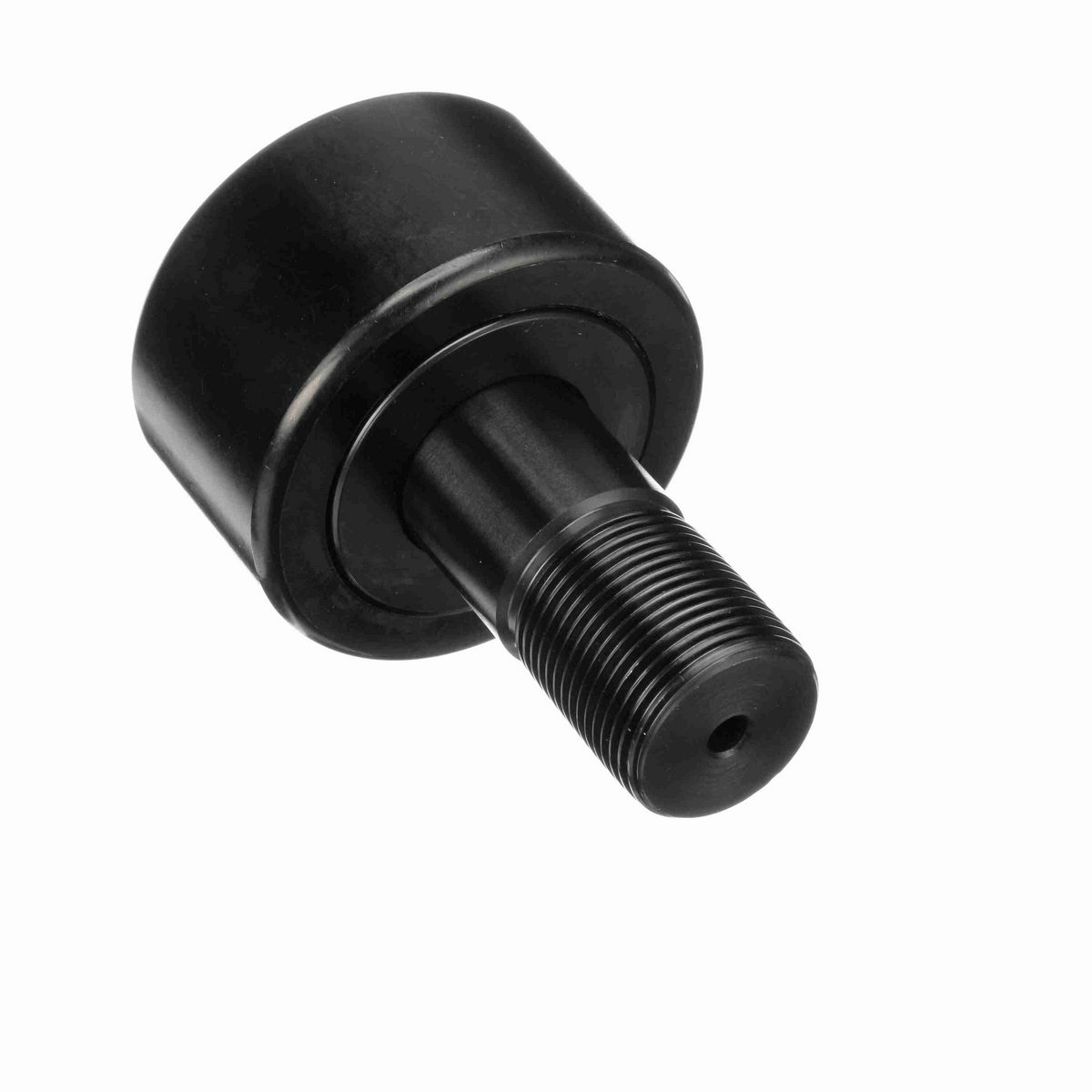

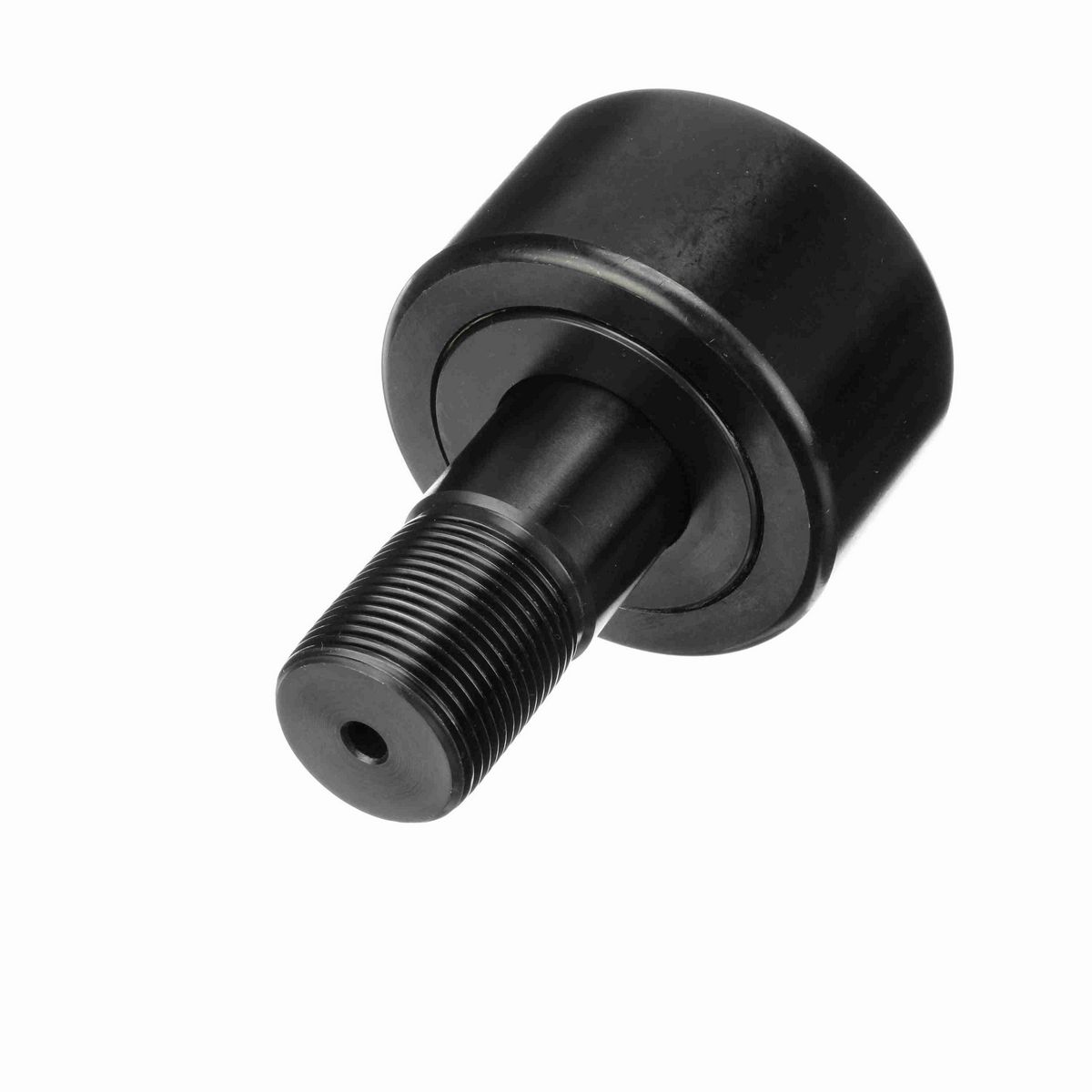

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

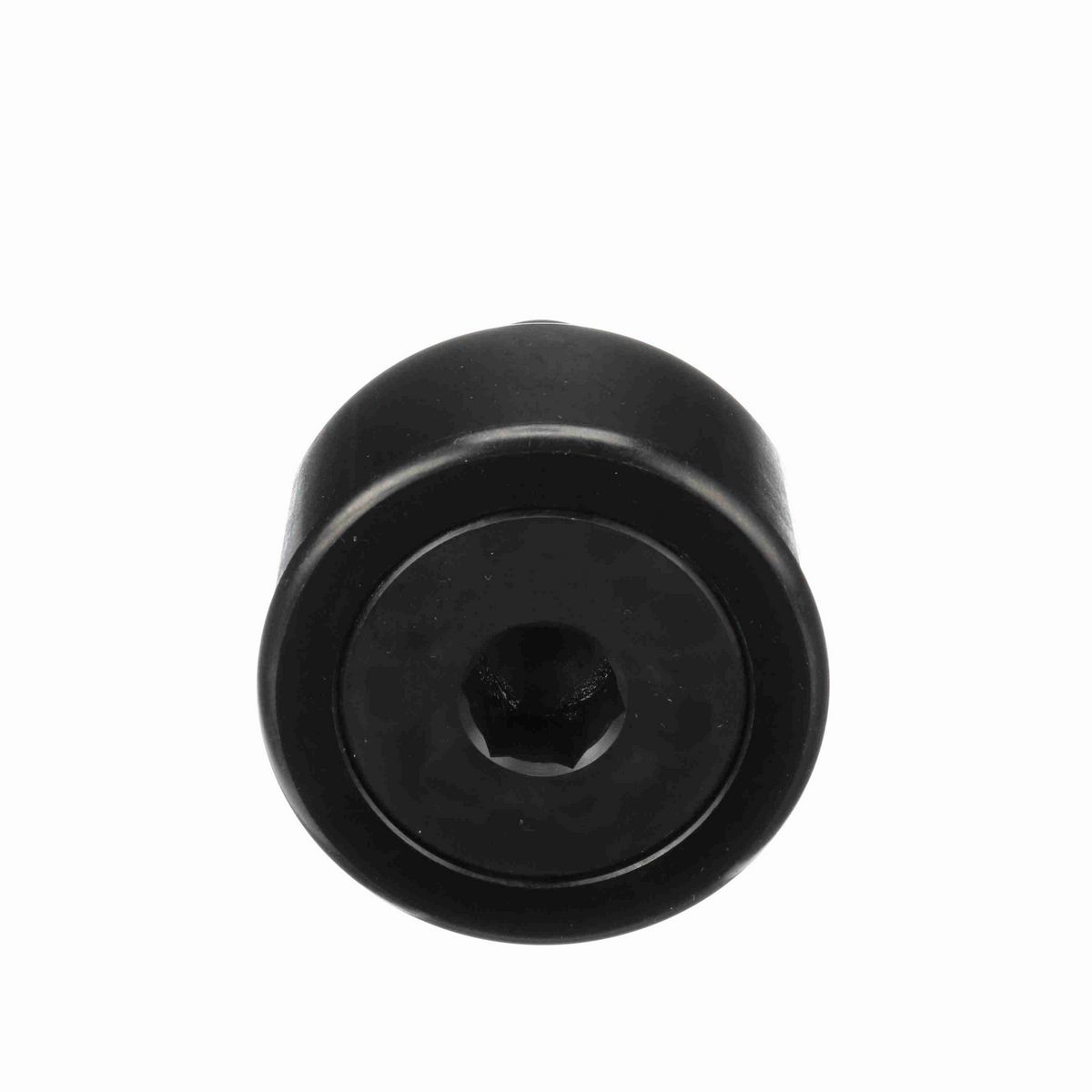

• Hex hole

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3 in
Hex Socket (in)	0.75 in
Lubrication Fitting Size (in)	0.25 in
Lubrication Fitting Size (mm)	0.25 mm
Stud Length (in)	2.5 in
Minimum Thread Length (in)	1.25 in
Oil Hole Center (in)	0.625 in
Stud Diameter (in)	1.25 in
Roller Width (in)	1.75 in
Weight (kg)	1.9 kg

Technical Specifications

Hex/Slot	Hex Hole
Adjustment	None
Limiting Speed	950
Series	Inch CAMROL®
Sealing	Unsealed
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	15,720
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	15,720 lb
Static Load Rating	24,910
Roller Shape	Cylindrical
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	3,450 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039066
Weight	4.19 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
