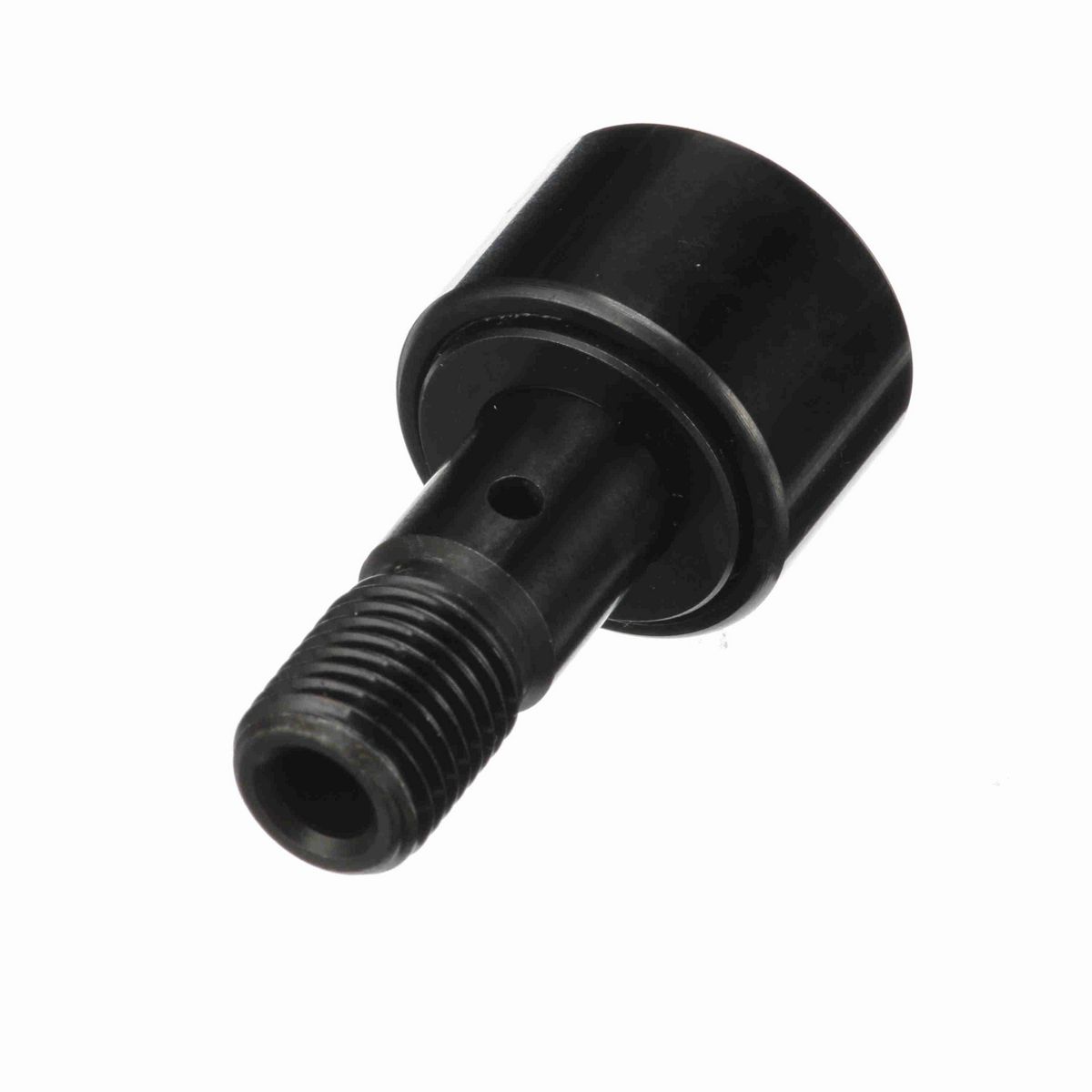

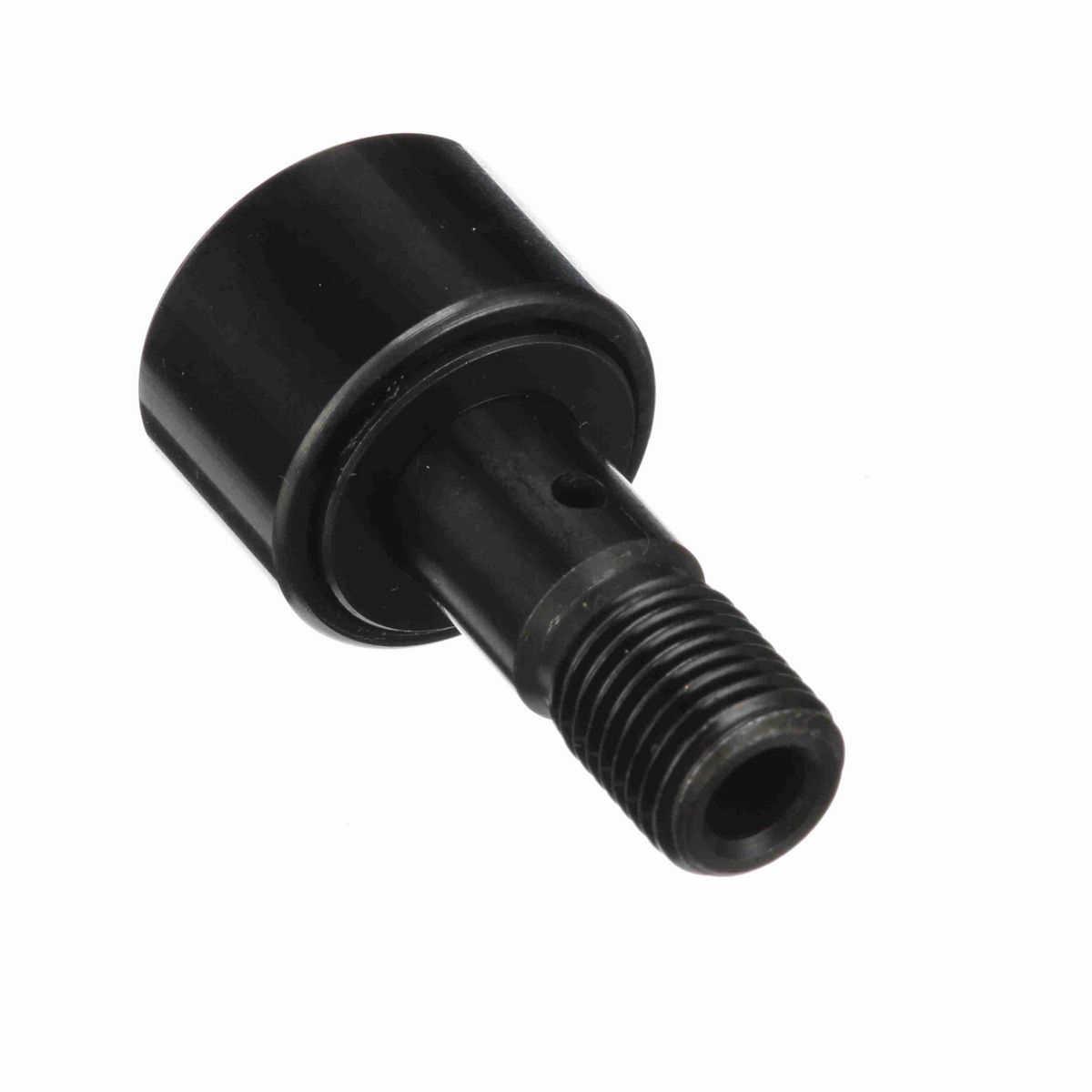

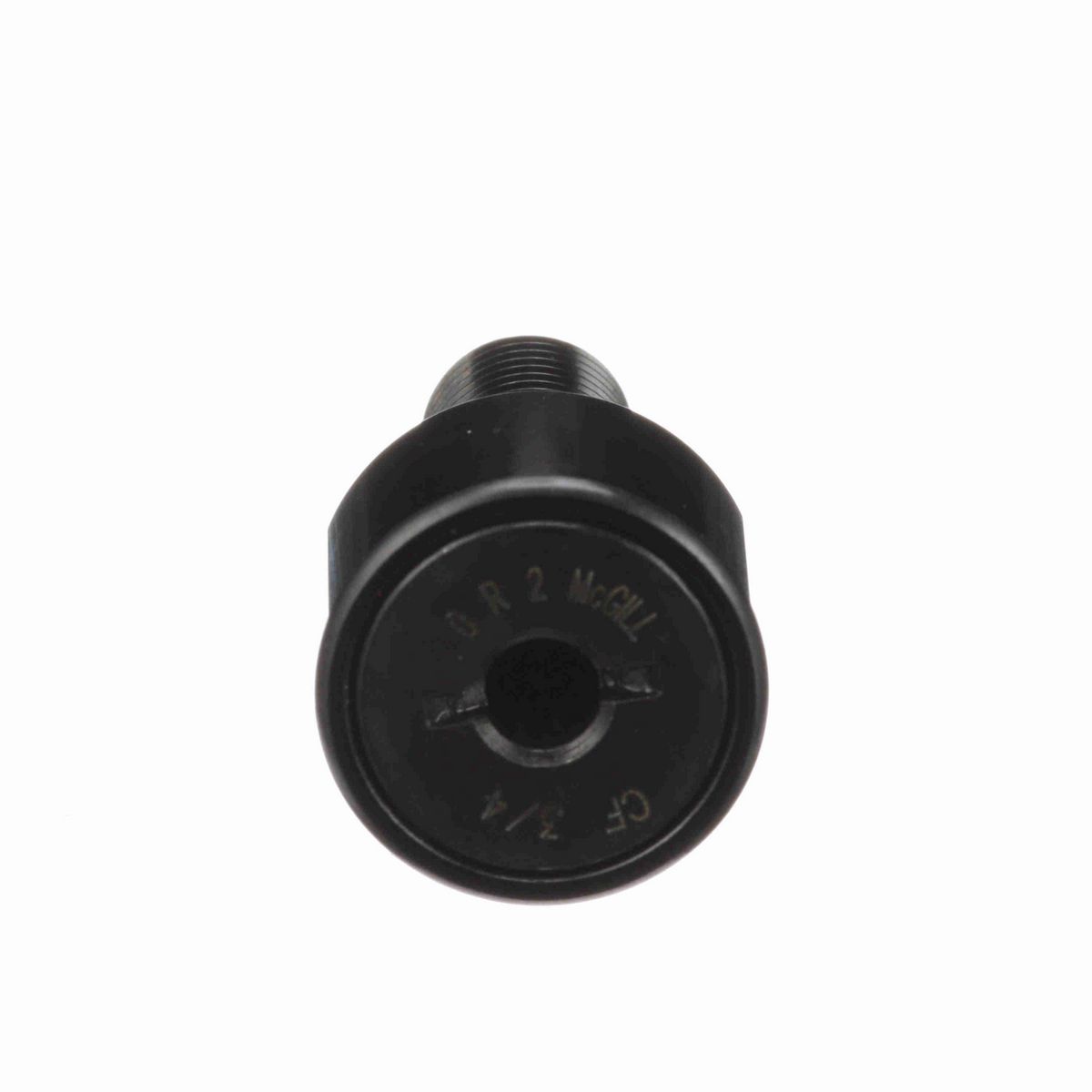

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.75 in
Roller Width (in)	0.5 in
Minimum Thread Length (in)	0.38 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.375 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Center (in)	0.25 in
Stud Length (in)	0.875 in
Lubrication Fitting Size (in)	0.1875 in
Weight (kg)	0.04 kg

Technical Specifications

O.D. Configuration	Cylindrical
Hex/Slot	Screwdriver Slot
Limiting Speed	6,400
Sealing	Unsealed
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	1,660
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	1,500
Stud Type	Standard Stud
Dynamic Load Rating (lb)	1,660 lb
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	95 lbs

General Specifications

UPC	726166031695
Weight	0.09 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
