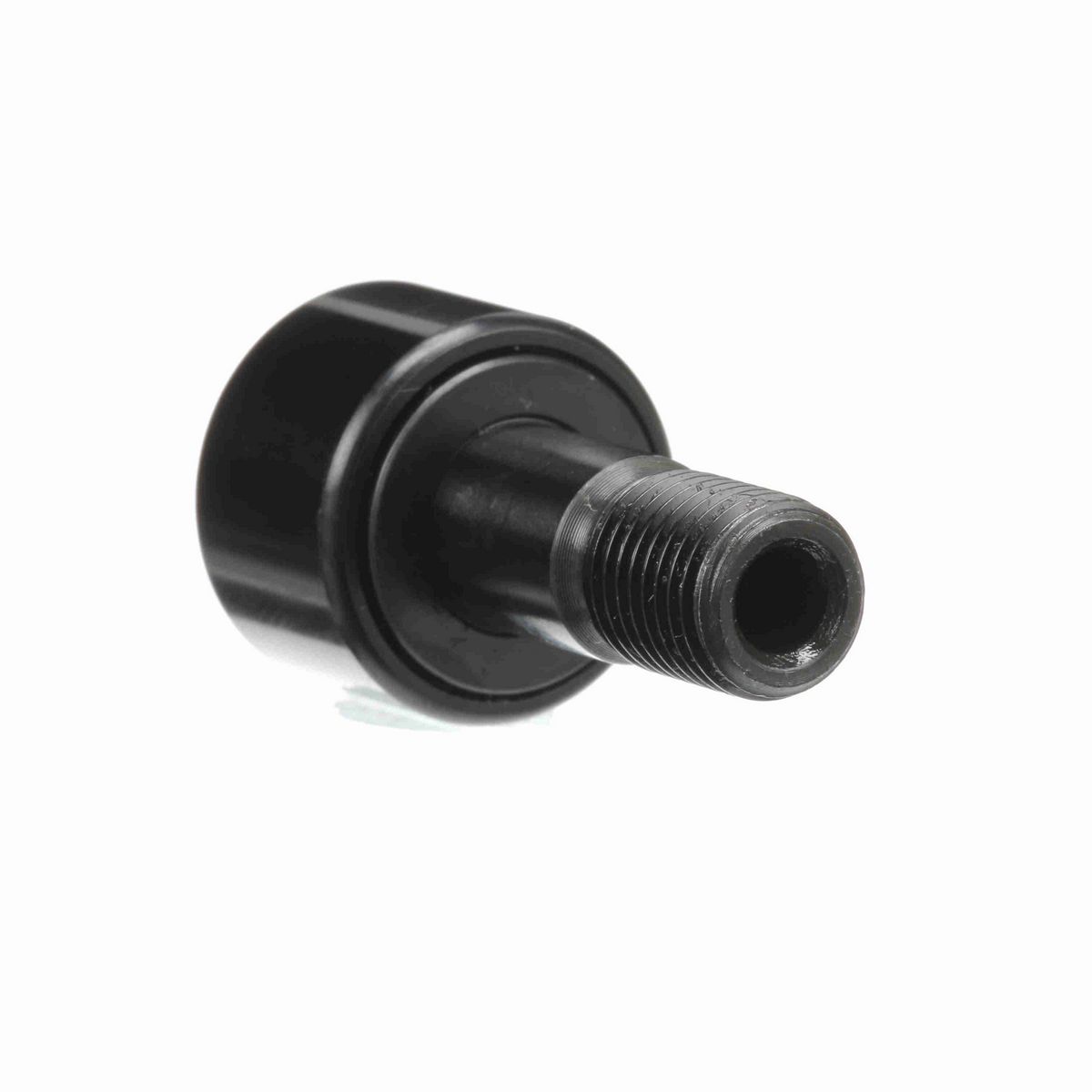

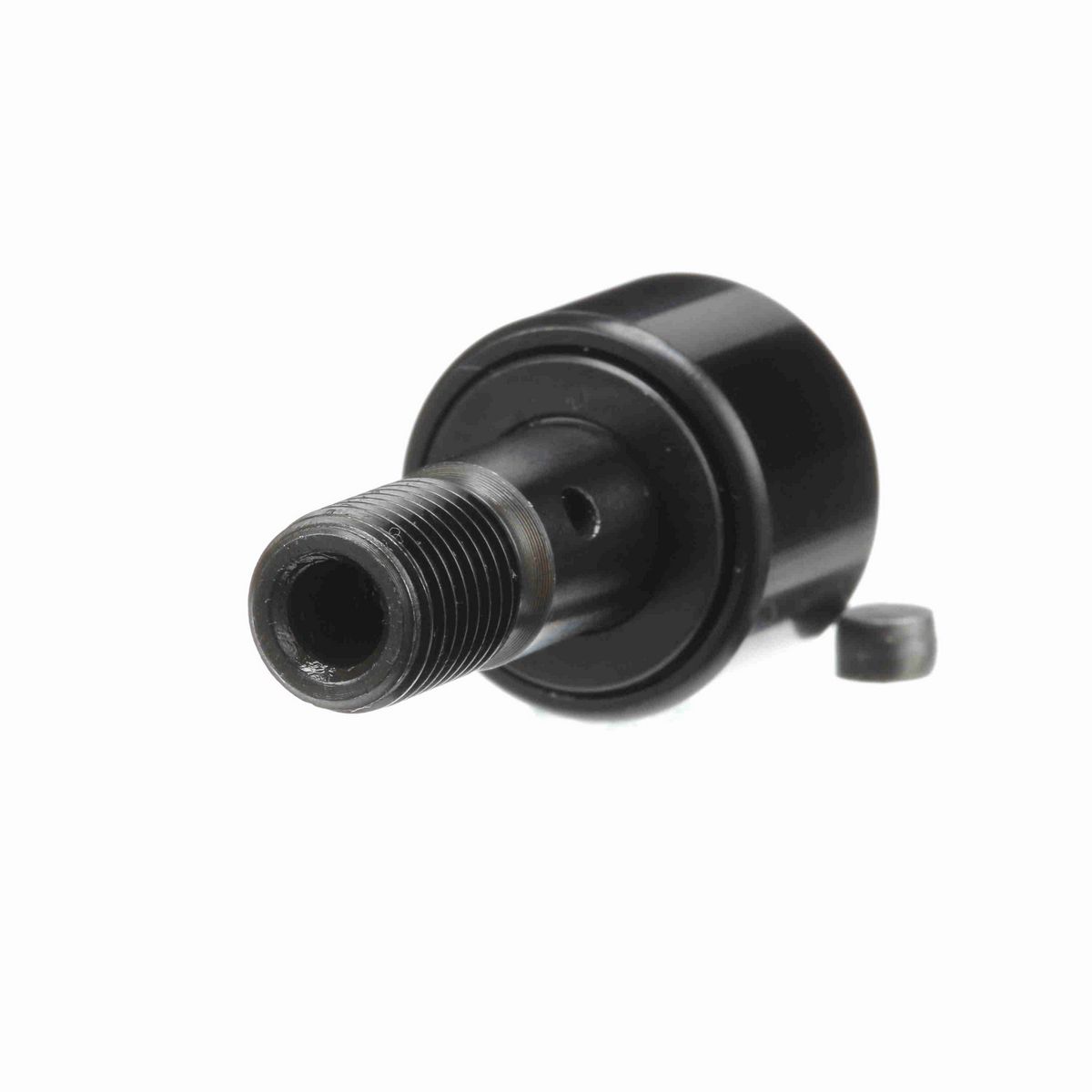

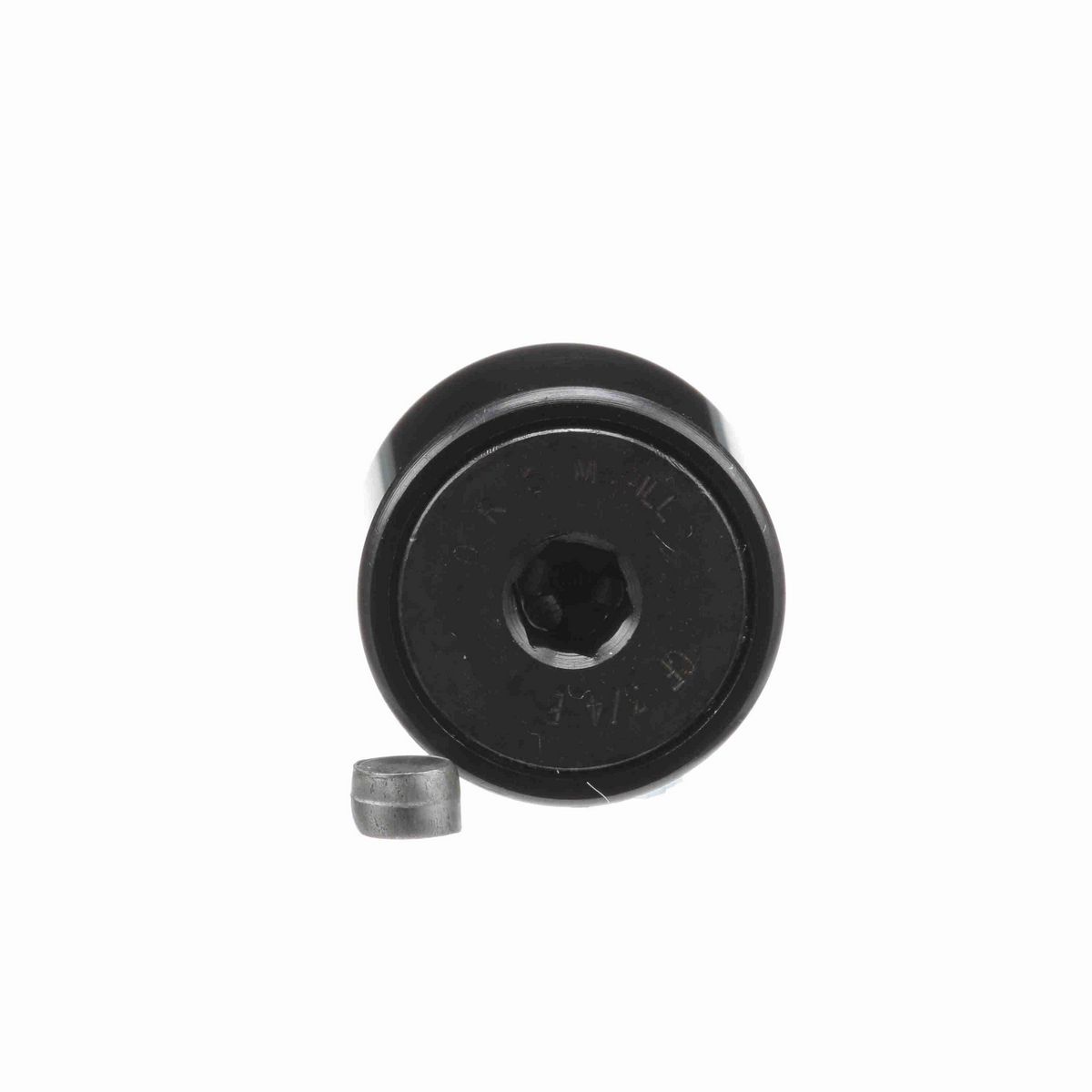

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.75 in
Roller Width (in)	0.5 in
Oil Hole Center (in)	0.25 in
Stud Diameter (in)	0.375 in
Hex Socket (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.38 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	0.875 in
Weight (kg)	0.04 kg

Technical Specifications

Adjustment	None
Dynamic Radial Rating	1,660
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Rolling Element	Needle Roller - Full Complement
Sealing	Unsealed
Limiting Speed	6,400
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Platform	CAMROL®
Dynamic Load Rating (lb)	1,660 lb
Static Load Rating	2,065
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	95 lbs

General Specifications

UPC	726166031763
Weight	0.09 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
