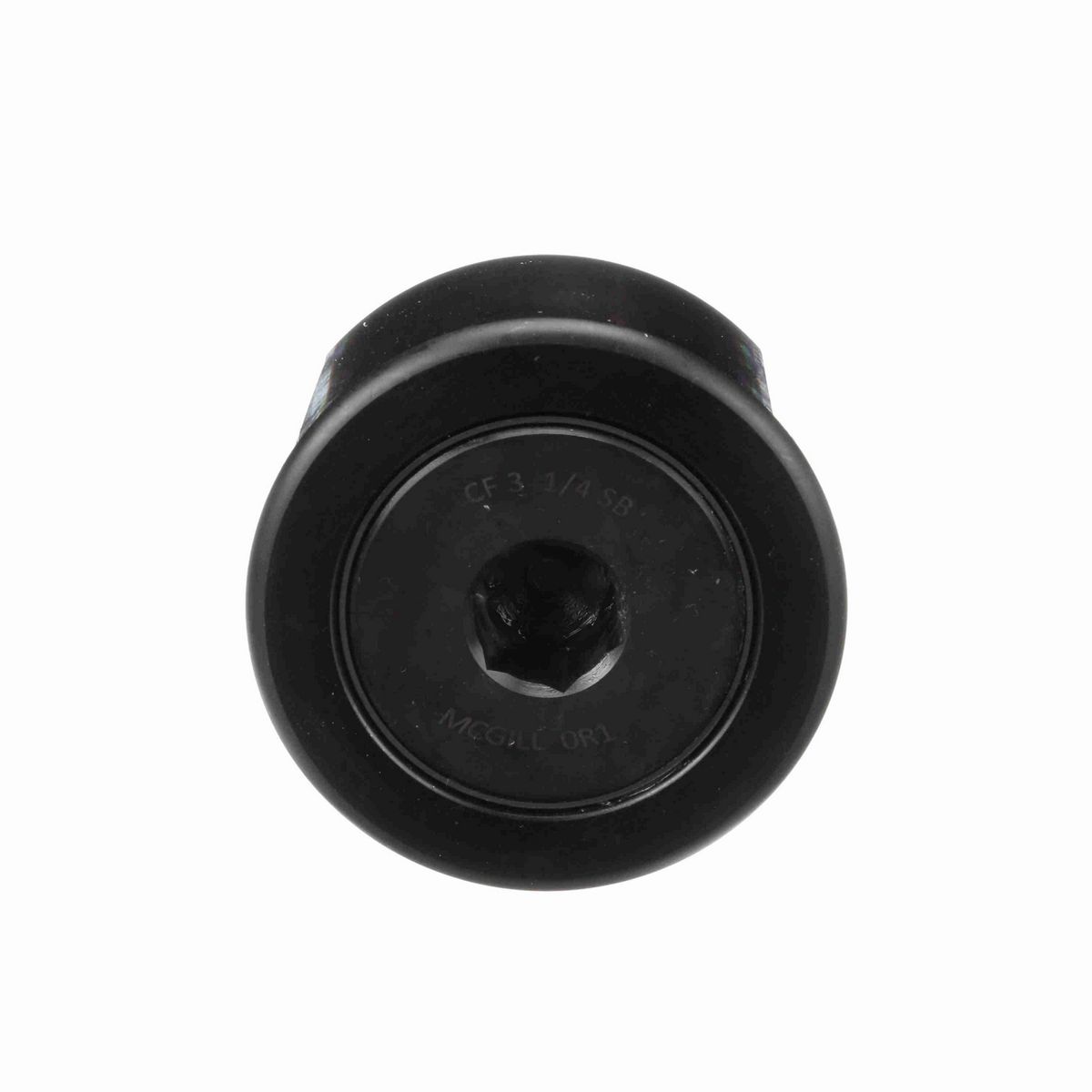

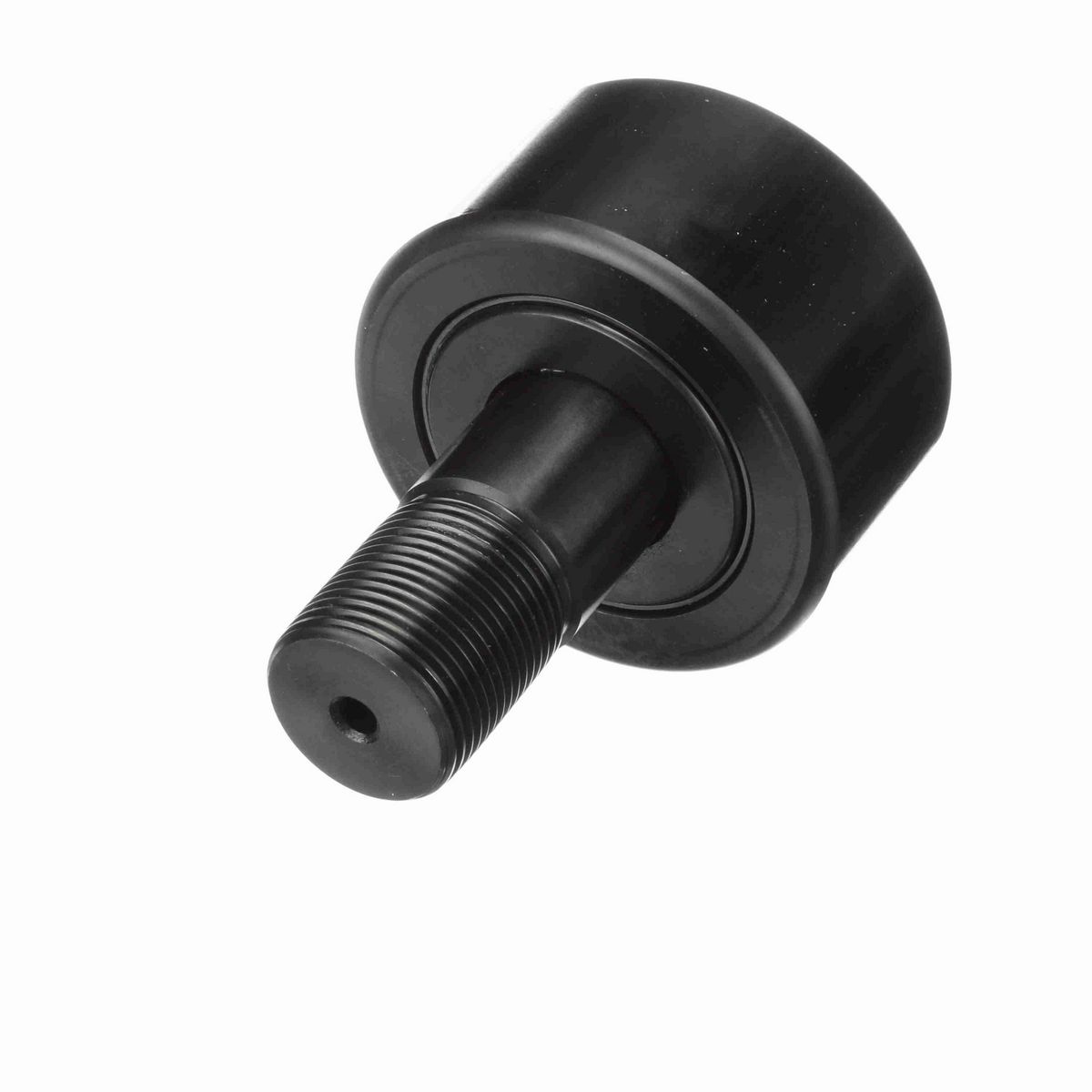

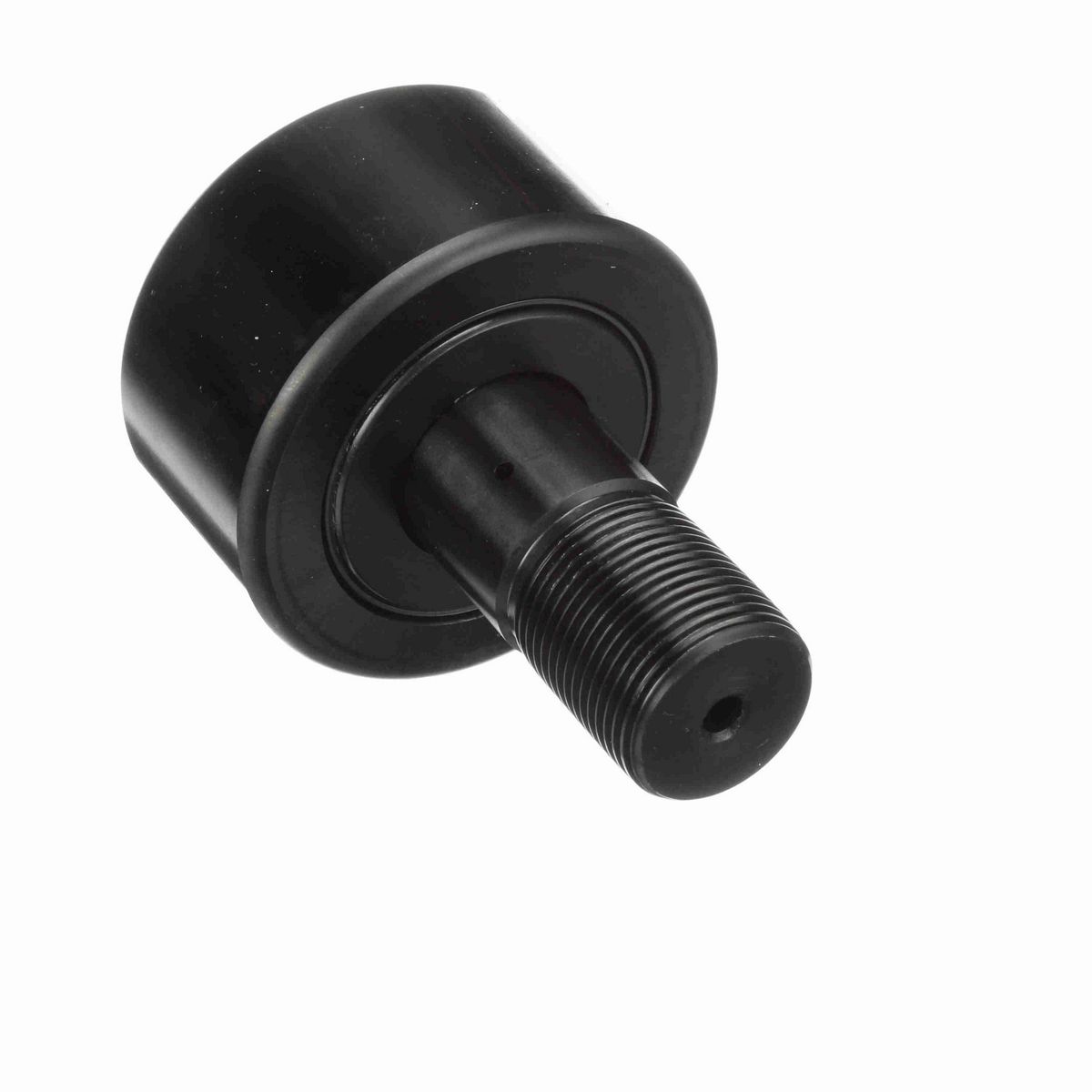

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3.25 in
Oil Hole Center (in)	0.625 in
Lubrication Fitting Size (in)	0.25 in
Roller Width (in)	1.75 in
Stud Diameter (in)	1.25 in
Hex Socket (in)	0.75 in
Stud Length (in)	2.5 in
Minimum Thread Length (in)	1.25 in
Lubrication Fitting Size (mm)	0.25 mm
Weight (kg)	2.1 kg

Technical Specifications

Dynamic Radial Rating	15,720
Limiting Speed	880
Sealing	Sealed
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Hex/Slot	Hex Hole
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Static Load Rating	24,910
Roller Shape	Cylindrical
Platform	CAMROL®
Dynamic Load Rating (lb)	15,720 lb
Tolerance Class	P0 Equivalent
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	3,450 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039578
Weight	4.64 LB
Packaged Length	3.25 IN
Packaged Width	3.25 IN
Packaged Height	4.50 IN
HTC	8482.40.0000
Country of Origin	Mexico
