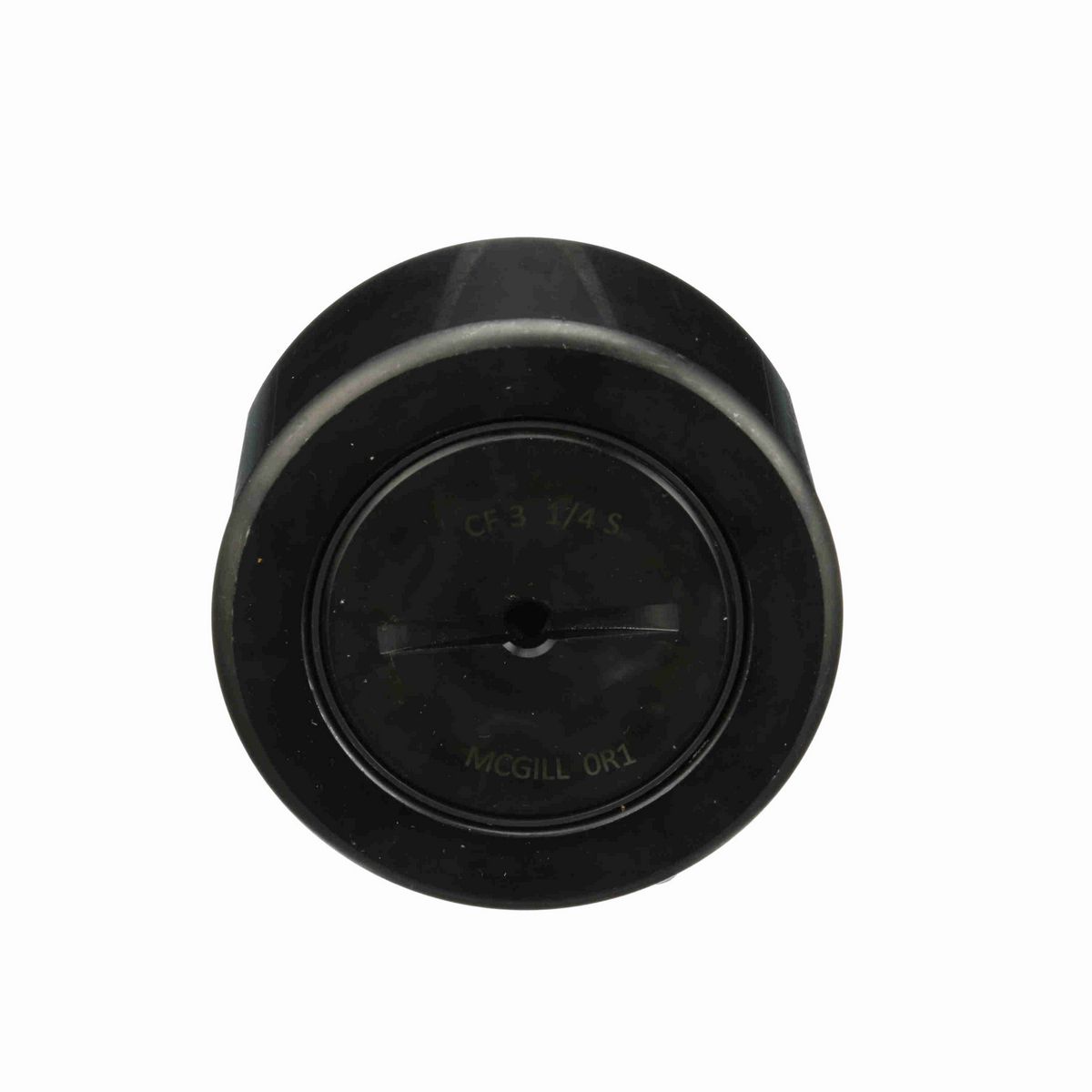

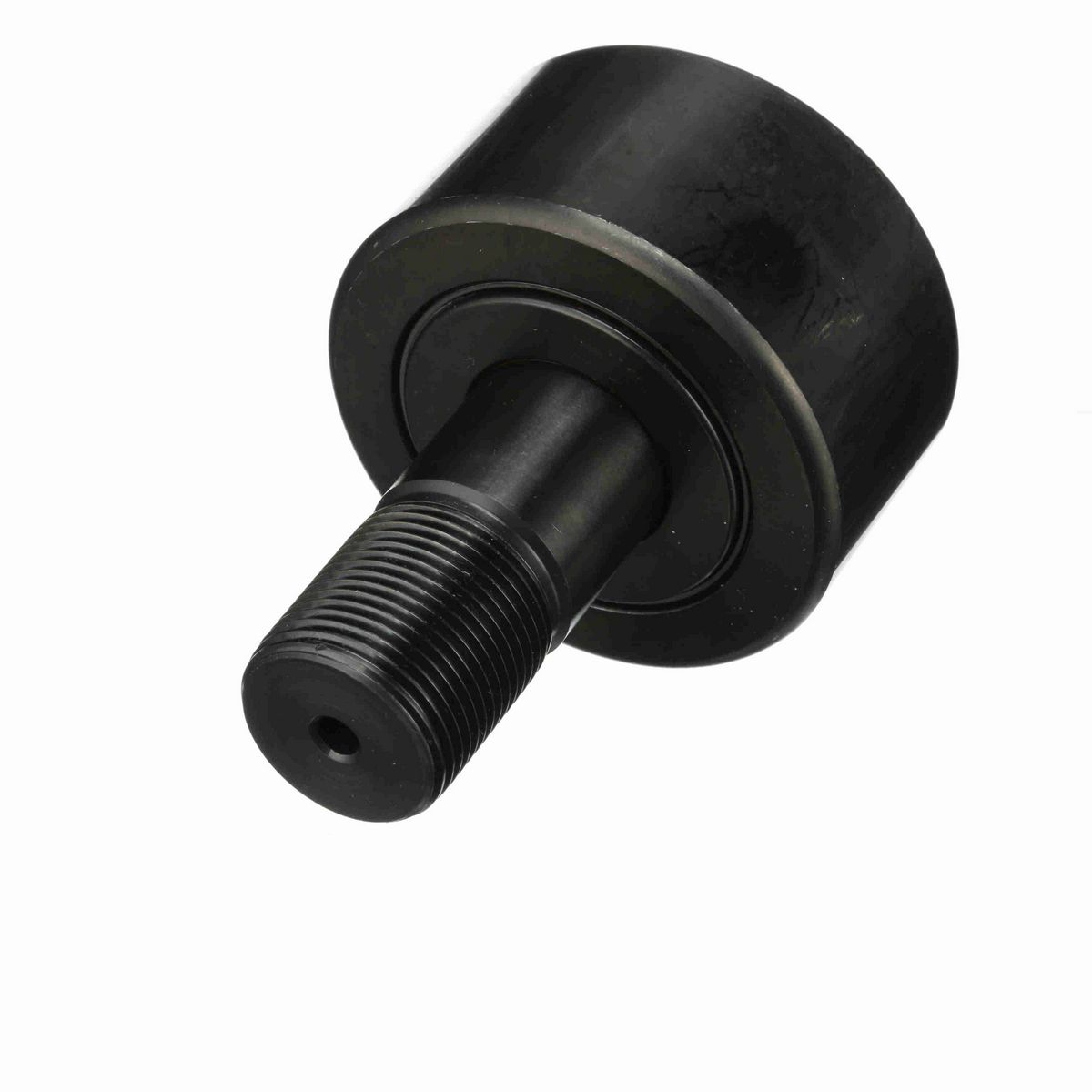

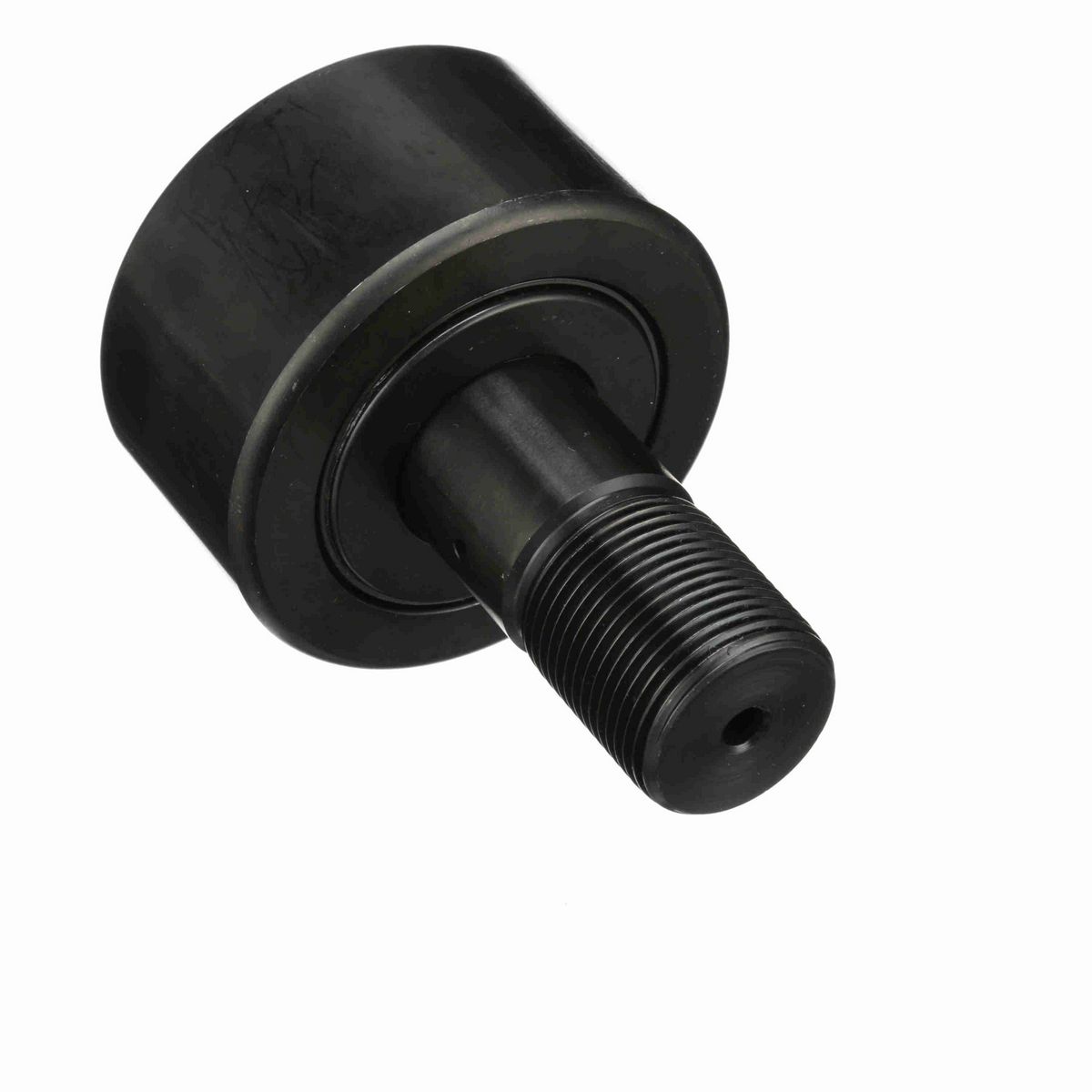

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1 1/4-12
Roller Diameter (in)	3.25 in
Lubrication Fitting Size (in)	0.25 in
Lubrication Fitting Size (mm)	0.25 mm
Roller Width (in)	1.75 in
Stud Length (in)	2.5 in
Stud Diameter (in)	1.25 in
Minimum Thread Length (in)	1.25 in
Weight (kg)	2.14 kg

Technical Specifications

Sealing	Sealed
Hex/Slot	Screwdriver Slot
Dynamic Radial Rating	15,720
Limiting Speed	880
O.D. Configuration	Cylindrical
Adjustment	None
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	18,000
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	15,720 lb
Roller Shape	Cylindrical
Platform	CAMROL®
Clamping Torque (in-lbf)	3,450 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039554
Weight	4.71 LB
Packaged Length	3.40 IN
Packaged Width	3.40 IN
Packaged Height	4.60 IN
HTC	8482.40.0000
Country of Origin	Mexico
