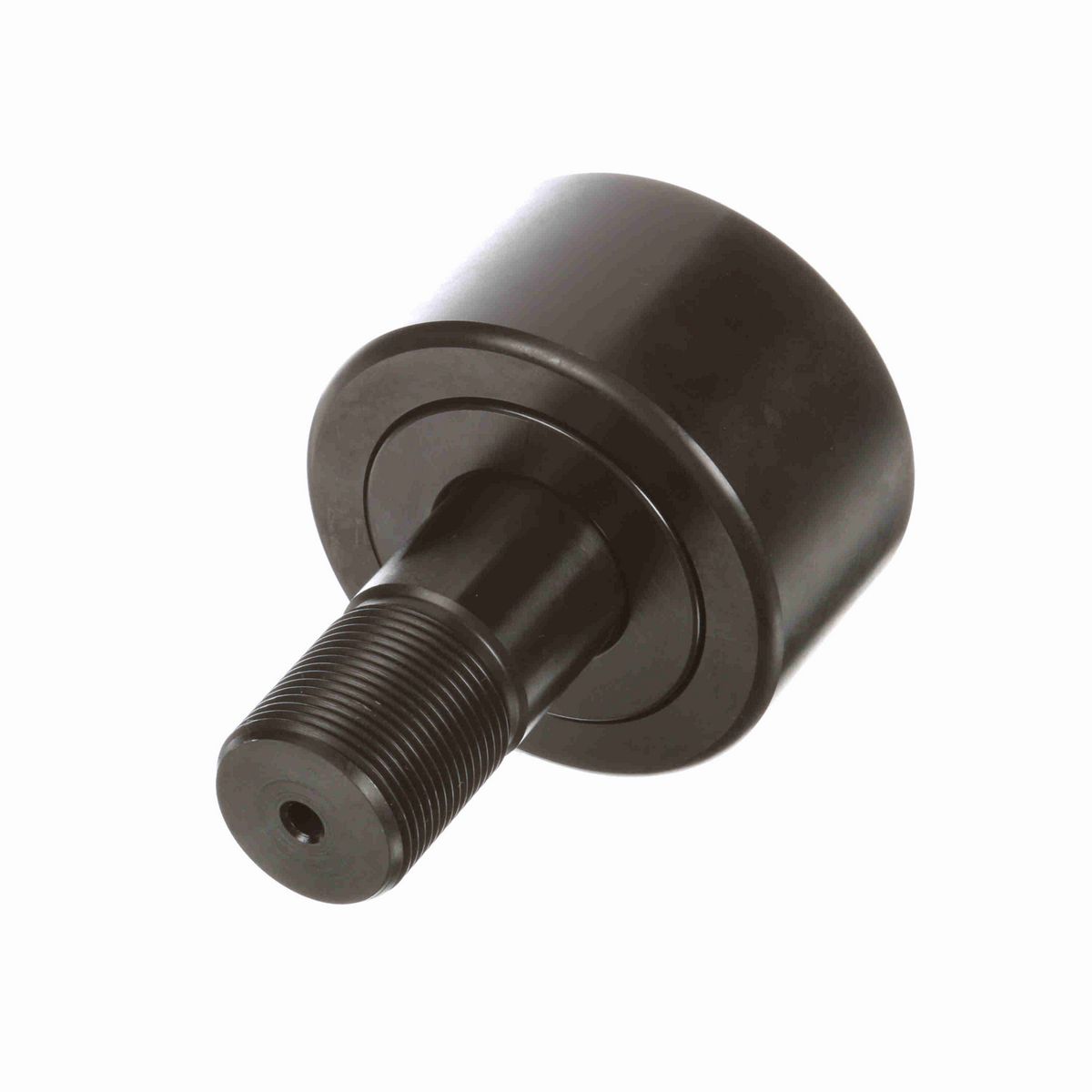

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	1 3/8-12
Roller Diameter (in)	3.5 in
Lubrication Fitting Size (in)	0.25 in
Minimum Thread Length (in)	1.38 in
Oil Hole Center (in)	0.6875 in
Lubrication Fitting Size (mm)	0.25 mm
Stud Length (in)	2.75 in
Stud Diameter (in)	1.375 in
Roller Width (in)	2 in
Weight (kg)	2.91 kg

Technical Specifications

O.D. Configuration	Cylindrical
Hex/Slot	Screwdriver Slot
Adjustment	None
Dynamic Radial Rating	22,800
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Sealing	Unsealed
Limiting Speed	820
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	22,800 lb
Stud Type	Standard Stud
Roller Shape	Cylindrical
Static Load Rating	31,625
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	4,200 lbs

General Specifications

UPC	726166039813
Weight	6.42 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
