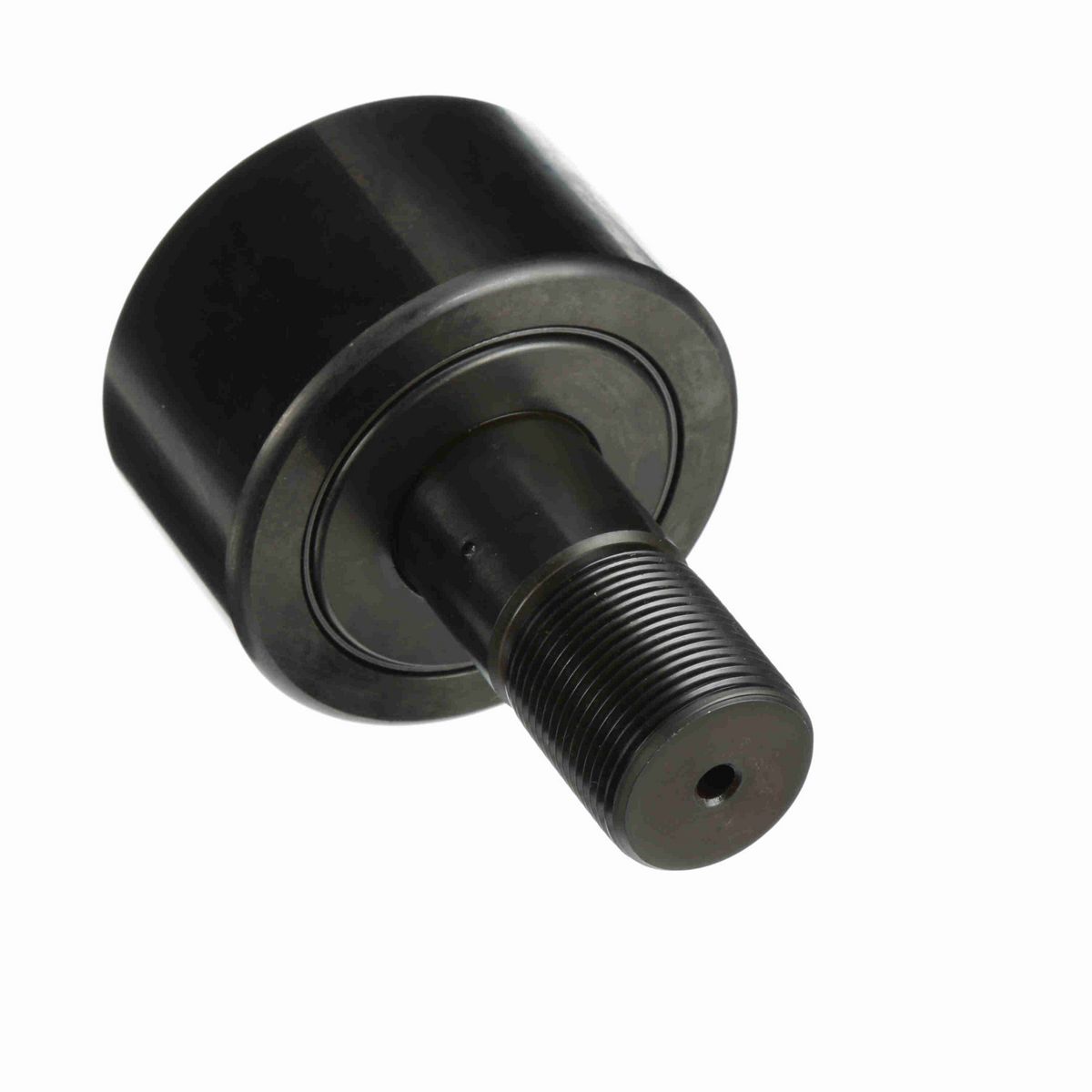

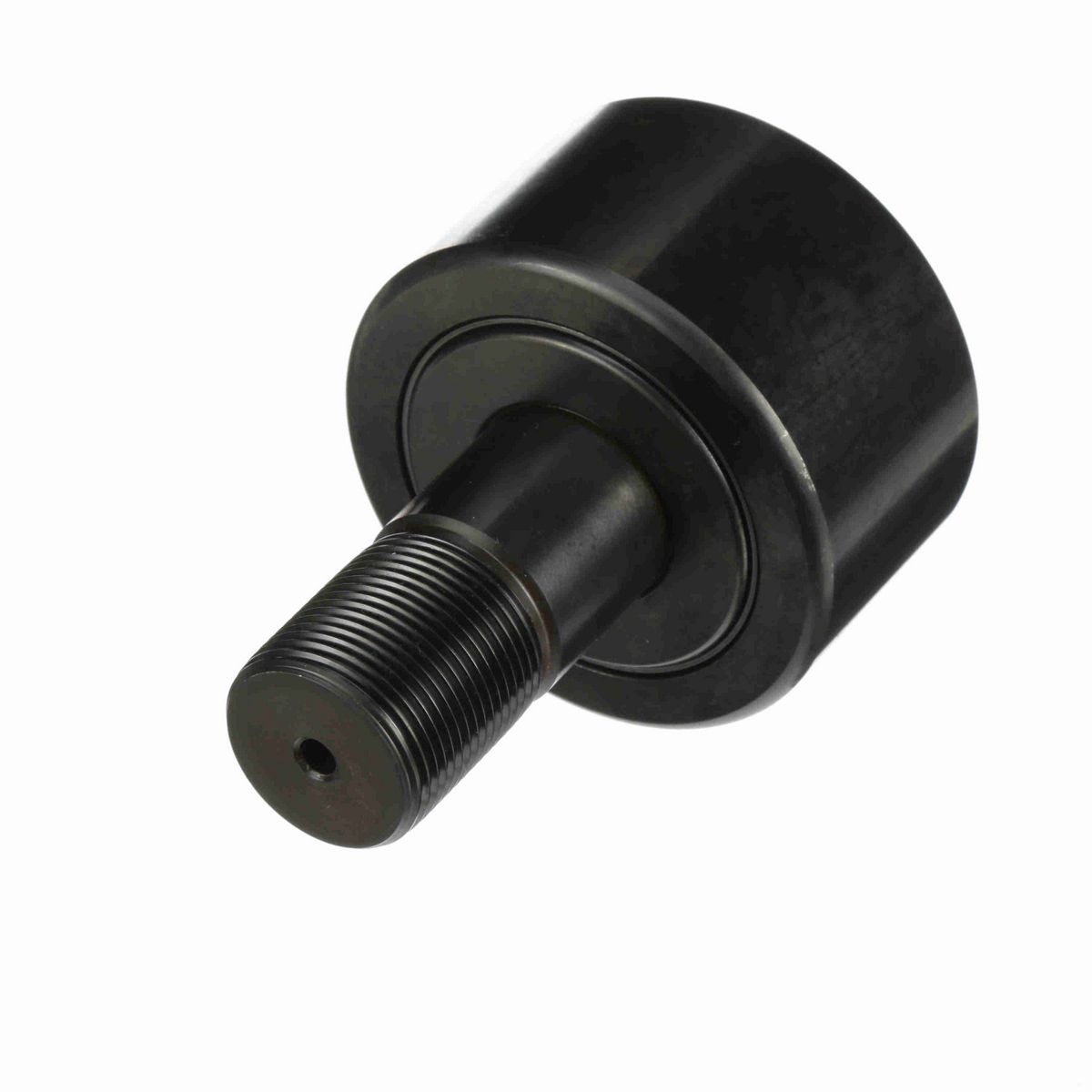

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1 3/8-12
Roller Diameter (in)	3.5 in
Hex Socket (in)	0.75 in
Lubrication Fitting Size (mm)	0.25 mm
Roller Width (in)	2 in
Lubrication Fitting Size (in)	0.25 in
Stud Length (in)	2.75 in
Stud Diameter (in)	1.375 in
Minimum Thread Length (in)	1.38 in
Weight (kg)	2.74 kg

Technical Specifications

Adjustment	None
Sealing	Sealed
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Limiting Speed	820
Dynamic Radial Rating	22,800
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Static Load Rating	21,300
Platform	CAMROL®
Dynamic Load Rating (lb)	22,800 lb
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	4,200 lbs

General Specifications

UPC	726166039899
Weight	6.04 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
