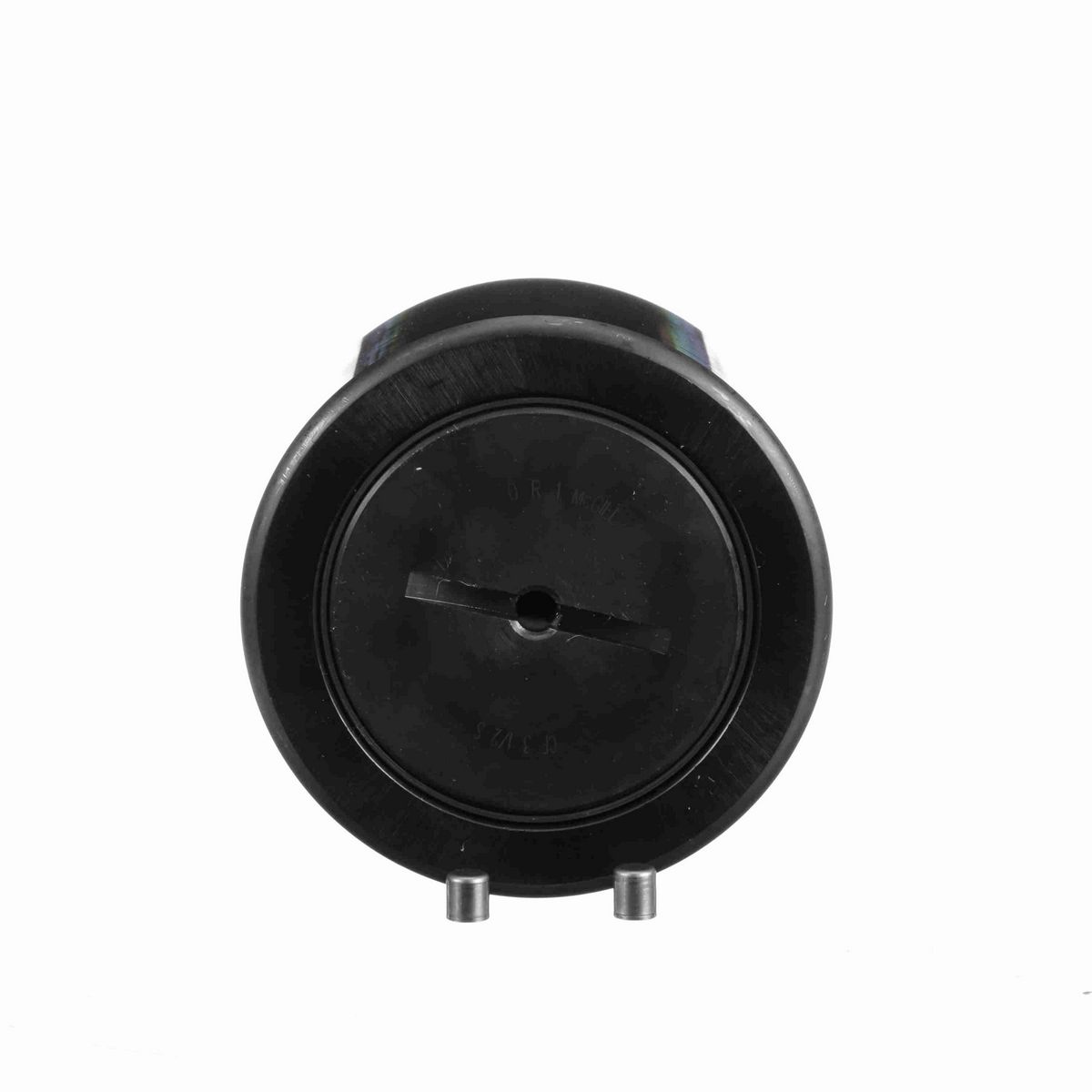

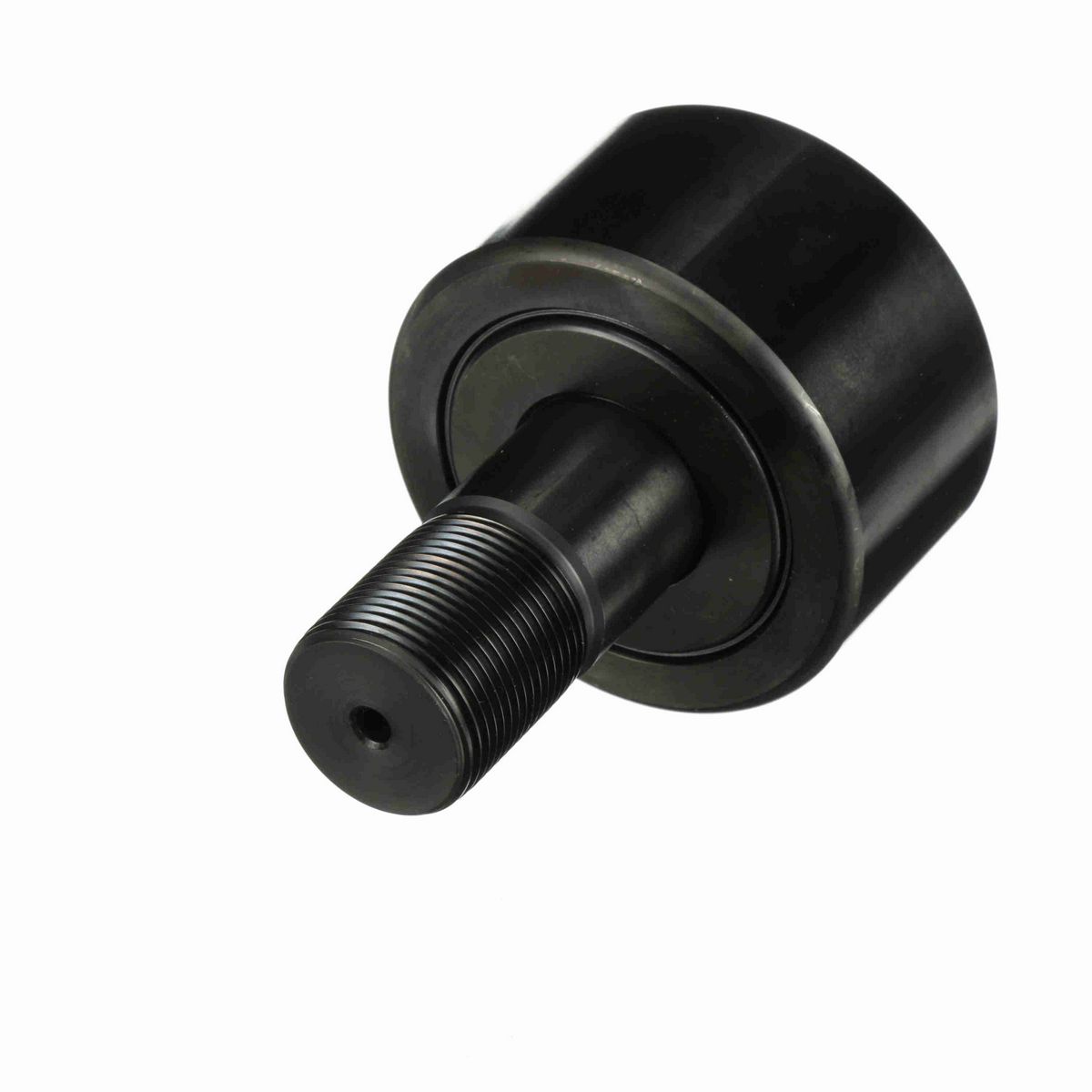

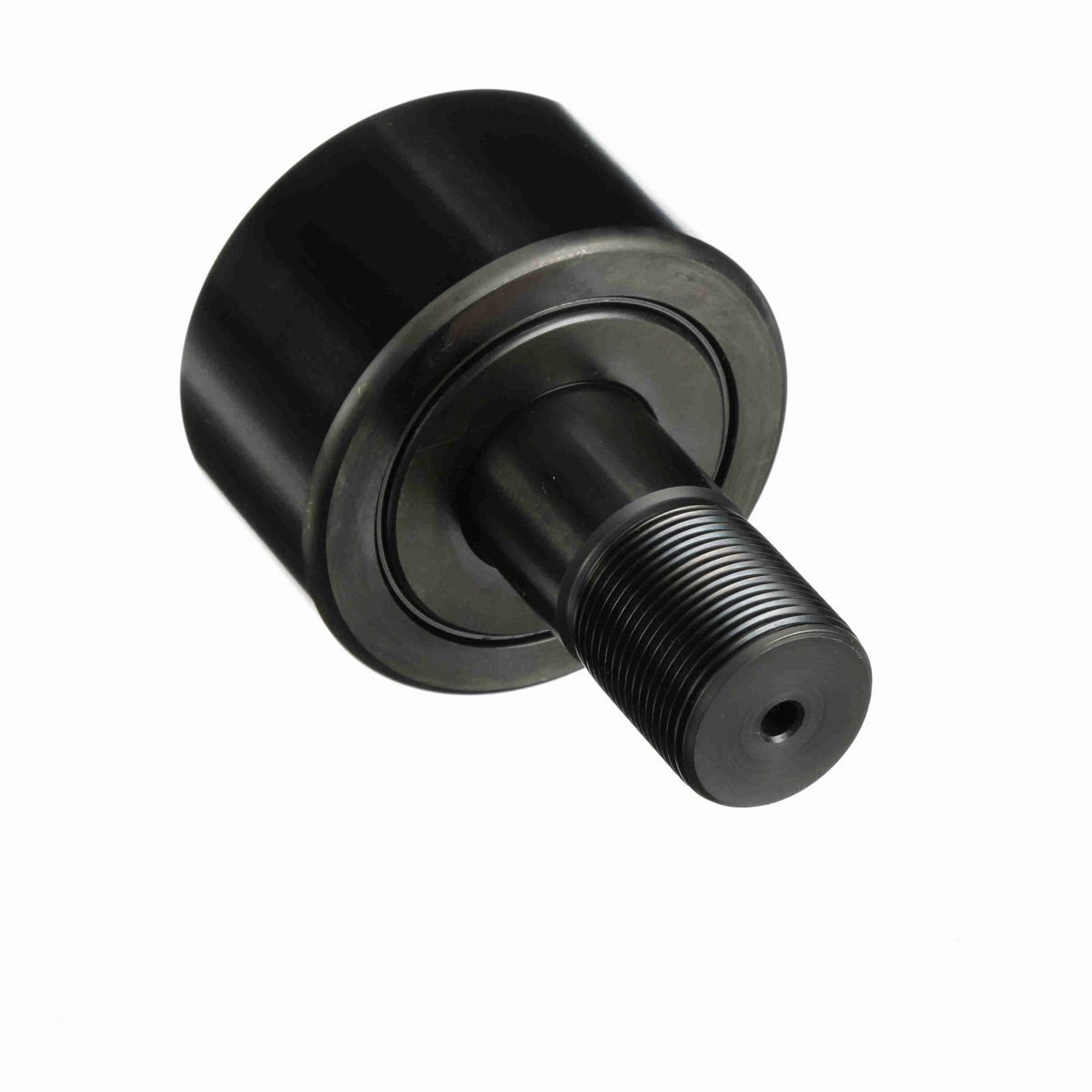

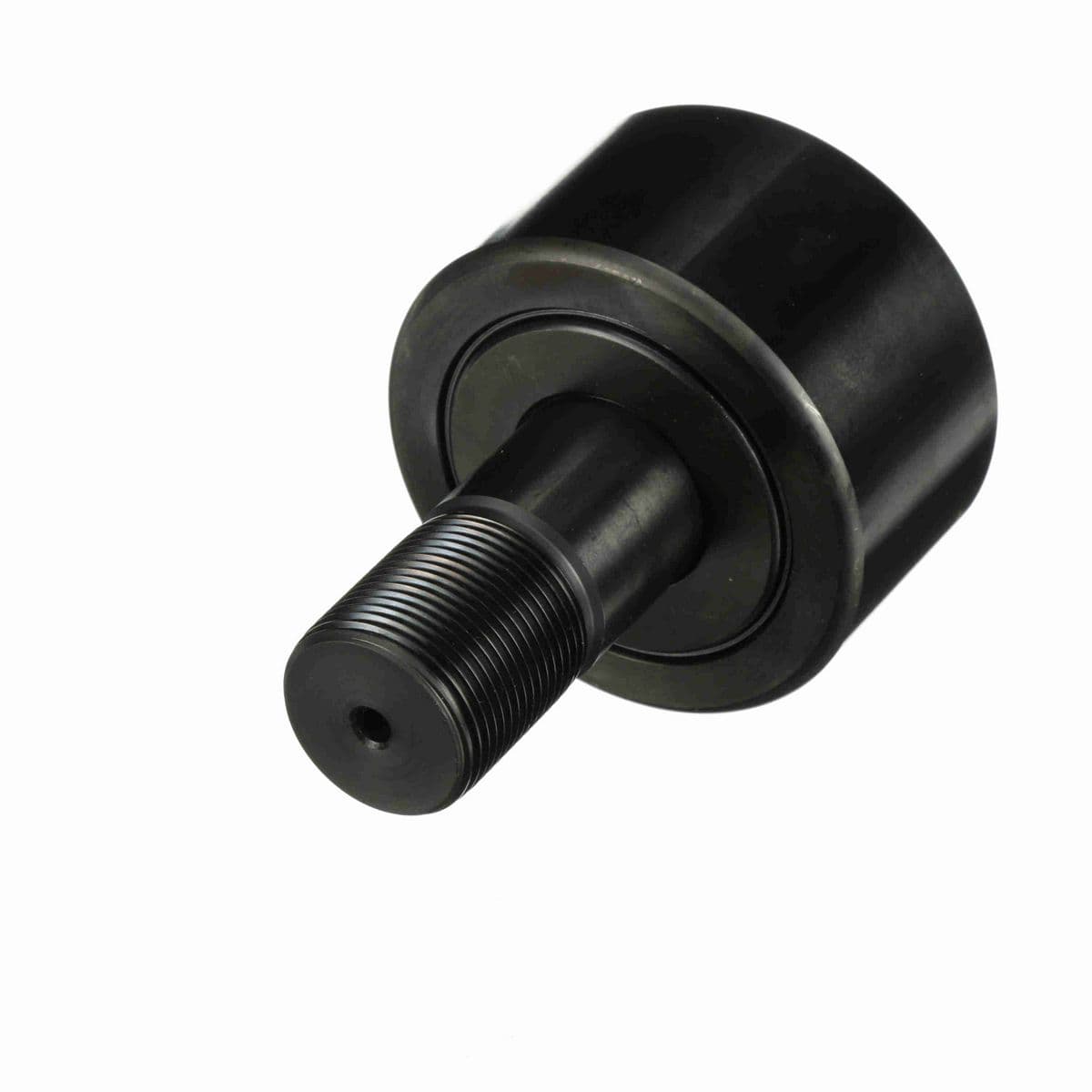

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	1 3/8-12
Roller Diameter (in)	3.5 in
Oil Hole Center (in)	0.6875 in
Minimum Thread Length (in)	1.38 in
Lubrication Fitting Size (mm)	0.25 mm
Stud Diameter (in)	1.375 in
Roller Width (in)	2 in
Stud Length (in)	2.75 in
Lubrication Fitting Size (in)	0.25 in
Weight (kg)	2.83 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
Series	Inch CAMROL®
Dynamic Radial Rating	22,800
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Adjustment	None
Sealing	Sealed
Limiting Speed	820
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	Cylindrical
Platform	CAMROL®
Static Load Rating	31,625
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	22,800 lb
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	4,200 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166039851
Weight	6.24 LB
Packaged Length	3.50 IN
Packaged Width	3.50 IN
Packaged Height	5.06 IN
HTC	8482.40.0000
Country of Origin	Mexico
