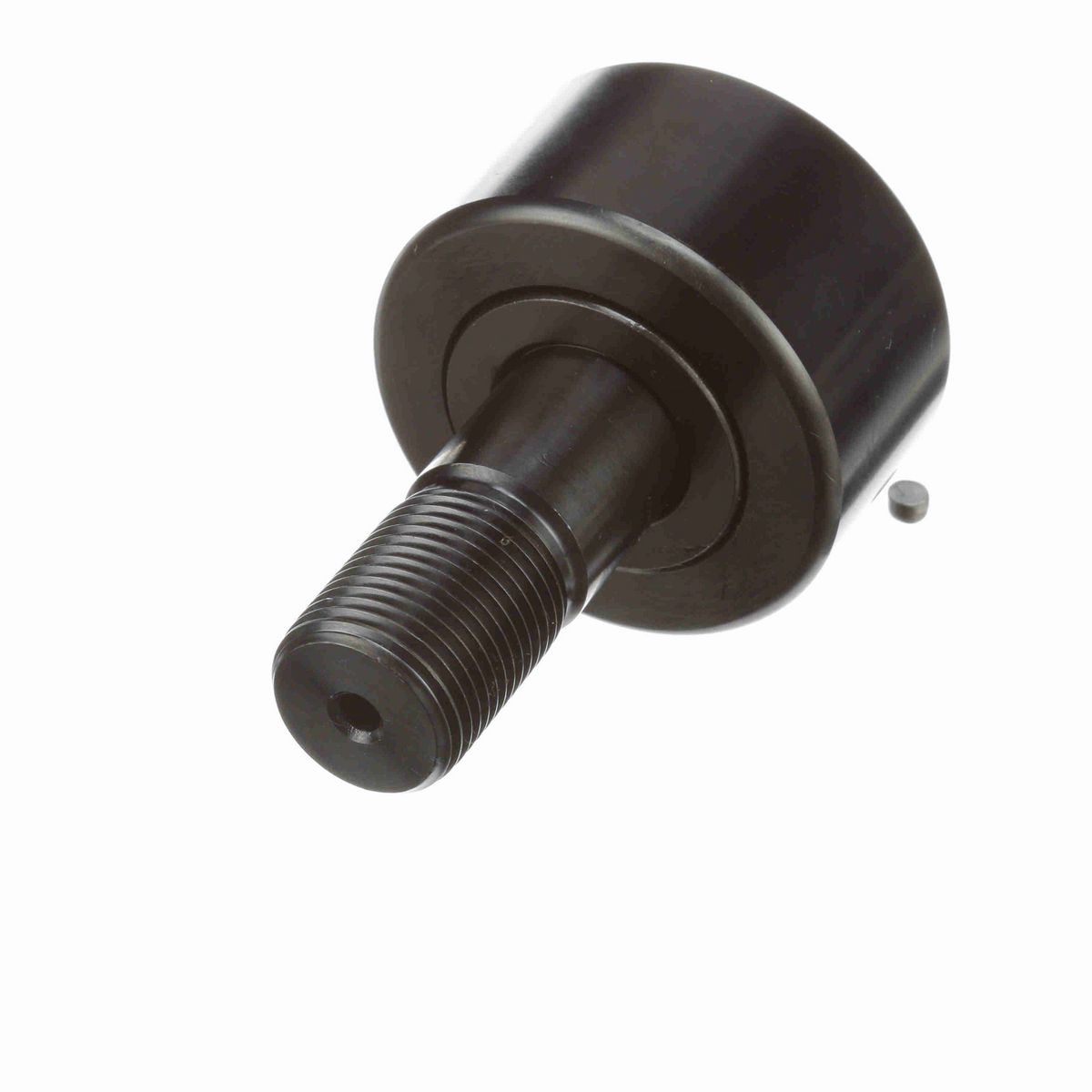

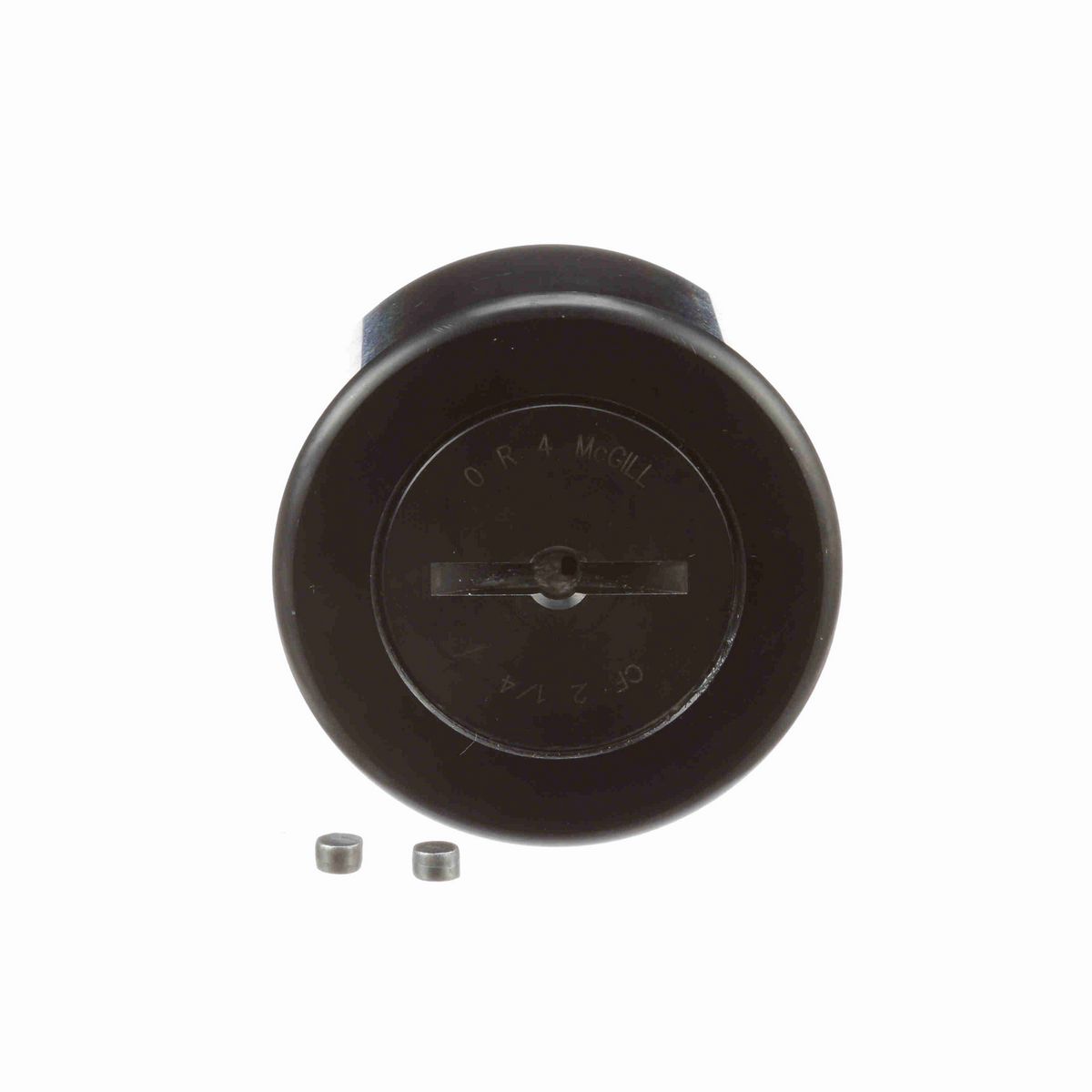

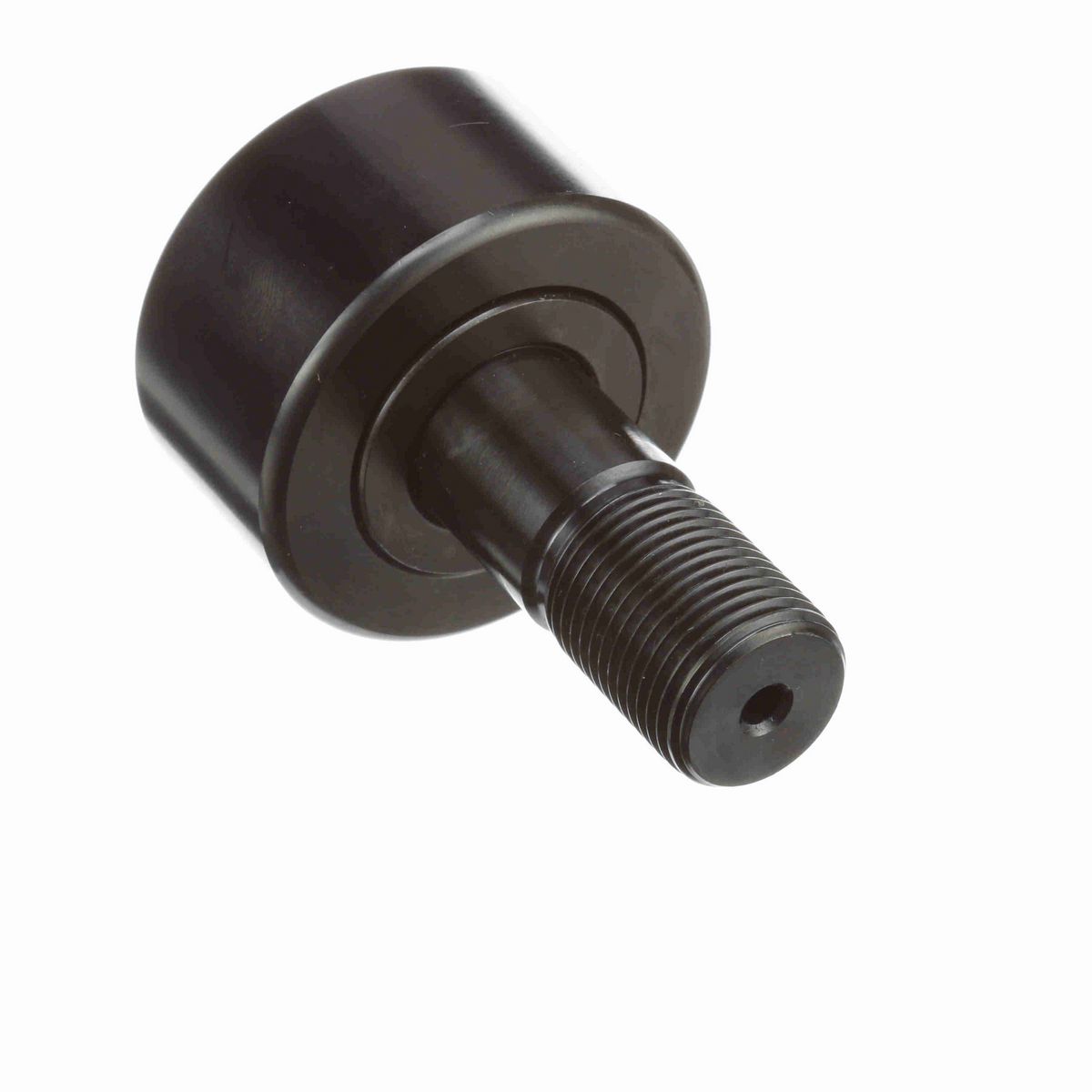

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	7/8-14
Roller Diameter (in)	2.25 in
Lubrication Fitting Size (in)	0.1875 in
Minimum Thread Length (in)	1 in
Stud Diameter (in)	0.875 in
Roller Width (in)	1.25 in
Stud Length (in)	2 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	0.75 kg

Technical Specifications

Limiting Speed	1,300
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	8,090
Sealing	Sealed
Hex/Slot	Screwdriver Slot
Series	Inch CAMROL®
Adjustment	None
O.D. Configuration	Cylindrical
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Stud Type	Standard Stud
Platform	CAMROL®
Dynamic Load Rating (lb)	8,090 lb
Tolerance Class	P0 Equivalent
Static Load Rating	8,200
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,500 lbs

General Specifications

UPC	726166037871
Weight	1.65 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
