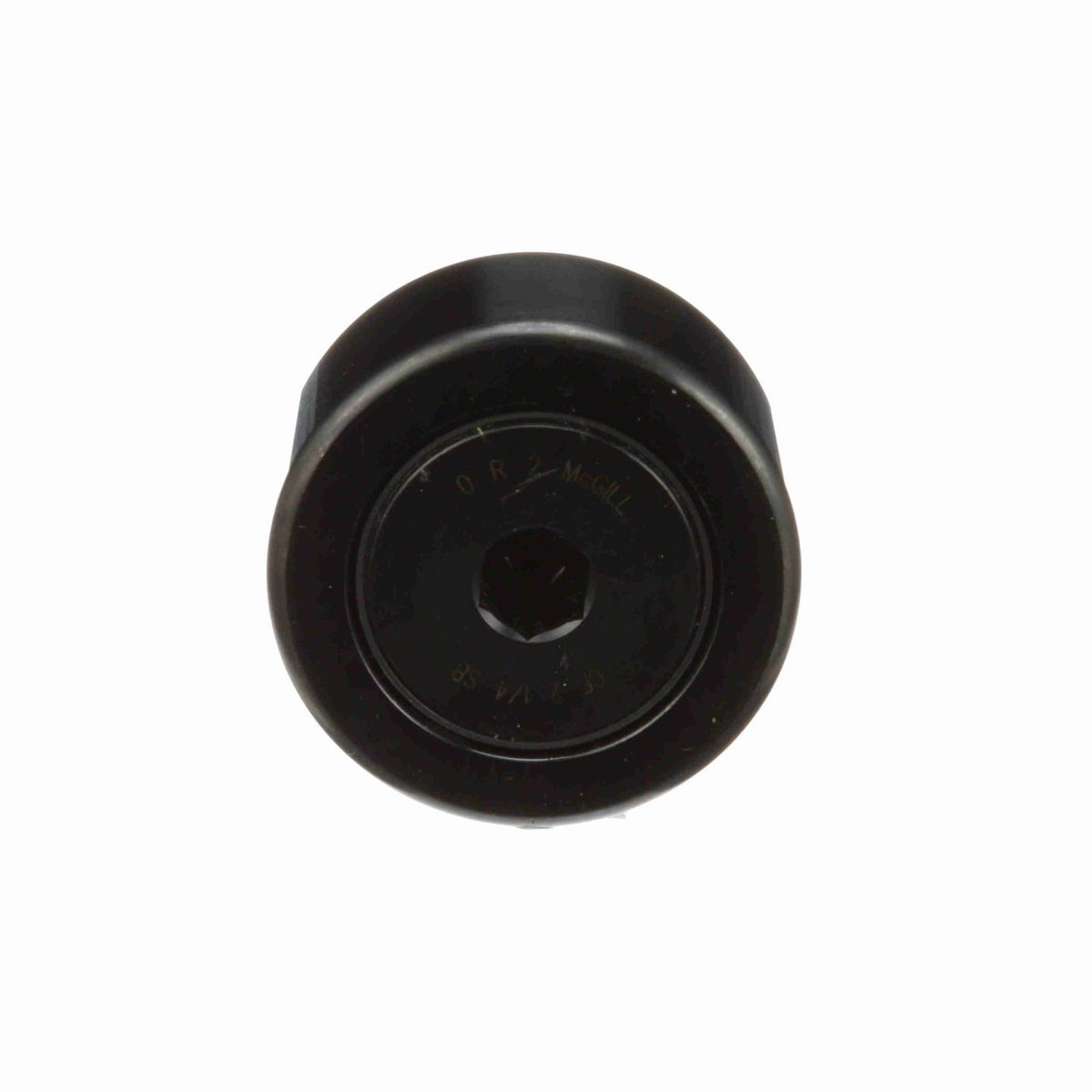

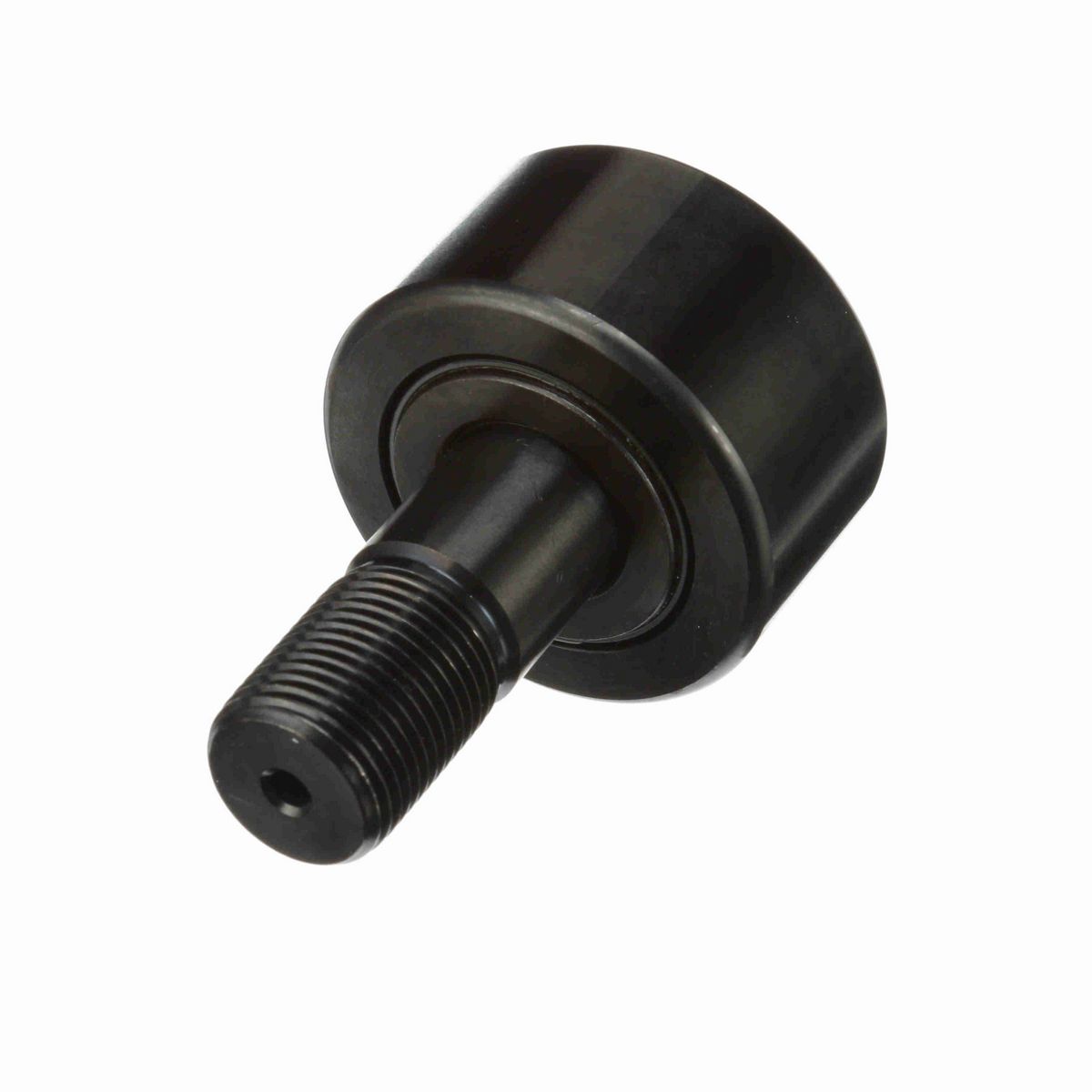

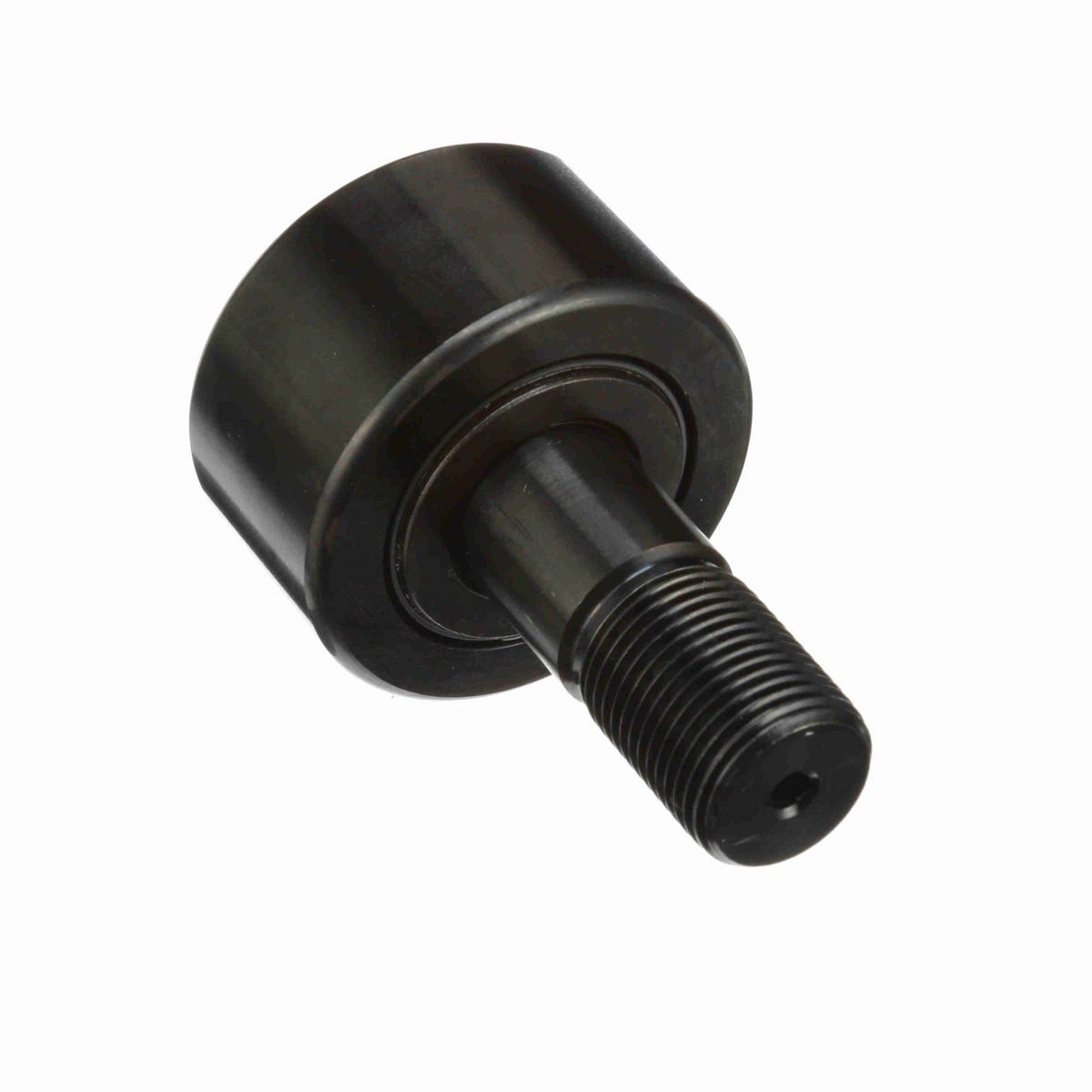

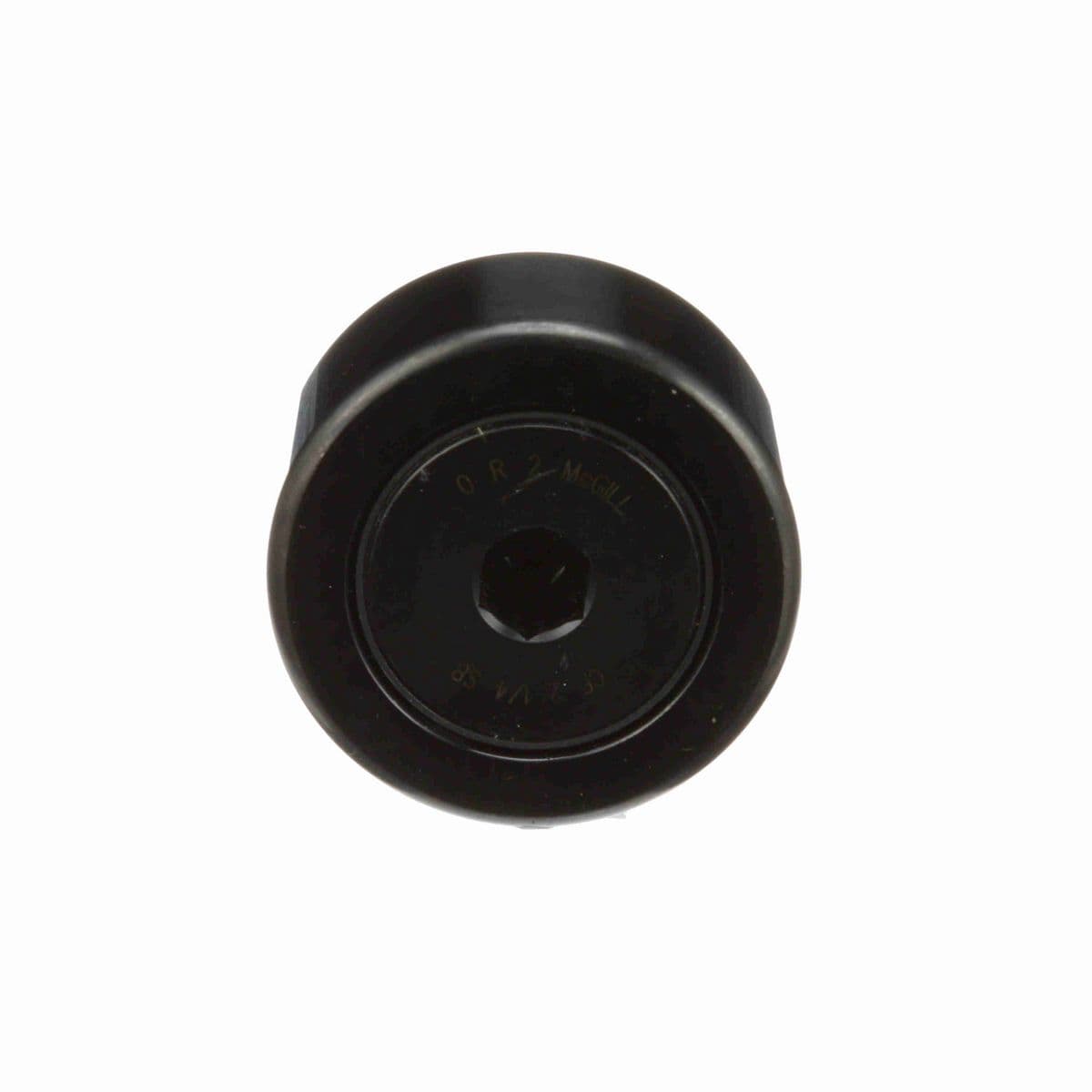

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	7/8-14
Roller Diameter (in)	2.25 in
Oil Hole Center (in)	0.5 in
Roller Width (in)	1.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	2 in
Stud Diameter (in)	0.875 in
Minimum Thread Length (in)	1 in
Hex Socket (in)	0.4375 in
Weight (kg)	0.83 kg

Technical Specifications

Sealing	Sealed
Limiting Speed	1,300
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Dynamic Radial Rating	8,090
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Stud Type	Standard Stud
Roller Shape	Cylindrical
Static Load Rating	10,570
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	8,090 lb
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	1,500 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166037932
Weight	1.83 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
