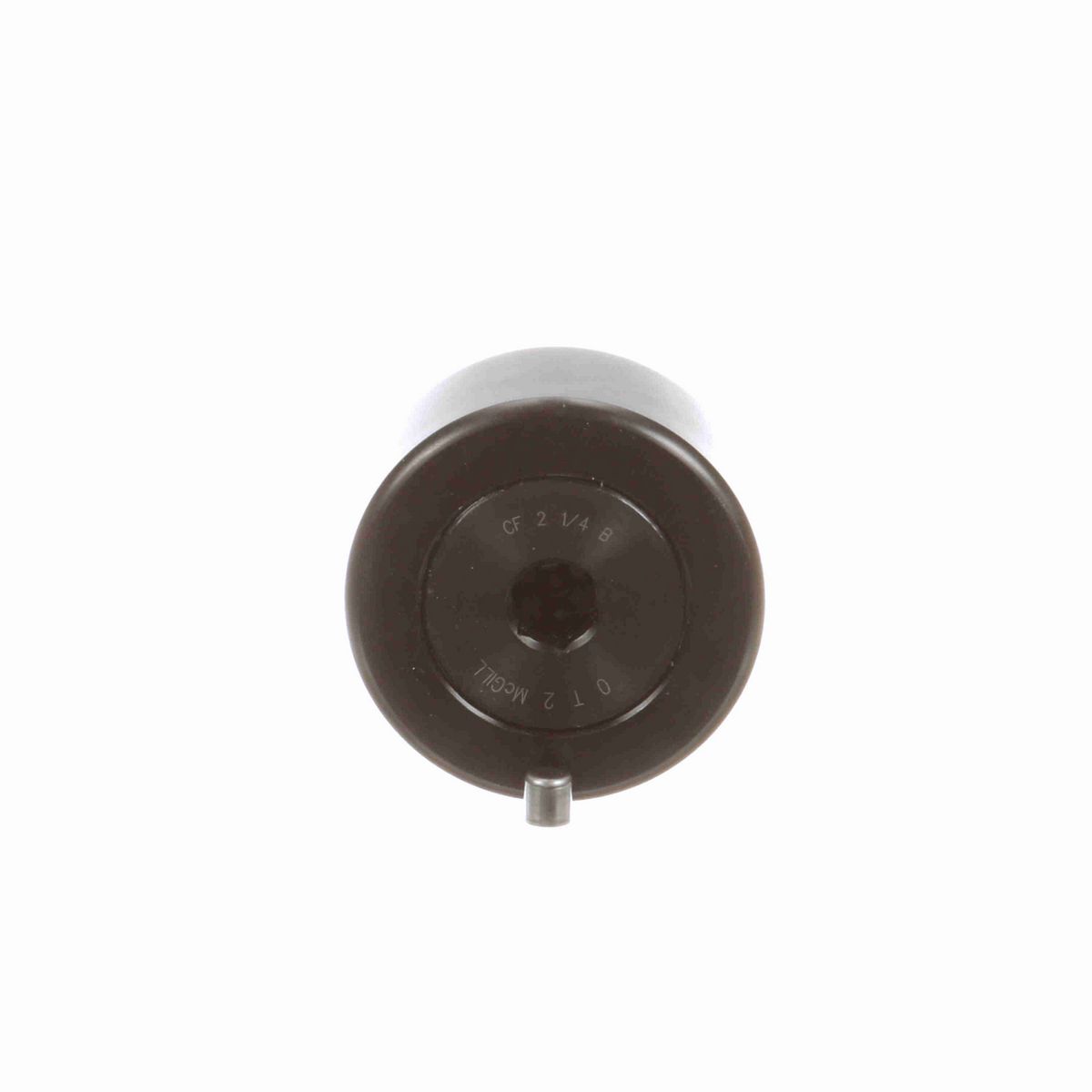

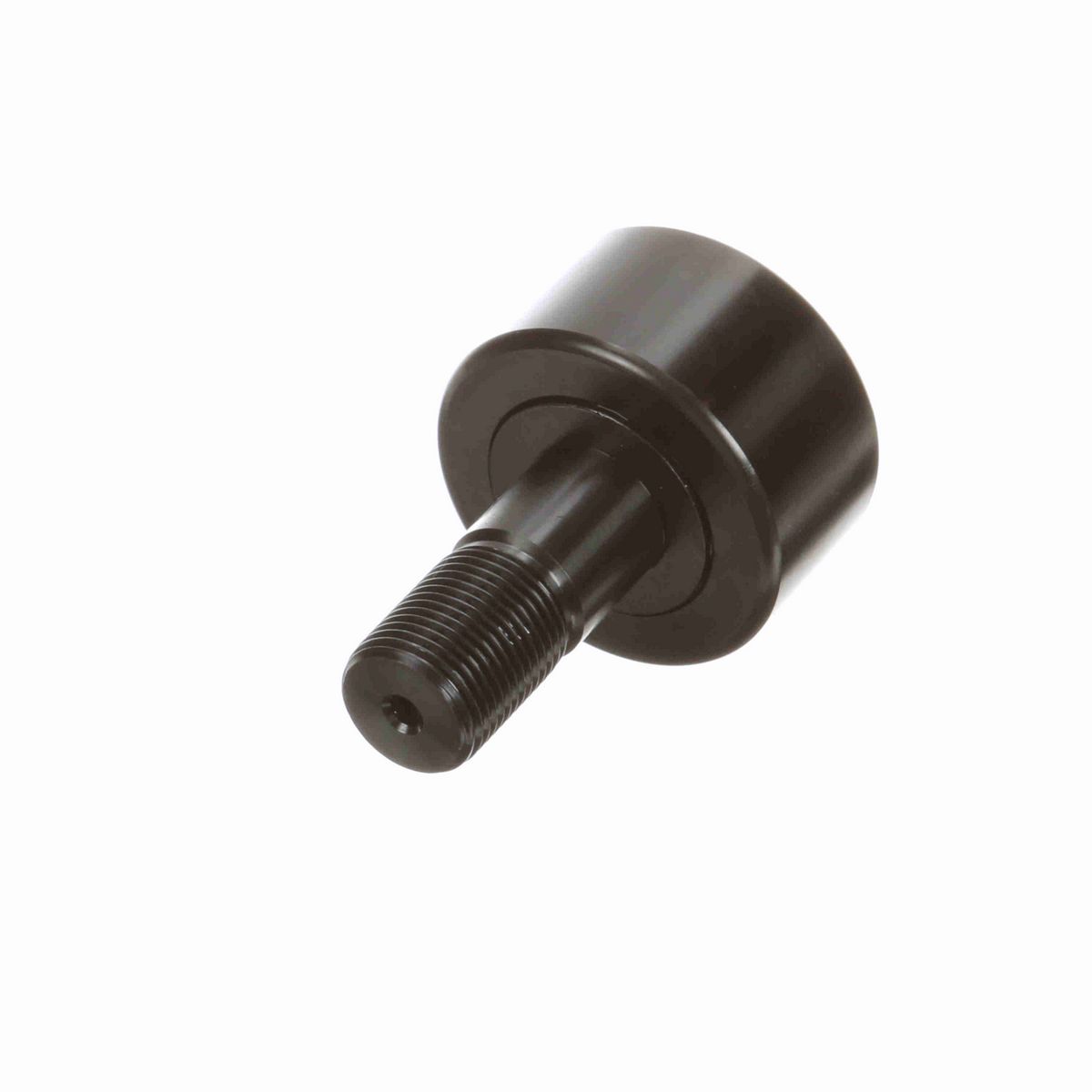

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	7/8-14
Roller Diameter (in)	2.25 in
Roller Width (in)	1.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	1 in
Stud Length (in)	2 in
Stud Diameter (in)	0.875 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.4375 in
Oil Hole Center (in)	0.5 in
Weight (kg)	0.74 kg

Technical Specifications

Dynamic Radial Rating	8,090
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Adjustment	None
Limiting Speed	1,300
O.D. Configuration	Cylindrical
Sealing	Unsealed
Material	Bearing Steel, Black Oxide Finish
Platform	CAMROL®
Static Load Rating	10,570
Dynamic Load Rating (lb)	8,090 lb
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	1,500 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166037901
Weight	1.64 LB
Packaged Length	2.31 IN
Packaged Width	2.31 IN
Packaged Height	3.43 IN
HTC	8482.40.0000
Country of Origin	Mexico
