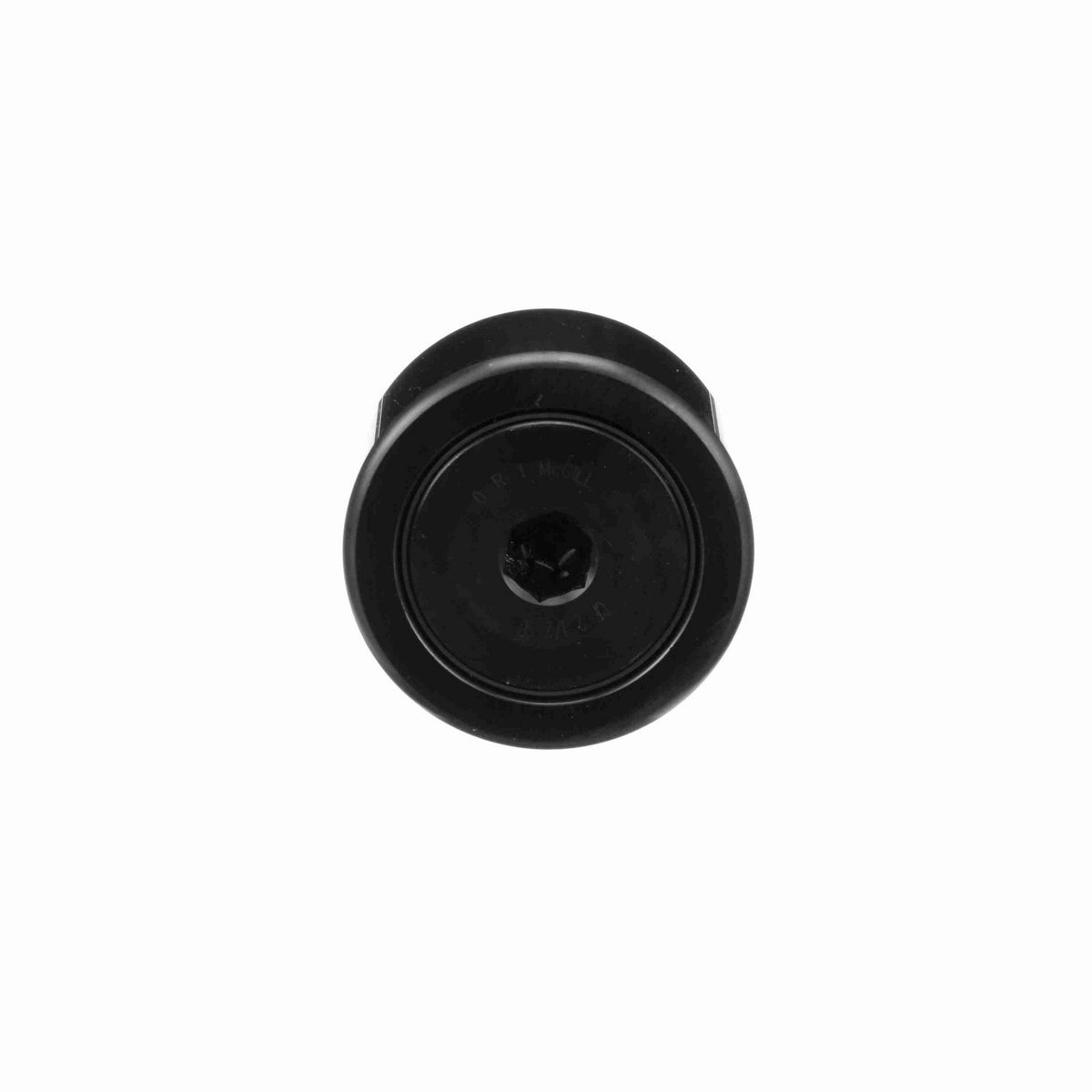

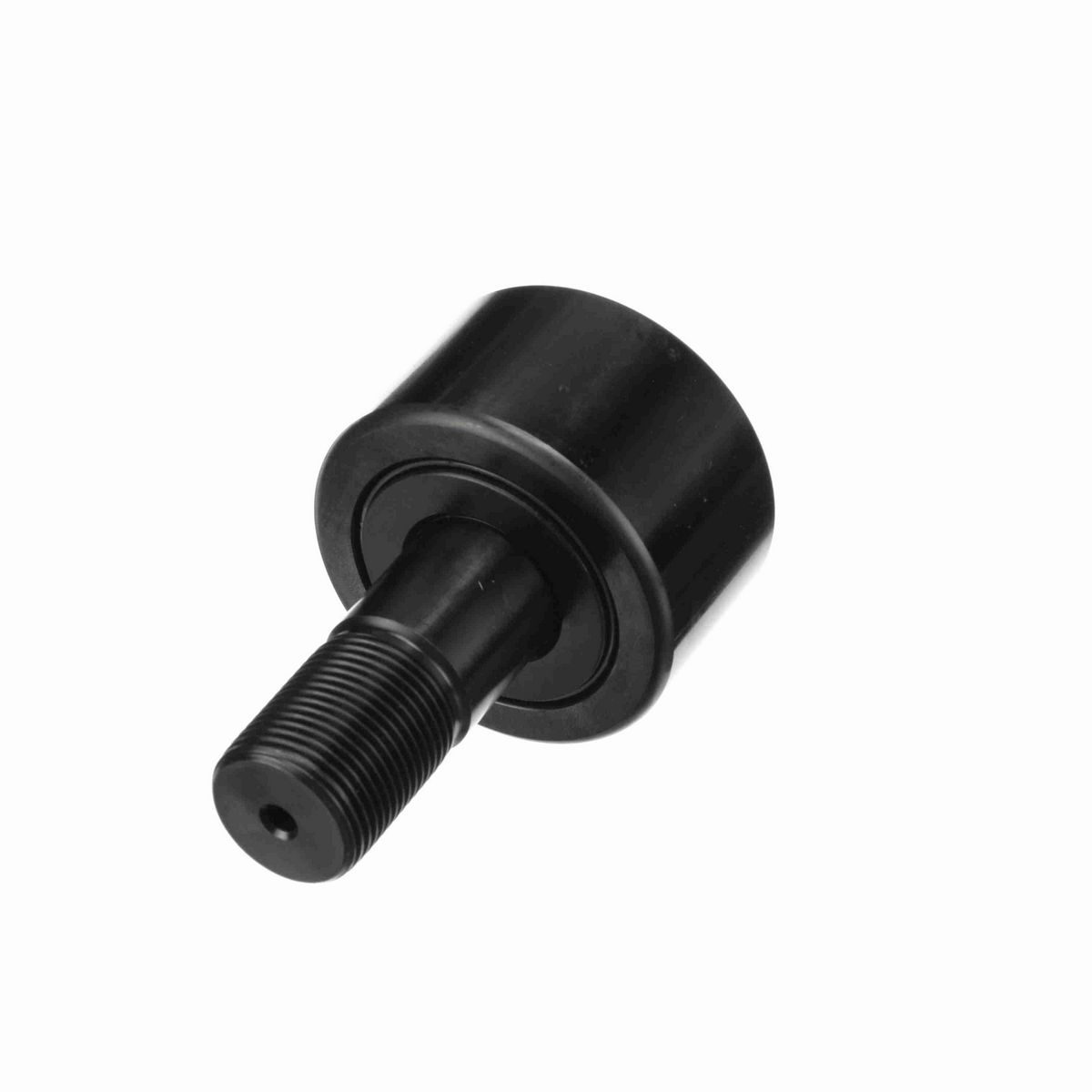

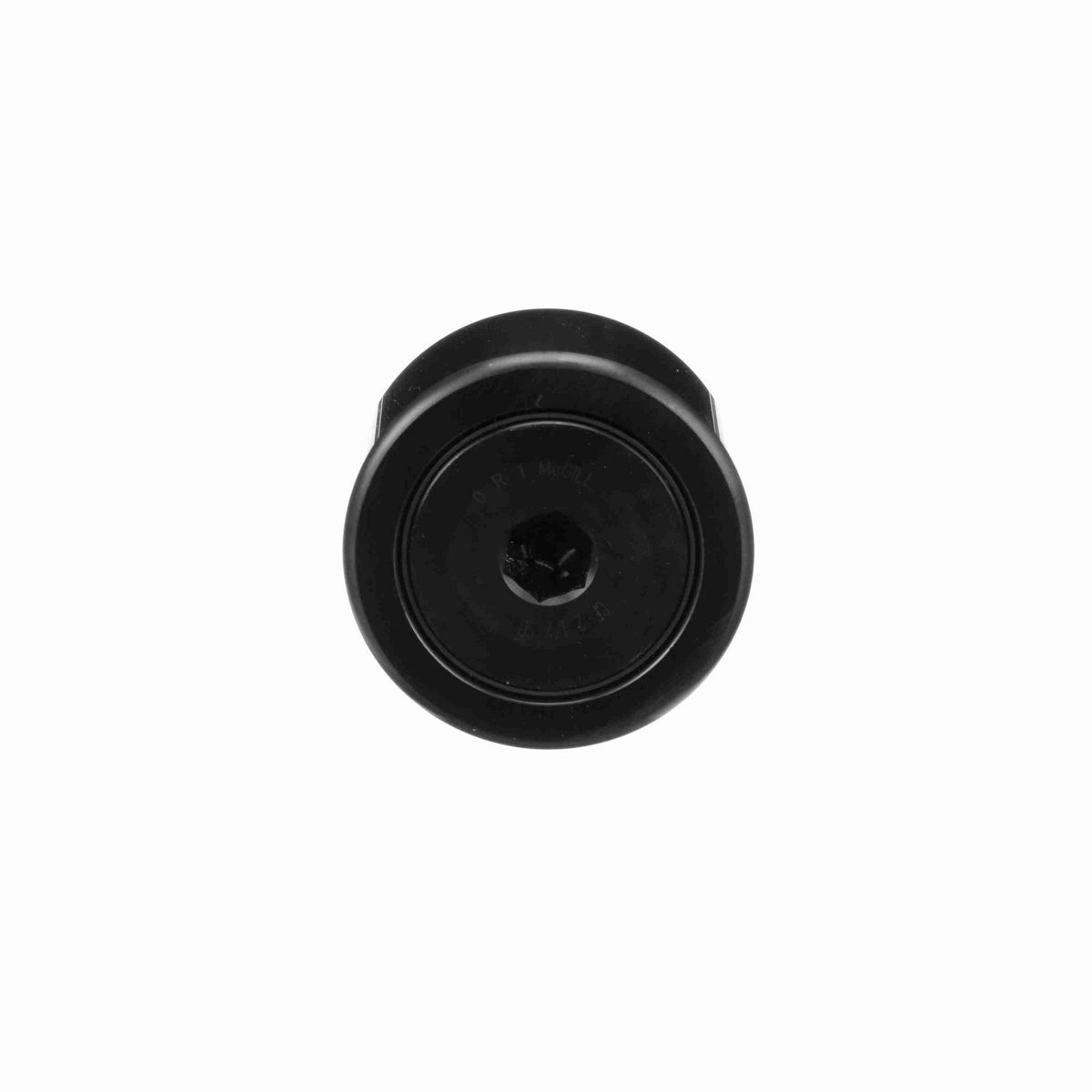

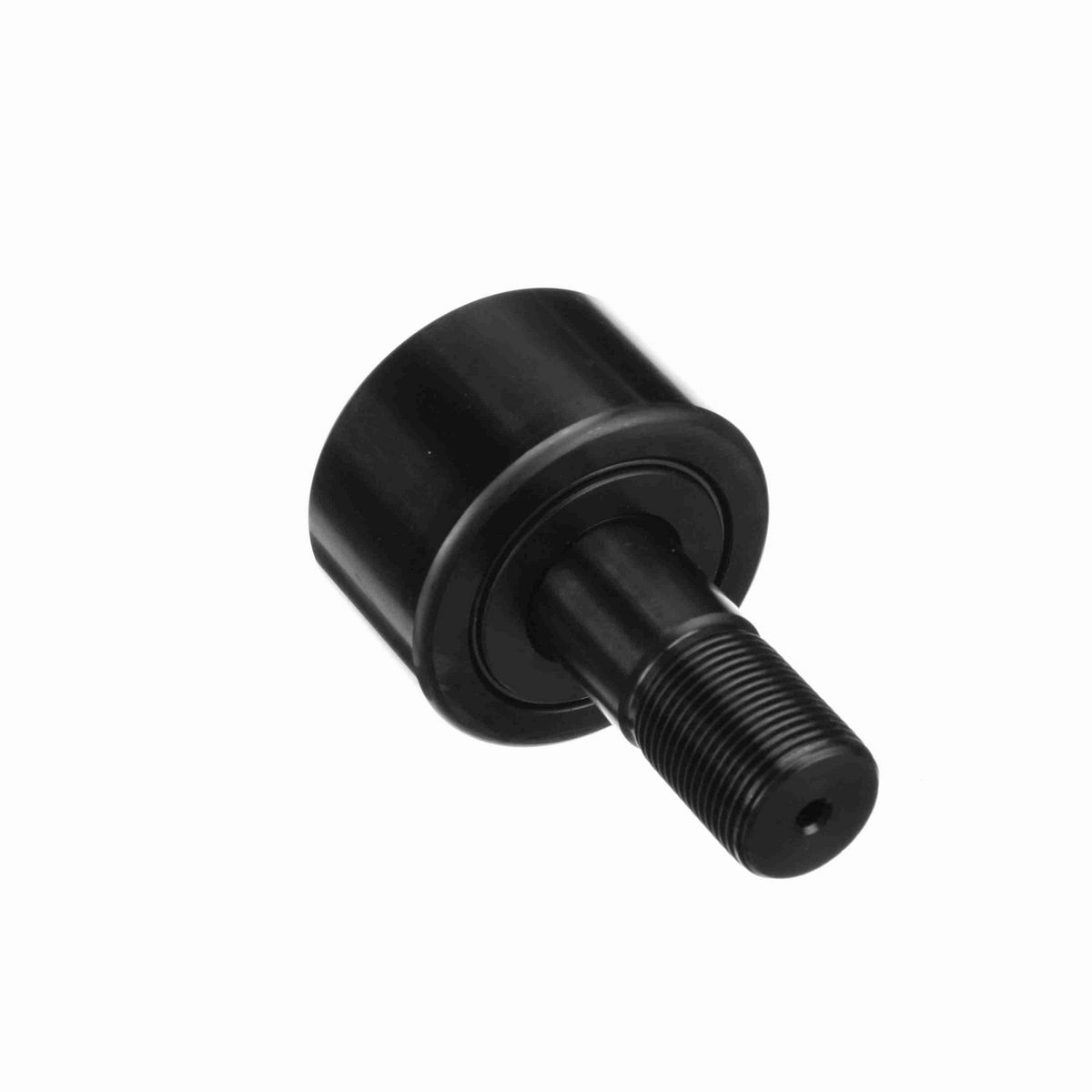

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	1-14
Roller Diameter (in)	2.5 in
Stud Length (in)	2.25 in
Minimum Thread Length (in)	1.13 in
Roller Width (in)	1.5 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Center (in)	0.5625 in
Hex Socket (in)	0.5 in
Lubrication Fitting Size (in)	0.1875 in
Stud Diameter (in)	1 in
Weight (kg)	1.1 kg

Technical Specifications

Hex/Slot	Hex Hole
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Limiting Speed	1,100
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	11,720
Sealing	Sealed
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Dynamic Load Rating (lb)	11,720 lb
Platform	CAMROL®
Stud Type	Standard Stud
Static Load Rating	16,450
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	2,250 lbs

General Specifications

UPC	726166038298
Weight	2.43 LB
Packaged Length	3.00 IN
Packaged Width	4.00 IN
Packaged Height	2.80 IN
HTC	8482.40.0000
Country of Origin	Mexico
