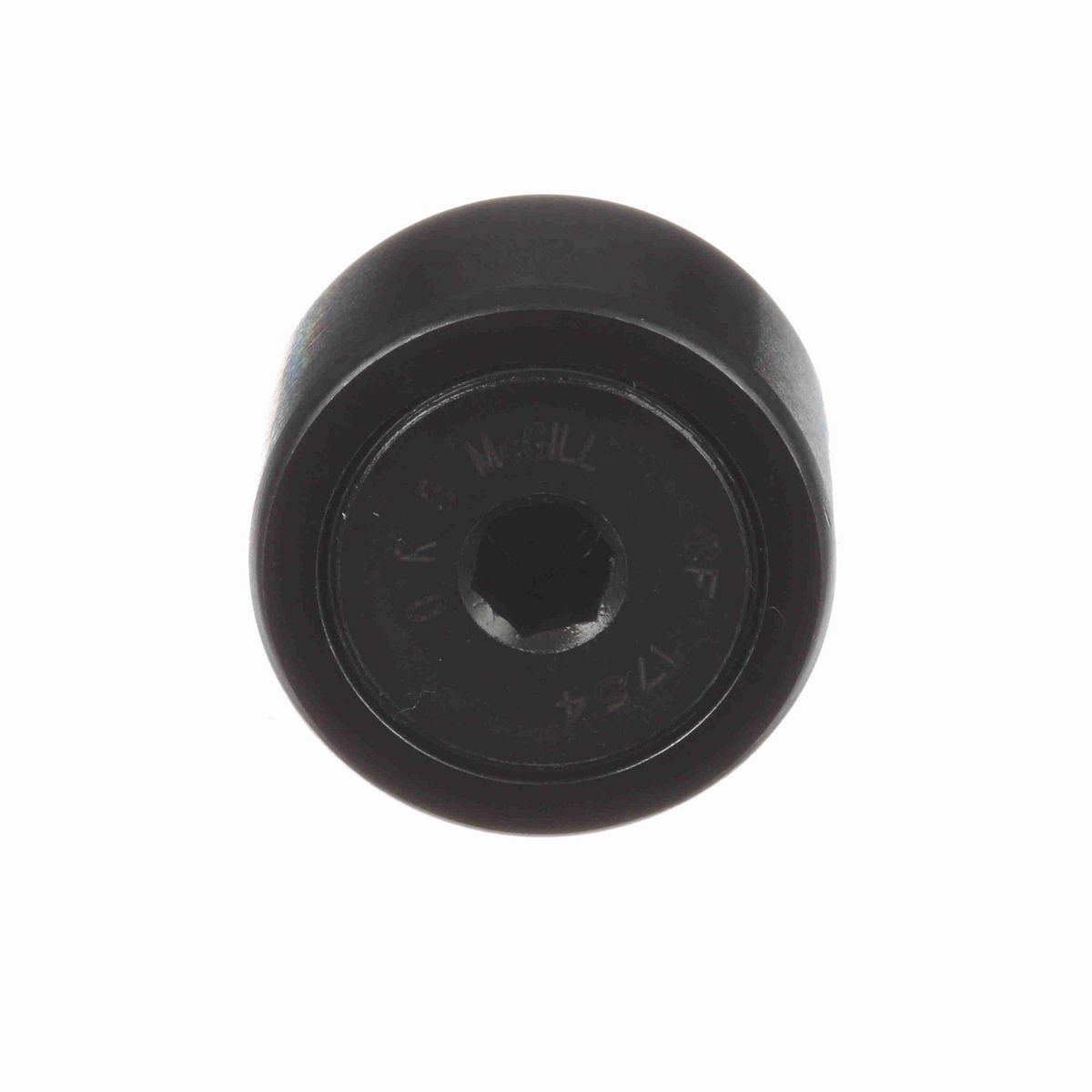

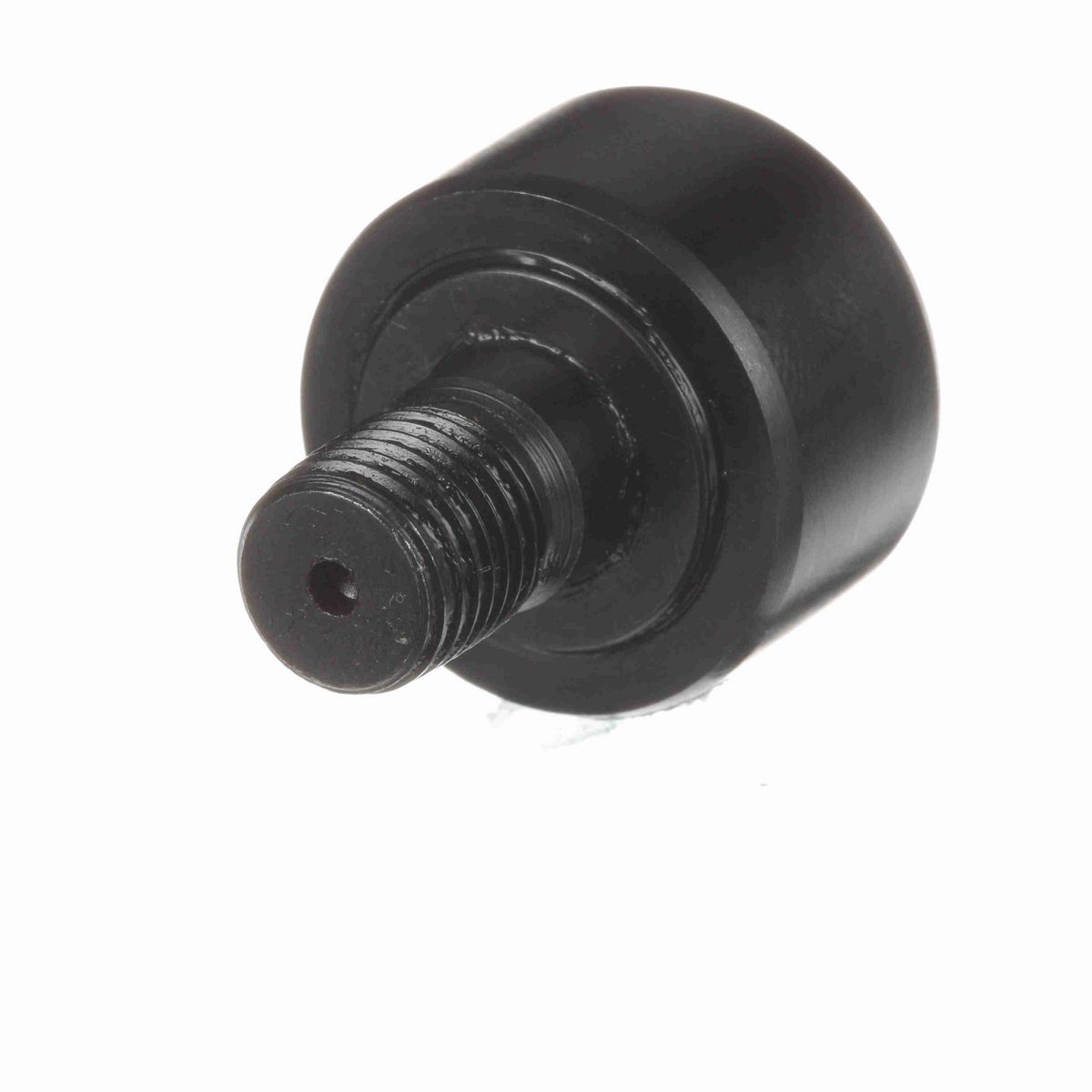

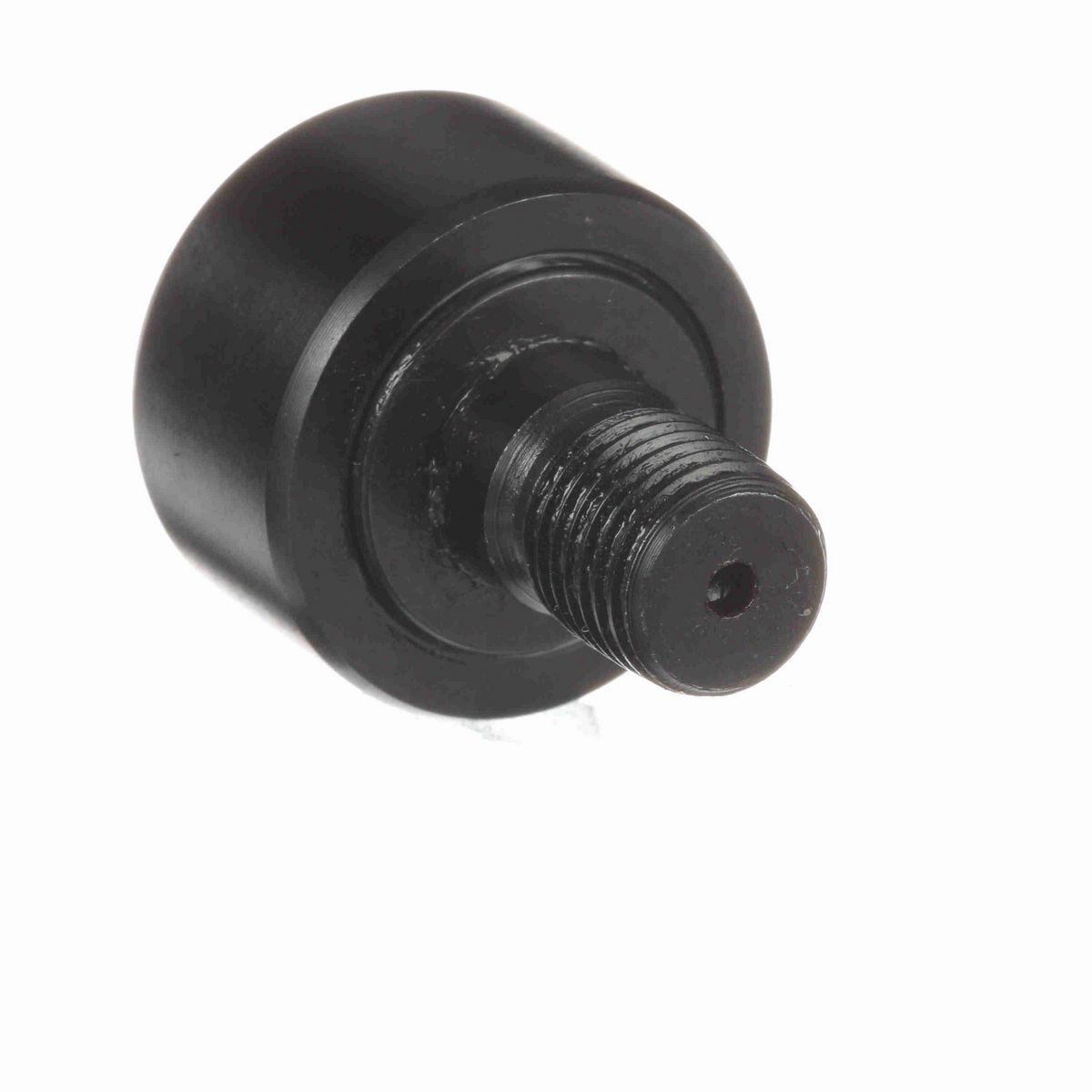

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole

Dimensions

Threads	3/8-24
Crown Radius	10
Roller Diameter (in)	0.875 in
Stud Diameter (in)	0.375 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.31 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.5 in
Stud Length (in)	0.875 in
Weight (kg)	0.04 kg

Technical Specifications

O.D. Configuration	Crowned
Rolling Element	Needle Roller - Full Complement
Adjustment	None
Sealing	Sealed
Series	Inch CAMROL®
Limiting Speed	6,400
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	2,065
Dynamic Load Rating (lb)	1,660 lb
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Crowned
Platform	CAMROL®
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes

General Specifications

UPC	726166045340
Weight	0.09 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
