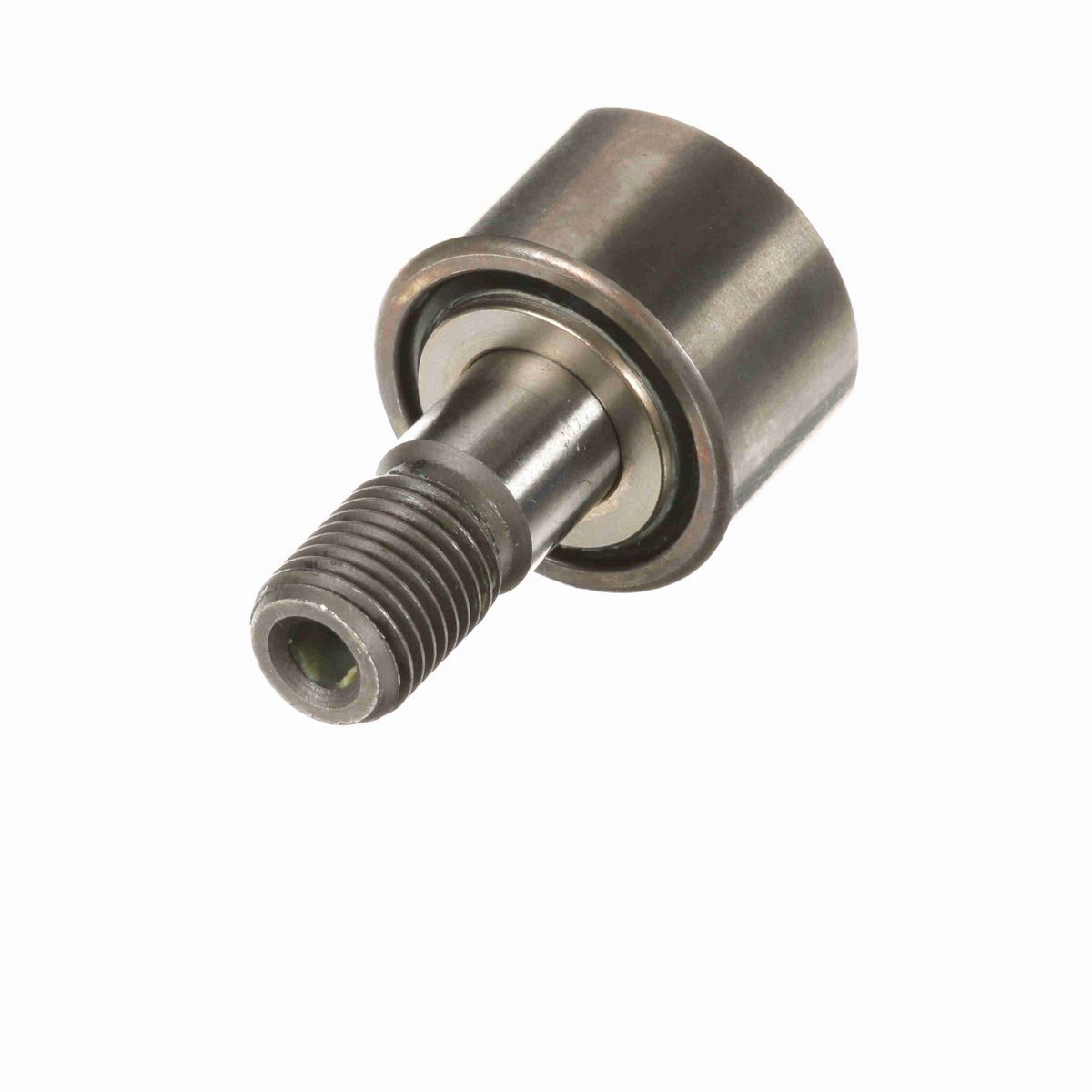

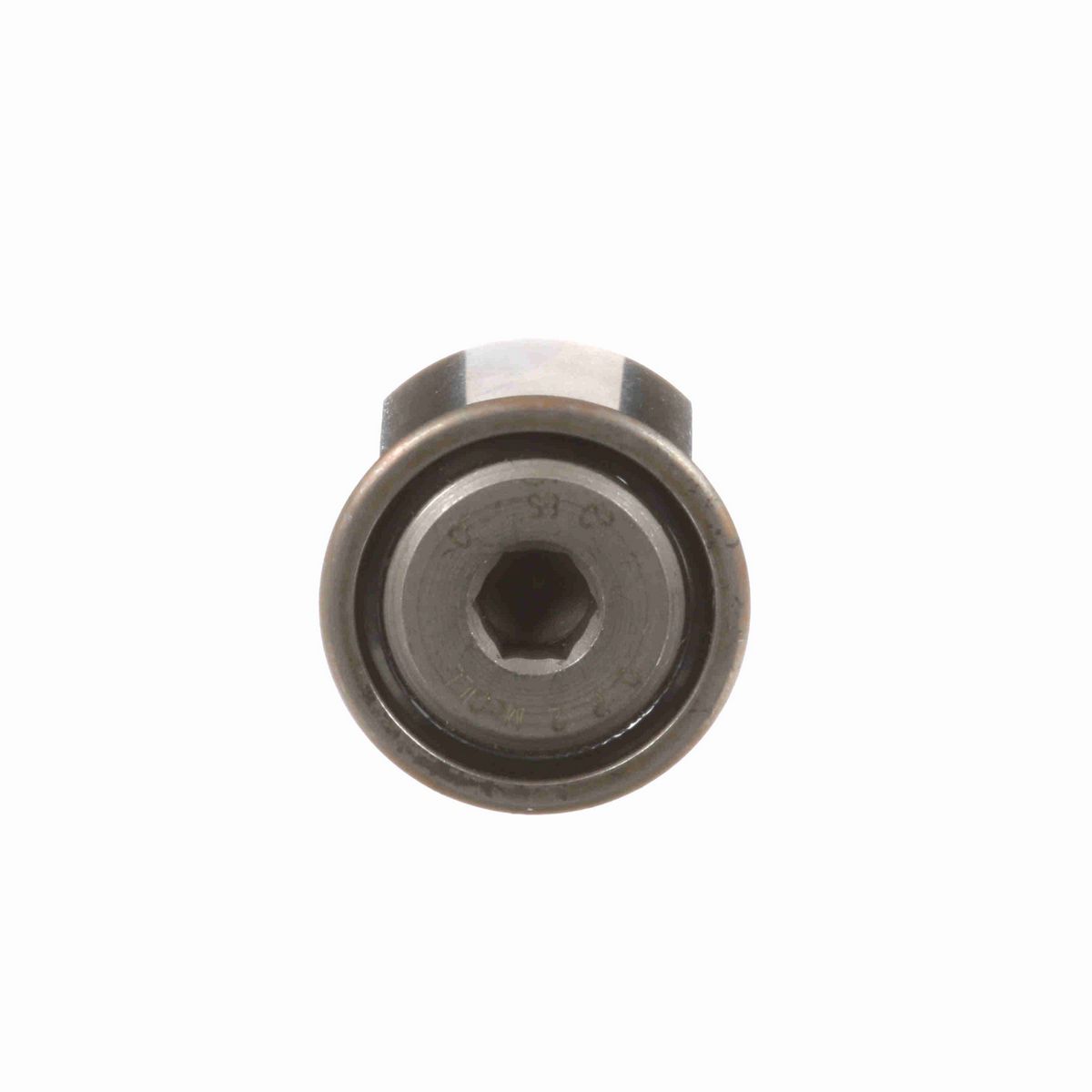

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal
• Corrosion resistant

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Oil Hole Diameter (in)	0.094 in
Oil Hole Center (in)	0.25 in
Stud Diameter (in)	0.4375 in
Lubrication Fitting Size (mm)	0.1875 mm
Minimum Thread Length (in)	0.5 in
Hex Socket (in)	0.25 in
Stud Length (in)	1 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.625 in
Weight (kg)	0.07 kg

Technical Specifications

Dynamic Radial Rating	1,800
Series	CRES CAMROL®
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Sealing	Sealed
Hex/Slot	Hex Hole
Limiting Speed	4,800
Adjustment	None
Material	440C Stainless Steel
Tolerance Class	P0 Equivalent
Roller Shape	Cylindrical
Platform	CAMROL®
Dynamic Load Rating (lb)	2,000 lb
Static Load Rating	3,060
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166118266
Weight	0.15 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
