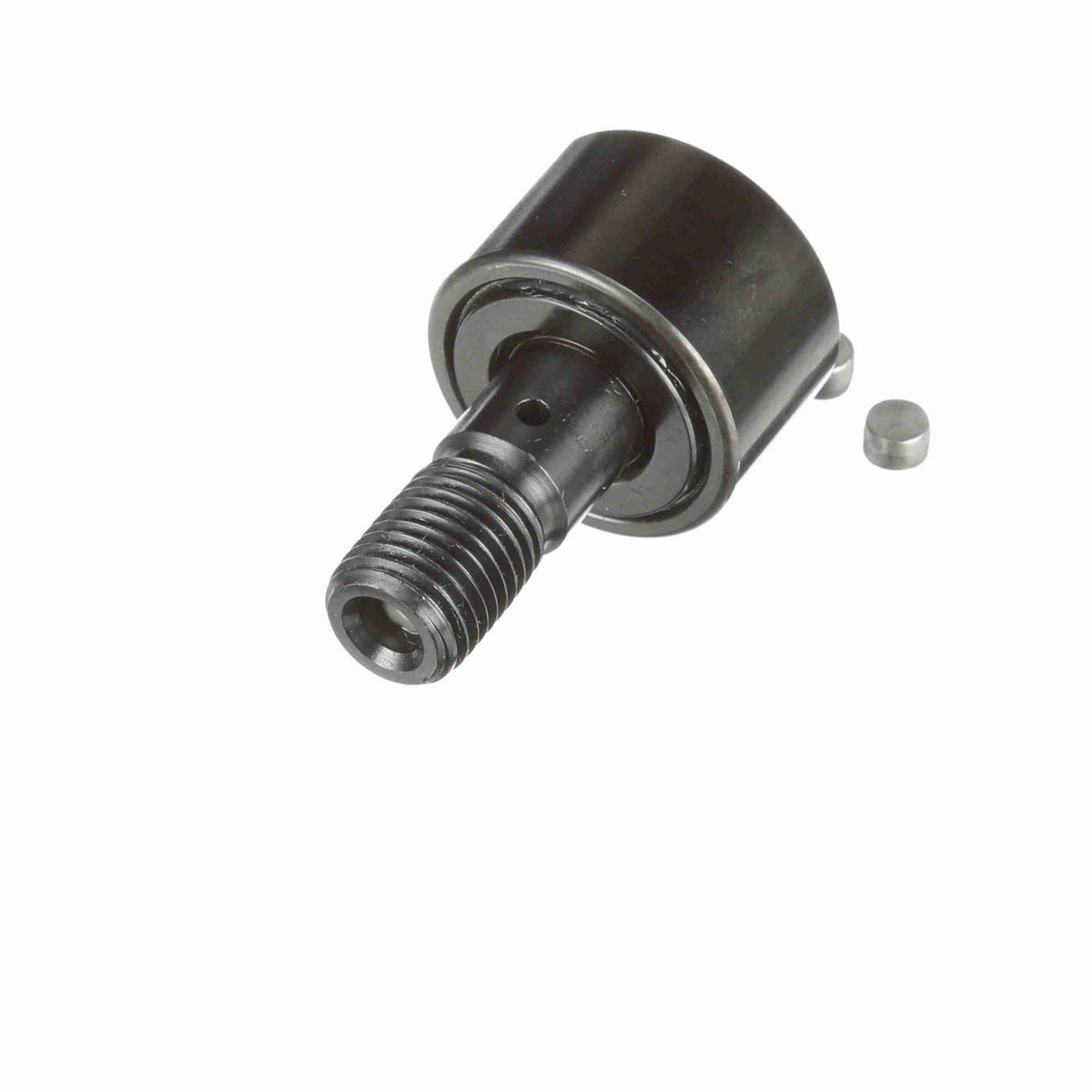

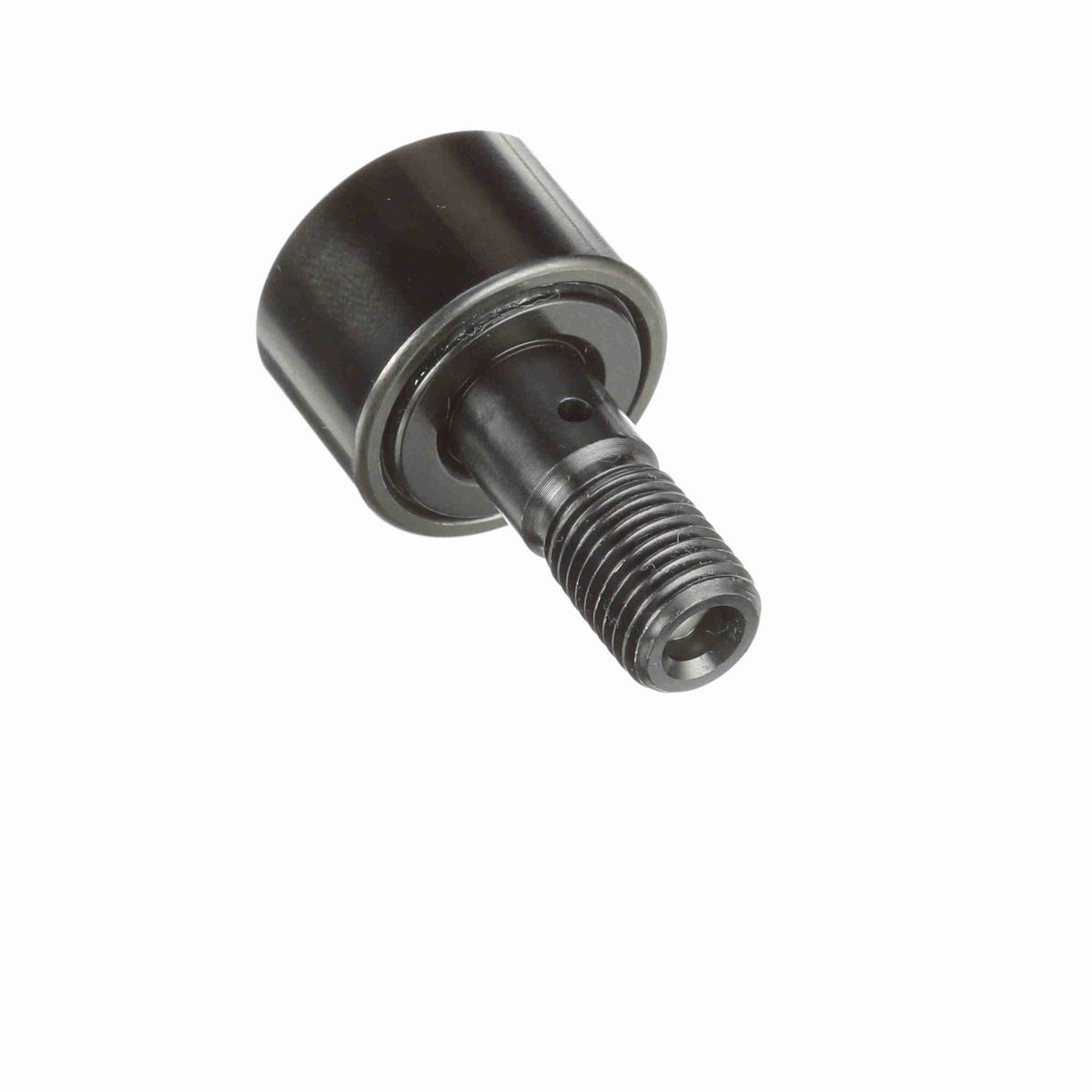

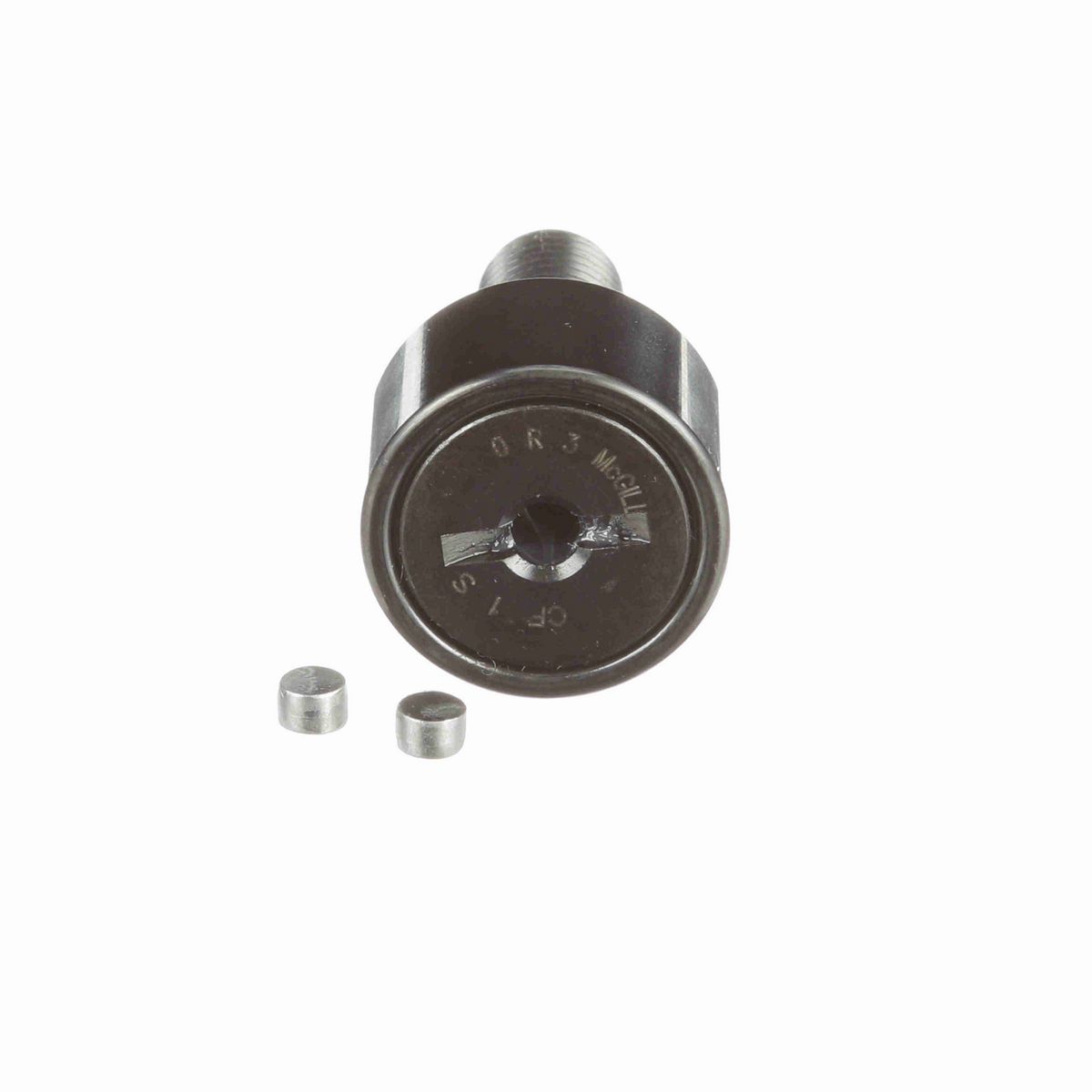

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.5 in
Stud Diameter (in)	0.4375 in
Stud Length (in)	1 in
Oil Hole Center (in)	0.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.625 in
Weight (kg)	0.08 kg

Technical Specifications

Limiting Speed	4,800
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
O.D. Configuration	Cylindrical
Hex/Slot	Screwdriver Slot
Dynamic Radial Rating	2,225
Adjustment	None
Series	Inch CAMROL®
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	3,060
Roller Shape	Cylindrical
Stud Type	Standard Stud
Dynamic Load Rating (lb)	2,225 lb
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	250 lbs

General Specifications

UPC	726166033132
Weight	0.17 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
