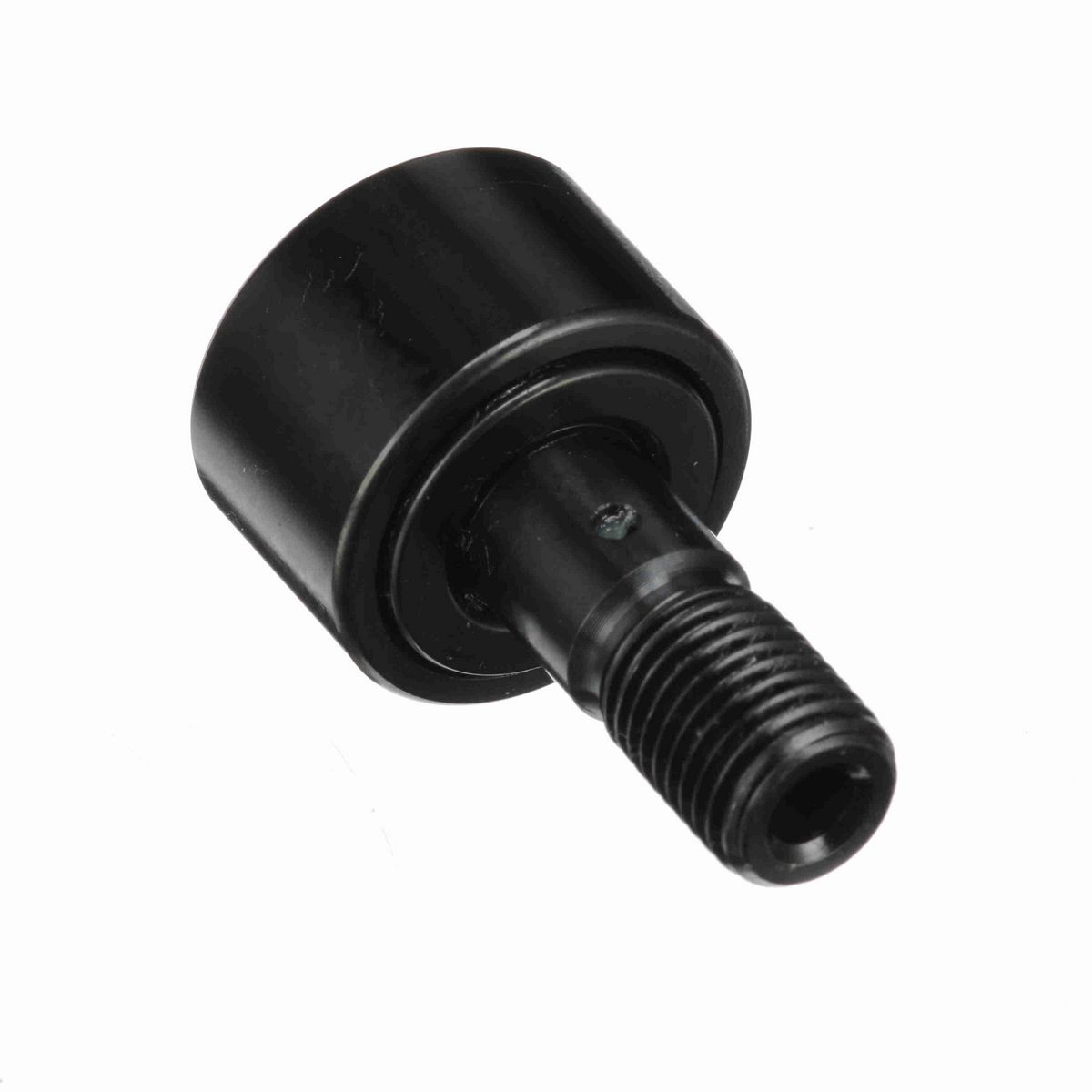

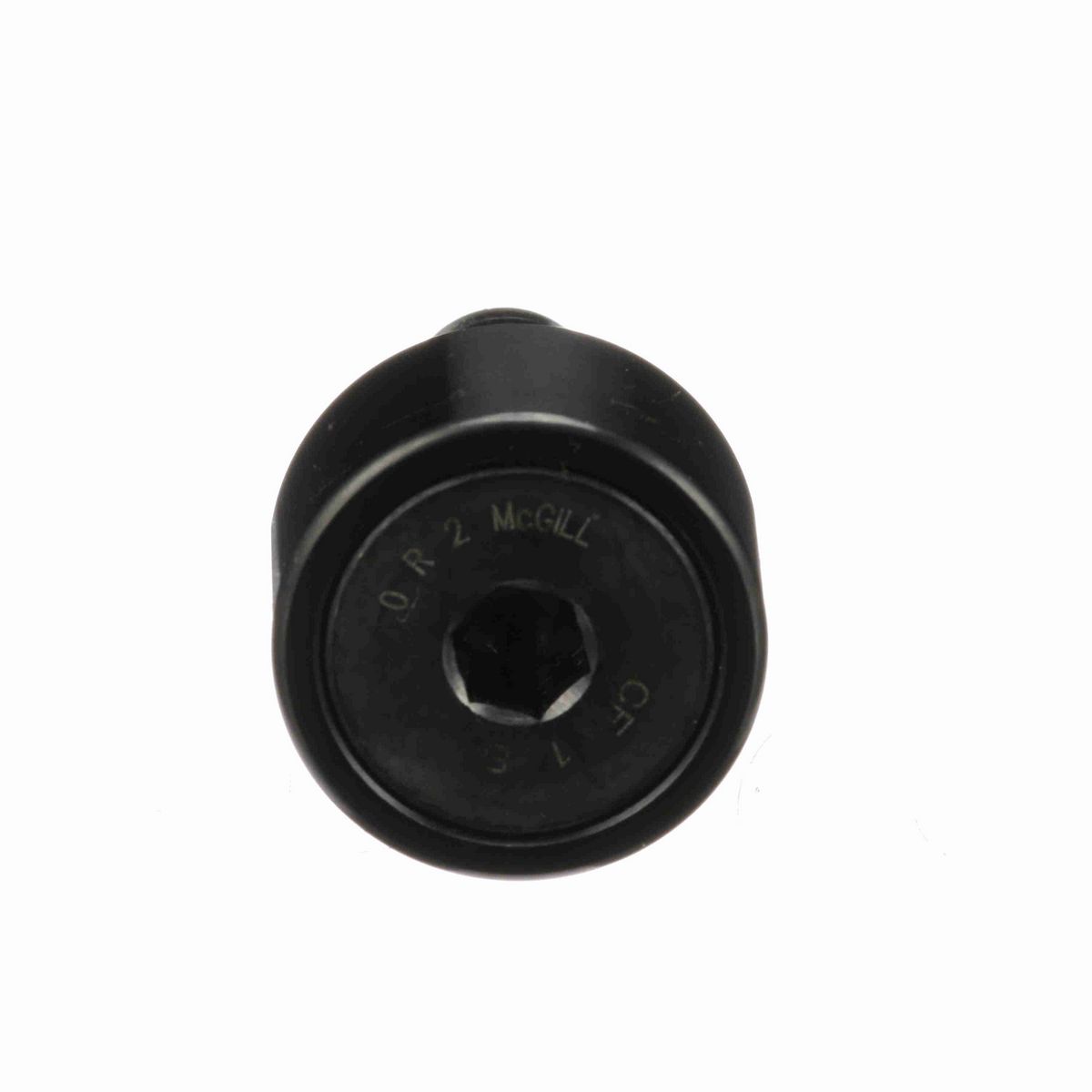

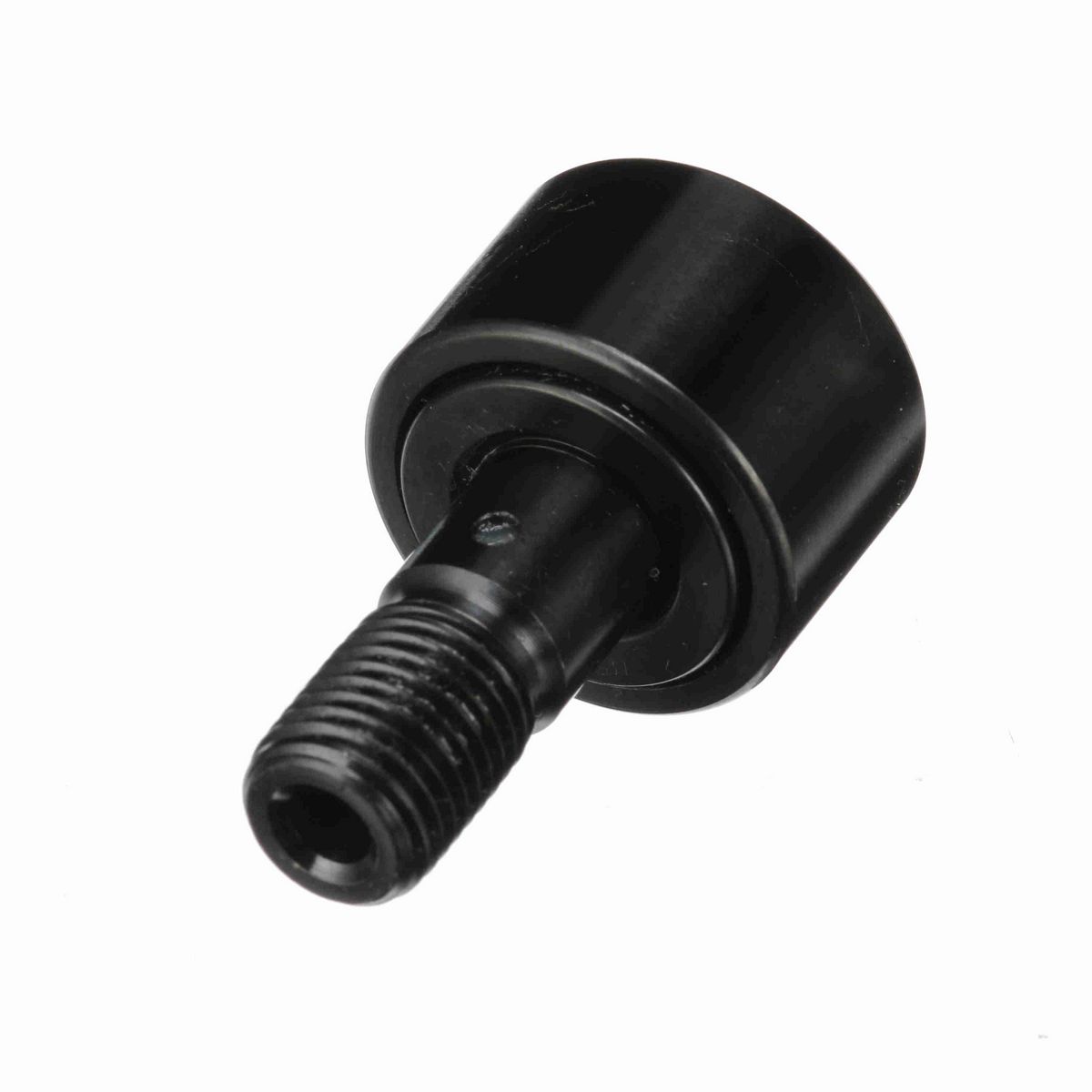

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Center (in)	0.25 in
Stud Diameter (in)	0.4375 in
Lubrication Fitting Size (in)	0.1875 in
Roller Width (in)	0.625 in
Hex Socket (in)	0.25 in
Oil Hole Diameter (in)	0.094 in
Minimum Thread Length (in)	0.5 in
Stud Length (in)	1 in
Weight (kg)	0.08 kg

Technical Specifications

Sealing	Unsealed
Limiting Speed	4,800
Dynamic Radial Rating	2,225
O.D. Configuration	Cylindrical
Series	Inch CAMROL®
Adjustment	None
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Static Load Rating	3,060
Roller Shape	Cylindrical
Dynamic Load Rating (lb)	2,225 lb
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166033118
Weight	0.18 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.40.0000
Country of Origin	Mexico
