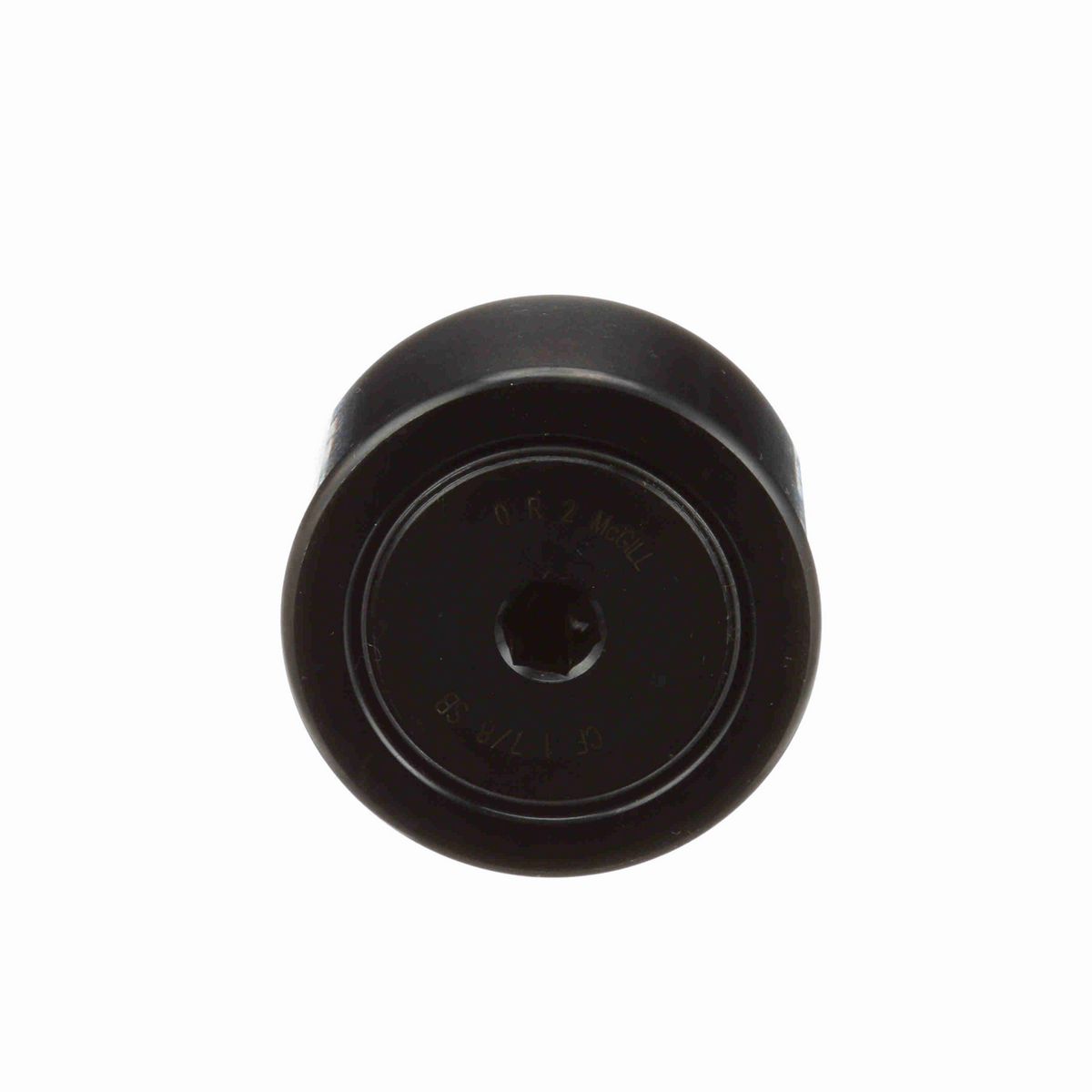

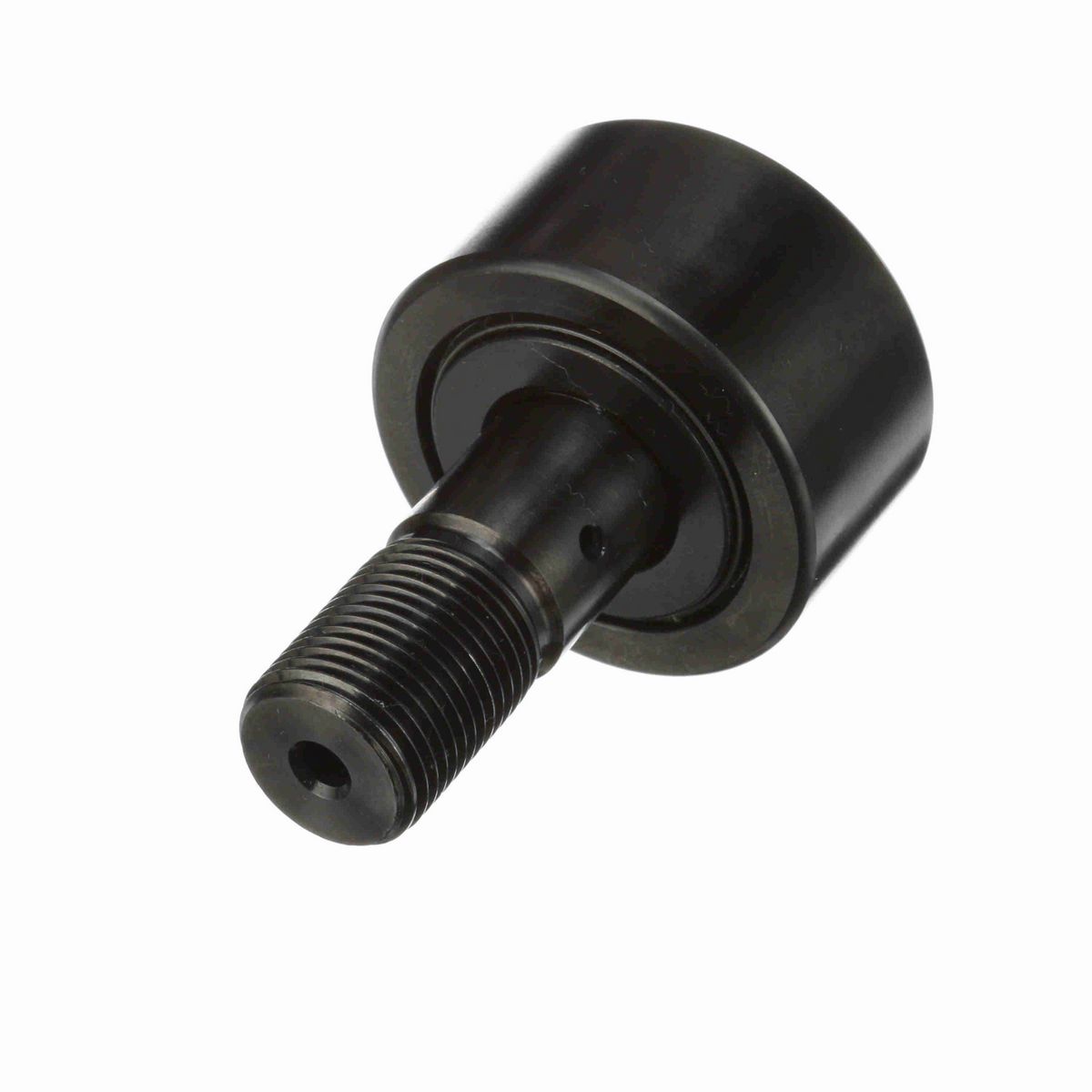

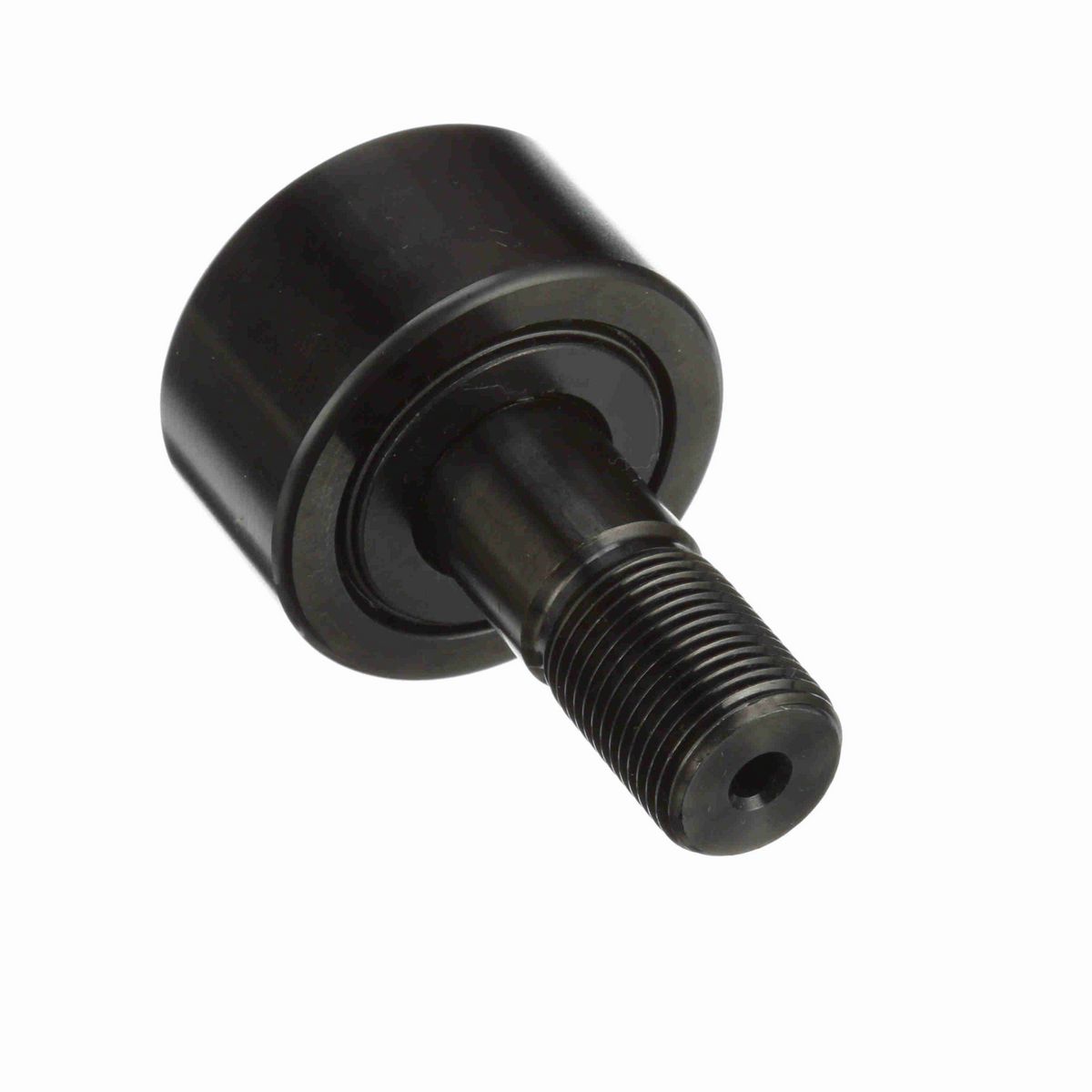

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.875 in
Lubrication Fitting Size (in)	0.1875 in
Minimum Thread Length (in)	0.88 in
Roller Width (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Hex Socket (in)	0.3125 in
Stud Diameter (in)	0.75 in
Stud Length (in)	1.75 in
Weight (kg)	0.4 kg

Technical Specifications

Dynamic Radial Rating	6,385
Rolling Element	Needle Roller - Full Complement
Hex/Slot	Hex Hole
Sealing	Sealed
Adjustment	None
Series	Inch CAMROL®
O.D. Configuration	Cylindrical
Limiting Speed	2,000
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Platform	CAMROL®
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	6,385 lb
Static Load Rating	6,000
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166036973
Weight	0.89 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
