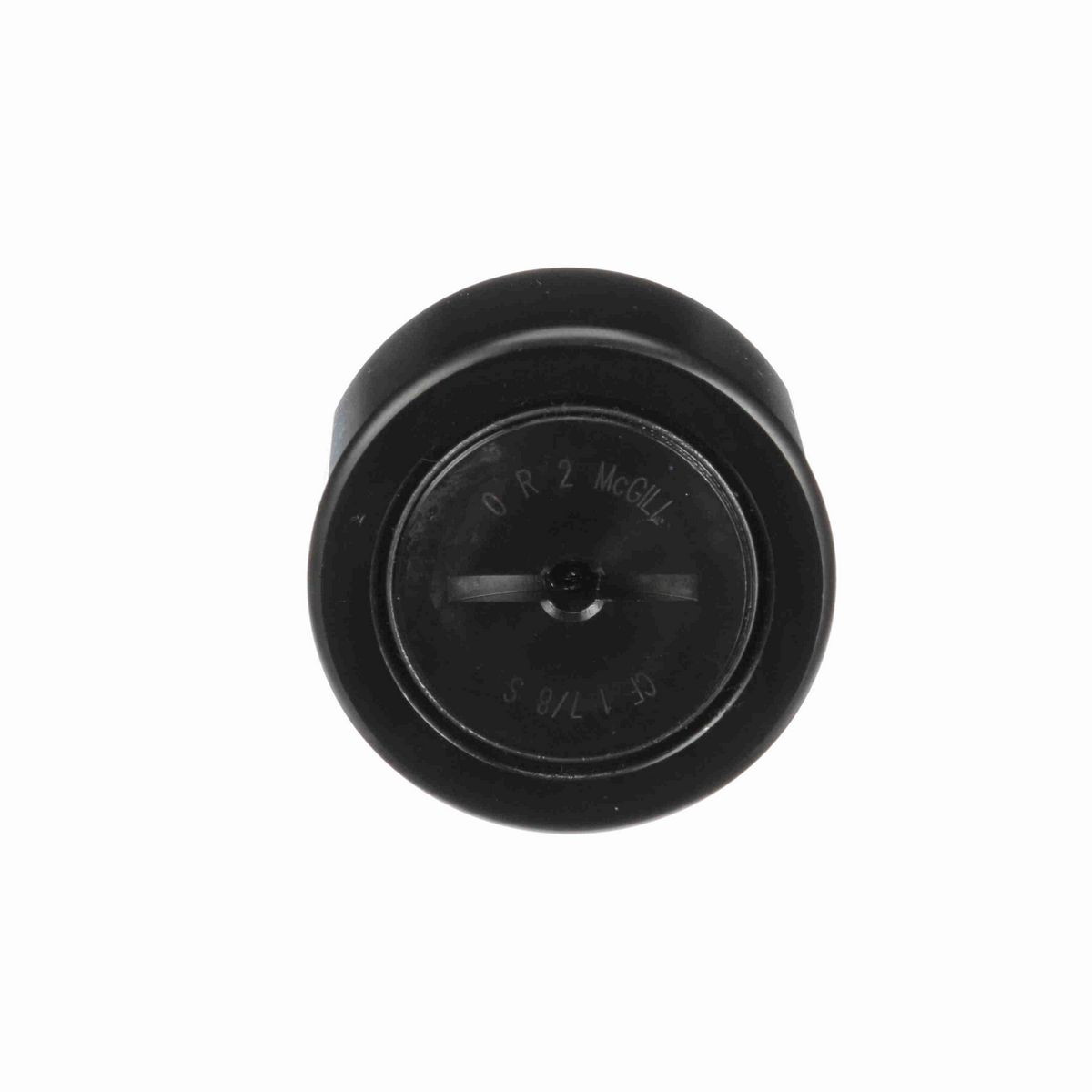

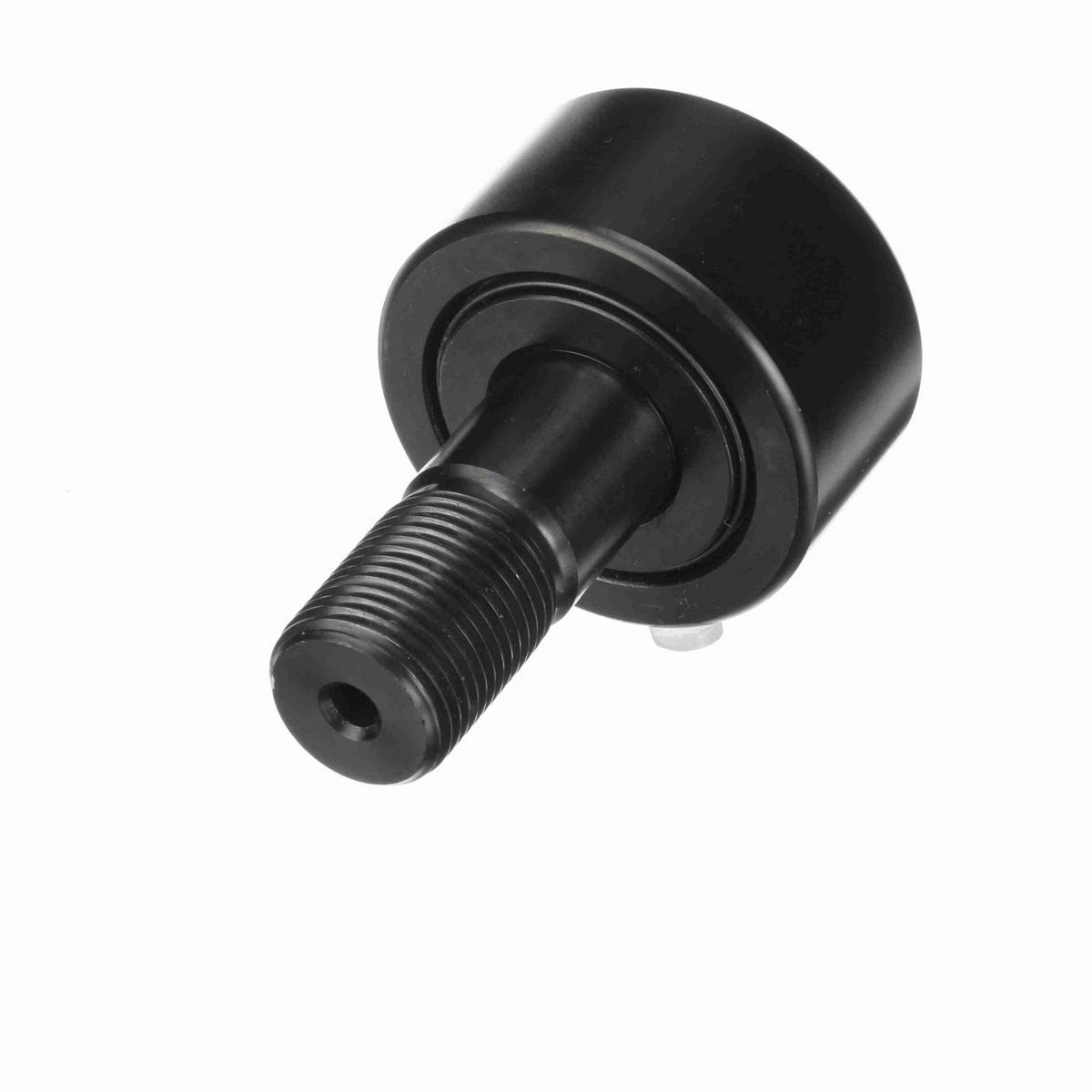

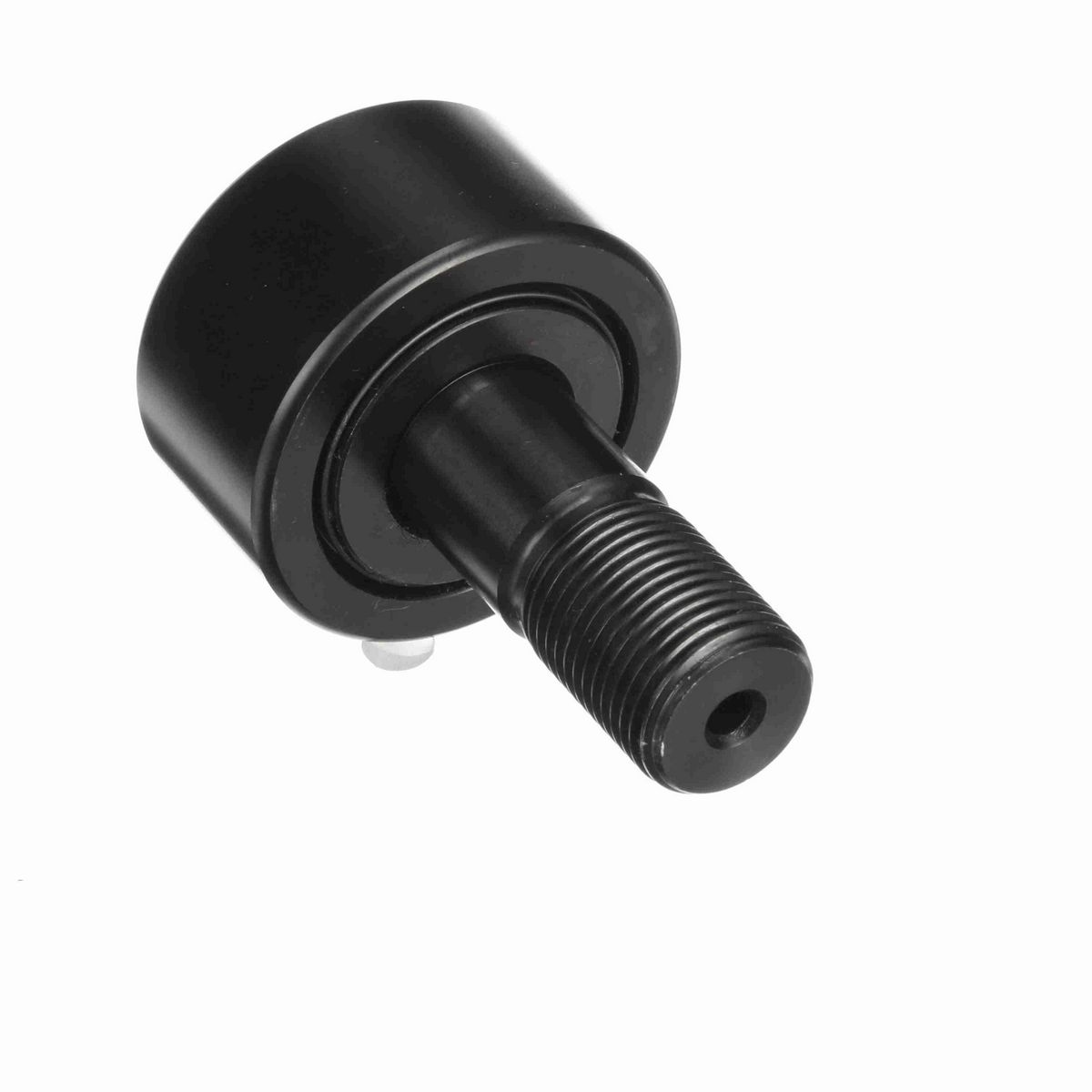

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.875 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Diameter (in)	0.75 in
Minimum Thread Length (in)	0.88 in
Oil Hole Center (in)	0.4375 in
Lubrication Fitting Size (in)	0.1875 in
Stud Length (in)	1.75 in
Roller Width (in)	1 in
Weight (kg)	0.42 kg

Technical Specifications

Dynamic Radial Rating	6,385
Series	Inch CAMROL®
Hex/Slot	Screwdriver Slot
Limiting Speed	2,000
Rolling Element	Needle Roller - Full Complement
O.D. Configuration	Cylindrical
Adjustment	None
Sealing	Sealed
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Static Load Rating	7,920
Platform	CAMROL®
Dynamic Load Rating (lb)	6,385 lb
Roller Shape	Cylindrical
Stud Type	Standard Stud
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166036911
Weight	0.93 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
