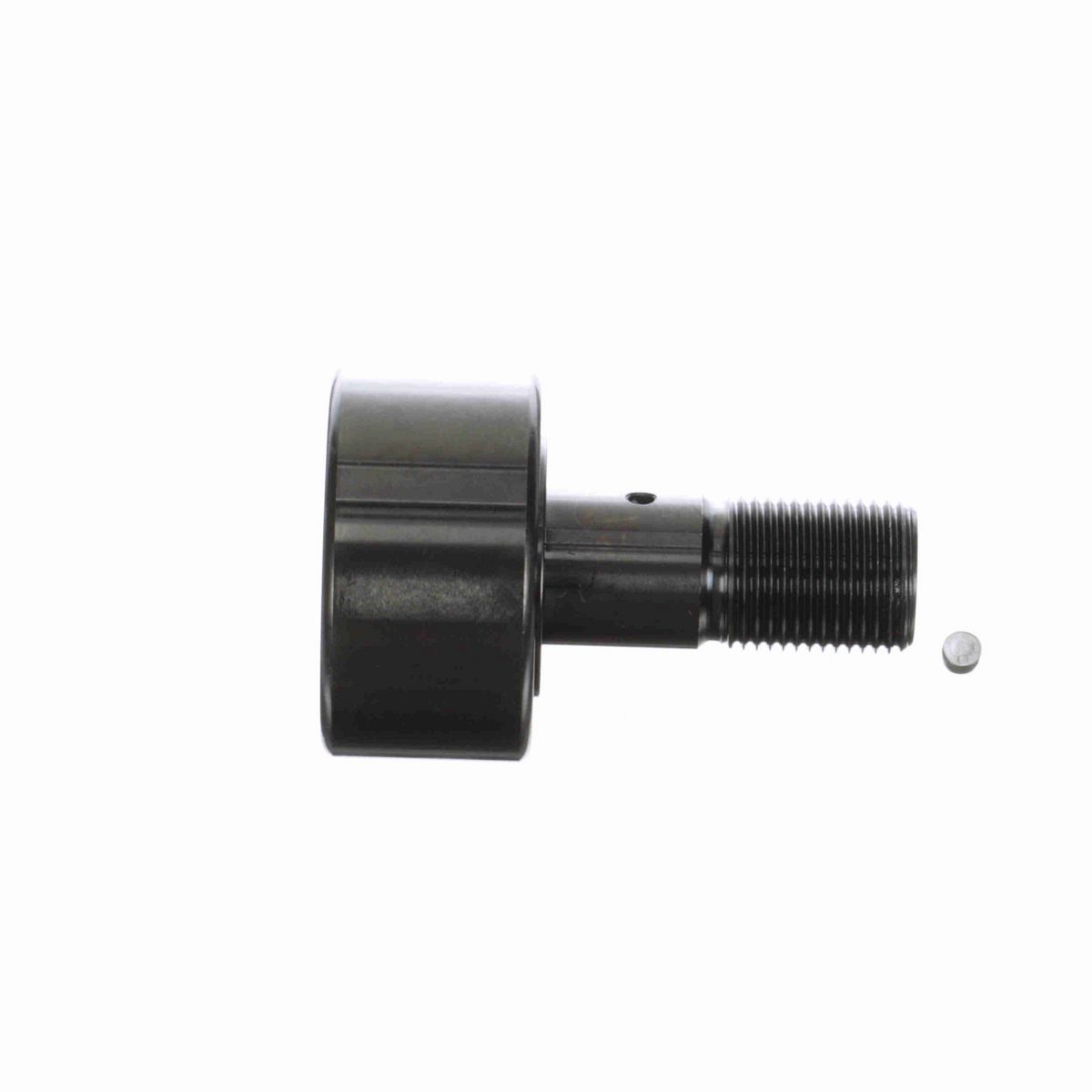

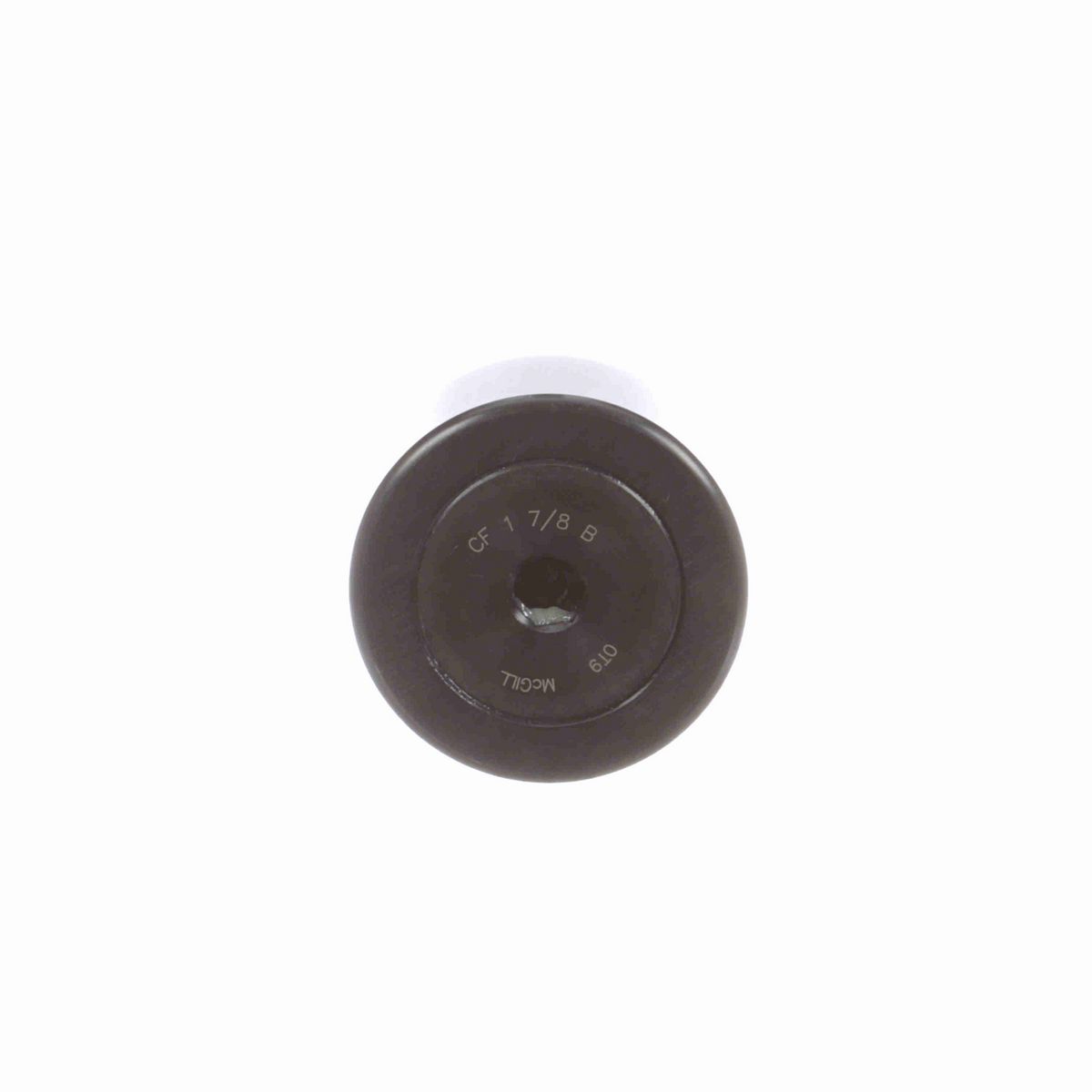

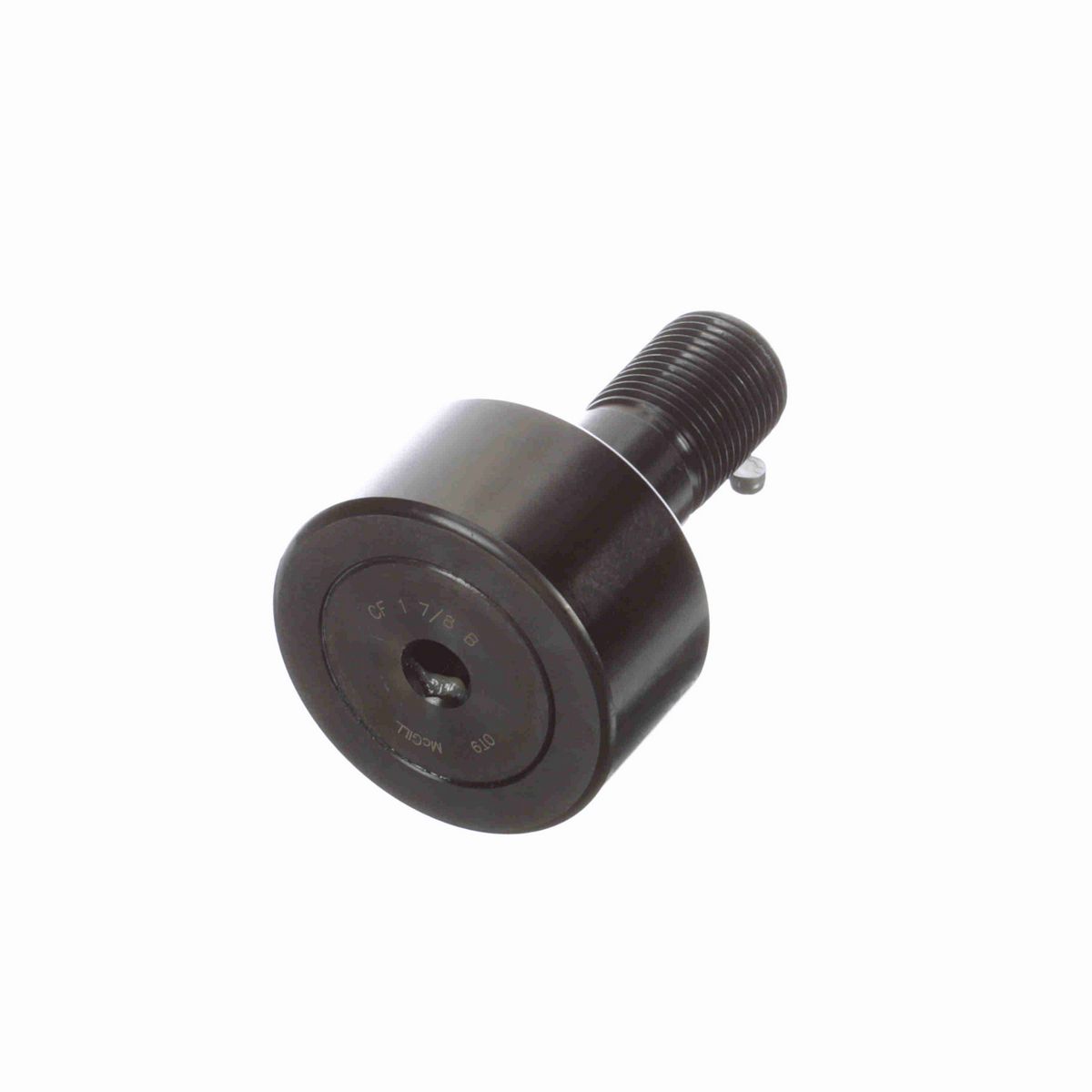

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements
• Hex hole

Dimensions

Threads	3/4-16
Roller Diameter (in)	1.875 in
Stud Diameter (in)	0.75 in
Minimum Thread Length (in)	0.88 in
Roller Width (in)	1 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	1.75 in
Lubrication Fitting Size (in)	0.1875 in
Hex Socket (in)	0.3125 in
Weight (kg)	0.62 kg

Technical Specifications

Hex/Slot	Hex Hole
Limiting Speed	2,000
Sealing	Unsealed
O.D. Configuration	Cylindrical
Adjustment	None
Series	Inch CAMROL®
Rolling Element	Needle Roller - Full Complement
Dynamic Radial Rating	6,385
Material	Bearing Steel, Black Oxide Finish
Roller Shape	Cylindrical
Static Load Rating	6,000
Platform	CAMROL®
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Dynamic Load Rating (lb)	6,385 lb
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	1,250 lbs

General Specifications

UPC	726166036904
Weight	1.37 LB
Packaged Length	2.00 IN
Packaged Width	2.00 IN
Packaged Height	2.87 IN
HTC	8482.40.0000
Country of Origin	Mexico
